IFL-M8-F-2-S30-11-P-ST4M8

Item number: 103056905

NEW

IFL-M8-F-2-S30-11-P-ST4M8

Item number: 103056905

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Amount

Product type description:
IFL-(1)-(2)-(3)-(4)-(5)-(6)-(7)

(1)
M8	M8 thread size
M12	M12 thread size
M18	M18 thread size
M30	M30 thread size

(2)
F	Flush
NF	Not flush

(3)
2	Switching distance 2 mm
4	Switching distance 4 mm
5	Switching distance 5 mm
8	Switching distance 8 mm
10	Switching distance 10 mm
14	Switching distance 14 mm
15	Switching distance 15 mm
22	Switching distance 22 mm

(4)
S30	Short enclosure with 30 mm thread length
L45	Longer enclosure with 45 mm thread length
L50	Longer enclosure with 50 mm thread length

(5)
11	NC / NO contact

(6)
P	PNP
N	NPN

(7)
L4	4-wire cable, length 2.00 m
ST4M8	M8 connector plug:
ST4M12	M12 connector plug:

Note:
Not all component variants, which are possible according to this order code are available and/or technically feasible.

Not all component variants, which are possible according to this order code are available and/or technically feasible.

Stainless steel enclosure
DC 4-wire
Connector M8
Design M8 x 1
Ambient temperature −25 … +80 °C
With integrated diagnostic LED to indicate short circuit or overload

Ordering data

Product type description	IFL-M8-F-2-S30-11-P-ST4M8
Article number (order number)	103056905
EAN (European Article Number)	4030661649863
eCl@ss number, version 12.0	27-27-40-01
eCl@ss number, version 11.0	27-27-01-01
eCl@ss number, version 9.0	27-27-01-01
ETIM number, version 7.0	EC002714
ETIM number, version 6.0	EC002714

Approvals - Standards

Certificates	cULus

General data

Standards	EN IEC 60947-5-2 EN IEC 63000
Housing construction form	Cylinder, thread
Installation conditions (mechanical)	flush
Housing material	Stainless steel
Active area	Glass-fibre, thermoplastic
Material of the nuts	Stainless steel
Gross weight	14 g

General data - Features

Integral system diagnostics, status	Yes
Integral system diagnostics	Yes

Mechanical data

Tightening torque of nuts, maximum	7 Nm

Mechanical data - Switching distances

Nominal switching distance S_n	2 mm
Note (Switching distance Sn)	The specified switching distance is reduced when detecting metals other than Fe360.
Note (switching distance)	All switching distances in accordance EN IEC 60947-5-2
Hysteresis (Switching distance), maximum	0.4 mm
Repeat accuracy R	0.1 mm
Assured operating distance S_a, maximum	1.62 mm

Mechanical data - Connection technique

Termination	Connector M8, 4-pole, A-coded

Mechanical data - Dimensions

ISO thread of the sensor	M8
width across flats	13 BK
Length of sensor	40 mm

Ambient conditions

Degree of protection	IP67
Ambient temperature	-25 ... +80 °C
Storage and transport temperature	-30 ... +80 °C
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Restistance to shock	30 g / 11 ms

Ambient conditions - Insulation values

Rated impulse withstand voltage U_imp, semiconductor output	1 kV

Electrical data

Operating voltage	10 ... 36 VDC
Ripple voltage	10 %
Type of voltage range	DC
Rated operating voltage	10 ... 36 VDC
Protection circuit integrated	Protection against polarity reversal Surge protection Max. fuse rating
Time to readiness, maximum	20 ms
Switching frequency, maximum	2,000 Hz
Switching element	NO contact and NC contact (antivalent)
No-load supply current I₀, maximum	15 mA

Electrical data - Digital Output

Output current, maximum	200 mA
Voltage drop U_d, maximum	1.6 V
Current at Voltage drop U_d	0.2 A
Design of control elements	p-type
Current leakage I_r, maximum	0.05 mA

Electrical data - Electromagnetic compatibility (EMC)

Electromagnetic compatibility	EN IEC 60947-5-2

Status indication

Colour of the LED	Yellow
Note (LED switching conditions display)	LED flashes (f = 2 Hz) in the event of a short circuit or overload
Indicated operating states	fault indication switching condition

Pin assignment

Connection	Sensor connection
PIN 1	Power supply
PIN 2	NC contacts
PIN 3	GND
PIN 4	NO contacts

Scope of delivery

Scope of delivery of mounting material	2x Nuts

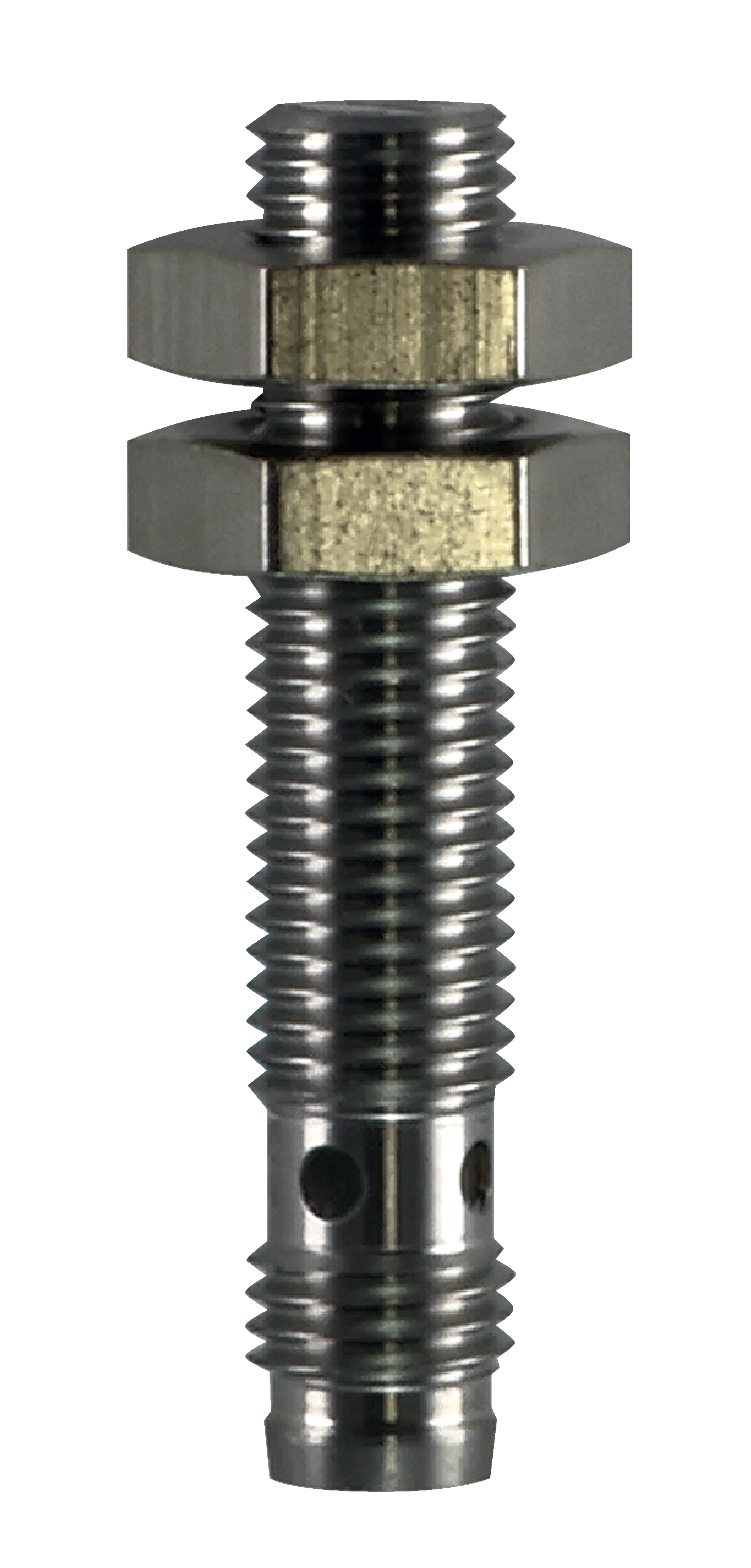

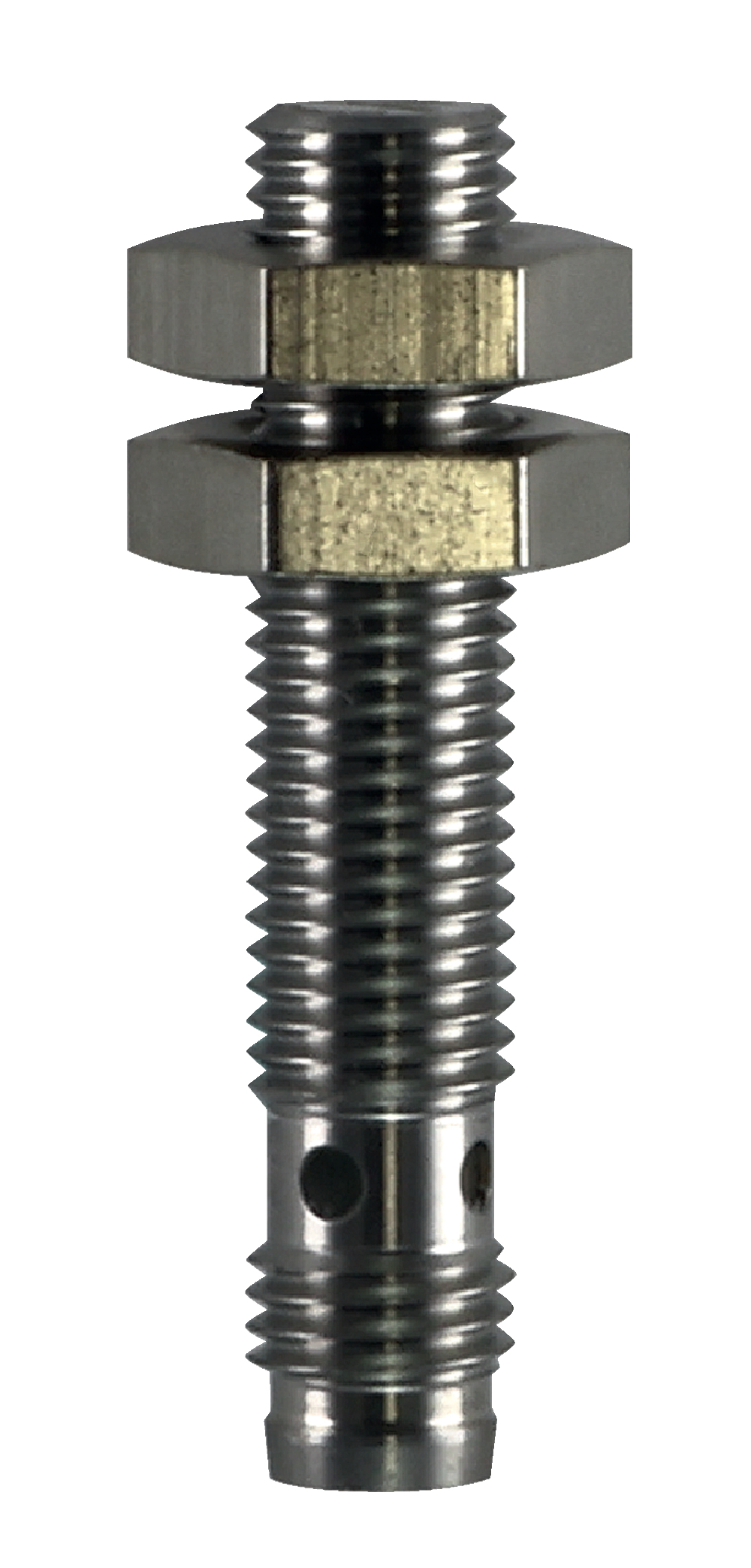

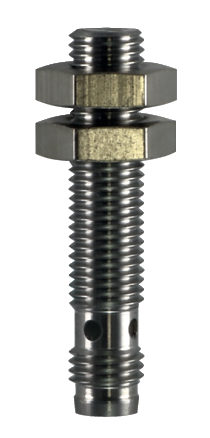

Product picture (catalogue individual photo)

ID: kiflm8f03

| 559.0 kB | .jpg | 352.778 x 736.2470000000001 mm - 1000 x 2087 px - 72 dpi

| 28.0 kB | .jpg | 59.267 x 123.47200000000001 mm - 168 x 350 px - 72 dpi

| 26.3 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 6.6 MB | .png | 169.333 x 353.399 mm - 2000 x 4174 px - 300 dpi

| 107.1 kB | .png | 74.083 x 154.517 mm - 210 x 438 px - 72 dpi

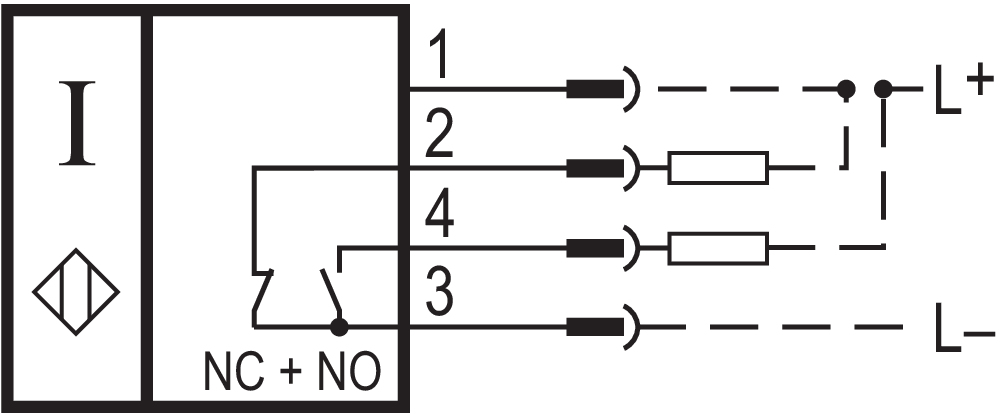

Diagram

Information on diagram
ICO_LEG_ko-arrow4 Monitoring the interlock to EN ISO 14119
ICO_LEG_ko-arrow1 Positive break NC contact
ICO_LEG_ko-arrow2 Actuated
ICO_LEG_ko-arrow3 Not actuated
ICO_LEG_ko-open Normally-open contact
ICO_LEG_ko-close Normally-closed contact

ID: id4sk16

| 37.0 kB | .cdr |

| 54.7 kB | .jpg | 352.778 x 146.756 mm - 1000 x 416 px - 72 dpi

| 2.7 kB | .png | 74.083 x 30.692 mm - 210 x 87 px - 72 dpi

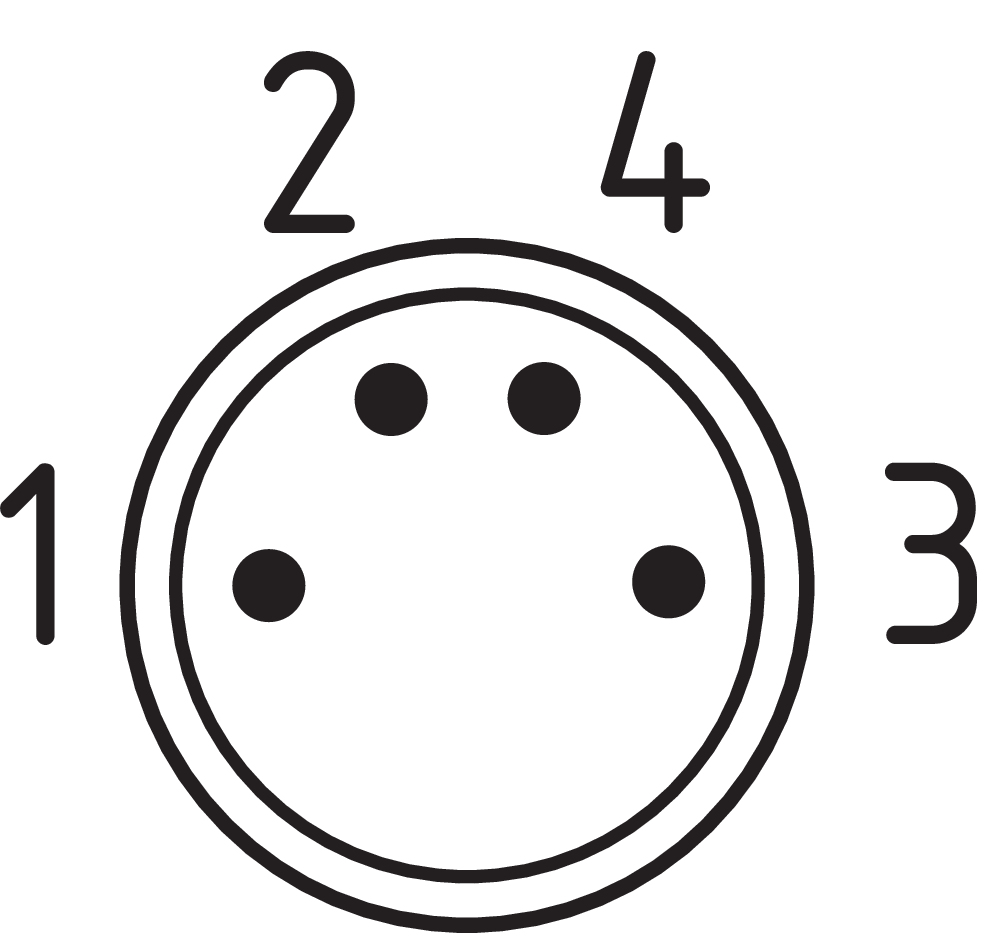

Contact arrangement

ID: km8--k4c

| 7.4 kB | .png | 74.083 x 69.497 mm - 210 x 197 px - 72 dpi

| 112.7 kB | .jpg | 352.778 x 330.906 mm - 1000 x 938 px - 72 dpi

EU Conformity Declaration

Pdf

EU Declaration of Conformity

Original

K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com

Declaration:

We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.

Name of the component:

IFL-M8… / IFL-M12… /
IFL-M18… / IFL-M30…

Type:

See ordering code

Description of the component:

Inductive proximity switch

Relevant Directives:	Low Voltage Directive	2014/35/EU
	EMC-Directive	2014/30/EU
	RoHS-Directive	2011/65/EU

Applied standards:

EN IEC 60947-5-2:2020
EN IEC 63000:2018

Person authorised for the compilation of the technical documentation:

Oliver Wacker
Möddinghofe 30
42279 Wuppertal

Place and date of issue:

Wuppertal, October 21, 2025

Authorised signature
Philip Schmersal
Managing Director

Schmersal Ltd., Sparrowhawk Close, WR14 1GL Malvern

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
