IFL 10-180L-10P-1665-1 10-60V

Item number: 101139668

IFL 10-180L-10P-1665-1 10-60V

Item number: 101139668

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Product type description:

IFL (1)-(2)(3)-(4)(5)(6)(7)-(8)

(1)
5	Switching distance 5 mm
8	Switching distance 8 mm
10	Switching distance 10 mm

(2)
18	Cylinder, thread M18, metal
180	Cylinder, thread M18, plastic

(3)
1	Standard body
M	Miniature body
L	Long design

(4)
01	Opener (NC)
10	Normally open contact (NO)
10/01	NO contact / NC contact with wiring compartment
11	1 NO contact / 1 NC contact antivalent

(5)
1	Cable
ST	Male connector
T	Conductor with strain relief
A	Alternating current/direct current AC/DC
D	DC 2-wire

(6)
1	Standard connector version
2	Alternative conector version

(7)
N	n-type
P	p-type

(8)
2033	Stainless steel enclosure
2130	Can be used up to +130 C, without LED switching conditions display

Not all component variants, which are possible according to this order code are available and/or technically feasible.

Design M 18 x 1

Ordering data

Product type description	IFL 10-180L-10P-1665-1 10-60V
Article number (order number)	101139668
EAN (European Article Number)	4030661282213
eCl@ss number, version 12.0	27-27-40-01
eCl@ss number, version 11.0	27-27-01-01
eCl@ss number, version 9.0	27-27-01-01
ETIM number, version 7.0	EC002714
ETIM number, version 6.0	EC002714

Approvals - Standards

Certificates	CCC

General data

Standards	DIN VDE 0660-208 EN IEC 60947-5-2
Housing construction form	Cylinder, thread
Installation conditions (mechanical)	not flush
Housing material	Plastic
Active area	Plastic
Material of the nuts	Plastic
Material of the washer	Perbunan
Gross weight	95 g

General data - Features

Integral system diagnostics, status	Yes
Cable sleeve	No
Number of cable wires	3

Mechanical data

Tightening torque of nuts, maximum	3 Nm

Mechanical data - Switching distances

Switching distance S_n	10 mm
Nominal switching distance S_n	10 mm
Note (switching distance)	All switching distances in accordance EN IEC 60947-5-2

Mechanical data - Connection technique

Length of cable	2 m
Termination	Cable
Number of cable wires	3
Wire cross-section	0.25 mm²

Mechanical data - Dimensions

Diameter of sensor	18 mm
ISO thread of the sensor	M18x1
width across flats	24 BK
Length of sensor	79 mm
Diameter of the Mounting clamp	M18x1

Ambient conditions

Degree of protection	IP67
Ambient temperature	-25 ... +70 °C
Resistance to vibrations	10 … 55 Hz, amplitude 1 mm
Restistance to shock	30 g / 11 ms
Protection class	II

Electrical data

Operating voltage	10 ... 60 VDC
Type of voltage range	DC
No-load supply current I₀, typical	5.5 mA
Rated operating voltage	10 ... 60 VDC
Operating current	400 mA
Switching element	Normally open contact (NO)
Protection circuit integrated	inductive interference protection Protection against polarity reversal Max. fuse rating
Switching frequency, approx.	3,500 Hz

Electrical data - Digital Output

Voltage drop U_d, maximum	1 V
Current at Voltage drop U_d	0.3 A
Design of control elements	p-type

Status indication

Note (Integral System Diagnostics, status )	yellow LED

Product picture (catalogue individual photo)

ID: kifl1f23

| 244.0 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi

| 35.2 kB | .png | 74.083 x 111.125 mm - 210 x 315 px - 72 dpi

| 15.6 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 2.6 MB | .png | 169.249 x 254 mm - 1999 x 3000 px - 300 dpi

| 19.5 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi

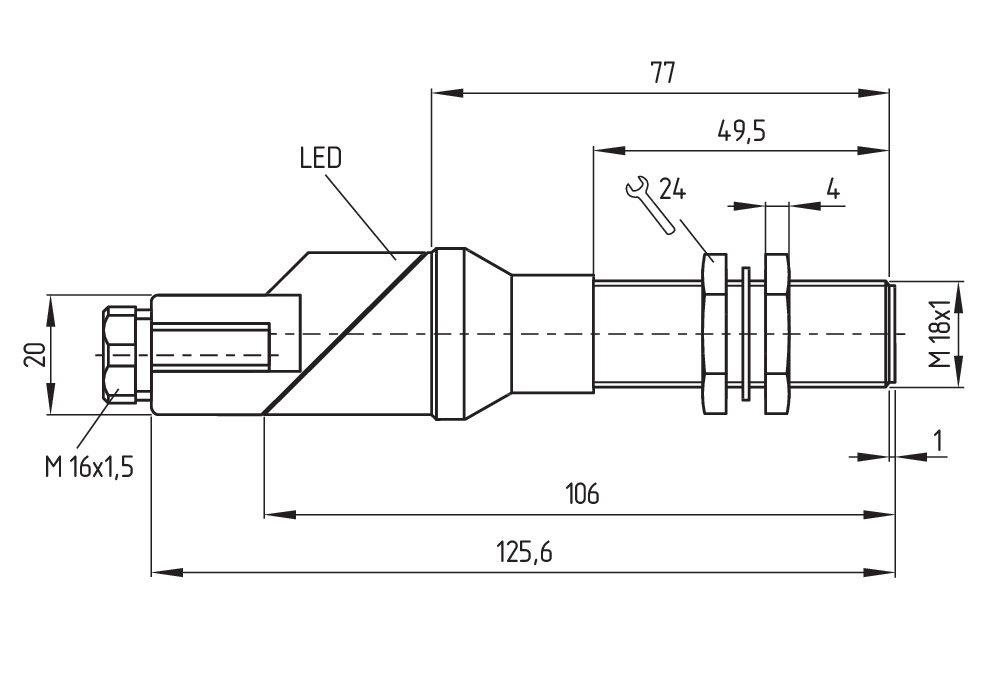

Dimensional drawing basic component

ID: 1ifl1g24

| 24.0 kB | .cdr |

| 3.7 kB | .png | 74.083 x 51.153000000000006 mm - 210 x 145 px - 72 dpi

| 82.6 kB | .jpg | 352.778 x 243.769 mm - 1000 x 691 px - 72 dpi

Diagram

Information on diagram
ICO_LEG_ko-arrow4 Monitoring the interlock to EN ISO 14119
ICO_LEG_ko-arrow1 Positive break NC contact
ICO_LEG_ko-arrow2 Actuated
ICO_LEG_ko-arrow3 Not actuated
ICO_LEG_ko-open Normally-open contact
ICO_LEG_ko-close Normally-closed contact

ID: id3lk05

| 31.7 kB | .cdr |

| 48.6 kB | .jpg | 352.778 x 146.756 mm - 1000 x 416 px - 72 dpi

| 2.3 kB | .png | 74.083 x 30.692 mm - 210 x 87 px - 72 dpi

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
