MV8H 015-11Y
MV8H 015-11Y
Downloads
- 3 Cable entry M 20 x 1.5
- Metal enclosure
- 2 Contacts
- 67 mm x 75 mm x 43 mm ( basic component)
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
MV8H 015-11Y |
| Article number (order number) |
101058472 |
| EAN (European Article Number) |
4030661032627 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Castor |
| Housing material |
Light-alloy diecast, paint finish |
| Housing coating material |
painted |
| Gross weight |
341 g |
General data - Features
| Number of normally closed (NC) |
1 |
| Number of normally open (NO) |
1 |
| Number of switching stages |
2 |
Mechanical data
| Actuating element |
Roller lever |
| Roller material |
Plastic |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating angle, from left of switch axis |
30 ° |
| Actuating angle, from right of switch axis |
30 ° |
| Contact opening |
2 x 1.2 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
3 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
| Actuating torque |
0.2 Nm |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
43 mm |
| Width of sensor |
67 mm |
| Height of sensor |
126 mm |
| Width of Castor |
8.5 mm |
| Diameter of Castor |
20 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +90 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
500 V |
Electrical data
| Thermal test current |
10 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
2.5 A |
| Switching element |
NO contact, NC contact |
| Note (Switching element) |
galvanically separated contact bridges |
| Switching principle |
Snap action |
| Bounce duration, maximum |
2.5 ms |
| Switchover time, maximum |
40 ms |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
CCC certification
Download the latest version of Adobe Reader

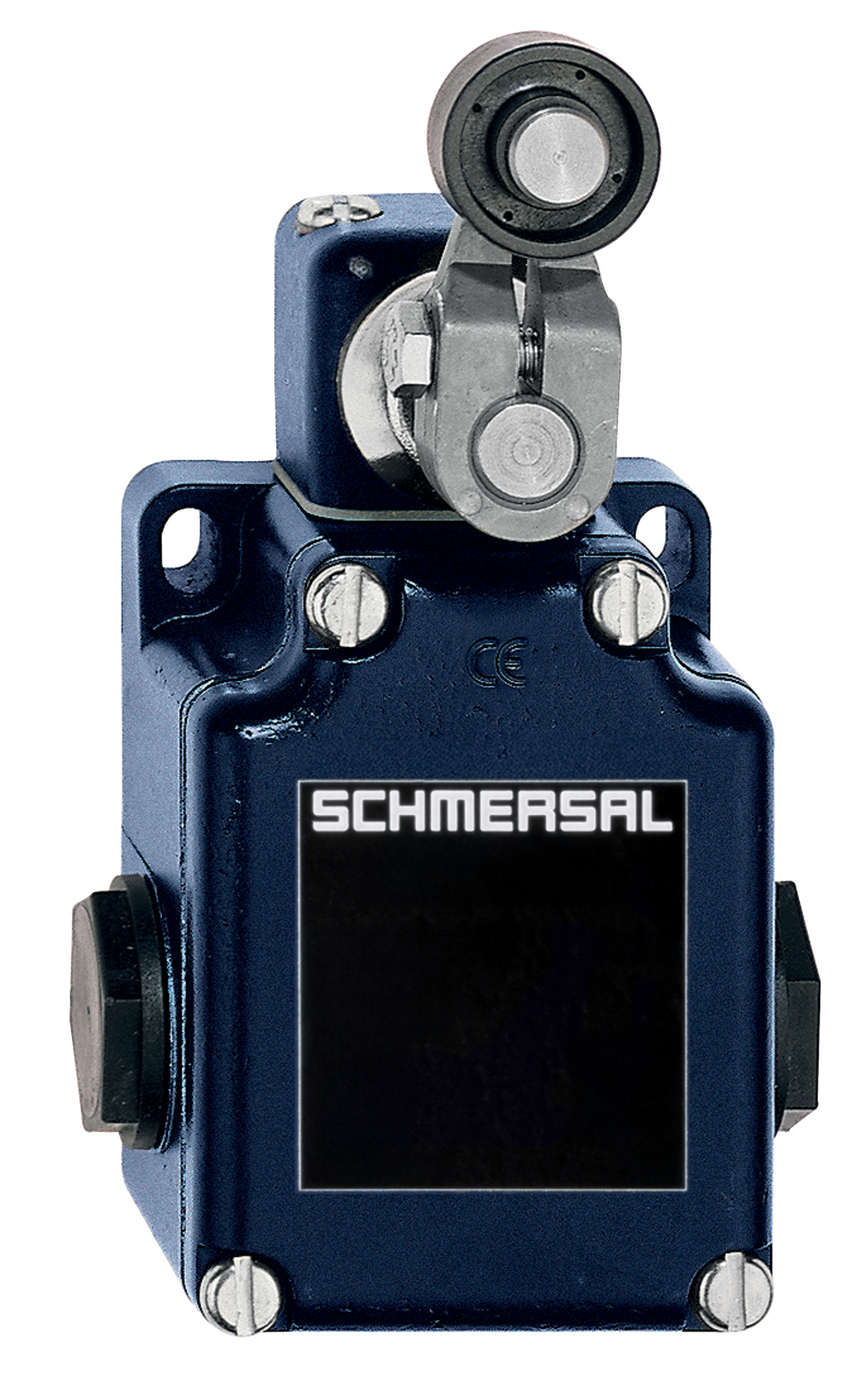

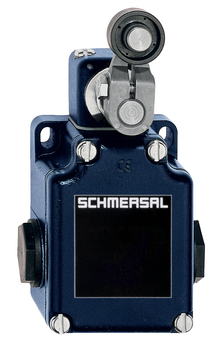

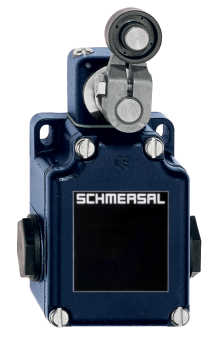

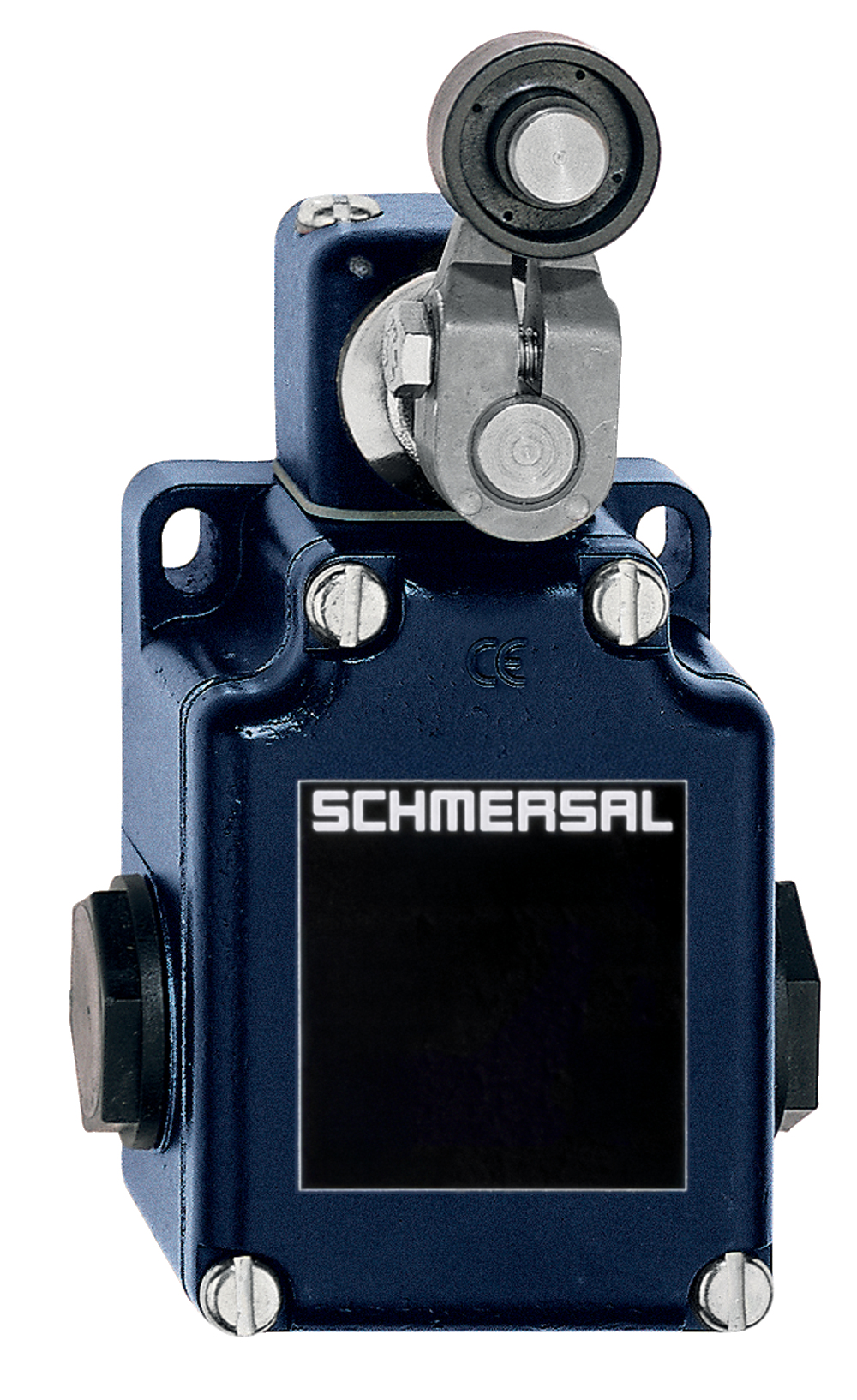

Product picture (catalogue individual photo)
ID: kt15hf02
| 1.0 MB | .jpg | 352.778 x 576.4390000000001 mm - 1000 x 1634 px - 72 dpi
| 107.5 kB | .png | 74.083 x 121.003 mm - 210 x 343 px - 72 dpi
| 53.5 kB | .jpg | 75.494 x 123.47200000000001 mm - 214 x 350 px - 72 dpi
| 41.1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 9.0 MB | .png | 166.55700000000002 x 272.15500000000003 mm - 2000 x 3268 px - 305 dpi
Dimensional drawing basic component

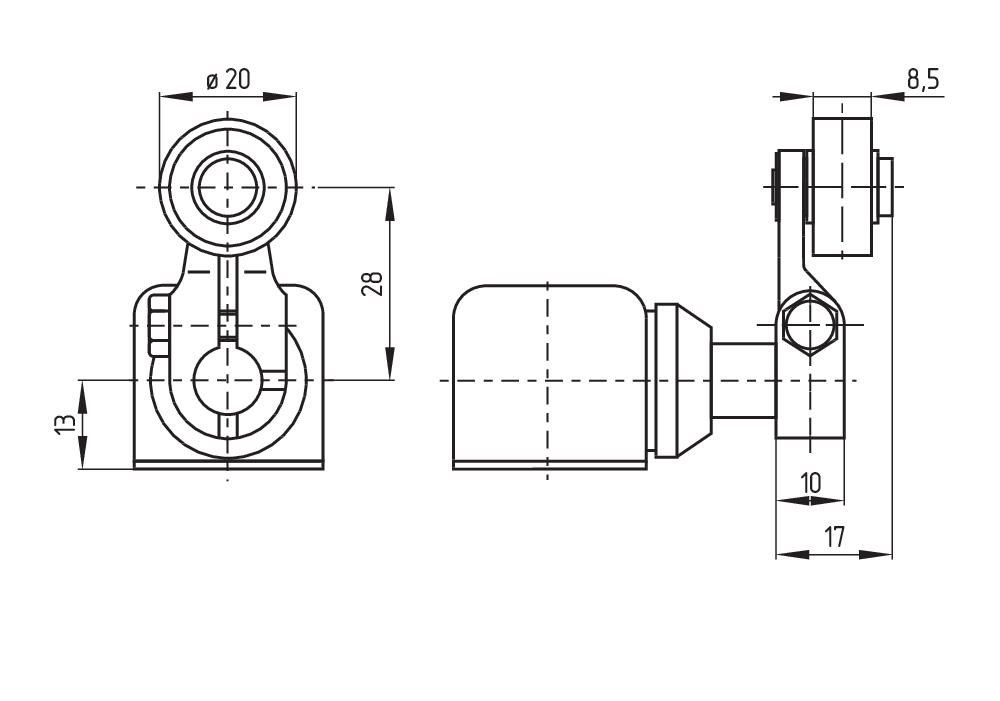

Dimensional drawing actuator
