DHS-U1-BKWH-LST5-0,25-RGB-LT-3219

Item number: 103060703

DHS-U1-BKWH-LST5-0,25-RGB-LT-3219

Item number: 103060703

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Product type description:
DHS-U1-BKWH-(1)-(2)-(3)

(1)
	Without electrical connection
LST5-0.25	Connecting cable with connector M12, 5-pole, 0.25 m
LST8-0.25	Connecting cable with connector M12, 8-pole, 0.25 m
L5-5.00	Connecting cable, 5-core, 5 m
L8-5.00	Connecting cable, 8-core, 5 m

(2)
	Door handle unilluminated
RGB	Door handle illuminated

(3)
	No operating element
LT	Illuminated pushbutton

Not all component variants, which are possible according to this order code are available and/or technically feasible.

With door handle lighting
Connecting cable with connector M12, 5-pole, 0.25 m
Degree of protection IP65 / IP67
Machine status directly recognisable on the door handle
Door handle in an ergonomical design
Can be combined with solenoid interlock AZM40 or safety sensor RSS260
Can also be used without safety switchgear device
For left or right hinged safety guards

Ordering data

Product type description	DHS-U1-BKWH-LST5-0,25-RGB-LT-3219
Article number (order number)	103060703
EAN (European Article Number)	4030661670317

General data

Standards	EN IEC 60947-5-1
Housing material	Glass-fibre, reinforced thermoplastic
Material of the handle	translucent PMMA
Material of the holder	Glass-fibre, reinforced thermoplastic
Colour of the illuminated push button calotte	Blue

General data - Features

Illuminable	Yes

Mechanical data

Type of the fixing screws	2x M6
Tightening torque of the screw	3.5 Nm
Type of mounting screws for the handle body	2x Torx Plus T20x25
Tightening torque of mounting screws for the handle body	2.5 Nm

Mechanical data - Connection technique

Length of cable	0.25 m
Termination	Connecting cable with M12 connector, straight, 5-pole
Cable diameter	5.5 mm
Bending radius (fixed)	5 x Ø-cable
Bending radius (repeated)	10 x Ø-cable
Material of the Cable mantle	PUR

Mechanical data - Dimensions

Length	202 mm
Width	40 mm
Height	84 mm

Ambient conditions

IP Degree of protection	IP66 IP67 IP69
Ambient temperature	-25 ... +45 °C
Storage and transport temperature	-40 ... +85 °C
Relative humidity, maximum	93 %
Note (Relative humidity)	non-condensing non-icing
Resistance to vibrations	10 … 150 Hz, amplitude 0.35 mm (EN 60947-5-2)
Restistance to shock	30 g / 11 ms (EN 60947-5-2)
Protection class	III
Permissible installation altitude above sea level, maximum	3,000 m

Ambient conditions - Insulation values

Rated insulation voltage U_i	32 VDC
Rated impulse withstand voltage U_imp	0.8 kV
Overvoltage category	III
Degree of pollution	3

Electrical data

Operating voltage	24 VDC -15 % / +10 % (stabilised PELV power supply)
Current consumption at 24V	5 mA
Rated operating voltage	24 VDC
Operating current	150 mA
Required rated short-circuit current	100 A
Utilisation category DC-12	24 VDC
Utilisation category DC-12	0.03 A
Utilisation category DC-13	24 VDC
Utilisation category DC-13	0.03 A
External wire and device fuse rating	2 A gG
Inputs, Switching thresholds	−3 V … 5 V (Low) 11 V … 30 V (High)

Pin assignment

PIN 1	24 VDC
PIN 2	Normally open contact (illuminated button)
PIN 3	GND
PIN 4	Input blue RGB-LED
PIN 5	Input green RGB-LED

Scope of delivery

Scope of delivery	The insert is included in the scope of delivery

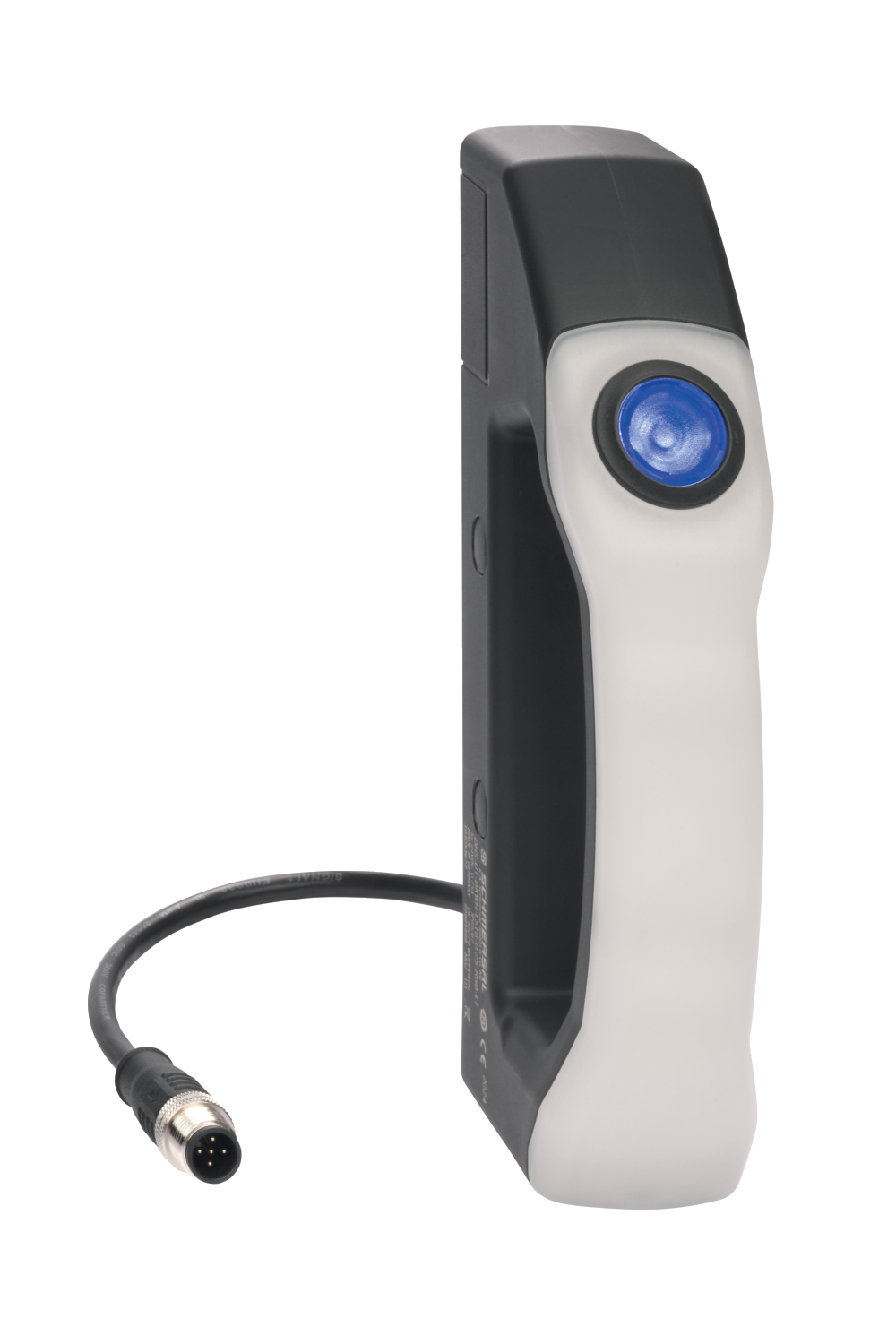

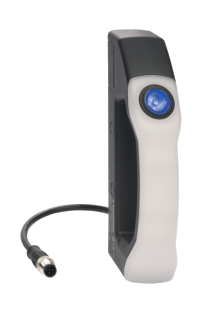

Product picture (catalogue individual photo)

ID: kdhs-f61

| 215.0 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi

| 18.7 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 38.7 kB | .png | 74.083 x 111.125 mm - 210 x 315 px - 72 dpi

| 2.7 MB | .png | 169.333 x 254 mm - 2000 x 3000 px - 300 dpi

| 17.3 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi

Detail photo

ID: kdhs-f34

| 203.9 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi

| 38.6 kB | .png | 74.083 x 111.125 mm - 210 x 315 px - 72 dpi

| 17.7 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi

Contact arrangement

ID: km12-k5g

| 5.8 kB | .png | 73.73100000000001 x 106.89200000000001 mm - 209 x 303 px - 72 dpi

| 158.2 kB | .jpg | 352.425 x 510.117 mm - 999 x 1446 px - 72 dpi

EU Conformity Declaration

Pdf

EU Declaration of Conformity

Original

K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com

Declaration:

We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.

Name of the component:

DHS-U1

Type:

See ordering code

Description of the component:

Door handle system

Relevant Directives:	EMC-Directive	2014/30/EU
	RoHS-Directive	2011/65/EU

Applied standards:

EN 60947-5-1:2017 + AC:2020

Person authorised for the compilation of the technical documentation:

Oliver Wacker
Möddinghofe 30
42279 Wuppertal

Place and date of issue:

Wuppertal, May 21, 2024

Authorised signature
Philip Schmersal
Managing Director

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
