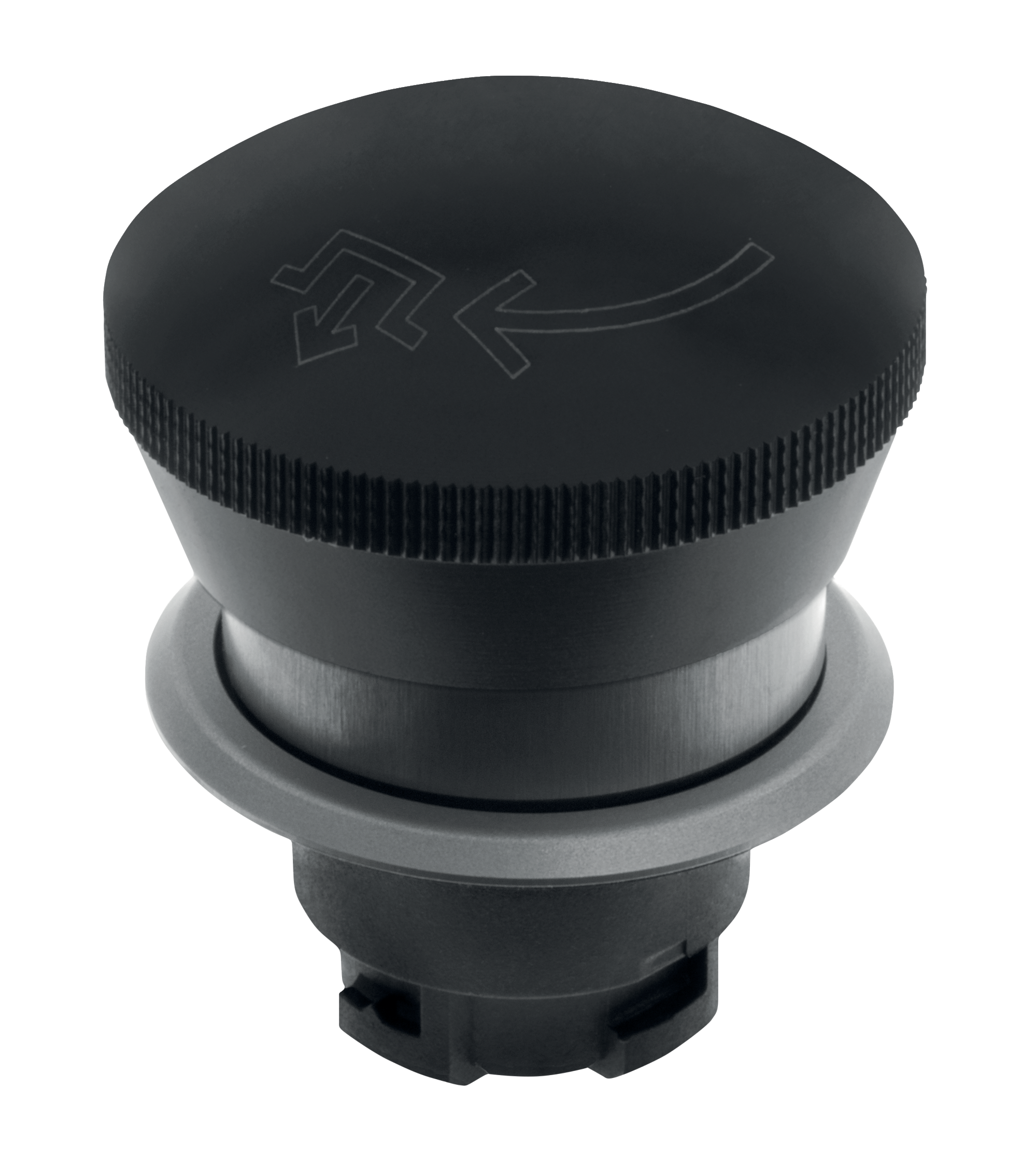

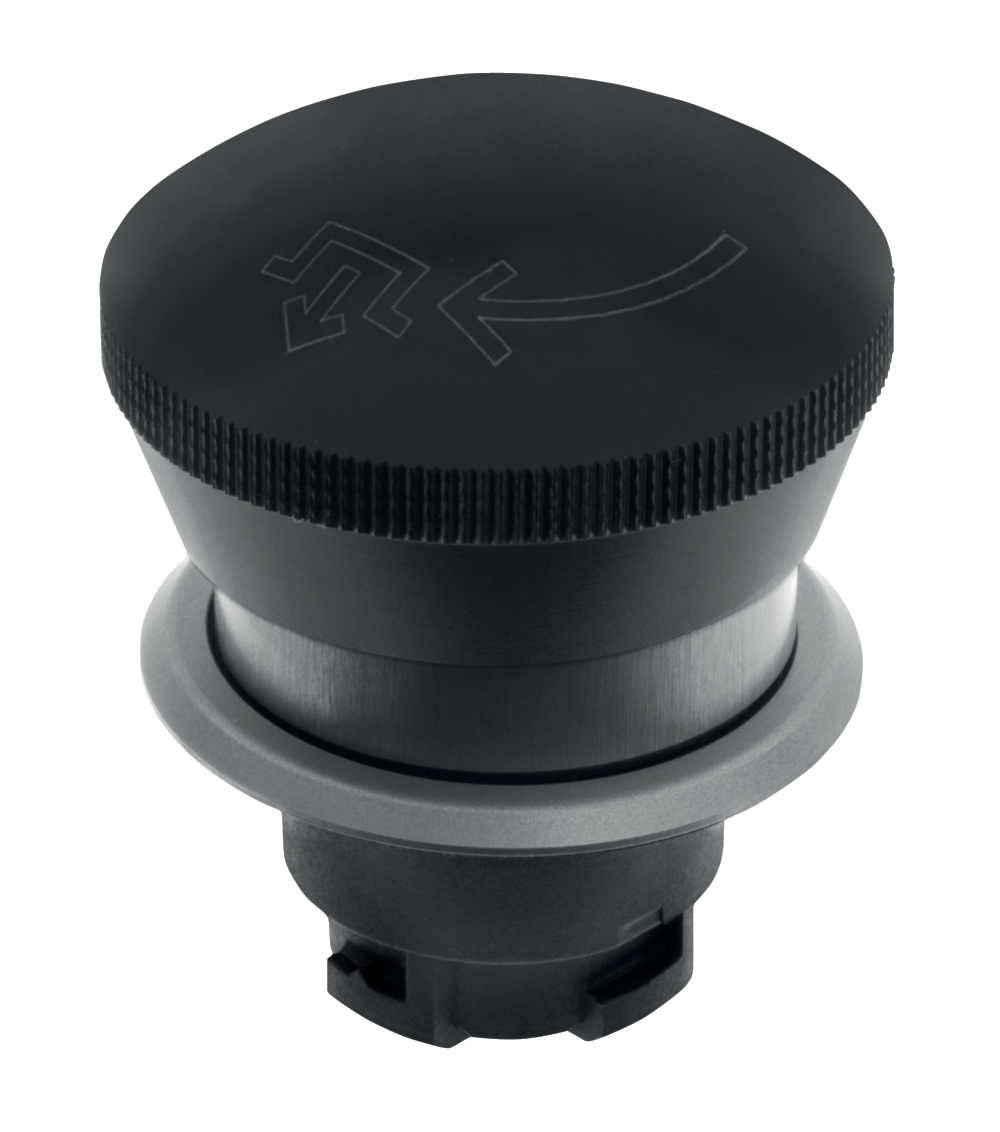

EDRR40.VHSW

Tuotenumero: 101024298
EDRR40.VHSW

Downloads

ePlan Tiedot
CADENAS CAD tiedosto
SISTEMA Tiedot
  • Asennusaukko Ø 30,5 mm
  • Suojausluokka IP65

Tilaustiedot

Tuotekuvaus

EDRR40.VHSW
Tuotenumero (tilausnumero)

101024298
EAN (European Article Number)

4030661608655
eCl@ss number, version 12.0

27-37-12-12
eCl@ss number, version 11.0

27-37-12-12
eCl@ss number, version 9.0

27-37-12-12
ETIM number, version 7.0

EC001038
ETIM number, version 6.0

EC001038

Yleiset ominaisuudet

Standardit

EN ISO 13850

EN 60947-5-1

EN 60947-5-5

EN 60947-1
Muotoilu

Etuseinä-asennus

Emergency stop pushbutton
Asennusolosuhteet (mekaaniset)

Vapaa
Ohjainten materiaali

Aluminium, anodised
Eturenkaan materiaali

Alumiini - eloksoitu
Toimintaelimen väri

musta
Eturenkaan väri

Hopea
Bruttopaino

75 g

Yleiset tiedot-Ominaisuudet

Hätäpysäytyspainikkeet

Kyllä
Etuseinä-asennus

Kyllä
Turvatoiminnot

Kyllä
Ulkoinen lukitusmekanismi

Kyllä
Asennoituva saatavilla

Kyllä
Kokonaan eristetty

Kyllä
Number of contact elements, maximum

2

Mekaaniset tiedot

Vapautus

Rotating-draw-unlatcher
Mechanical lifetime, Emergency-Stop button

100.000 kytkentäalue
Liikepituus

5 mm
Kiinnitys

Asennuslaippa ELM
Ruuvin kiristysvääntömomentti

0,6 Nm
Typical actuating force of the emergency stop button

25 N

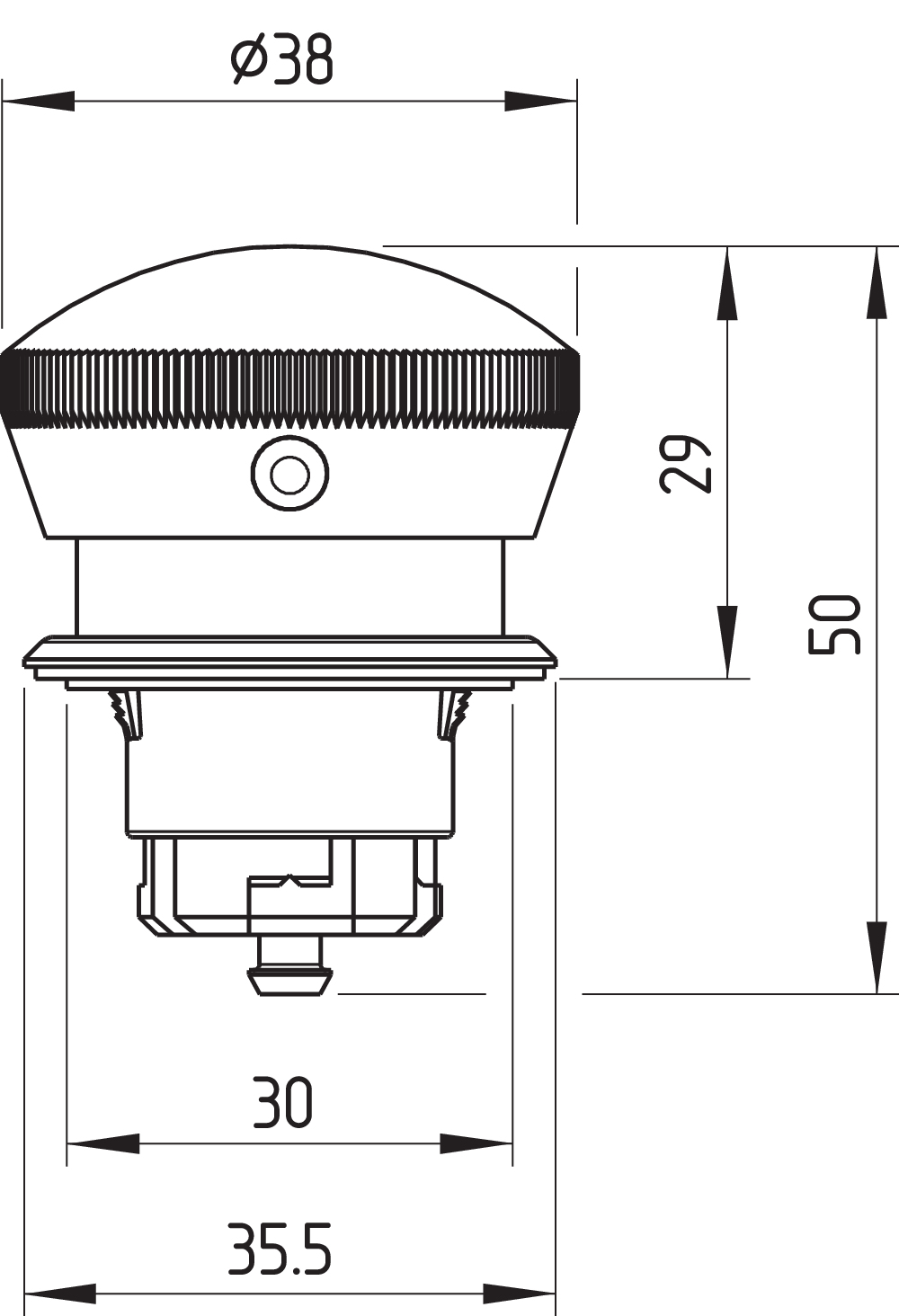

Mekaaniset tiedot - Mitat

Mounting height

29 mm
Note (Mounting height)

Height in front of the front panel.
Asennussyvyys

60 mm
Note (Mounting depth)

Depth behind front panel including one contact element
toimipäiden halkaisijat

38,5 mm
Mounting diameter

30,5 mm
Etulevyn paksuus, minimi {mm}

1 mm
Etulevyn paksuus, maksimi

6 mm
Asennusväli

50 x 40 mm

Ympäristöolosuhteet

Suojausluokka

IP65
Ambient temperature

-25 ... +80 °C

Sähköiset tiedot

Switching frequency of the emergency stop button, maximum

600 /h

Toimitus sisältää

Huomautus (toimituksen sisältö, lukumäärä ja tyyppi)

Kiinnityslaippa ELM sisältyy toimitukseen
EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:EDRR...VH..., EDRZ...VH...
Type:See ordering code
Description of the component:Emergency stop push button
Relevant Directives:Machinery Directive2006/42/EC
 RoHS-Directive2011/65/EU
Applied standards:EN 60947-5-1:2017 + AC:2020
EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017
EN ISO 13850:2015
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, February 9, 2023
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
UK Declaration of Conformity LOG_COM_lo1de01s
Company:K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.
Name of the component:EDRR...VH..., EDRZ...VH...
Type:See ordering code
Description of the component:Emergency stop pushbutton
Relevant legislation:Supply of Machinery (Safety) Regulations2008
 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations2012
Designated standards:EN 60947-5-1:2017
EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017
EN ISO 13850:2015
Designated standards:EN 60947-5-1:2017 + AC:2020
EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017
EN ISO 13850:2015
UK-Importer / Person authorised for the compilation of the technical documentation:Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL
Place and date of issue:Wuppertal, October 6, 2021
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:E.V programme
Type:See ordering code
Description of the component:Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF or light elements and voltage senders EL*
Relevant Directives:Low Voltage Directive2014/35/EU
 EMC-Directive *2014/30/EU
 RoHS-Directive2011/65/EU
Applied standards:EN 60947-5-1:2017
Place and date of issue:Wuppertal, September 28, 2020
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
UK Declaration of Conformity LOG_COM_lo1de01s
Company:K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.
Name of the component:E.V-program
Type:See ordering code
Description of the component:Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF or light elements and voltage senders EL*
Relevant legislation:Electrical Equipment (Safety) Regulations2016
 Electromagnetic Compatibility Regulations *2016
 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations2012
Designated standards:EN 60947-5-1:2017
UK-Importer / Person authorised for the compilation of the technical documentation:Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL
Place and date of issue:Wuppertal, April 8, 2022
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director

Advancetec Oy, Äyritie 12 B, 01510 Vantaa

Tiedot ja arvot on tarkastettu huolellisesti. Kuvat voivat poiketa alkuperäisestä. Tarkemmat tekniset tiedot löytyvät manuaalista. Pidätämme oikeuden teknisiin muutoksiin ja virheisiin.
