IFL 20-400-11TN
IFL 20-400-11TN
Downloads
- Thermoplastic enclosure
- DC 4-wire
- Double-insulated
- Design Ø 40 mm
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
IFL 20-400-11TN |
| Article number (order number) |
101060012 |
| EAN (European Article Number) |
4030661038537 |
| eCl@ss number, version 12.0 |
27-27-40-01 |
| eCl@ss number, version 11.0 |
27-27-01-01 |
| eCl@ss number, version 9.0 |
27-27-01-01 |
| ETIM number, version 7.0 |
EC002714 |
| ETIM number, version 6.0 |
EC002714 |
Approvals - Standards
| Certificates |
CCC |
General data
| Standards |
DIN VDE 0660-208 EN IEC 60947-5-2 |
| Housing construction form |
Cylinder smooth |
| Installation conditions (mechanical) |
not flush |
| Housing material |
Plastic |
| Active area |
Plastic |
| Material of the terminal fixing |
Plastic |
| Gross weight |
206 g |
General data - Features
| Integral system diagnostics, status |
Yes |
| Cable sleeve |
Yes |
| Number of cable wires |
4 |
Mechanical data - Switching distances
| Nominal switching distance Sn |
20 mm |
| Note (switching distance) |
All switching distances in accordance EN IEC 60947-5-2 |
Mechanical data - Connection technique
| Length of cable |
2 m |
| Termination |
Cable |
| Number of cable wires |
4 |
| Wire cross-section |
0.25 mm2 |
| Material of the Cable mantle |
PVC |
Mechanical data - Dimensions
| Diameter of sensor |
40 mm |
| Length of sensor |
63 mm |
| Width of sensor |
40 mm |
| Height of sensor |
40 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-25 ... +70 °C |
| Resistance to vibrations |
10 … 55 Hz, amplitude 1 mm |
| Restistance to shock |
30 g / 11 ms |
| Protection class |
II |
Electrical data
| Operating voltage |
10 ... 60 VDC |
| Type of voltage range |
DC |
| No-load supply current I0, typical |
5.5 mA |
| Rated operating voltage |
10 ... 60 VDC |
| Operating current |
400 mA |

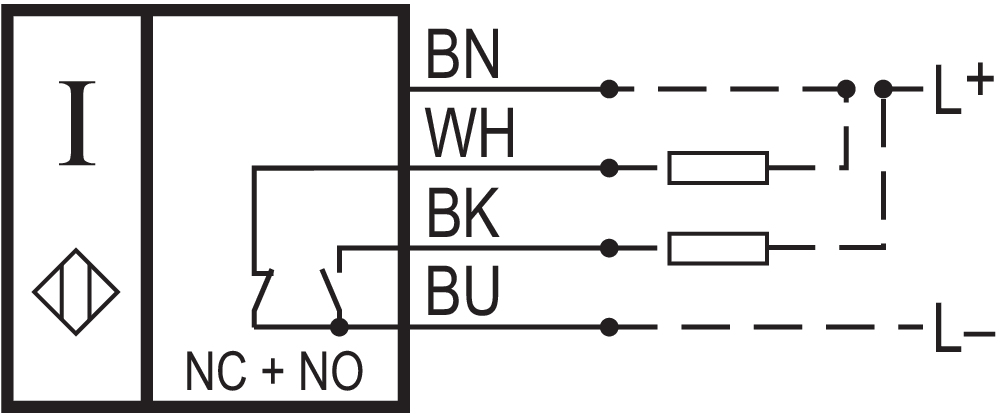

| Switching element |
NO contact and NC contact (antivalent) |
| Protection circuit integrated |
inductive interference protection Protection against polarity reversal |
| Switching frequency, approx. |
100 Hz |
Electrical data - Digital Output
| Voltage drop Ud, maximum |
1.5 V |
| Current at Voltage drop Ud |
0.4 A |
| Design of control elements |
n-type |
Status indication
| Note (Integral System Diagnostics, status ) |
yellow LED |
Scope of delivery
| Note (scope of delivery, number and type) |
Clamp H 40 is included in delivery |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
Declaration of conformity (EC)
CCC certification
Download the latest version of Adobe Reader
Product picture (catalogue individual photo)
ID: kifl2f28
| 335.7 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi
| 53.7 kB | .png | 74.083 x 111.125 mm - 210 x 315 px - 72 dpi
| 24.9 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.2 MB | .png | 169.249 x 254 mm - 1999 x 3000 px - 300 dpi
| 22.2 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi

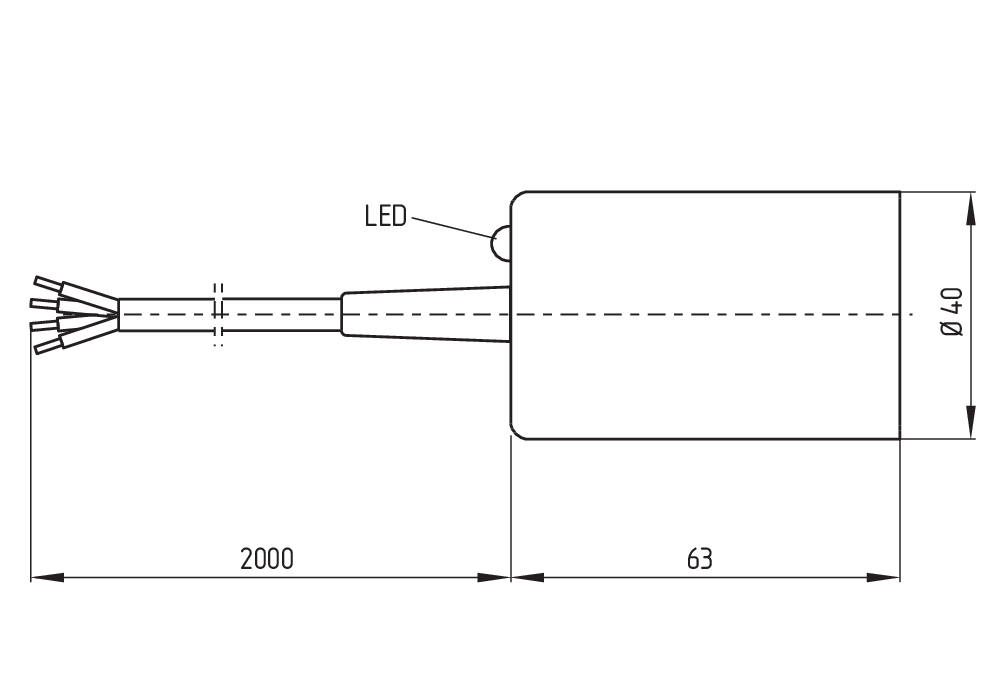

Dimensional drawing basic component
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
101068521 ACC-IFL-MOCL-H40
- For a smooth fitting of the proximity switches with cylindric shape Ø 40 mm
