AZ3350-B6H
AZ3350-B6H
Downloads
- Particularly suitable for hinged guards
Ordering data
| Product type description |
AZ3350-B6H |
| Article number (order number) |
101214017 |
| EAN (European Article Number) |
4030661446417 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-26-06 |
| eCl@ss number, version 9.0 |
27-27-26-06 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Gross weight |
90 g |
Mechanical data
| Actuating radius, minimum |
400 mm |
| Actuator |
flexible |
Note
| Note (General) |
minimum actuating radius on hinged guards in line with the plane of the actuator 400 mm The axis of the hinge must be 28 mm above and in a parallel plane to the top surface of the safety switch. minimum actuating radius on rotating guard systems via the narrow edge of the actuator 650 mm The axis of the hinge must be 49 mm above and in a parallel plane to the top surface of the safety switch. |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader
Product picture (catalogue individual photo)
ID: kaz33f21
| 599.5 kB | .jpg | 312.208 x 625.1220000000001 mm - 885 x 1772 px - 72 dpi
| 62.1 kB | .png | 74.083 x 148.167 mm - 210 x 420 px - 72 dpi
| 28.2 kB | .jpg | 61.736000000000004 x 123.47200000000001 mm - 175 x 350 px - 72 dpi
| 22.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.7 MB | .png | 169.333 x 339.005 mm - 2000 x 4004 px - 300 dpi

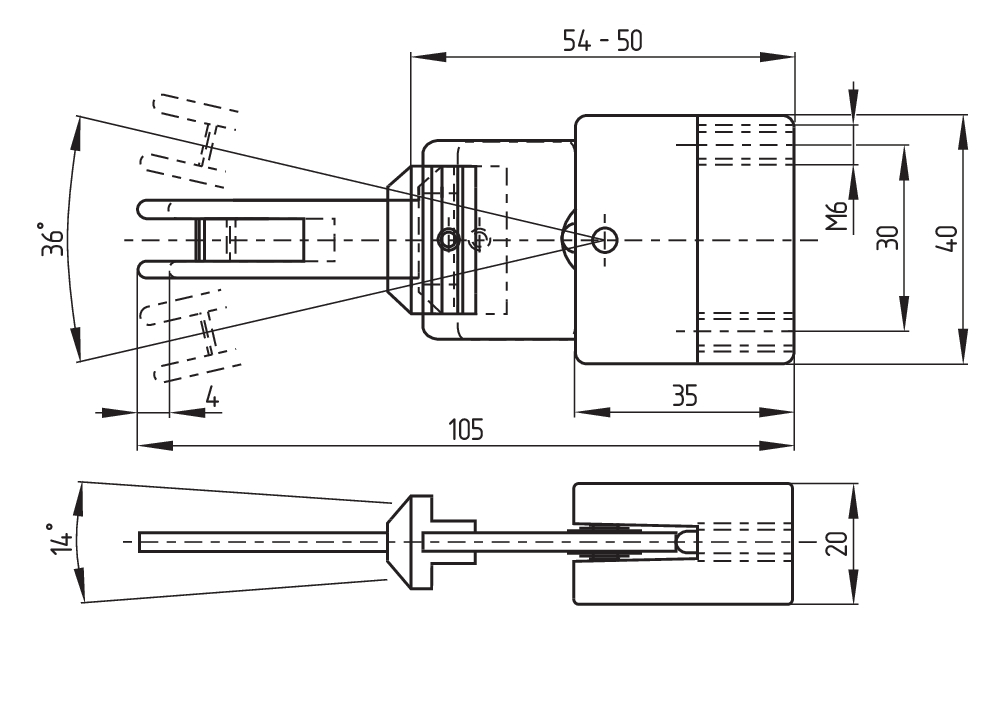

Dimensional drawing actuator
