NDTGR/RToFL
NDTGR/RToFL
Downloads
- Kun til Positionsafbryder
- hygiejnerigtigt design
- Beskyttelses klasse IP69K
- Monterings diameter Ø 22,3 mm
Bestillings data
| Tip (leveringsdygtighed) |
Leveres ikke længere! |
| Produkttypebetegnelse |
NDTGR/RToFL |
| Artikenummer (Bestillingsnummer) |
101184142 |
| EAN (European Article Number) |
4030661466644 |
| eCl@ss number, version 12.0 |
27-37-12-10 |
| eCl@ss number, version 11.0 |
27-37-12-10 |
| eCl@ss Nummer, Version 9.0 |
27-37-12-10 |
| ETIM number, version 7.0 |
EC000221 |
| ETIM number, version 6.0 |
EC000221 |
Godkendelser - Forskrifter
| Godkendelser |
cULus |
Globale egenskaber
| Forskrifter |
EN IEC 60947-5-1 EN IEC 60947-1 |
| Version |
Trykknap Montering på forplade |
| Konstruktionsform |
Rund Tastning |
| Installationsforhold (mekaniske) |
vilkårlig |
| Forseglingstype |
Membran Læbetætninger |
| Materiale til operatorerne |
ABS |
| Frontringens materiale |
ABS, forkromet |
| Farve på betjeningsdel |
Rød |
| Farve til frontringen |
Sølv |
| Farve på bælg |
Sort |
| Bruttovægt |
23 g |
Generelle data - egenskaber
| Monteringsflange |
Ja |
| Sondering mulig |
Ja |
| Fuldt isoleret |
Ja |
Mekaniske data
| Sikring |
uden |
| Mekanisk levetid, kommandoenheder |
1.000.000 koblinger |
| Fastgørelse |
Monteringsflange EFMH |
| Tilspændingsmoment skruelængde |
0,6 Nm |
| Typisk aktiveringskraft for trykknappen |
1,5 N |
| Aktuator-takt, minimum |
4 mm |
| Aktuator-takt, maksimum |
5 mm |
Mekaniske data - afmåling
| Mounting height |
11 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Diameter på tasteareal |
27 mm |
| Diameter på frontring |
44,5 mm |
| Mounting diameter |
22,3 mm |
| Tykkelse af frontplade, minimum |
1 mm |
| Tykkelse af frontplade, maksimum |
6 mm |
| Gittermål |
50 x 50 mm |
Omgivende forhold
| Beskyttelses klasse |
IP67 IP69K |
| Ambient temperature |
-25 ... +80 °C |
| Vibrationsstabilitet iht. EN 60068-2-6 |
5 g |
| Modstand over for slag |
<50 g (EN 60068-2-27) |
Elektrisk data
| Trykknappens koblingsfrekvens, maksimum |
1.000 /h |
Inkluderet
| Hinweis (leveringsomfang, antal og type) |
Mounting flange EFM is not included in delivery |
Sprog filter
Datablad
Driftsvejledning og Erklæring om konformitet
UL-certifikat
Hent sidste version af Adobe Reader

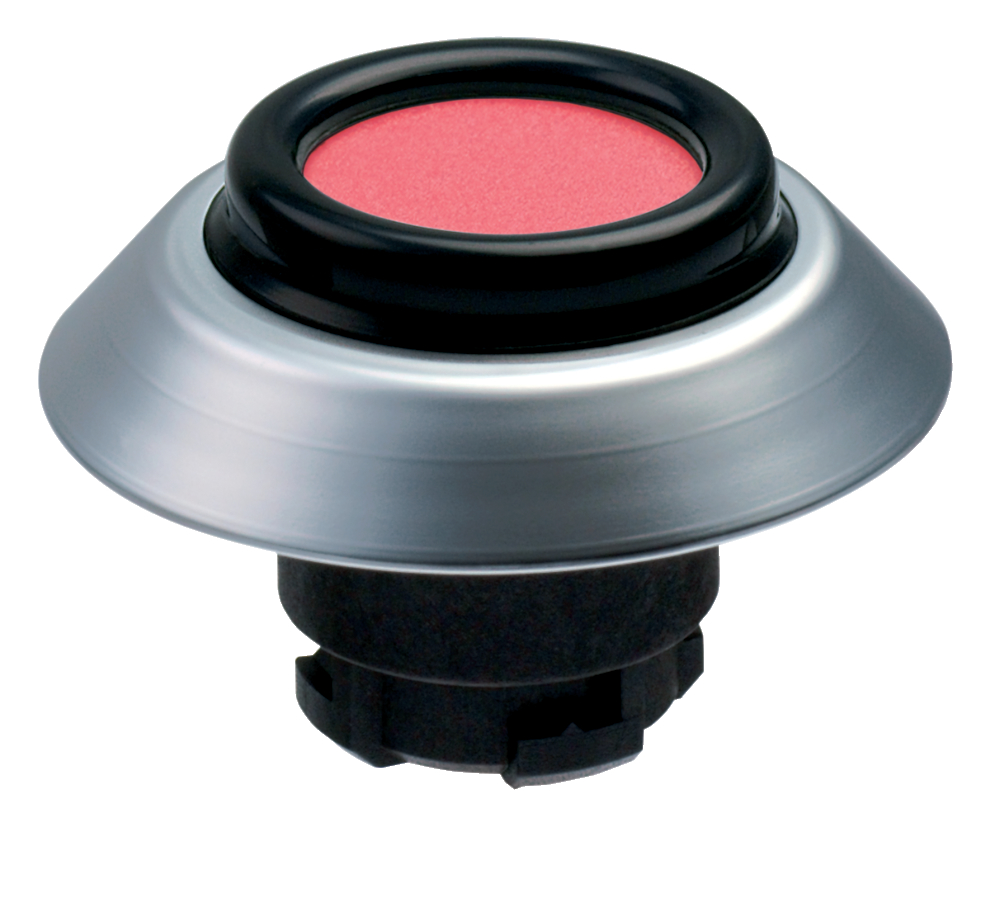

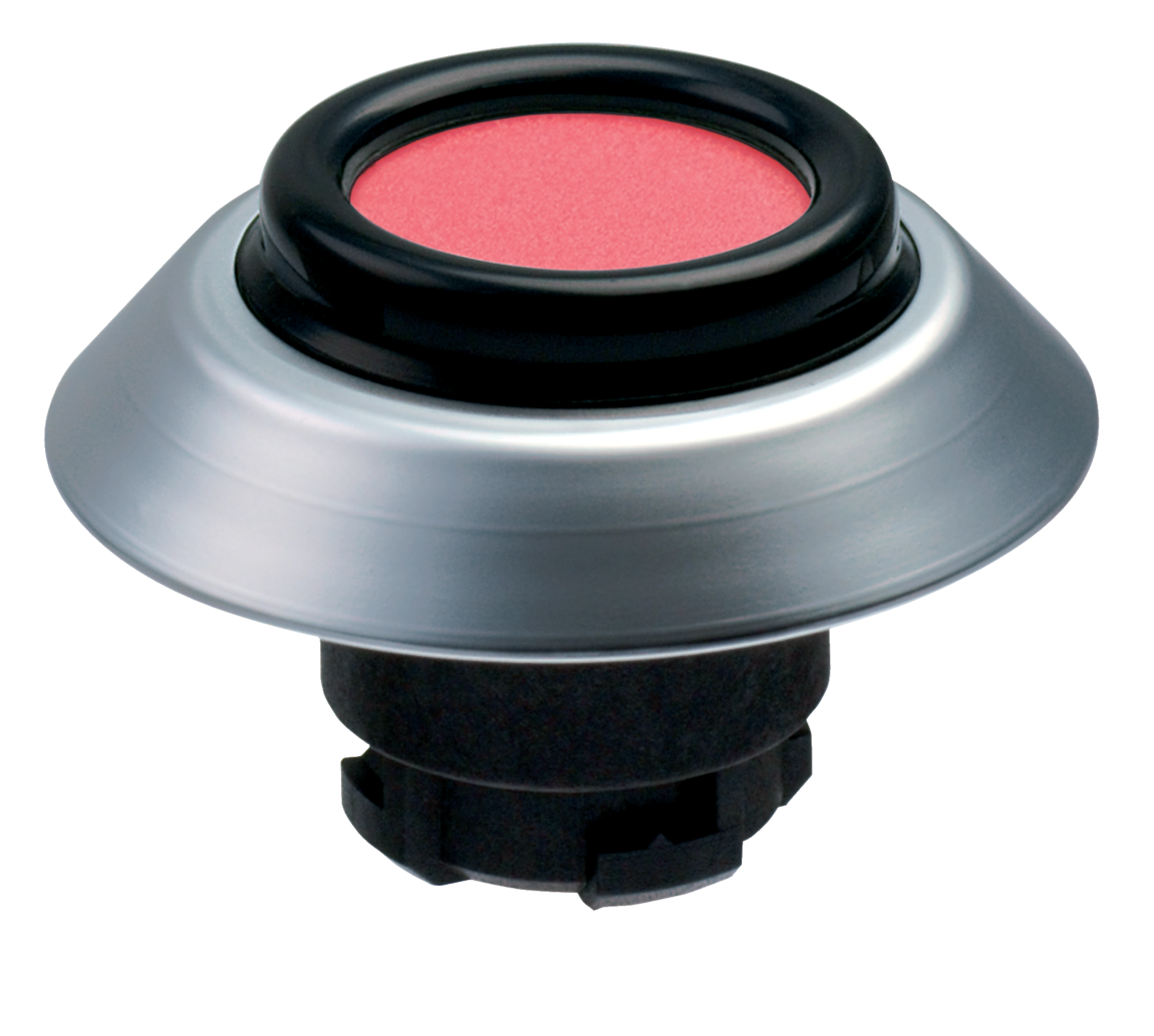

Produktbillede (katalogenkeltfoto)
ID: kndt-f10
| 378,8 kB | .jpg | 352.778 x 316.79400000000004 mm - 1000 x 898 px - 72 dpi
| 36,9 kB | .png | 74.083 x 66.322 mm - 210 x 188 px - 72 dpi
| 55,4 kB | .jpg | 123.47200000000001 x 110.772 mm - 350 x 314 px - 72 dpi
| 53,5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 3,1 MB | .png | 145.143 x 130.26600000000002 mm - 2000 x 1795 px - 350 dpi
Produktbillede (katalogenkeltfoto)
ID: kefmhf01
| 509,3 kB | .jpg | 352.778 x 346.428 mm - 1000 x 982 px - 72 dpi
| 55,6 kB | .png | 74.083 x 72.672 mm - 210 x 206 px - 72 dpi
| 66,5 kB | .jpg | 123.47200000000001 x 121.35600000000001 mm - 350 x 344 px - 72 dpi
| 53,1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4,2 MB | .png | 169.333 x 166.285 mm - 2000 x 1964 px - 300 dpi
Video ID: Mr-Safety-N-Programm
(Vimeo)
101163563 NDTGR/RT
- hygiejnerigtigt design
- Beskyttelses klasse IP69K
- Monterings diameter Ø 22,3 mm
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | E, N and R program |
| Type: | See ordering code |
| Description of the component: | Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL* |
| Relevant Directives: | Low Voltage Directive | 2014/35/EU |
| EMC-Directive * | 2014/30/EU | |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 + AC:2020 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, April 4, 2025 |
 |
| Authorised signature Philip Schmersal Managing Director |
| UK Declaration of Conformity | |
| Company: | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom. |
| Name of the component: | E, N and R program |
| Type: | See ordering code |
| Description of the component: | Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL* |
| Relevant legislation: | Electrical Equipment (Safety) Regulations | 2016 |
| Electromagnetic Compatibility Regulations * | 2016 | |
| The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations | 2012 |
| Designated standards: | EN 60947-5-1:2017 + AC:2020 |
| UK-Importer / Person authorised for the compilation of the technical documentation: | Schmersal UK Ltd. Paul Kenney Unit 1, Sparrowhawk Close Enigma Business Park Malvern, Worcestershire, WR14 1GL |
| Place and date of issue: | Wuppertal, April 4, 2025 |
|
| Authorised signature Philip Schmersal Managing Director |
