UV9H 432Y
UV9H 432Y
Downloads
| Product type description: U(1) 432Y-(2)-(3) |
| (1) | |
| S | Plunger S |
| K | Offset roller lever K |
| 8H | Roller lever 8H |
| H | Roller lever H |
| 3H | Roller lever 3H |
| 7H | Roller lever 7H |
| 4H | Spring rod lever on shaft 4H |
| 9H | Rod lever 9H |
| 10H | Rod lever 10H |
| 2H | Leaf spring lever 2H |
| 6H | Leaf spring lever 6H |
| (2) | |
| without | 2 NC contact |
| 2S | 2 NO contacts |
| 1S/1OE | 1 NO contact/1 NC contact |
| (3) | |
| 1272 | Version for low temperatures to -30 °C |
- Metal enclosure
- 2 Contacts
- 62 mm x 80 mm x 50 mm ( basic component)
- Switching points and contact function adjustable
- 3 cable entries M 20 x 1.5
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Steel rod
Ordering data
| Product type description |
UV9H 432Y |
| Article number (order number) |
101060553 |
| EAN (European Article Number) |
4030661046761 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Housing material |
Light alloy die-casting |
| Housing coating material |
painted |
| Material of the rod |
Steel |
| Gross weight |
495 g |
General data - Features
| Number of normally closed (NC) |
2 |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
Mechanical data
| Actuating element |
Rod lever |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating angle, from left of switch axis |
30 ° |
| Actuating angle, from right of switch axis |
30 ° |
| Contact opening |
2 x 1.5 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
3 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
50 mm |
| Width of sensor |
62 mm |
| Height of sensor |
380 mm |
| Diameter of the Rod |
6 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-20 ... +60 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
500 V |
Electrical data
| Thermal test current |
16 A |
| Switching element |
Opener (NC) |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Note
| Note (General) |
Type of contact and switching points can be factory set to order. |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
Declaration of conformity (EC)
UL Certificate
Download the latest version of Adobe Reader

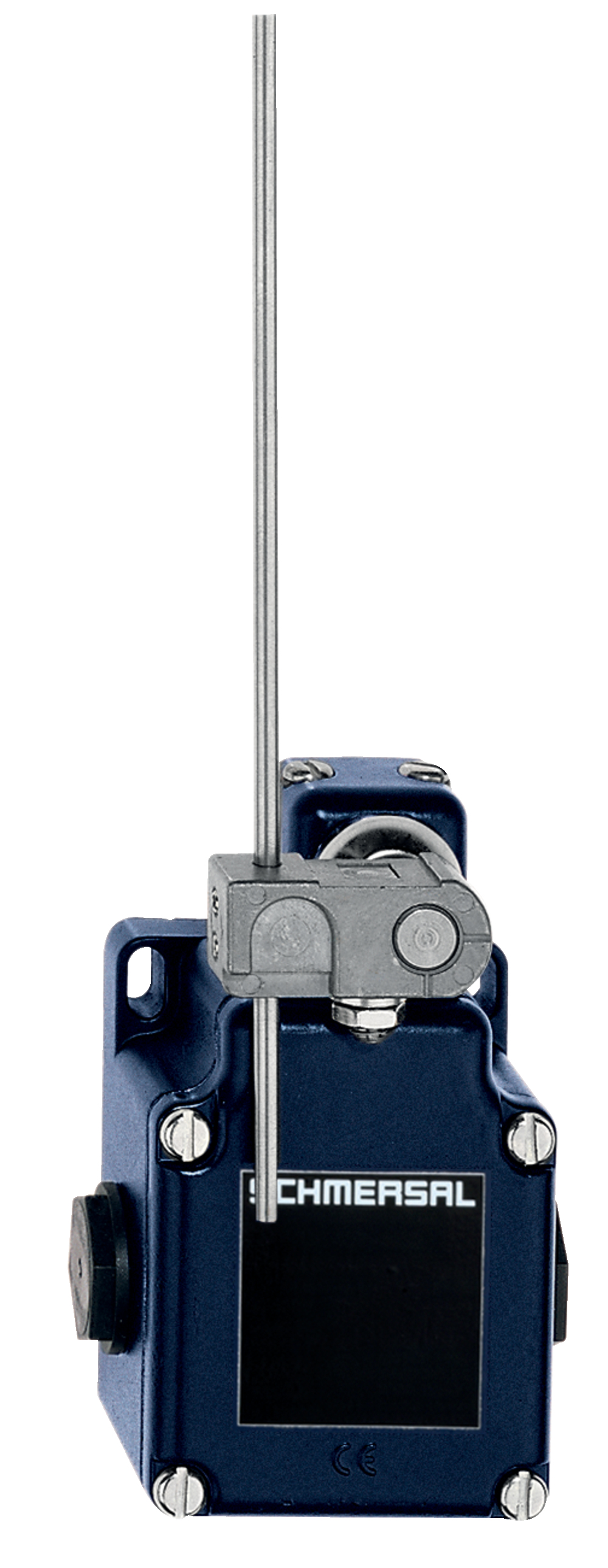

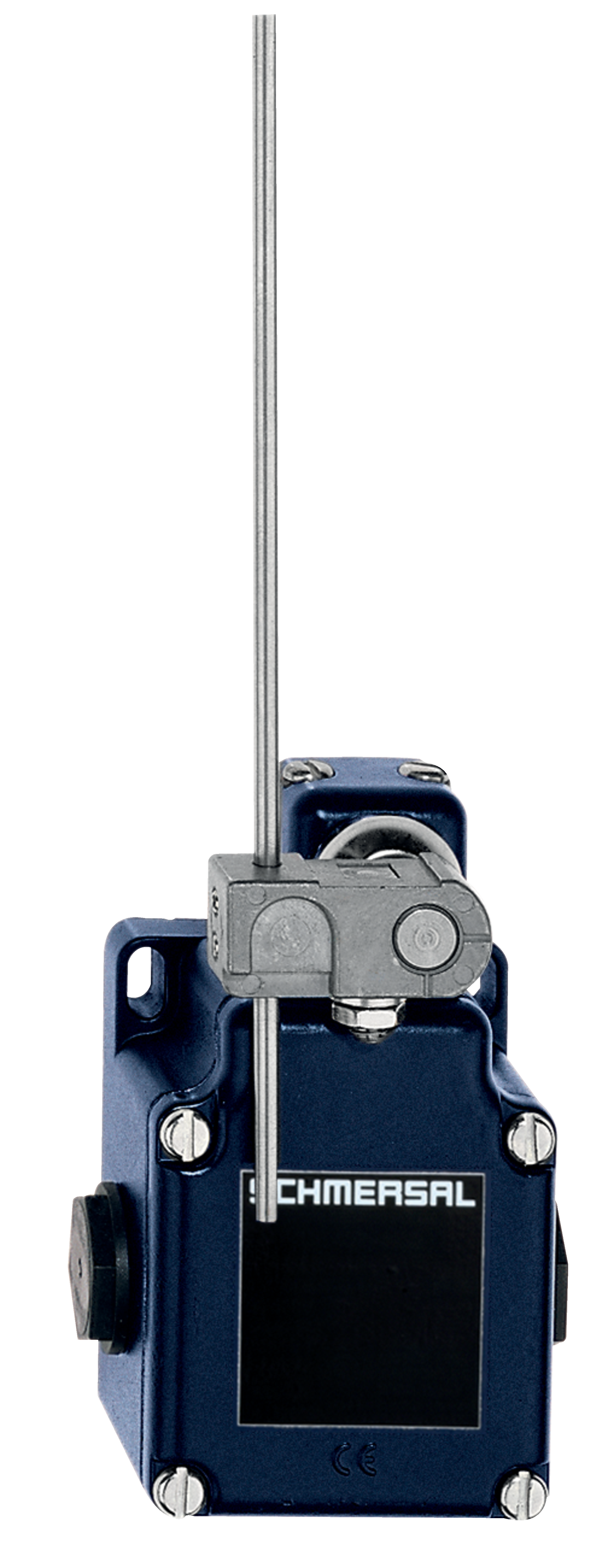

Product picture (catalogue individual photo)
ID: ku43hf09
| 663.4 kB | .jpg | 352.778 x 910.519 mm - 1000 x 2581 px - 72 dpi
| 103.0 kB | .png | 74.083 x 191.20600000000002 mm - 210 x 542 px - 72 dpi
| 17.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 7.4 MB | .png | 166.55700000000002 x 429.88500000000005 mm - 2000 x 5162 px - 305 dpi
| 20.9 kB | .jpg | 47.978 x 123.47200000000001 mm - 136 x 350 px - 72 dpi
Dimensional drawing basic component

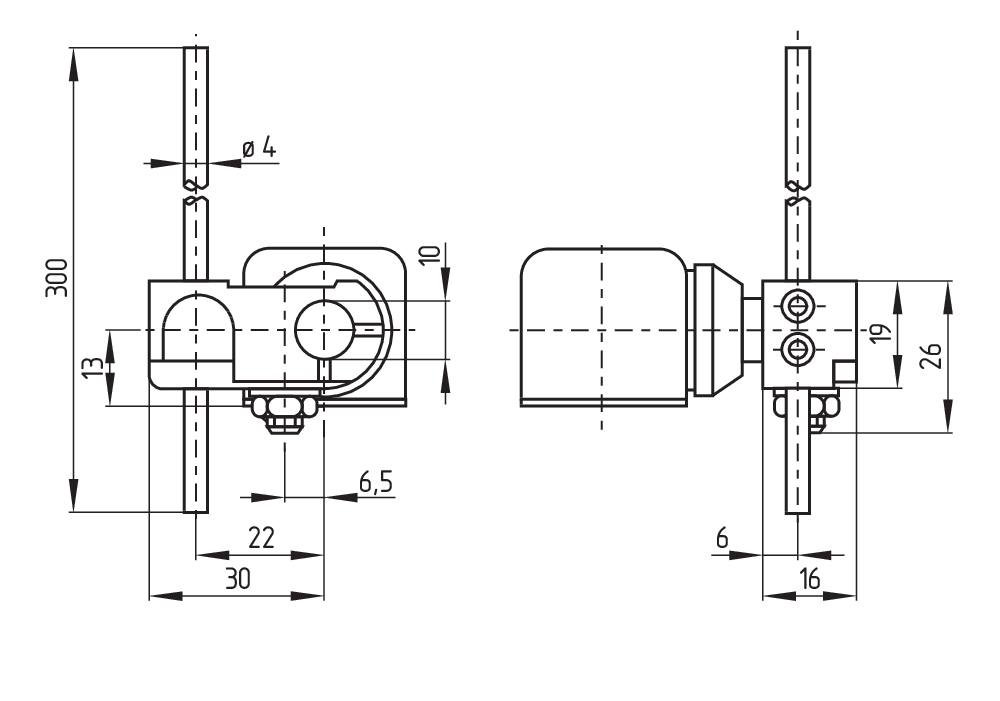

Dimensional drawing actuator
Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angleDiagram
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
Operating principle
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
