M3V4D 330-11Y-1366
M3V4D 330-11Y-1366
Downloads
| Product type description: M(1) 330-11Y-(2)-(3) |
| (1) | |
| S | Plunger S |
| 2S | Telescopic plunger 2S |
| R | Roller plunger R |
| K | Offset roller lever K |
| 3K | Angle roller lever 3K |
| 3S | Side plunger 3S |
| 3R | Side roller plunger 3R |
| AF | Spring rod lever AF |
| 4D | Fork roller level 4D |
| 8H | Roller lever 8H |
| 7H | Roller lever 7H |
| 10H | Rod lever 10H |
| H | Roller lever H |
| 4H | Spring rod lever on shaft 4H |
| 2H | Leaf spring lever 2H |
| 3H | Roller lever 3H |
| 9H | Rod lever 9H |
| 6H | Leaf spring lever 6H |
| (2) | |
| without | without LED switching conditions display |
| G24 | with LED switching conditions display |
| (3) | |
| AuNi | Gold-nickel alloy contacts |
| 1164 | Splined shaft and lever available with 10° toothing |
| 1366 | For temperatures up to +160°C |
- Metal enclosure
- Long life
- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- Actuator heads can be repositioned by 4 x 90°
- With latching end position
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Actuator head with 90° end position latching
Ordering data
| Product type description |
M3V4D 330-11Y-1366 |
| Article number (order number) |
133031457 |
| EAN (European Article Number) |
8905236107429 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Castor |
| Housing material |
Light-alloy diecast, paint finish |
| Housing coating material |
painted |
| Gross weight |
305 g |
Mechanical data
| Actuating element |
Forked roller lever |
| Roller material |
Brass |
| Actuating speed, minimum |
1 mm/min |
| Actuating torque |
0.5 Nm |
Mechanical data - Connection technique
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
40 mm |
| Width of sensor |
84 mm |
| Height of sensor |
120 mm |
| Width of Castor |
8.5 mm |
| Diameter of Castor |
20 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +160 °C |
| Restistance to shock |
50 g / 6 ms |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
6 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
2.5 A |
| Switching element |
1 NO contact, 1 NC contacts |
| Switching principle |
Snap action |
| Bounce duration, maximum |
1.5 ms |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
Declaration of conformity (EC)
CCC certification
Download the latest version of Adobe Reader

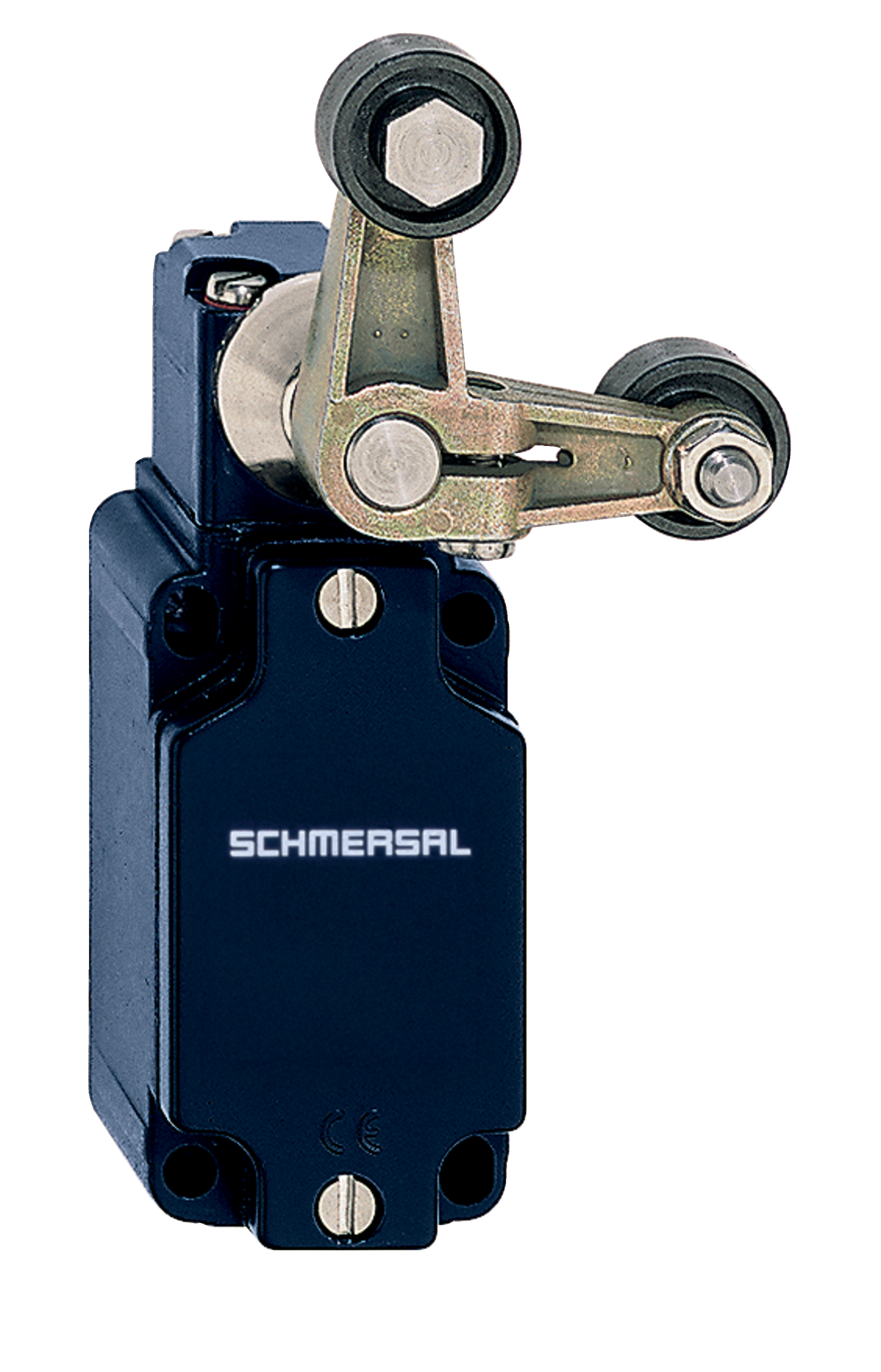

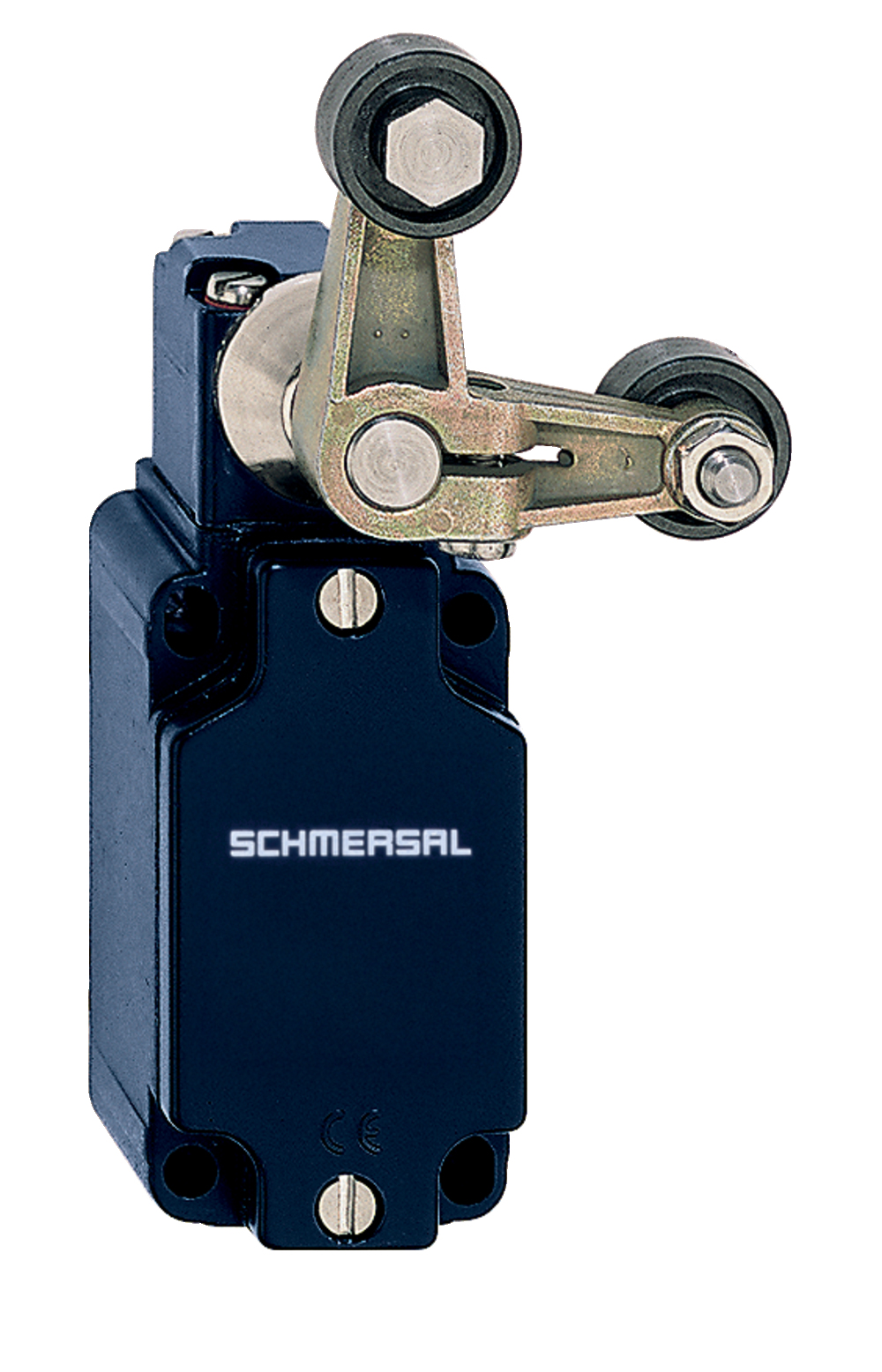

Product picture (catalogue individual photo)
ID: km330f07
| 608.9 kB | .jpg | 352.778 x 548.922 mm - 1000 x 1556 px - 72 dpi
| 68.8 kB | .png | 73.73100000000001 x 115.006 mm - 209 x 326 px - 72 dpi
| 29.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 5.3 MB | .png | 166.55700000000002 x 259.247 mm - 2000 x 3113 px - 305 dpi
| 44.3 kB | .jpg | 79.375 x 123.47200000000001 mm - 225 x 350 px - 72 dpi

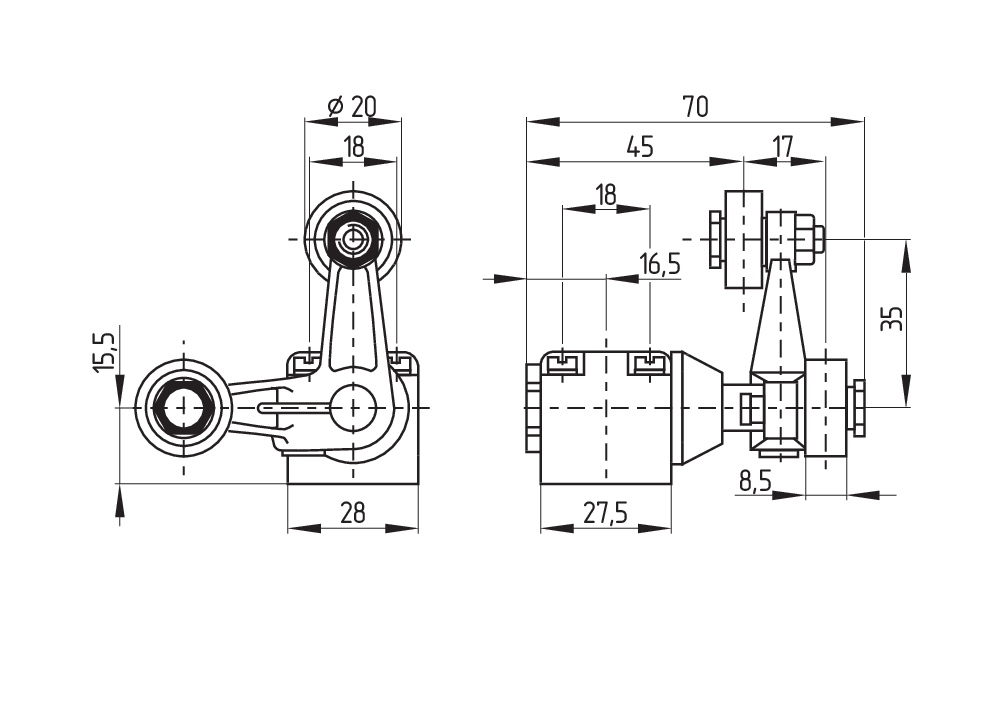

Dimensional drawing basic component
Dimensional drawing actuator

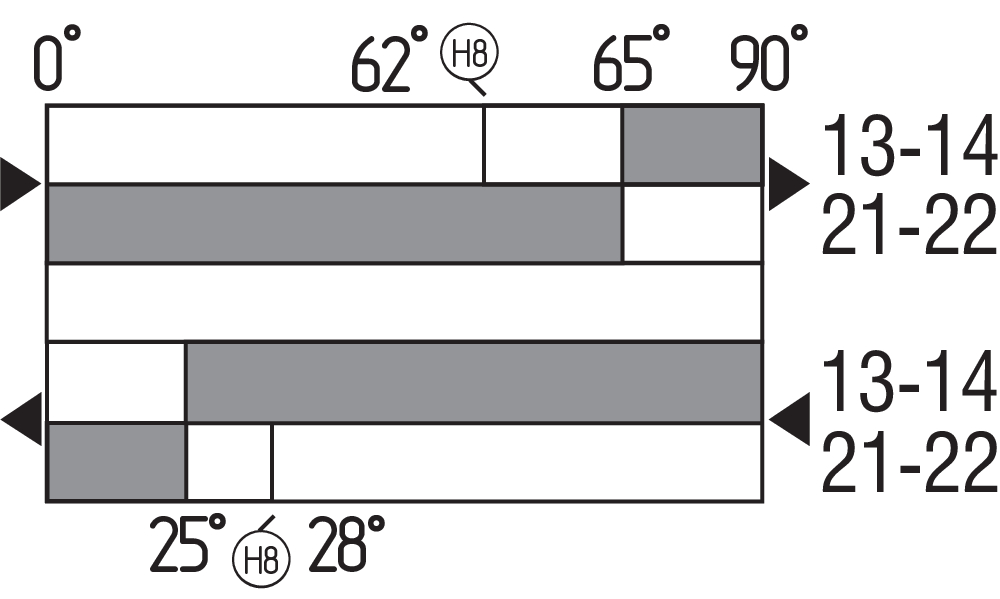

Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 18/04/2026, 16:42
