SG2
SG2
Downloads
Ordering data
| Note (Delivery capacity) |
Not available! |
| Product type description |
SG2 |
| Article number (order number) |
101207762 |
| eCl@ss number, version 12.0 |
27-27-27-92 |
| eCl@ss number, version 11.0 |
27-27-27-92 |
| eCl@ss number, version 9.0 |
27-27-27-92 |
| ETIM number, version 7.0 |
EC002549 |
| ETIM number, version 6.0 |
EC002549 |
General data
| Housing material |
Metal film |
| Housing coating material |
hot-dip galvanised |
| Gross weight |
200 g |
Mechanical data - Dimensions
| Width |
82 mm |
| Height |
1,334 mm |
| Depth |
120 mm |
Product picture (catalogue individual photo)
ID: ksg1-f01
| 690.7 kB | .jpg | 250.119 x 1199.797 mm - 709 x 3401 px - 72 dpi
| 77.5 kB | .png | 74.083 x 355.247 mm - 210 x 1007 px - 72 dpi
| 11.1 kB | .jpg | 25.753 x 123.47200000000001 mm - 73 x 350 px - 72 dpi
| 9.1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 6.1 MB | .png | 169.333 x 812.207 mm - 2000 x 9593 px - 300 dpi

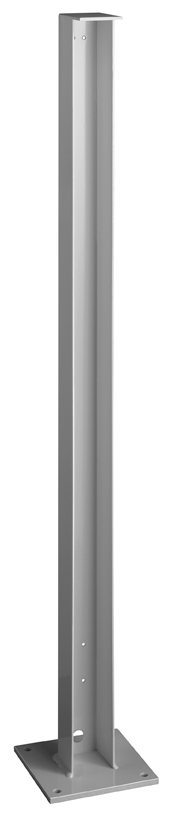

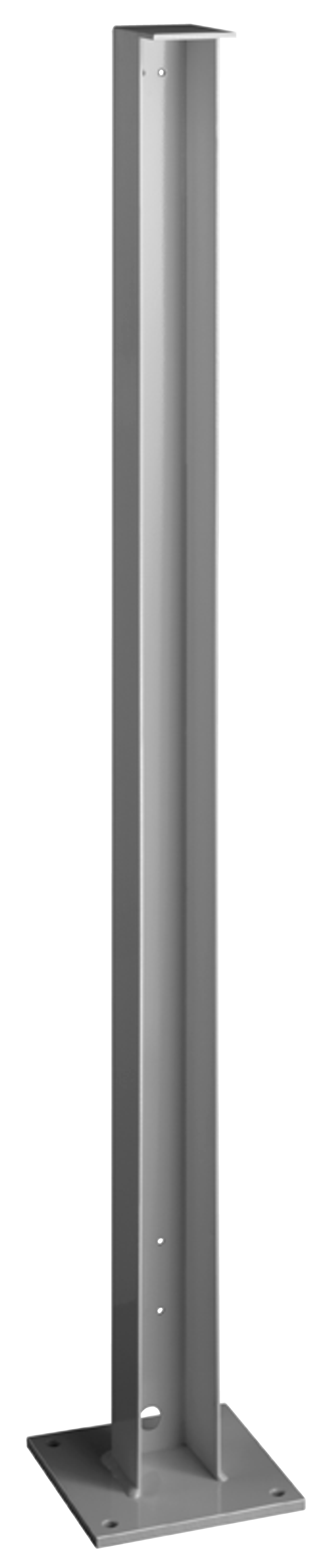

Product picture (catalogue individual photo)
ID: ssg1-f01
| 22.3 kB | .jpg | 59.972 x 287.161 mm - 170 x 814 px - 72 dpi
| 26.9 kB | .png | 59.972 x 287.161 mm - 170 x 814 px - 72 dpi
| 5.6 kB | .jpg | 25.753 x 123.47200000000001 mm - 73 x 350 px - 72 dpi
| 7.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 7.6 kB | .jpg | 59.972 x 287.161 mm - 170 x 814 px - 72 dpi
| 886.3 kB | .png | 169.333 x 810.768 mm - 2000 x 9576 px - 300 dpi
Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
