NWTS32.1WS
NWTS32.1WS
Downloads
- with maintained and momentary positions
- hygienic design
- Protection class IP69K
- Mounting hole 22.3 mm
Ordering data
| Product type description |
NWTS32.1WS |
| Article number (order number) |
101164759 |
| EAN (European Article Number) |
4250116200290 |
| eCl@ss number, version 12.0 |
27-37-12-13 |
| eCl@ss number, version 11.0 |
27-37-12-13 |
| eCl@ss number, version 9.0 |
27-37-12-13 |
| ETIM number, version 7.0 |
EC000222 |
| ETIM number, version 6.0 |
EC000222 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 EN IEC 60947-1 |
| Versions |
selector switch Front plate mounting |
| Design |
Round |
| Installation conditions (mechanical) |
arbitrarily |
| Toggle |
long |
| Sealing type |
Membrane Lip gaskets |
| Material of the front ring |
ABS, chrome-plated |
| Material of the toggle |
ABS |
| Colour of the front ring |
Silver |
| Colour of the handle |
White |
| Colour of the bellows |
White |
| Gross weight |
35 g |
General data - Features
| Probing possible |
Yes |
| Latching |
Yes |
| Fully insulated |
Yes |
| Number of the touch position |
1 |
| Number of plunger |
2 |
| Number of switch positions |
2 |
| Number of contact elements, maximum |
2 |
Mechanical data
| Unlocking |
Left: without rotating unlatcher Right: rotating unlatcher |
| Latching position |
right |
| Touch position |
left |
| Mechanical lifetime, Command devices |
300,000 Operations |
| Switching angle, left |
35 ° |
| Switching angle, right |
55 ° |
| Mounting |
Mounting flange EFM |
| Tightening torque of the screw |
0.6 Nm |
| Typical actuating force of the selector switch |
0.2 N |
Mechanical data - Dimensions
| Mounting height |
26 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Diameter of the front ring |
44.5 mm |
| Length of the handle |
46 mm |
| Diameter of the knob |
39 mm |
| Mounting diameter |
22.3 mm |
| Thickness, of the front panel, minimum |
1 mm |
| Thickness of the front panel, maximum |
6 mm |
| Spacing |
50 x 60 mm |
Ambient conditions
| Degree of protection |
IP67 IP69K |
| Ambient temperature |
+0 ... +75 °C |
| Resistance to vibrations |
5 g |
| Restistance to shock |
<50 g (EN 60068-2-27) |
Electrical data
| Switching frequency of the command device, maximum |
1,000 /h |
Scope of delivery
| Note (scope of delivery, number and type) |
Mounting flange EFM is included in delivery |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Declaration of conformity (EC)
UKCA Declaration of Conformity
UL Certificate
Download the latest version of Adobe Reader

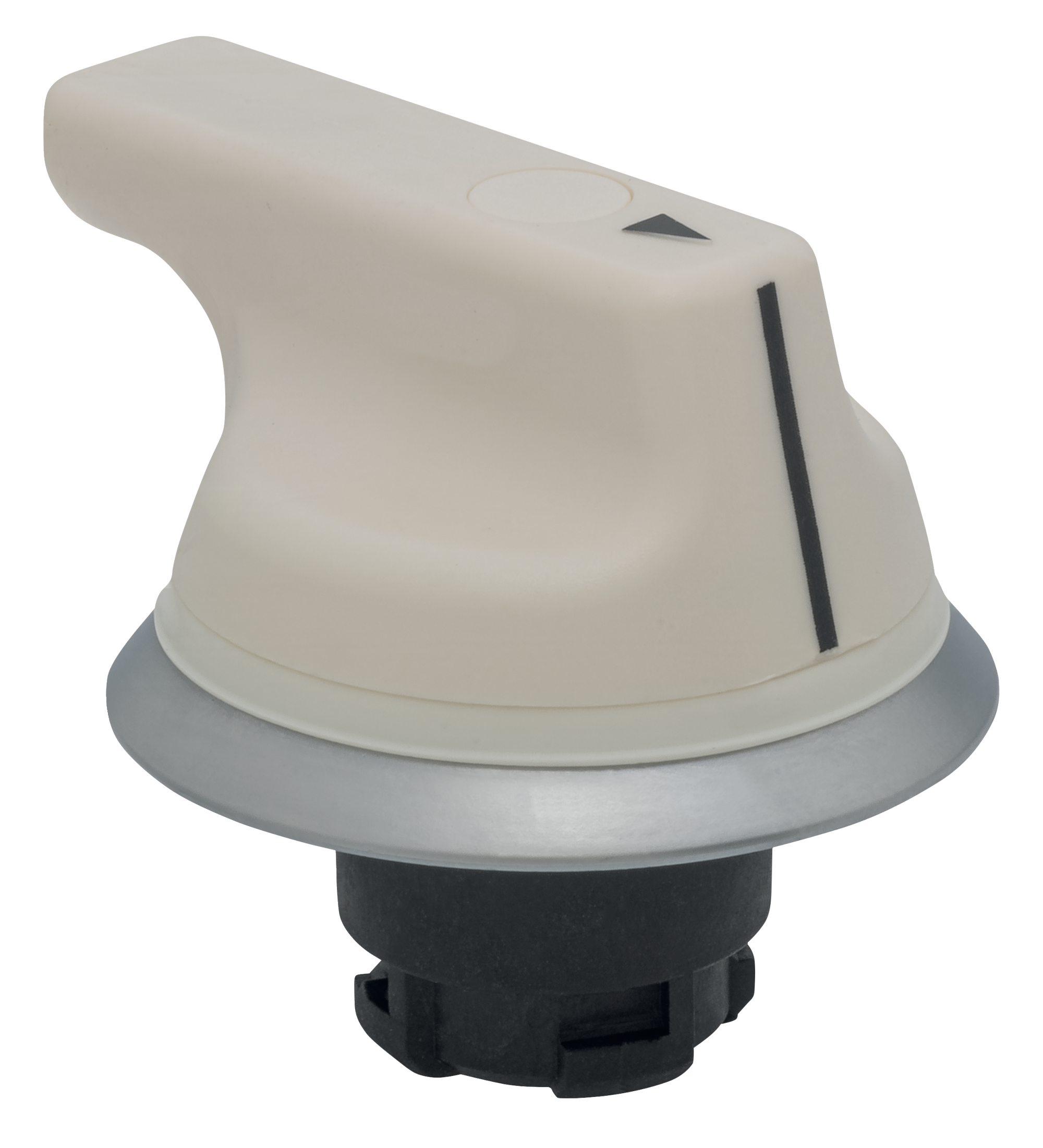

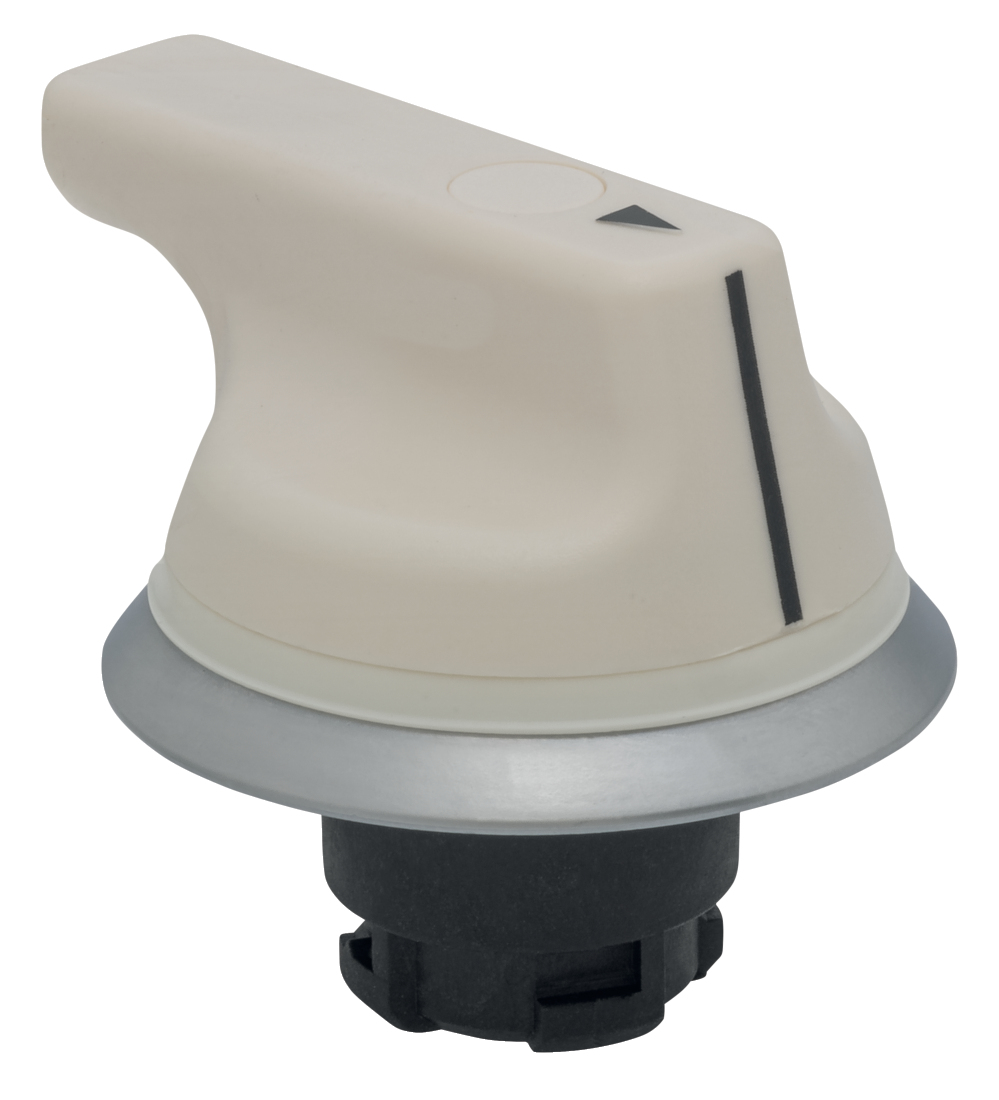

Product picture (catalogue individual photo)
