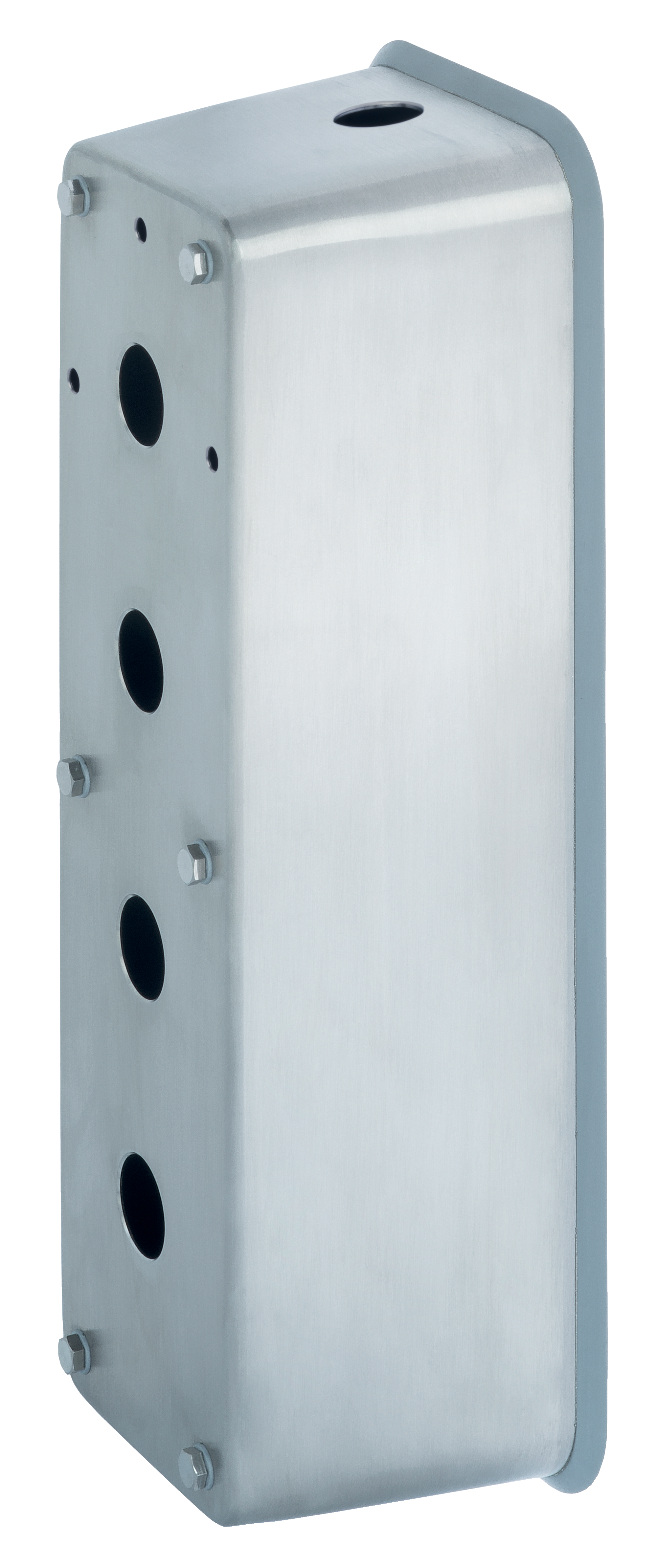

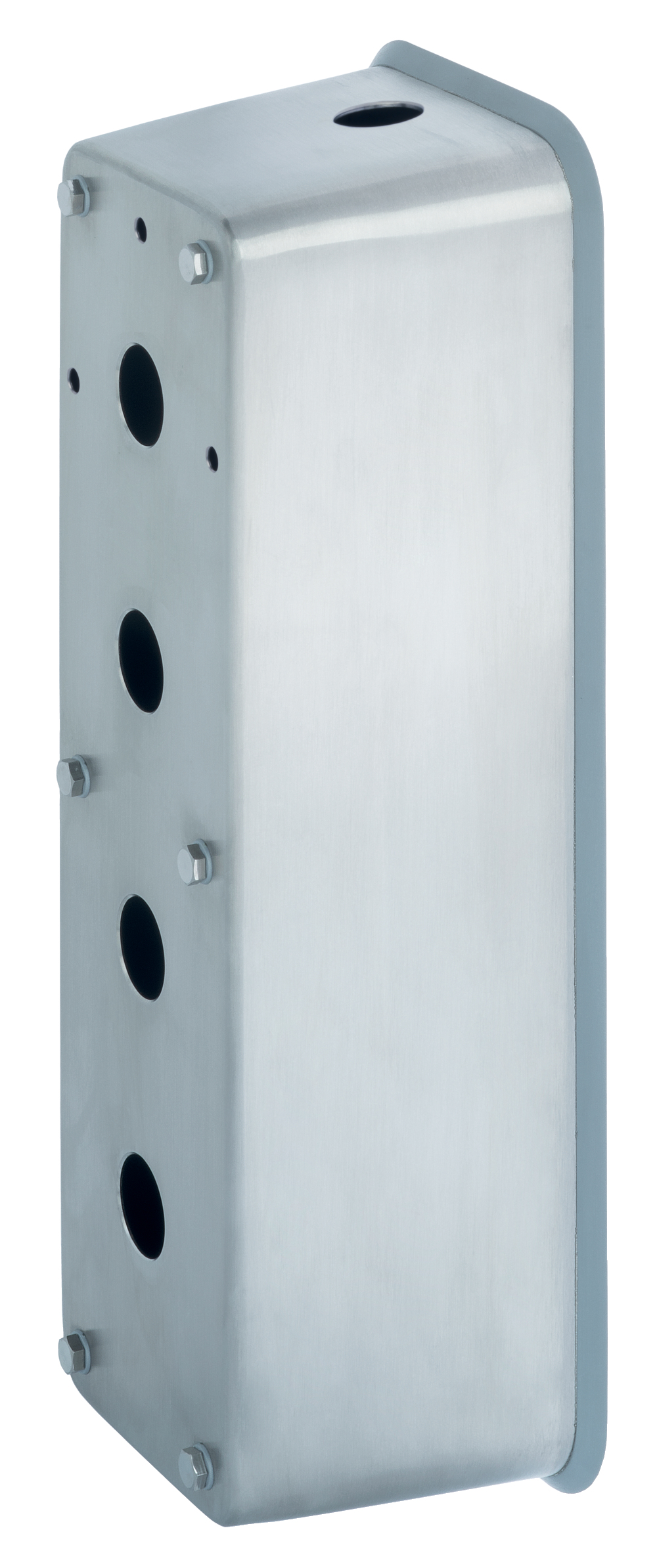

NBG664/70.60/NSK

Item number: 103025606
NBG664/70.60/NSK

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • for application in food producing machinery
  • Enclosure seal for food machinery
  • Stainless steel enclosure

Ordering data

Product type description

NBG664/70.60/NSK
Article number (order number)

103025606
EAN (European Article Number)

4030661513614
eCl@ss number, version 12.0

27-37-12-05
eCl@ss number, version 11.0

27-37-12-05
eCl@ss number, version 9.0

27-37-12-05
ETIM number, version 7.0

EC000200
ETIM number, version 6.0

EC000200

General data

Versions

Assembly housing
Housing material

Stainless steel (V4A)
Colour of the bottom part of the enclosure

Silver
Colour of the sealing

Grey
Gross weight

1,800 g

General data - Features

Vorbereitet für Montage eines Schutzkragens

Yes
Number of command positions

4

Mechanical data

Position of the cable gland

mounting holes
Offset Emergency-Stop button

Yes

Mechanical data - Connection technique

Diameter of the cable gland

20.3 mm

Mechanical data - Dimensions

Width

110 mm
Height

86.5 mm

Ambient conditions

Degree of protection

IP67

IP69K
Ambient temperature

-25 ... +80 °C
EU Conformity Declaration
Pdf
EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:NBG..., NBGLC..., EBG....O, MBG(H)..., MBG(H)AC..., MBK..., MBKAC..., KG...
Type:See ordering code
Description of the component:Empty enclosure / Individually equipped enclosure
Relevant Directives:Machinery Directive 1)2006/42/EC
 Low Voltage Directive 2)2014/35/EU
 EMC-Directive 3)2014/30/EU
 RoHS-Directive2011/65/EU
Affixing of the CE conformity mark:1) for safety components, whose type plate is labelled "Safety component"
2) for switchgear without safety function
3) with mounted light elements and / or voltage sensors
Applied standards:EN IEC 60947-5-1:2025
EN 60947-5-5:1997 + A1:2005 + A11:2013 + A2:2017*)
EN ISO 13850:2015*)
*) with mounted emergency stop devices
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, November 17, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director

Schmersal India Pvt. Ltd., Plot No - G-7/1, Ranjangaon MIDC, Tal. - Shirur, Dist.- Pune 412 220

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
