ACC-AZM400-BOW-4M-6M

Item number: 103015308
ACC-AZM400-BOW-4M-6M

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data

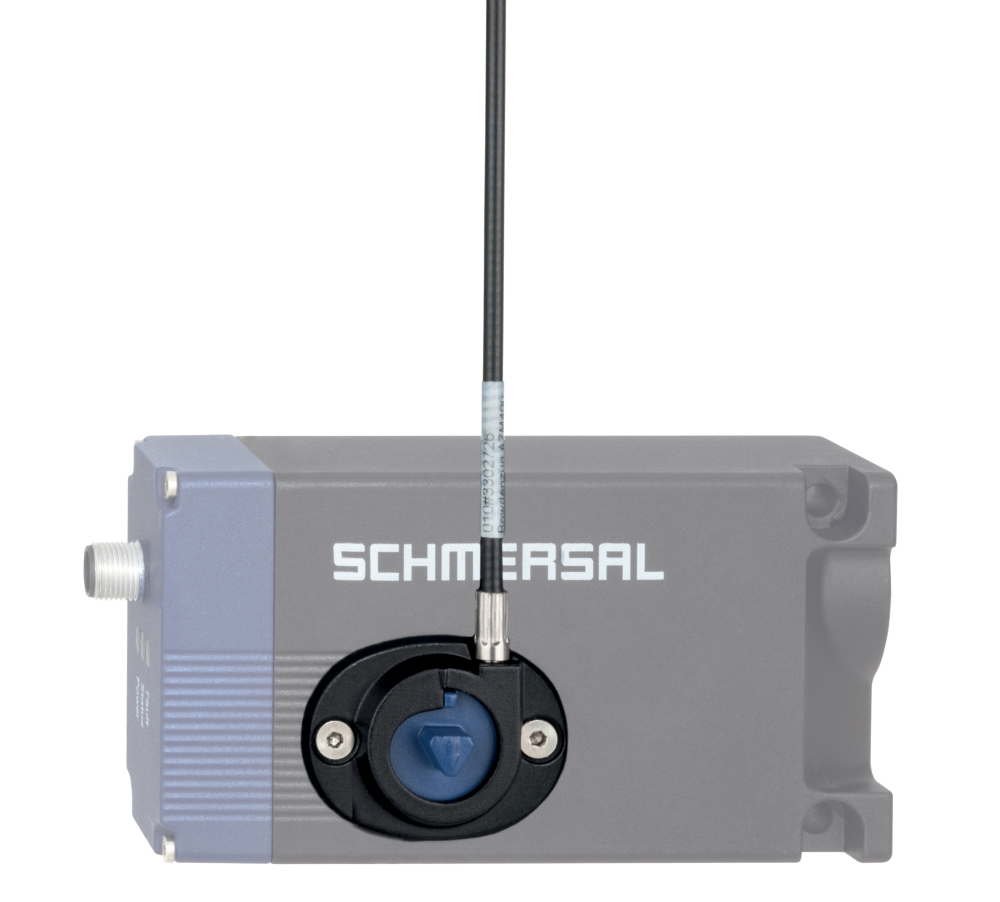

  • Remote release via a wire rope
  • Can be used as emergency exit or emergency release
  • Length of sheathed steel core: 4 m
  • total length: 6

Ordering data

Product type description

ACC-AZM400-BOW-4M-6M
Article number (order number)

103015308
EAN (European Article Number)

4030661504001
eCl@ss number, version 12.0

27-27-26-92
eCl@ss number, version 11.0

27-27-26-92
eCl@ss number, version 9.0

27-27-26-92
ETIM number, version 7.0

EC002594
ETIM number, version 6.0

EC002594

General data

Gross weight

277 g

Mechanical data - Dimensions

Length

52 mm
Width

40 mm
Height

15 mm
Length of sheathed steel core

4 m
Length of the Bowden cable

6 m

Scope of delivery

Scope of delivery

Note: The Bowden cable release is an accessory that can be used in connection with the solenoid interlock AZM400Z-...-BOW.

The solenoid interlock is not included in delivery.
