TZ/COF/HIS.2
TZ/COF/HIS.2
Downloads
Ordering data
| Product type description |
TZ/COF/HIS.2 |
| Article number (order number) |
101022352 |
| EAN (European Article Number) |
4030661459165 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-26-06 |
| eCl@ss number, version 9.0 |
27-27-26-06 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Gross weight |
104 g |
Mechanical data
| Actuating radius, minimum |
350 mm |
| Actuator |
flexible |
| Actuator mounted |
top |

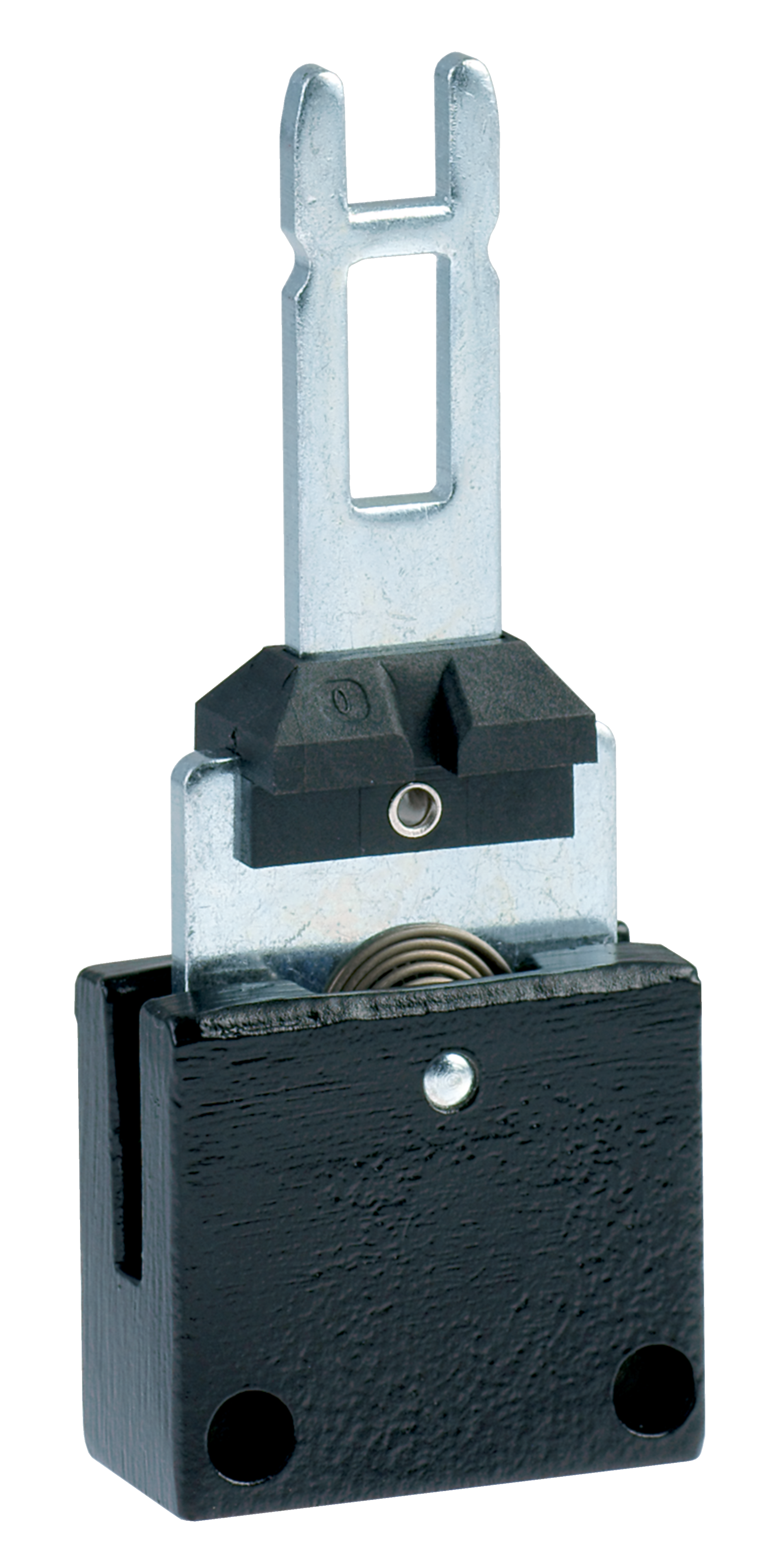

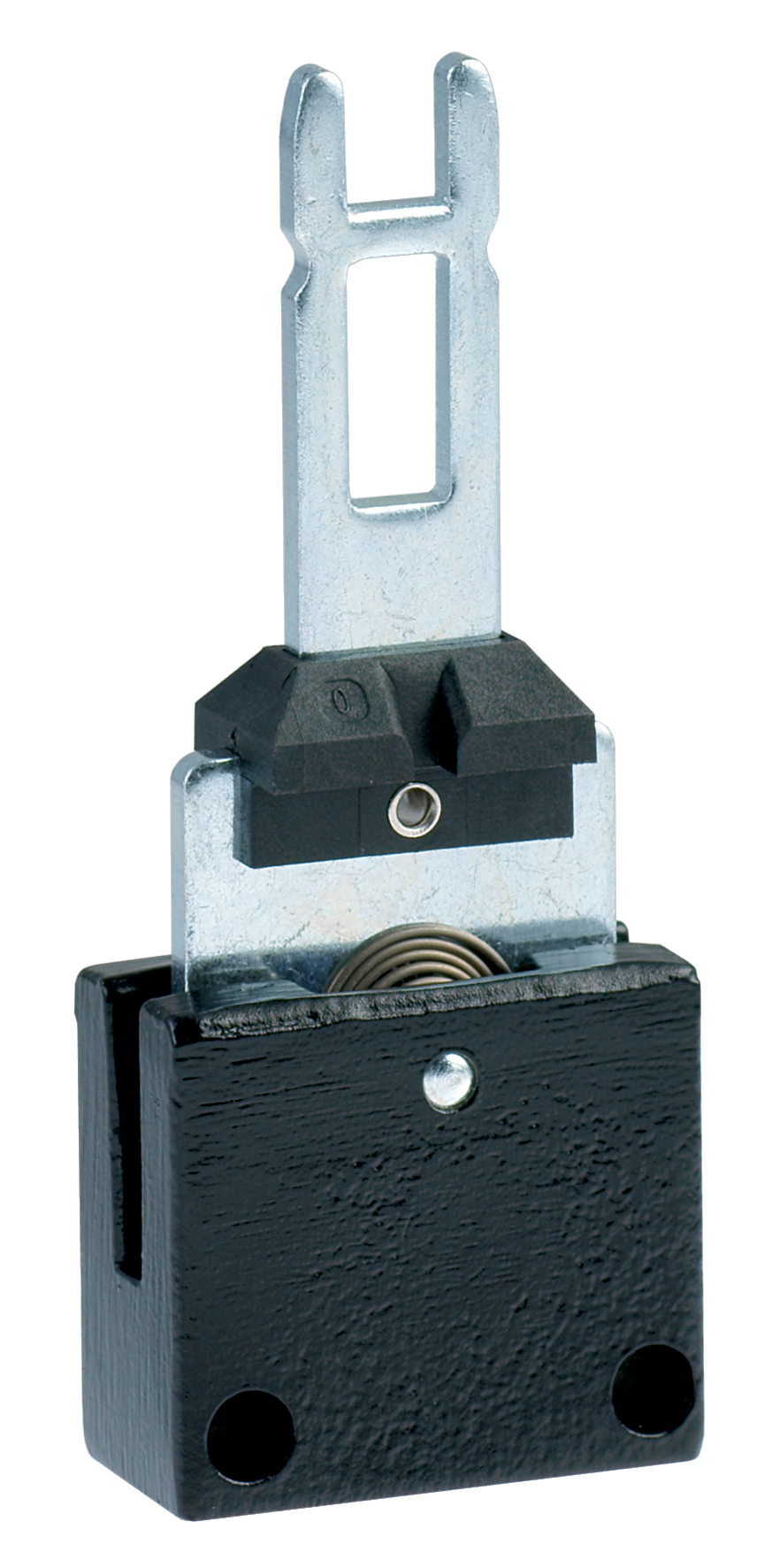

Product picture (catalogue individual photo)
ID: ktz--f08
| 727.2 kB | .jpg | 307.975 x 625.1220000000001 mm - 873 x 1772 px - 72 dpi
| 83.3 kB | .png | 74.083 x 150.28300000000002 mm - 210 x 426 px - 72 dpi
| 36.5 kB | .jpg | 60.678000000000004 x 123.47200000000001 mm - 172 x 350 px - 72 dpi
| 29.1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 7.1 MB | .png | 169.333 x 343.66200000000003 mm - 2000 x 4059 px - 300 dpi

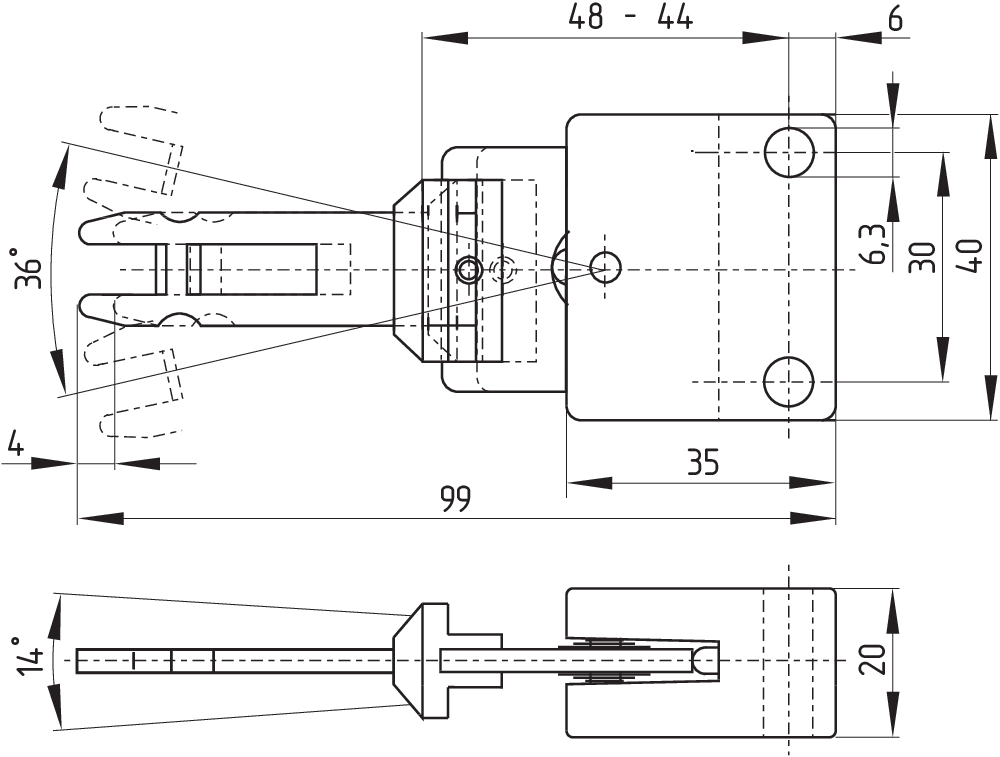

Dimensional drawing miscellaneous
Schmersal Ltd., Sparrowhawk Close, WR14 1GL Malvern
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 17/04/2026, 18:18
