BPS 36-1-2750
- Actuator and sensor on a mounting level
Ordering data
| Product type description |
BPS 36-1-2750 |
| Article number (order number) |
101217280 |
| EAN (European Article Number) |
4030661419459 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-24-04 |
| eCl@ss number, version 9.0 |
27-27-24-04 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Housing material |
Plastic |
| Gross weight |
26 g |
| Note |
Actuator and sensor on a mounting level |
General data - Features
| Actuator and sensor on a mounting level |
Yes |
Mechanical data - Dimensions
| Length of the actuator |
88 mm |
| Width of the actuator |
25 mm |
| Height of the actuator |
13 mm |
Scope of delivery
| Note (scope of delivery, number and type) |
Befestigungsschrauben nicht im Lieferumfang enthalten |

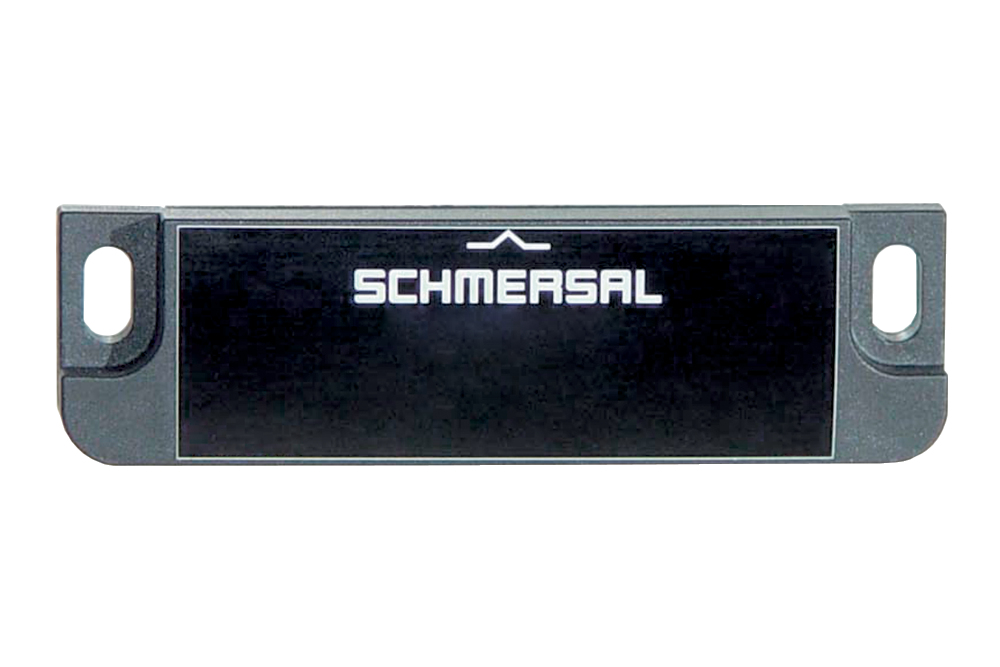

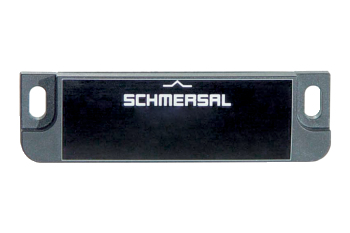

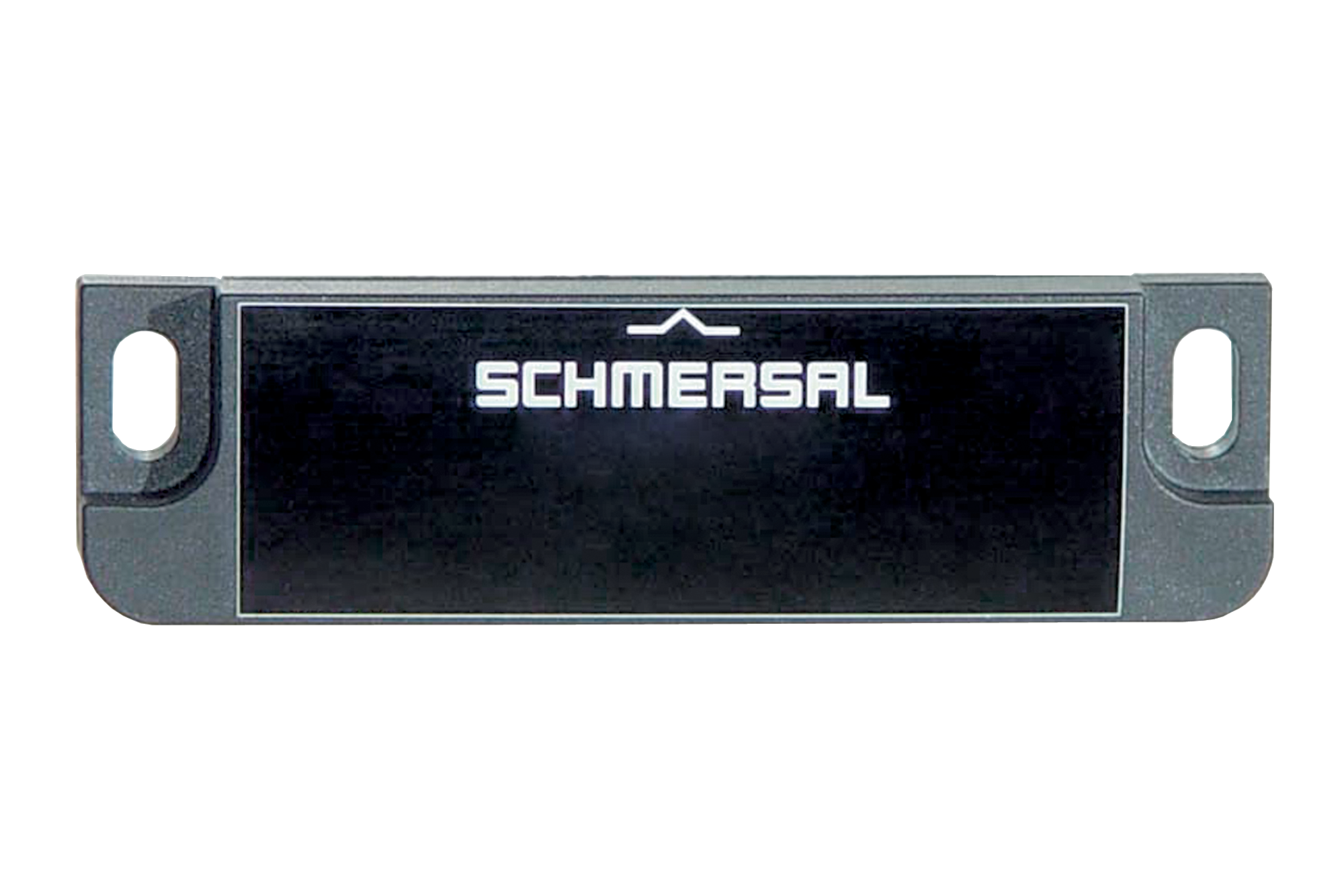

Product picture (catalogue individual photo)
ID: kbns3f17
| 175.5 kB | .jpg | 352.778 x 235.303 mm - 1000 x 667 px - 72 dpi
| 29.8 kB | .png | 74.083 x 49.389 mm - 210 x 140 px - 72 dpi
| 29.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.7 MB | .png | 166.55700000000002 x 111.09400000000001 mm - 2000 x 1334 px - 305 dpi
| 32.1 kB | .jpg | 123.47200000000001 x 82.197 mm - 350 x 233 px - 72 dpi

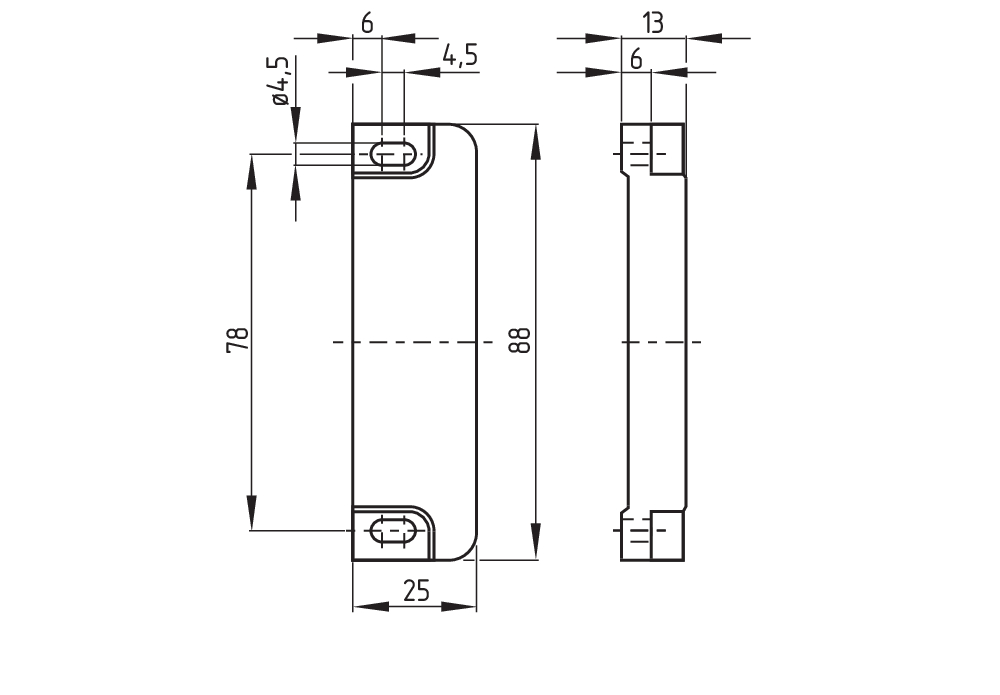

Dimensional drawing actuator
101188624 SPACER BNS 36 SPACER
- to mount the magnetic safety sensor and actuator on ferromagnetic material
