MV10H 330-11Y-M20-1348
| Product type description: M(1) 330-11Y-(2)-(3) |
| (1) | |
| S | Plunger S |
| 2S | Telescopic plunger 2S |
| R | Roller plunger R |
| K | Offset roller lever K |
| 3K | Angle roller lever 3K |
| 3S | Side plunger 3S |
| 3R | Side roller plunger 3R |
| AF | Spring rod lever AF |
| 4D | Fork roller level 4D |
| 8H | Roller lever 8H |
| 7H | Roller lever 7H |
| 10H | Rod lever 10H |
| H | Roller lever H |
| 4H | Spring rod lever on shaft 4H |
| 2H | Leaf spring lever 2H |
| 3H | Roller lever 3H |
| 9H | Rod lever 9H |
| 6H | Leaf spring lever 6H |
| (2) | |
| without | without LED switching conditions display |
| G24 | with LED switching conditions display |
| (3) | |
| AuNi | Gold-nickel alloy contacts |
| 1164 | Splined shaft and lever available with 10° toothing |
| 1366 | For temperatures up to +160°C |
- Metal enclosure
- 2 Contacts
- Long life
- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
- Epoxy resin rod
Ordering data
| Product type description |
MV10H 330-11Y-M20-1348 |
| Article number (order number) |
131159310 |
| EAN (European Article Number) |
8905236106941 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Housing material |
Light-alloy diecast, paint finish |
| Housing coating material |
painted |
| Material of the rod |
Epoxy resin |
| Gross weight |
484 g |
General data - Features
| Number of normally closed (NC) |
1 |
| Number of normally open (NO) |
1 |
Mechanical data

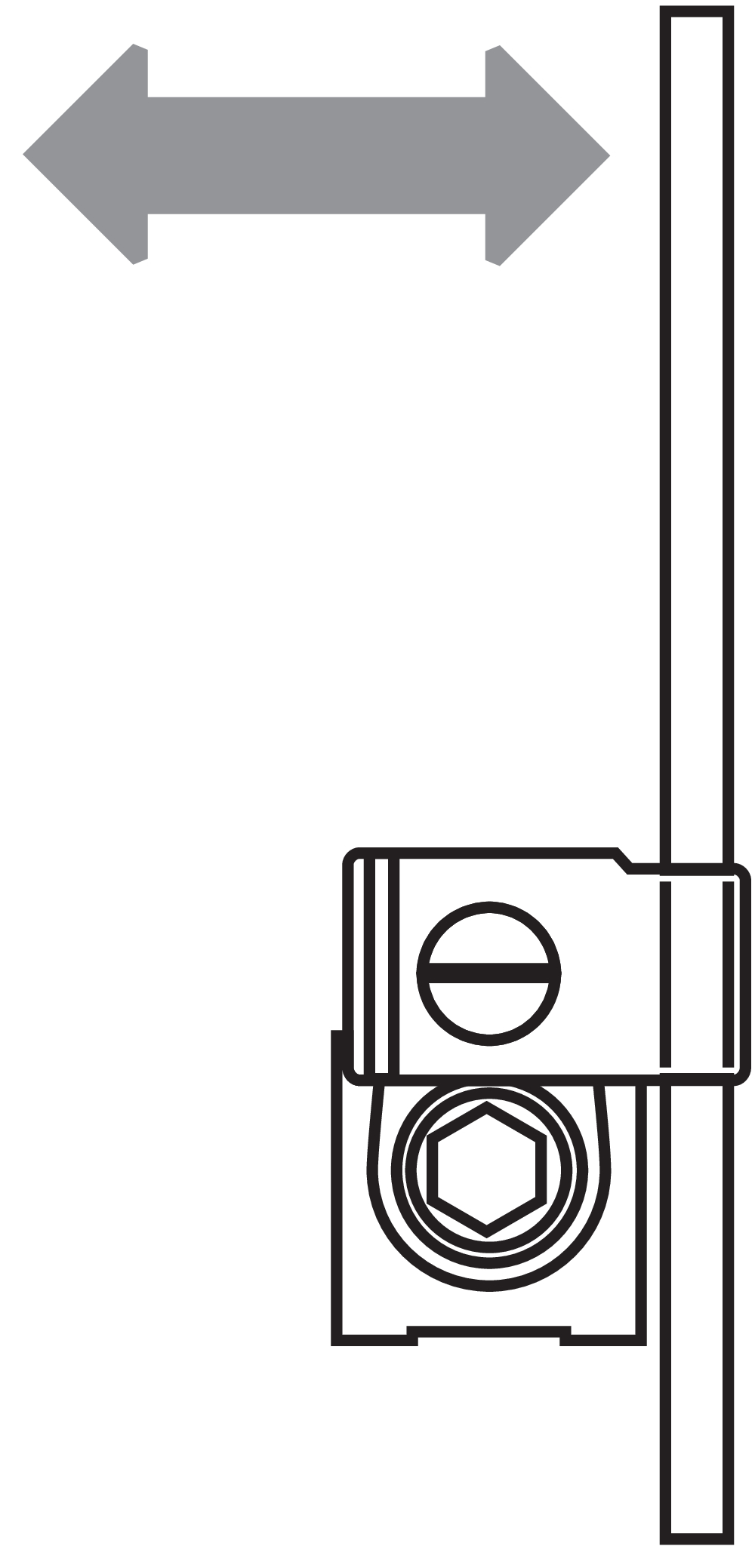

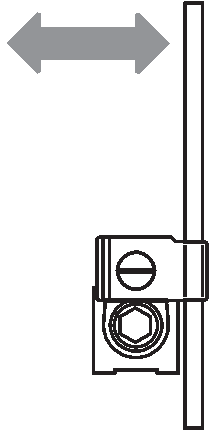

| Actuating element |
Rod lever |
| Mechanical lifetime, minimum |
30,000,000 Operations |
| Contact opening |
2 x 0.5 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating torque |
0.5 Nm |
| Repeat accuracy of switching points |
0.02 mm |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
40 mm |
| Width of sensor |
40 mm |
| Height of sensor |
276 mm |
| Diameter of the Rod |
6 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +90 °C |
| Restistance to shock |
50 g / 6 ms |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
6 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
2.5 A |
| Switching element |
1 NO contact, 1 NC contacts |
| Note (Switching element) |
galvanically separated contact bridges |
| Switching principle |
Snap action |
| Bounce duration, maximum |
1.5 ms |
| Switchover time, maximum |
10 ms |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
Declaration of conformity (EC)
UL Certificate
CCC certification
Datasheet (provisional PDF)
Download the latest version of Adobe Reader

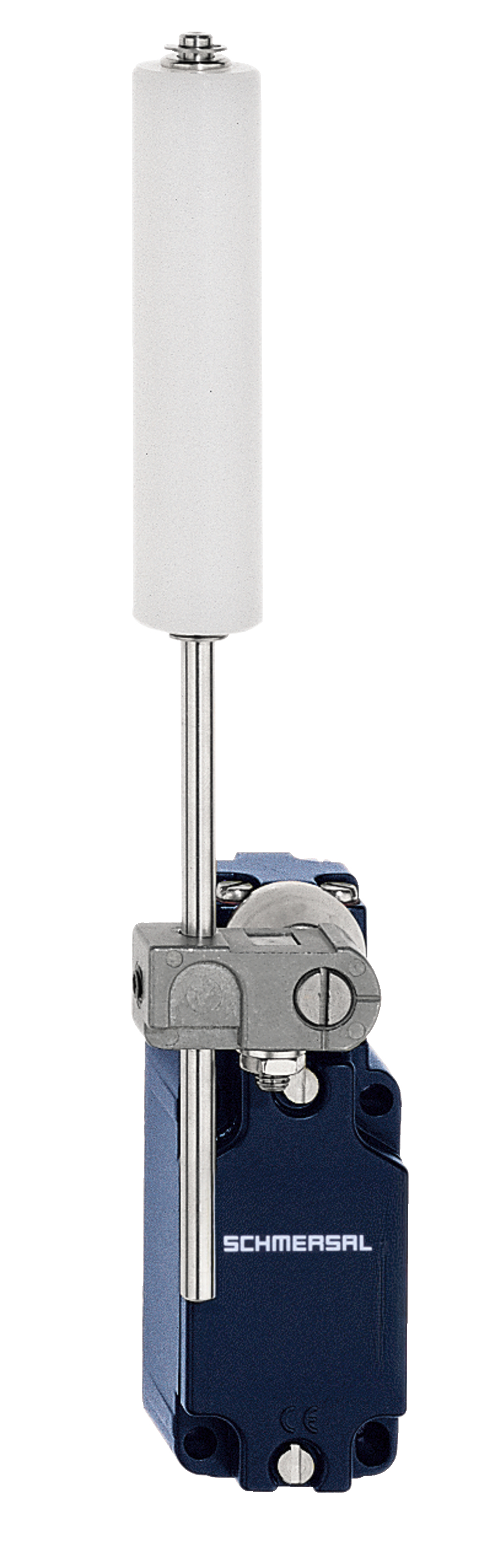

Product picture (catalogue individual photo)
ID: kbandf01
| 853.3 kB | .jpg | 352.778 x 1153.9360000000001 mm - 1000 x 3271 px - 72 dpi
| 123.1 kB | .png | 74.083 x 242.358 mm - 210 x 687 px - 72 dpi
| 14.7 kB | .jpg | 37.747 x 123.47200000000001 mm - 107 x 350 px - 72 dpi
| 12.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 9.1 MB | .png | 166.55700000000002 x 544.892 mm - 2000 x 6543 px - 305 dpi

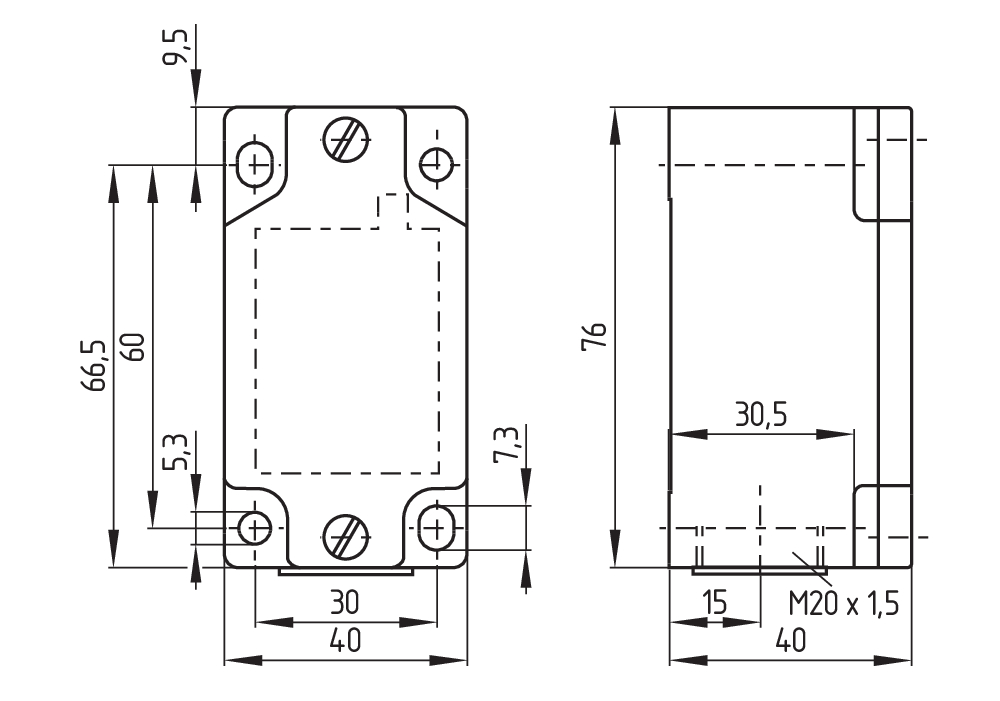

Dimensional drawing basic component

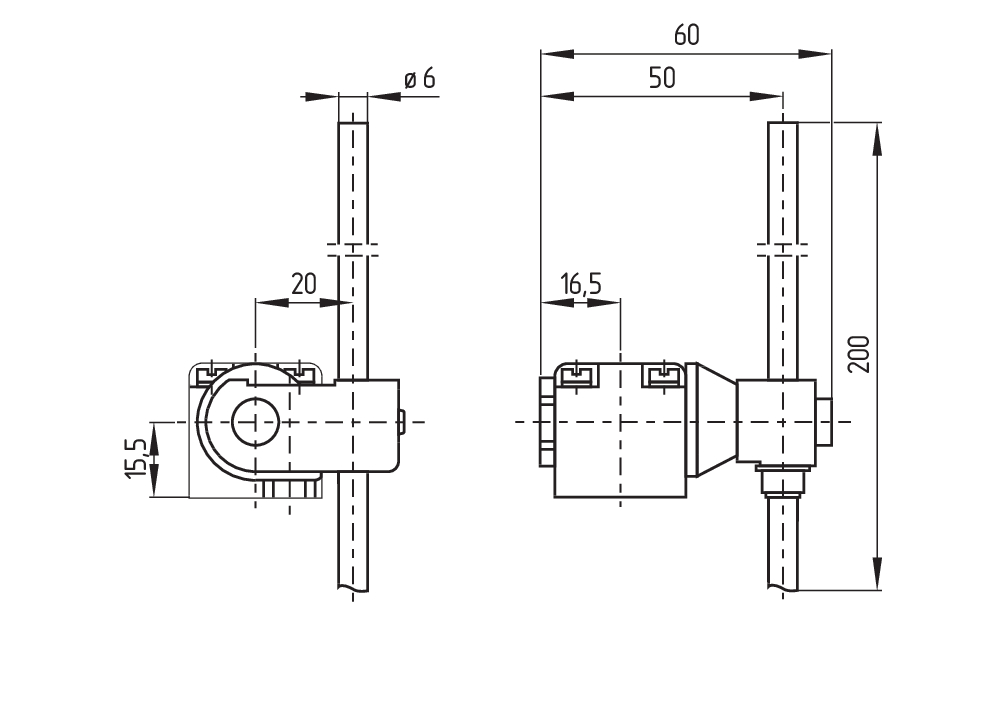

Dimensional drawing actuator

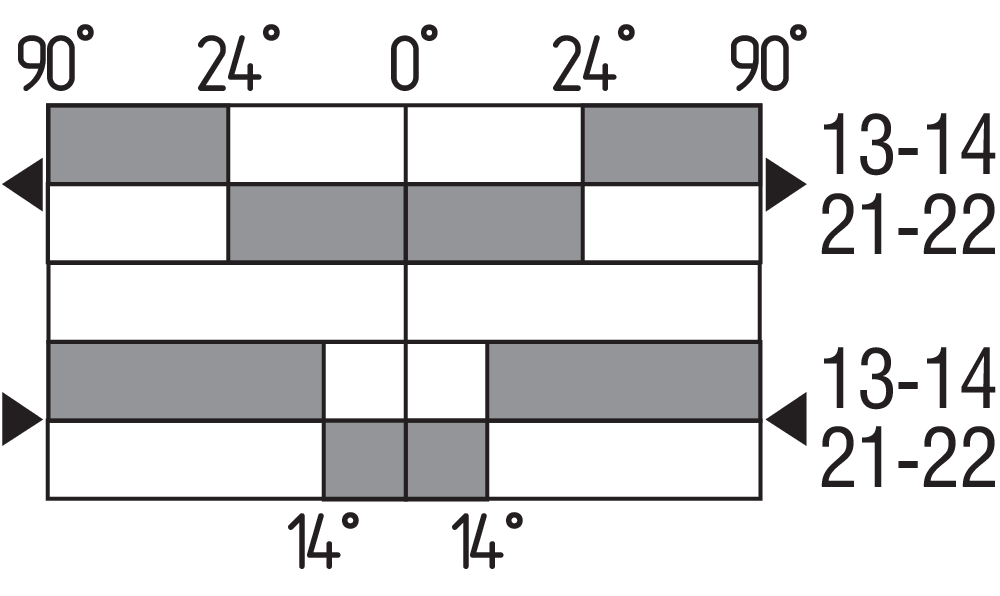

Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angleDiagram
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
