SHGV/SR/ESS21S2/104GB/GB103

Item number: 103002526
SHGV/SR/ESS21S2/104GB/GB103

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
Product type description:

SHGV(1)(2)/ESS21S2/(3)(4)/(5)


(1)
withoutStandard locking system
ZCentral locking system

(2)
withoutStandard Silver
/SRcoloured key heads

(3)
xxxKey number(s) 100 … 999

(4)
oo/ooColour of the key grip>#Picture#Bilddata/Interface/Tools/k__bry01.eps#/Picture# (BR)>#Picture#Bilddata/Interface/Tools/k__gey01.eps#/Picture# (GB)>#Picture#Bilddata/Interface/Tools/k__roy01.eps#/Picture# (RT)>#Picture#Bilddata/Interface/Tools/k__bly01.eps#/Picture# (BL)>#Picture#Bilddata/Interface/Tools/k__wey02.eps#/Picture# (WS)>#Picture#Bilddata/Interface/Tools/k__guy01.eps#/Picture# (GR)>#Picture#Bilddata/Interface/Tools/k__gry01.eps#/Picture# (GN)>#Picture#Bilddata/Interface/Tools/k__swy01.eps#/Picture# (SW)>All colour combinations are therefore possible.

(5)
1031 NC contacts / 1 NO contact
Not all component variants, which are possible according to this order code are available and/or technically feasible.
  • Aluminium enlosure
  • Protection class IP65

Ordering data

Product type description

SHGV/SR/ESS21S2/104GB/GB103
Article number (order number)

103002526
EAN (European Article Number)

4030661424231
eCl@ss number, version 12.0

27-37-12-43
eCl@ss number, version 11.0

27-37-12-43
eCl@ss number, version 9.0

27-37-12-43
ETIM number, version 7.0

EC001029
ETIM number, version 6.0

EC001029
Note (Ordering data)

Note: In the order/inquiry, the requested lock number "xxx" as well as the colours "oo/oo" of the key head must be specified (e.g. SHGV/SR/ESS21S2/125/RT/RT/103)! The colour, which is indicated first after the lock number always is the key had half with the observation window for the lock number engraved on the key. If no lock number is indicated in the order/inquiry, we will supply a lock number at our discretion. The user must ensure that lock numbers are not assigned twice in a single plant (factory site)! The user must ensure that no double key bit numbers are allocated on one site (company site)!

Approvals - Standards

Certificates

cULus

CCC

General data

Standards

EN IEC 62061

EN ISO 14119

EN IEC 60947-5-1

EN IEC 60947-5-3

EN IEC 60947-5-5

EN IEC 60204-1

EN IEC 60947-1
Versions

Key - Selector switch - Front plate mounting
Installation conditions (mechanical)

arbitrarily
Sealing type

Membrane

Lip gaskets
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Material of the cylinder lock

Steel
Material of the front ring

Aluminium
Colour of the cylinder lock

Silver
Colour of the Contact element

Black
Colour of the front ring

Silver
Colour of key head

Blue

Brown

Yellow

Grey

Red

White
Gross weight

136 g

General data - Features

Latching

Yes
Fully insulated

Yes
Number of auxiliary contacts

1
Number of plunger

1
Number of switch positions

2

Mechanical data

Unlocking

Rotating unlatcher
Key withdrawal position

Position I

90°
Latching position

right
Mechanical lifetime, minimum

100,000 Operations
Mounting

mounting flange
Tightening torque of the screw

0.6 Nm
Key number

104

Mechanical data - Connection technique

Termination

Screw terminals M20 x 1.5
Cable section, minimum

0.5 mm², rigid

0.5 mm², flexible
Cable section, maximum

2.5 mm², rigid

2.5 mm², flexible
Note

All indications including the conductor ferrules.
Tightening torque of Clips

1 Nm

Mechanical data - Dimensions

Length x Width x Height

Height with key (and contact element): 62 mm (121 mm)
Diameter of the front ring

29.5 mm
diameters for the cylinder lock

22 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

40 x 50 mm

Ambient conditions

IP Degree of protection

IP65
IP Degree of protection of the switch rooms

IP40
IP Degree of protection of clips or terminals

IP20
Ambient temperature

-25 ... +75 °C
Restistance to shock

110 g / 4 ms
Resistant to vibration

Resistance to vibration: 20 g / 10…200 Hz

Ambient conditions - Insulation values

Rated insulation voltage Ui

400 V

Electrical data

Thermal test current

10 A
Utilisation category AC-15

230 VAC
Utilisation category AC-15

8 A
Utilisation category DC-13

24 VDC
Utilisation category DC-13

5 A
Suitable for low-voltages

≥ 5 V / ≥ 3.2 mA
Switching element

NC contact, NO contact
Switching principle

Slow action
Bounce duration, maximum

5 ms
Maximale Schalthäufigkeit

5 /h
Material of the contacts, electrical

Silver

Product picture (catalogue individual photo)

kshgvf02

ID: kshgvf02

| 761.2 kB | .jpg | 352.778 x 828.6750000000001 mm - 1000 x 2349 px - 72 dpi

| 113.2 kB | .png | 74.083 x 173.919 mm - 210 x 493 px - 72 dpi

| 24.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 8.2 MB | .png | 145.143 x 340.94100000000003 mm - 2000 x 4698 px - 350 dpi

| 26.3 kB | .jpg | 52.564 x 123.47200000000001 mm - 149 x 350 px - 72 dpi

Diagram

kshgvk01

ID: kshgvk01

| 48.4 kB | .jpg | 352.778 x 118.533 mm - 1000 x 336 px - 72 dpi

| 2.5 kB | .png | 74.083 x 25.047 mm - 210 x 71 px - 72 dpi

Sample application general

kshgva03

ID: kshgva03

| 6.2 kB | .png | 74.083 x 48.683 mm - 210 x 138 px - 72 dpi

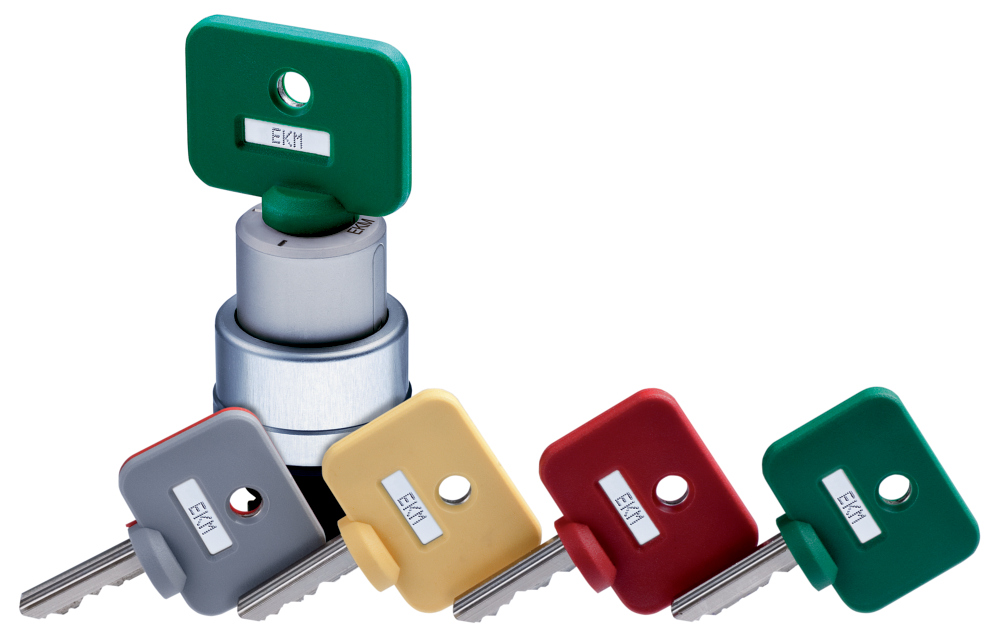

Family picture (group photo)

kshgvf18

ID: kshgvf18

| 292.2 kB | .jpg | 352.778 x 223.661 mm - 1000 x 634 px - 72 dpi

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.

Generated at: 2026-04-30, 4:56 p.m.
