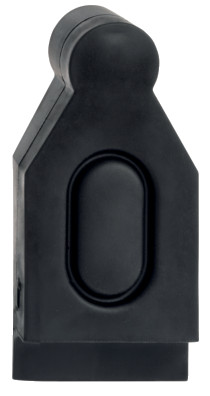

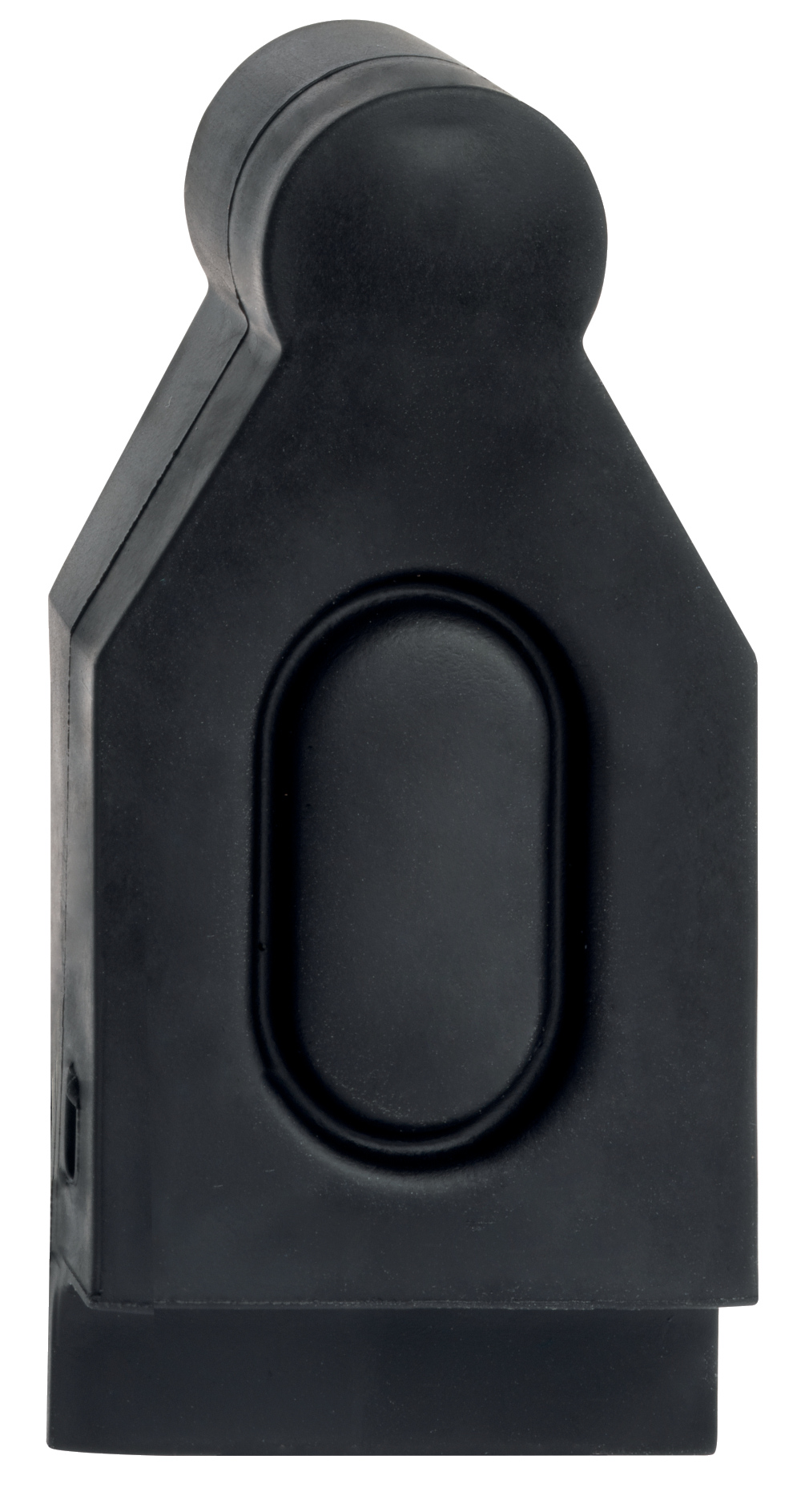

SE-T70 END PLUG

Item number: 101167879
SE-T70 END PLUG

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data

Ordering data

Product type description

SE-T70 END PLUG
Article number (order number)

101167879
EAN (European Article Number)

4030661521336
eCl@ss number, version 12.0

27-27-34-91
eCl@ss number, version 11.0

27-27-34-91
eCl@ss number, version 9.0

27-27-34-91
ETIM number, version 7.0

EC002887
ETIM number, version 6.0

EC002887

General data

Resistance against permanent deformation

Good
Material resistance (acids)

Good
Material of the rubber profile

EPDM, 65 Shore A
Colour of the Contact element

Black
Gross weight

9 g

Mechanical data - Dimensions

Width

30 mm
Height, approx.

70 mm

Ambient conditions

Material temperature resistance (short-term)

-50 ... +170 °C
Material temperature resistance (long-term)

-30 ... +140 °C

Notes - Chemical resistance

Material resistance (fuel)

Low
Material resistance (solvents)

low to satisfactory
Material resistance (oil)

Low
Material resistance, (rebound elasticity at 20 C)

Good

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.

Generated at: 2026-04-17, 5:11 p.m.
