NHSNH16/2-POL

Item number: 101209839

NHSNH16/2-POL

Item number: 101209839

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Amount

Product type description:
NHS(1)(2)(3)(4)

(1)
without	Black toggle with silver background
NH	Red toggle with yellow background

(2)
16	16A version
40	40A version
63	63A version

(3)
/2-POL	2-pole version (16A version only)
/4-POL	4-pole version (16A version only)
without	With strengthening plate (only 40A & 63A version)
/O.VA-PL.	Without strengthening plate and with marking plate (NHS-4...) (only 40A & 63A version)

(4)
-3034	With small marking plate (Instead of NHS-4 ... sign with NHS-9 ... sign) (only 40A & 63A version)
-3037	with mounted additional terminals for N and PE (only 40A & 63A version)
-3050	Main switch block rotated 90 ° (connection terminals horizontal)

Not all component variants, which are possible according to this order code are available and/or technically feasible.

Main switches 16A - 63A
hygienic design
Protection class IP69K
Mounting hole 22.3 mm

Ordering data

Product type description	NHSNH16/2-POL
Article number (order number)	101209839
EAN (European Article Number)	4030661583938
eCl@ss number, version 12.0	27-37-14-03
eCl@ss number, version 11.0	27-37-14-03
eCl@ss number, version 9.0	27-37-14-03
ETIM number, version 7.0	EC000216
ETIM number, version 6.0	EC000216

General data

Standards	EN IEC 60947-5-1 EN IEC 60204-1 ANSI/UL 60947-1 DIN EN 1672-2 ANSI/UL 60947-4-1A
Versions	Front plate mounting Main switch 16 A
Design	Round Large marking plate
Installation conditions (mechanical)	arbitrarily
Toggle	long
Sealing type	Membrane Lip gaskets
Material of the marking plate	Stainless steel (V4A)
Material of the bracket	Stainless steel (V4A)
Material of the front ring	ABS, chrome-plated
Material of the toggle	ABS
Colour of the marking plate	Yellow
Colour of the bracket	Silver
Colour of the Contact element	Black
Colour of the front ring	Silver
Colour of the handle	Red
Colour of the bellows	Black
Gross weight	205 g

General data - Features

Lockable neutral position	Yes
Latching	Yes
Fully insulated	Yes
Number of switch positions	1
Number of main contacts	2
Anti-torsion protection	Yes

Mechanical data

Unlocking	Rotating unlatcher
Latching position	right
Mechanical lifetime, minimum	1,000,000 Operations
Switching angle, right	90 °
Mounting	Screws
Tightening torque of the screw	0.6 Nm
Mounting position main contacts	0°

Mechanical data - Connection technique

Cable section, minimum	1 mm², rigid 1 mm², flexible
Cable section, maximum	2.5 mm², rigid 2.5 mm², flexible
Note	All indications including the conductor ferrules.
Wire cross-section	12 AWG
Tightening torque of Clips	2.5 Nm
Terminal (mechanical)	Screw terminals

Mechanical data - Dimensions

Width	100 mm
Height	104 mm
Mounting height	29 mm
Note (Mounting height)	Height in front of the front panel.
Mounting depth	75 mm
Note (Mounting depth)	Depth behind front panel including cam switch
Diameter	100 mm
diameters for the actuating heads	44.5 mm
Diameter of the front ring	44.5 mm
Length of the handle	52 mm
Diameter of the knob	39 mm
Mounting diameter	22.3 mm
Thickness, of the front panel, minimum	1 mm
Thickness of the front panel, maximum	5 mm
Note	Diameter backing plate 100 mm

Ambient conditions

Degree of protection	IP67 IP69
Ambient temperature	+0 ... +80 °C
Resistance to vibrations	5 g
Restistance to shock	<50 g (EN 60068-2-27)
Ambient temperature, switch element, maximum	open +50 °C encapsulated +40 °C
Ambient temperature, switch element, minimum	open -25 °C encapsulated -25 °C

Ambient conditions - Insulation values

Rated impulse withstand voltage U_imp	4 kV

Electrical data

Thermal test current	20 A
Rated operating voltage	690 VAC
Required rated short-circuit current	10,000 A
Switching capacity, AC-3	5,500 W
Switching capacity, AC-23	7,500 W
Switching principle	Slow action

Other data

Note (applications)	Main switch as emergency stop version with red toggle and yellow plate Rotary Cam Switch, Product line M200, Type series M220, Front mounting switch

Scope of delivery

Note (scope of delivery, number and type)	without strengthening plate, with marking plate

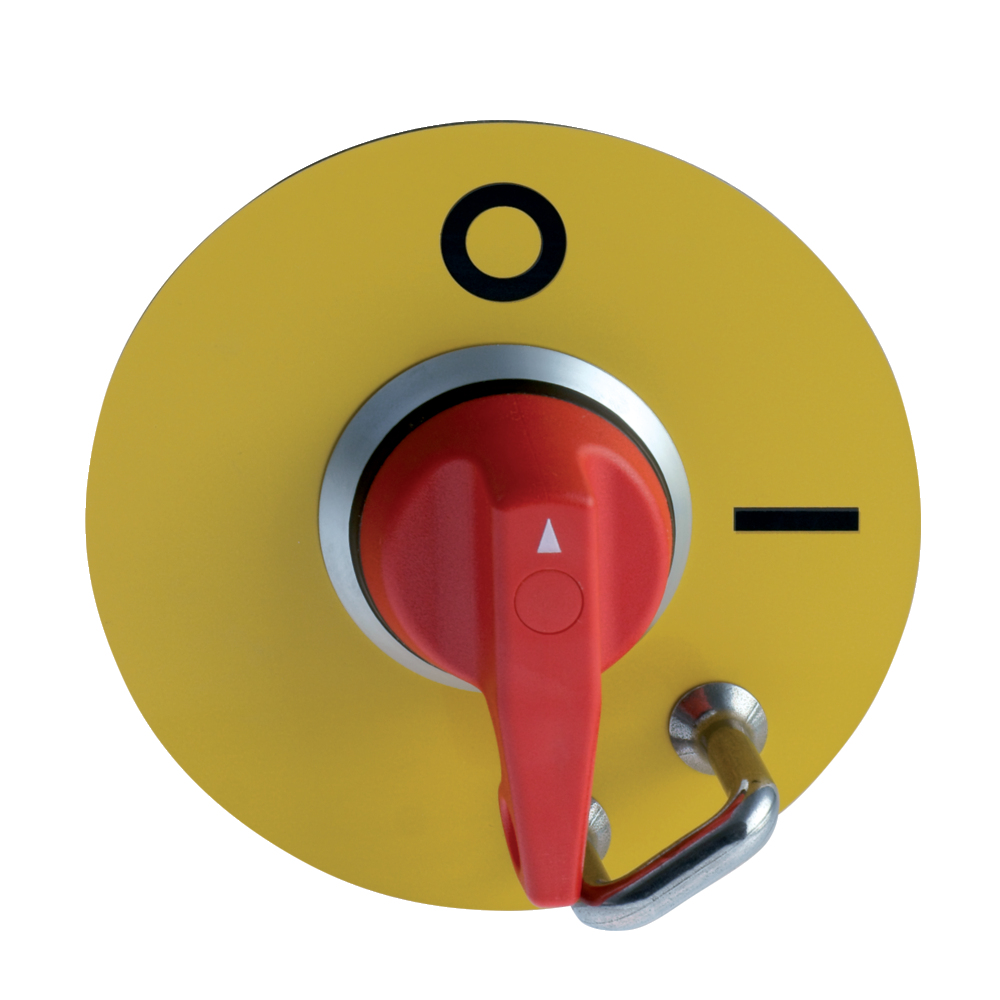

Product picture (catalogue individual photo)

ID: knhs-f41

| 306.6 kB | .jpg | 352.778 x 352.778 mm - 1000 x 1000 px - 72 dpi

| 53.9 kB | .jpg | 123.47200000000001 x 123.47200000000001 mm - 350 x 350 px - 72 dpi

| 44.6 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 46.8 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 3.2 MB | .png | 169.333 x 169.333 mm - 2000 x 2000 px - 300 dpi
