NDAN6
NDAN6
Downloads
| Product type description: NDA6N(1)(2) |
| (1) | |
| without | Colour of toggle: grey |
| WS | Colour of toggle: white |
| (2) | |
| without | Long connection version for the potentiometer axis |
| /NM | Short connection version for the potentiometer axis |
| /HO | Special potentiometer axis mounting |
| /250° | with stop at 250 ° on the potentiometer holder |
| -2929 | Special mount for customer-specific potentiometer |
| /NM/EWS.N | Short connection version for the potentiometer axis and selector switch toggle instead of potentiometer drive toggle |
| PC/EWS.N | selector switch toggle instead of potentiometer drive toggle |
- for standard potentiometer
- hygienic design
- Protection class IP69K
- Mounting hole 22.3 mm
Ordering data
| Product type description |
NDAN6 |
| Article number (order number) |
101169823 |
| EAN (European Article Number) |
4250116200405 |
| eCl@ss number, version 12.0 |
27-37-12-13 |
| eCl@ss number, version 11.0 |
27-37-12-13 |
| eCl@ss number, version 9.0 |
27-37-12-13 |
| ETIM number, version 7.0 |
EC000222 |
| ETIM number, version 6.0 |
EC000222 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 EN IEC 60947-1 |
| Versions |
Rotary drive for Potentiometer Front plate mounting |
| Design |
Without limit stop |
| Installation conditions (mechanical) |
arbitrarily |
| Sealing type |
Membrane Lip gaskets |
| Material of the front ring |
ABS, chrome-plated |
| Material of the potentiometer socket |
Brass, nickel-plated / stainless steel |
| Material of the rotary button |
ABS |
| Colour of the operating element |
Black |
| Colour of the front ring |
Silver |
| Colour of the rotary button |
Grey |
| Gross weight |
50 g |
General data - Features
| Mounting flange |
Yes |
| Fully insulated |
Yes |
Mechanical data
| Mounting |
mounting flange |
| Tightening torque of the screw |
0.6 Nm |
Mechanical data - Dimensions
| Mounting height |
26 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Mounting depth |
50 mm |
| Note (Mounting depth) |
Depth behind front panel without potentiometer |
| Diameter of the rotary button |
26 mm |
| Diameter of the front ring |
44.5 mm |
| Mounting diameter |
22.3 mm |
| Bore of the potentiometer socket |
30 … 40 mm |
| Diameter of shaft, maximum |
6 mm |
| Thickness, of the front panel, minimum |
1 mm |
| Thickness of the front panel, maximum |
6 mm |
| Spacing |
50 x 60 mm |
Ambient conditions
| Degree of protection |
IP67 IP69K |
| Ambient temperature |
+0 ... +75 °C |
| Resistance to vibrations |
5 g |
| Restistance to shock |
<50 g (EN 60068-2-27) |
Scope of delivery
| Scope of delivery |
The potentiometers are not included in delivery and must be ordered from the manufacturers concerned. |
Note
| Note (General) |
For mounting the potentiometer, a central-hole fastening and two different fastenings with three holes are provided. |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Declaration of conformity (EC)
UKCA Declaration of Conformity
UL Certificate
Download the latest version of Adobe Reader

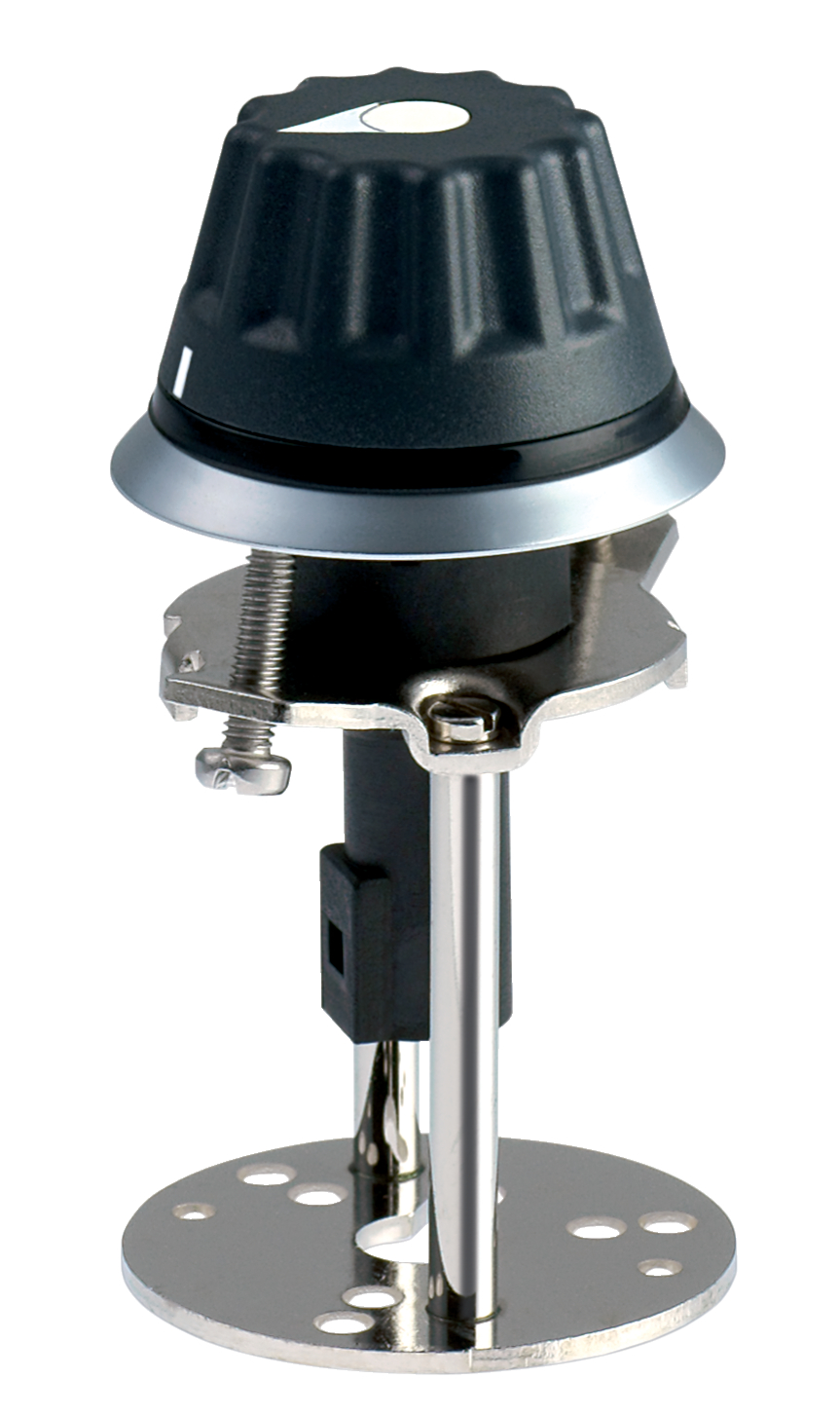

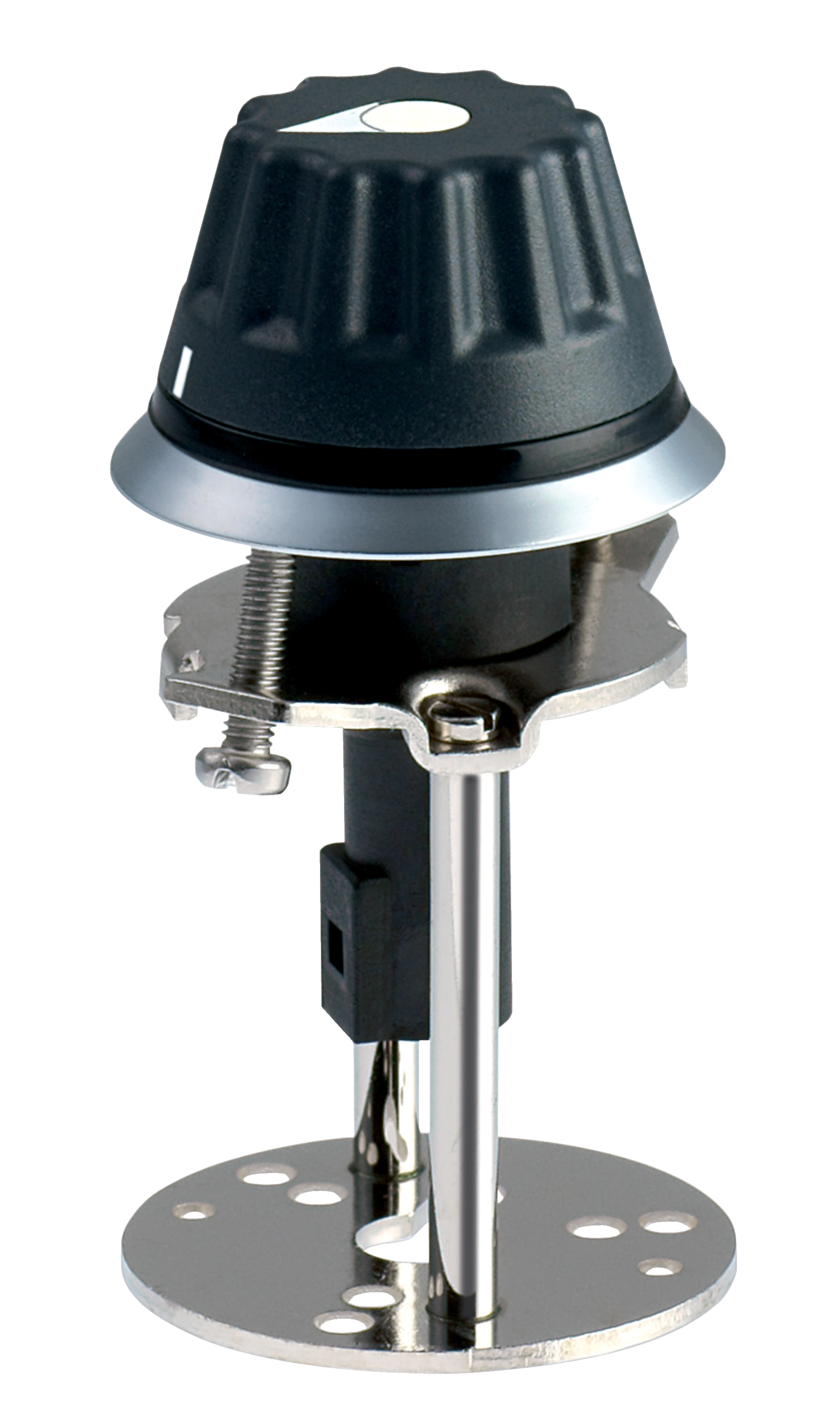

Product picture (catalogue individual photo)
