MX 064-03Y

Item number: 101056964
MX 064-03Y

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
Product type description:

T(1) 064-(2)Y-(3)


(1)
SPlunger S
JOffset roller lever J
XOffset roller lever X

(2)
033 NC contact
121 NO contact/2 NC contacts
212 NO contacts/1 NC contact
303 NO contacts
044 NC contact
131 NO contacts/3 NC contact
222 NO contacts/2 NC contact
313 NO contacts/1 NC contact
404 NO contacts

(3)
UESlow action with overlapping contacts
HSlow action with staggered contacts
RLatching 2 x 45°
Not all component variants, which are possible according to this order code are available and/or technically feasible.

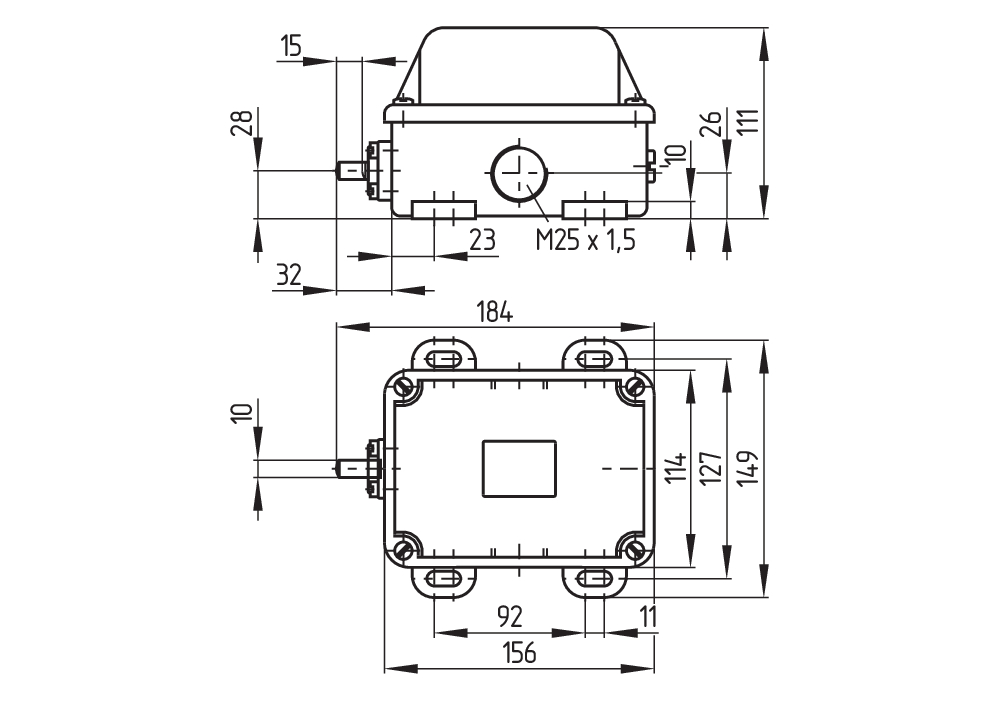

  • Metal enclosure
  • 184 mm x 111 mm x 149 mm (basic component)
  • 2 cable entries M 25 x 1.5
  • 3 or 4 Contacts
  • Actuator heads can be repositioned by 4 x 90°

Ordering data

Product type description

MX 064-03Y
Article number (order number)

101056964
eCl@ss number, version 12.0

27-27-06-01
eCl@ss number, version 11.0

27-27-06-01
eCl@ss number, version 9.0

27-27-06-01
ETIM number, version 7.0

EC000030
ETIM number, version 6.0

EC000030

Approvals - Standards

Certificates

cULus

CCC

General data

Standards

EN IEC 60947-5-1
Working principle

mechanical
Slide form

Castor
Housing material

Grey cast iron, galvanised
Housing coating material

painted

Gross weight

3,870 g

General data - Features

Number of normally closed (NC)

3

Safety classification

B10D Normally-closed contact (NC)

2,000,000 Operations

Mechanical data

Actuating element

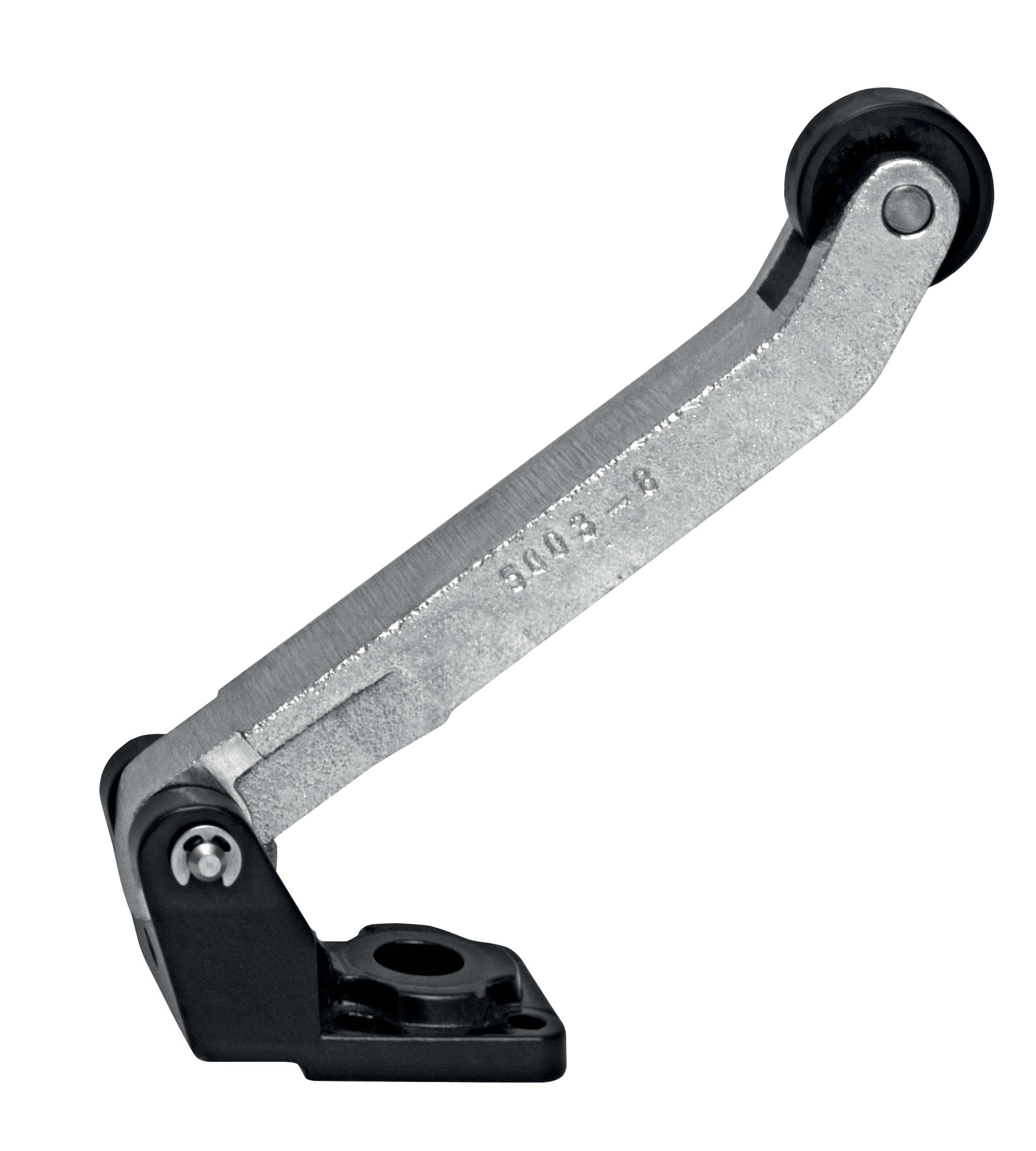

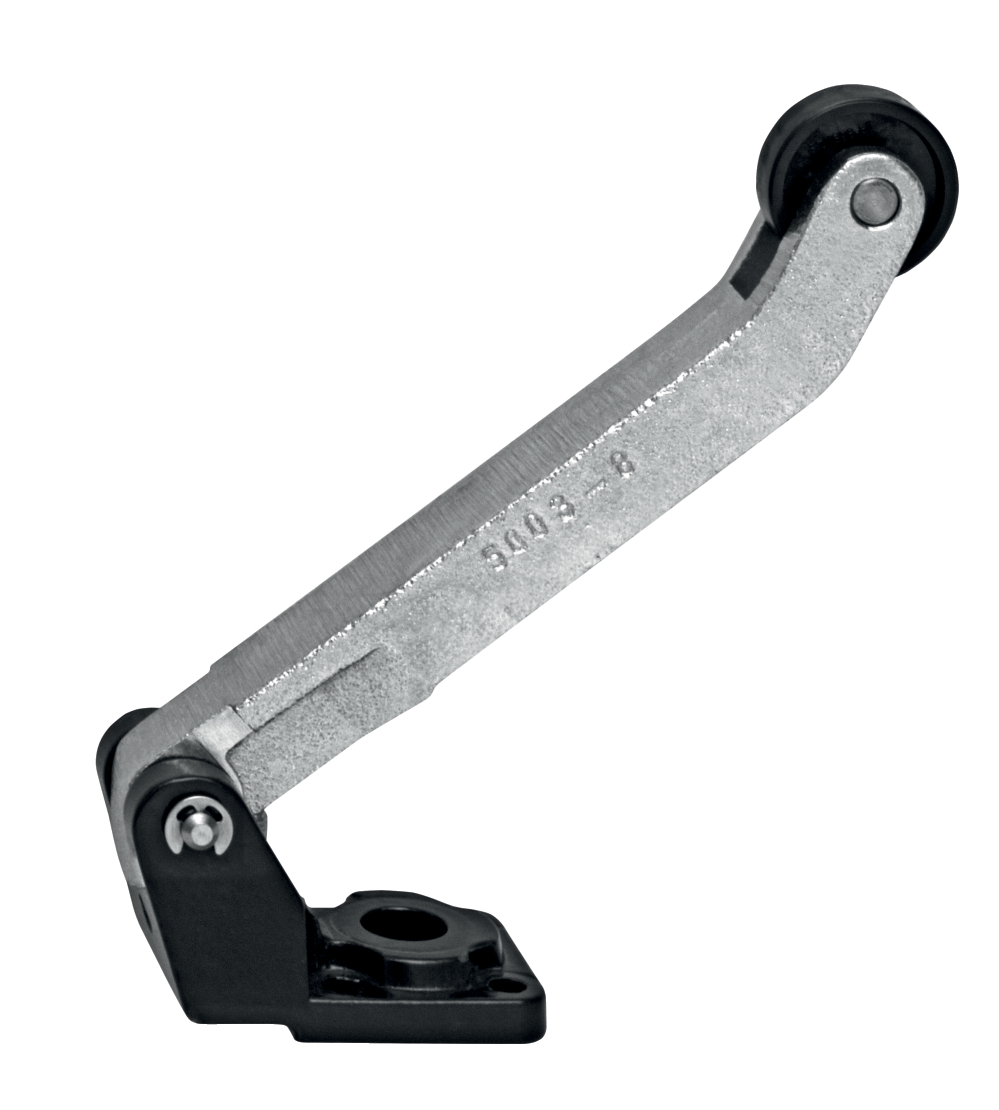

Offset roller lever
Roller material

Plastic
Mechanical lifetime, minimum

30,000 Operations
Actuating angle, from left of switch axis

30 °
Actuating angle, from right of switch axis

45 °
Contact opening

2 x 4 mm
Actuating speed, minimum

600 mm/min
Actuating speed, maximum

1 m/s
Note (Actuating speed)

Actuating speed with vertical actuating angle to switch axis

Mechanical data - Connection technique

Termination

Screw terminals M20 x 1.5
Cable section, minimum

1.5 mm²
Cable section, maximum

4 mm²
Note

All indications including the conductor ferrules.
Wire cross-section

11 AWG

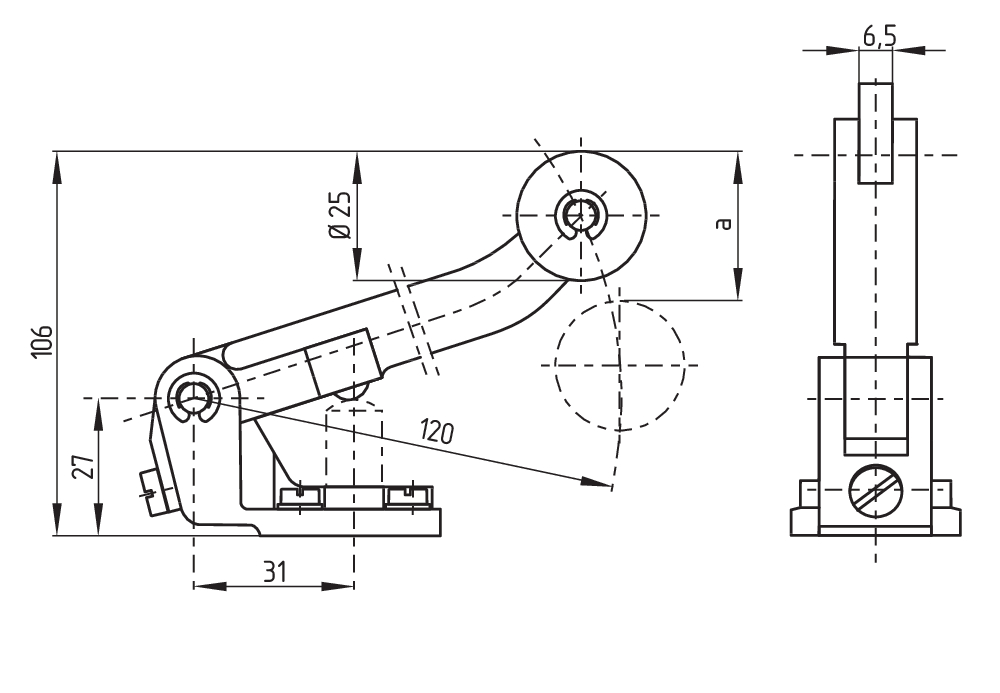

Mechanical data - Dimensions

Length of sensor

149 mm
Height of sensor

107 mm
Width of Castor

6.5 mm
Diameter of Castor

25 mm

Ambient conditions

Degree of protection

IP65
Ambient temperature

-30 ... +90 °C

Ambient conditions - Insulation values

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6 kV

Electrical data

Thermal test current

25 A
Utilisation category AC-15

400 VAC
Utilisation category AC-15

25 A
Switching element

Opener (NC)
Note (Switching element)

with double break

galvanically separated contact bridges
Switching principle

Snap action
Maximale Schalthäufigkeit

1,000 /h
Material of the contacts, electrical

Silver

Note

Note (General)

Actuation from the right should be avoided, since this reduces the mechanical life of the position switch.

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
