EDT2RT

Item number: 101006248
Archive
EDT2RT

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data

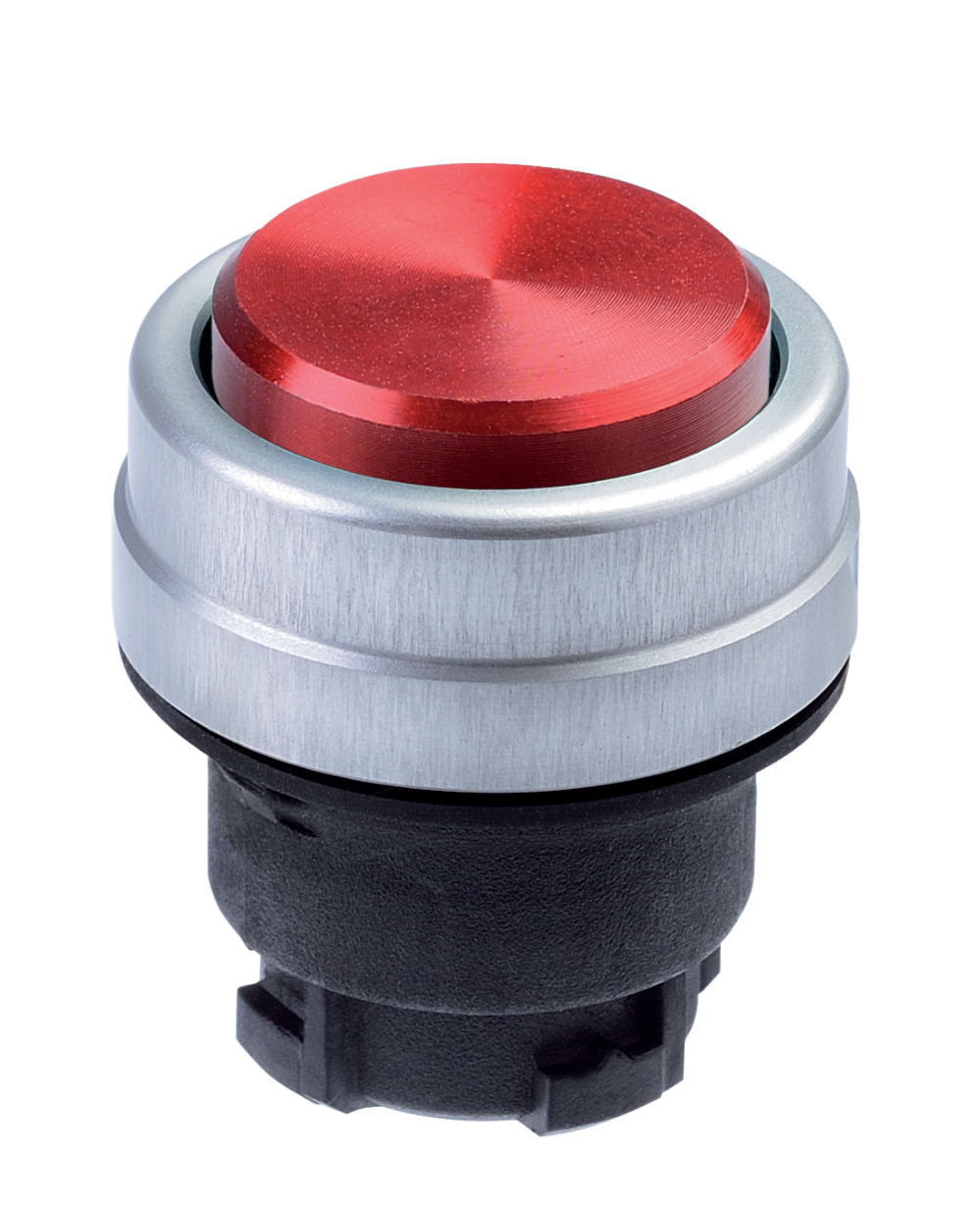

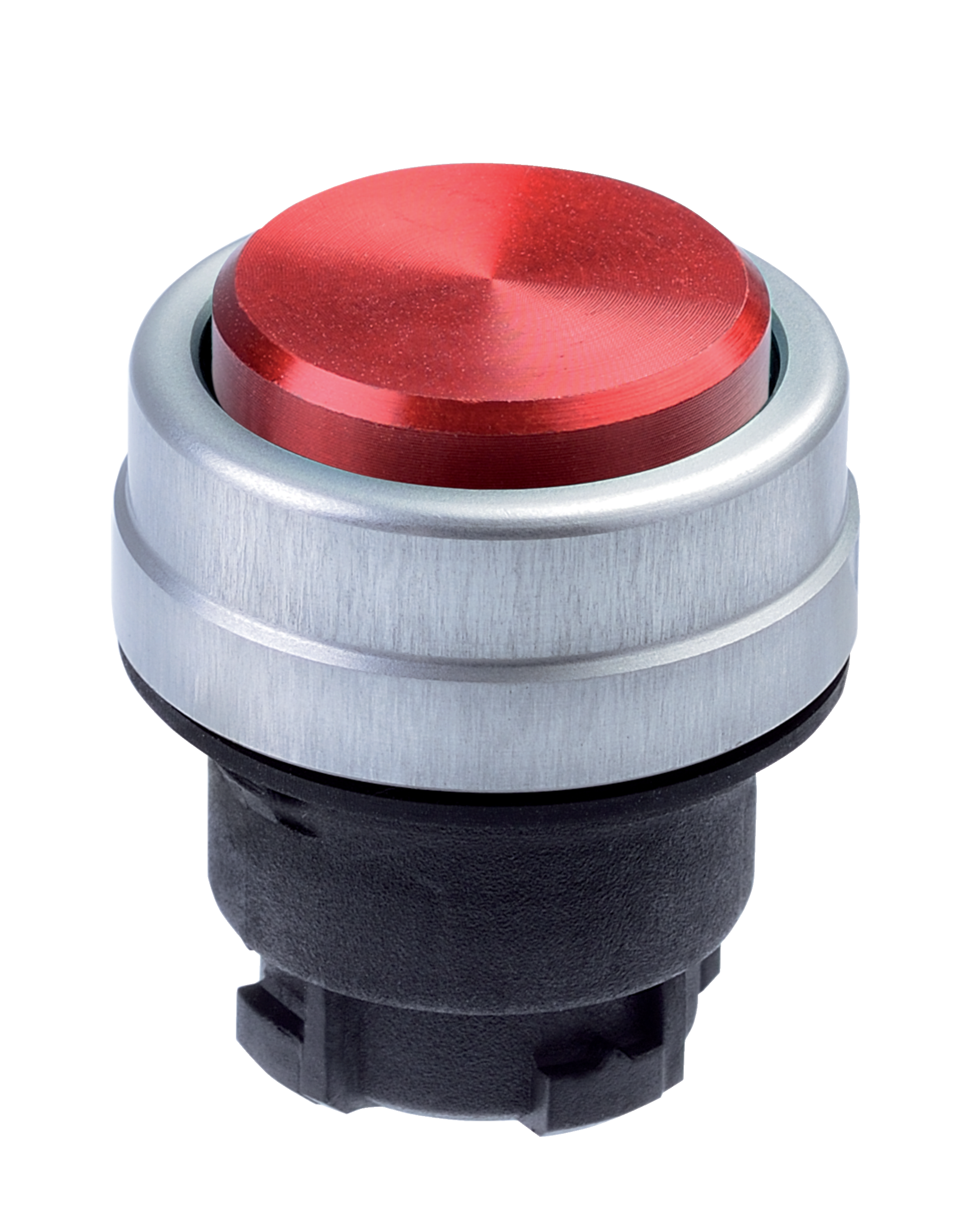

  • Push button with 2 mm high button
  • Mounting hole 22.3 mm
  • Protection class IP65
  • Aluminium enlosure

Ordering data

Note (Delivery capacity)

Not available!
Product type description

EDT2RT
Article number (order number)

101006248
EAN (European Article Number)

4030661464183
eCl@ss number, version 12.0

27-37-12-10
eCl@ss number, version 11.0

27-37-12-10
eCl@ss number, version 9.0

27-37-12-10
ETIM number, version 7.0

EC000221
ETIM number, version 6.0

EC000221

Approvals - Standards

Certificates

cULus

General data

Standards

EN IEC 60947-5-1

EN IEC 60947-1
Versions

Pushbutton

Front plate mounting
Design

Round
Installation conditions (mechanical)

arbitrarily
Sealing type

Lip gaskets

Form seals
Material of the operators

Aluminium, anodised
Material of the front ring

Aluminium, anodised
Colour of the operating element

Red
Colour of the front ring

Silver
Gross weight

35 g

General data - Features

Mounting flange

Yes
Fully insulated

Yes
Number of switch positions

1
Number of contact elements, maximum

3

Mechanical data

Mechanical lifetime, Command devices

1,000,000 Operations
Mounting

Mounting flange EFM
Tightening torque of the screw

0.6 Nm
Typical actuating force of the push button

1.5 N
Actuating stroke, minimum

4 mm
Actuating stroke, maximum

5 mm

Mechanical data - Dimensions

Mounting height

16 mm
Note (Mounting height)

Height in front of the front panel.
Diameter of touch surface

23 mm
Diameter of the front ring

29.5 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

40 x 50 mm

Ambient conditions

Degree of protection

IP65
Ambient temperature

-25 ... +75 °C
Resistance to vibrations

5 g

Restistance to shock

<50 g (EN 60068-2-27)

Electrical data

Switching frequency of the command device, maximum

1,000 /h

Scope of delivery

Note (scope of delivery, number and type)

Mounting flange EFM is included in delivery
