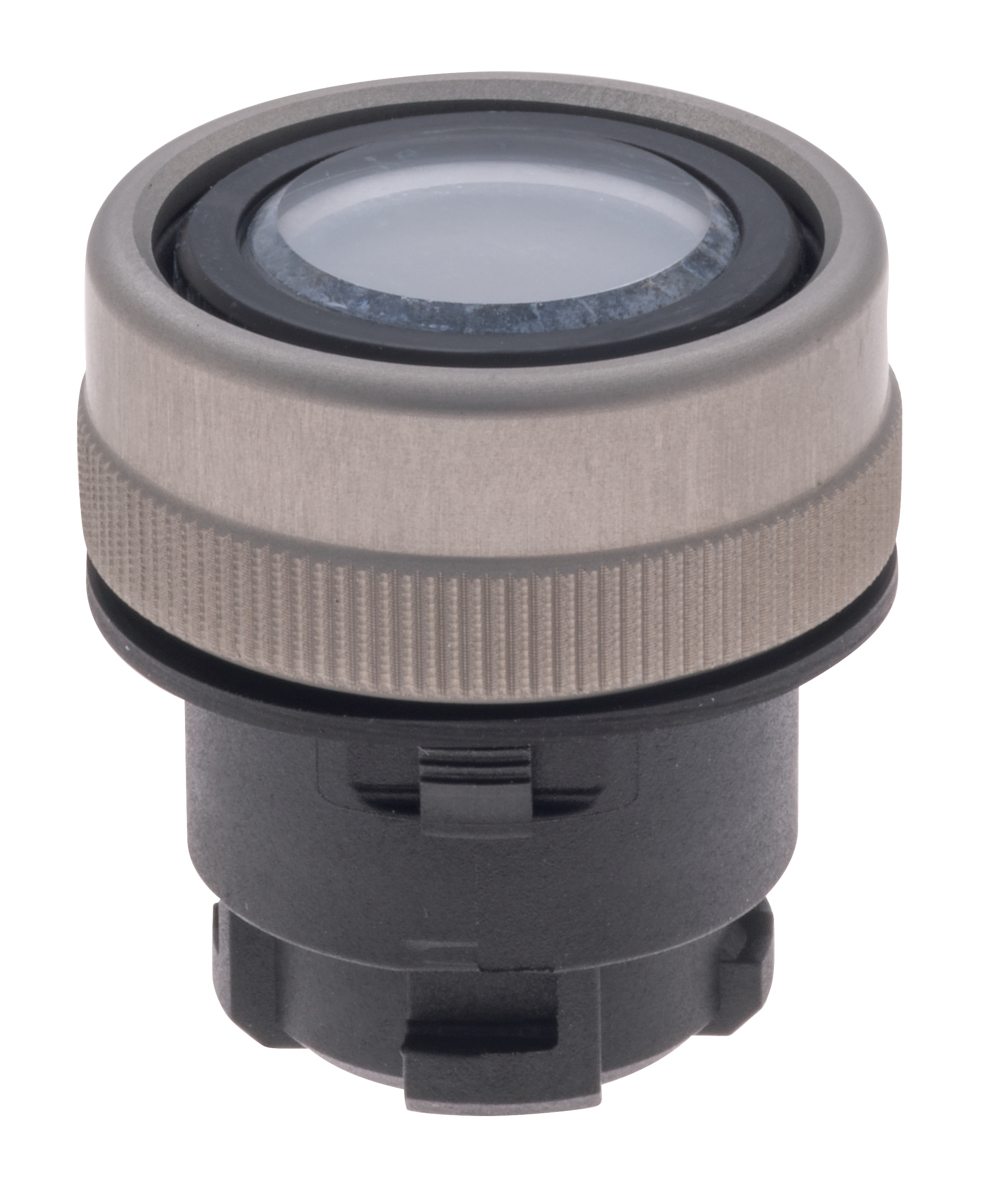

EDL.1WS

Item number: 101006407
Archive
EDL.1WS

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Mounting hole 22.3 mm
  • Protection class IP65
  • Aluminium enlosure
  • illuminable

Ordering data

Note (Delivery capacity)

Not available!
Product type description

EDL.1WS
Article number (order number)

101006407
eCl@ss number, version 12.0

27-37-12-11
eCl@ss number, version 11.0

27-37-12-11
eCl@ss number, version 9.0

27-37-12-11
ETIM number, version 7.0

EC000223
ETIM number, version 6.0

EC000223

Approvals - Standards

Certificates

cULus

General data

Standards

EN IEC 60947-5-1

EN IEC 60947-1
Versions

Front plate mounting

Illuminated pushbutton
Design

Round
Installation conditions (mechanical)

arbitrarily
Sealing type

Membrane

Lip gaskets

Form seals
Material of the operators

Glass
Material of the front ring

Aluminium, anodised
Colour of the operating element

White
Colour of the front ring

Silver
Gross weight

40 g
Colour of the bezel

black

General data - Features

Front plate mounting

Yes
Illuminable

Yes
Mounting flange

Yes
Probing possible

Yes
Fully insulated

Yes
Number of switch positions

1
Number of contact elements, maximum

2

Mechanical data

Mechanical lifetime, Command devices

1,000,000 Operations
Mounting

Mounting flange ELM
Tightening torque of the screw

0.6 Nm
Typical actuating force of the push button

1.5 N
Actuating stroke, minimum

4 mm
Actuating stroke, maximum

5 mm

Mechanical data - Dimensions

Mounting height

14 mm
Note (Mounting height)

Height in front of the front panel.
Height of touch surface

0.5 mm
Diameter of touch surface

20 mm
Diameter of the front ring

29.5 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

40 x 50 mm

Ambient conditions

Degree of protection

IP65
Ambient temperature

-40 ... +75 °C
Resistance to vibrations

5 g

Restistance to shock

<50 g (EN 60068-2-27)

Electrical data

Switching frequency of the command device, maximum

1,000 /h

Scope of delivery

Note (scope of delivery, number and type)

Mounting flange ELM is included in delivery
