AZ15/16-B3
Item number:
161095550
AZ15/16-B3
Item number:
161095550
Downloads
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
- For very smal actuating radii at 90° to the plane of the actuator
Ordering data
| Product type description |
AZ15/16-B3 |
| Article number (order number) |
161095550 |
| EAN (European Article Number) |
4030661104126 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-26-06 |
| eCl@ss number, version 9.0 |
27-27-26-06 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Coding level according to EN ISO 14119 |
Low |
| Material of the actuator |
Stainless steel (V2A) |
| Gross weight |
17 g |
Mechanical data
| Actuating radius, minimum |
32 mm |
| Actuator |
angled flexible |
Note
| Note (General) |
The axis of the hinge must be 11 mm above and in a parallel plane to the top surface of the safety switch. Actuating radius adjustable, minimum 32 mm, using an hexagonal key wrench SW 2,5 mm (b) |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

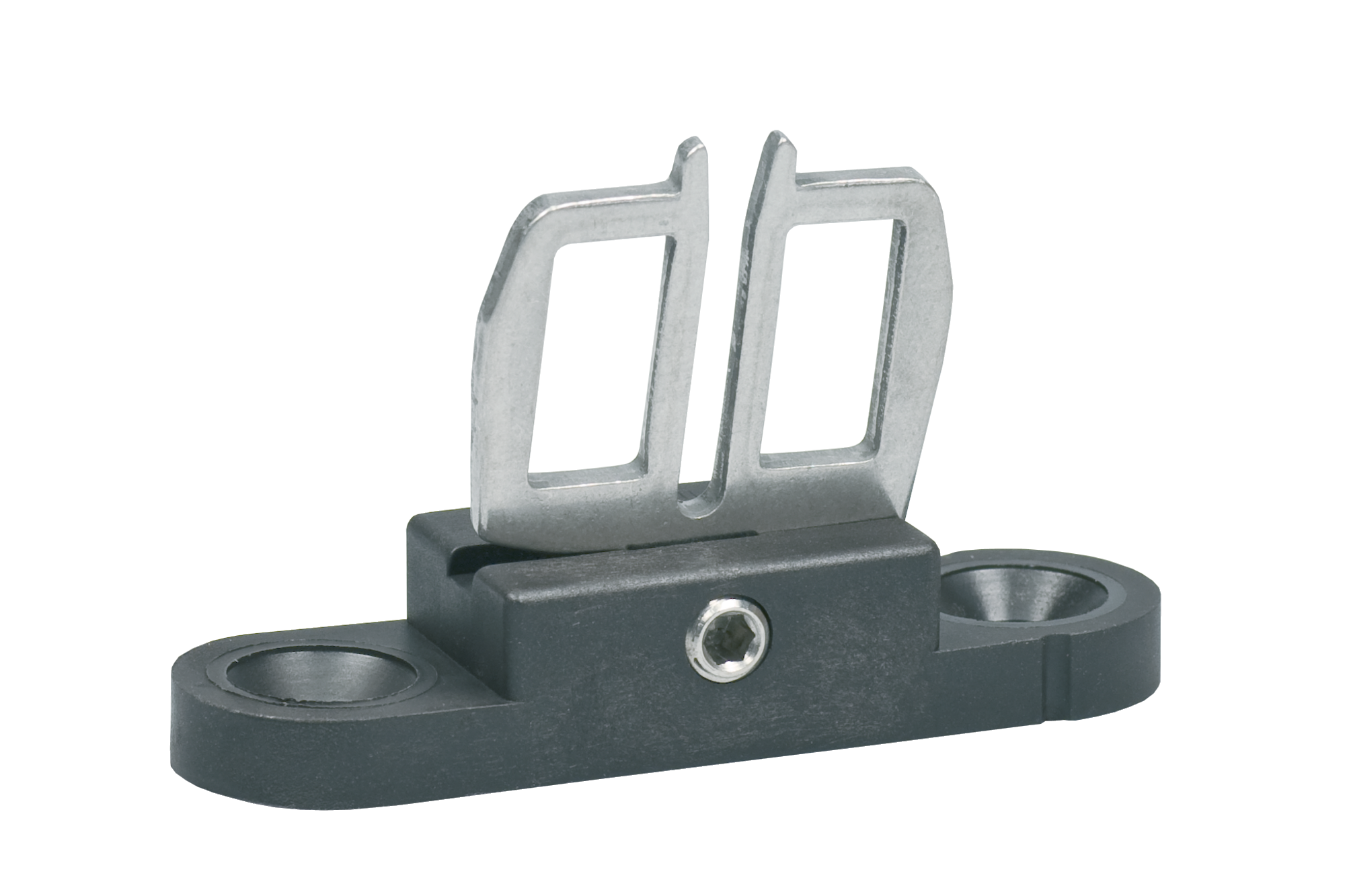

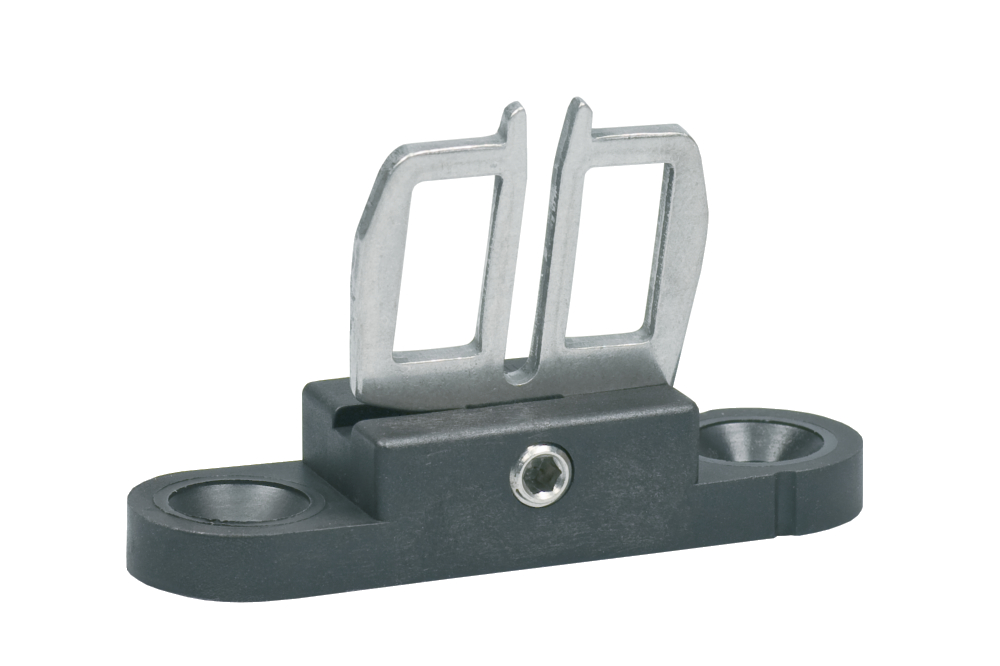

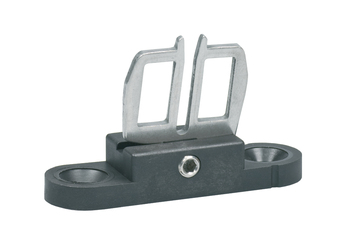

Product picture (catalogue individual photo)

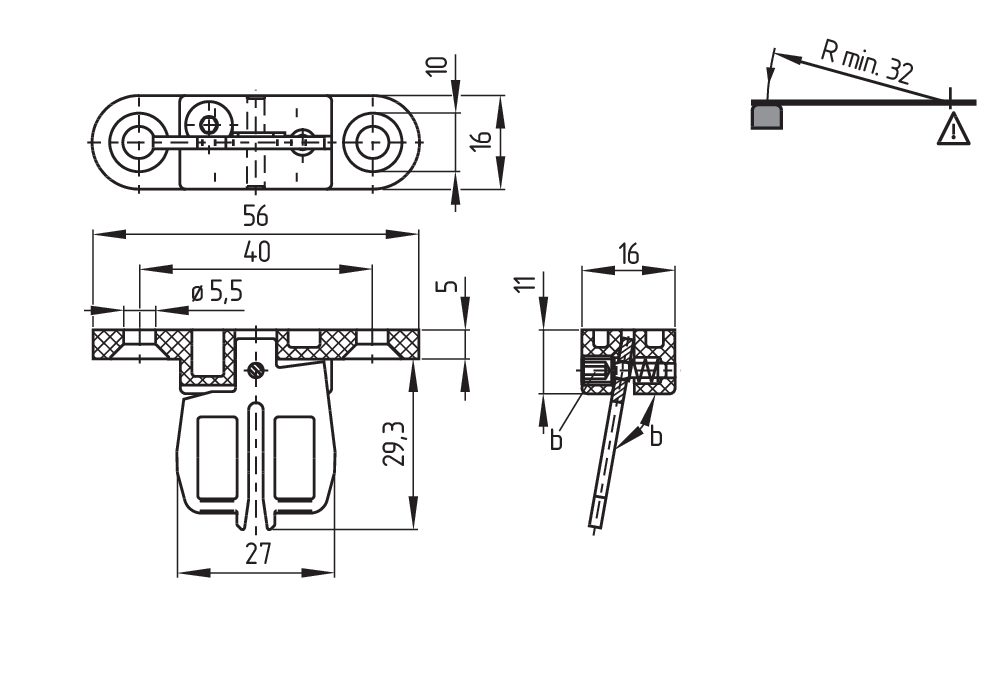

Dimensional drawing actuator
EU Conformity Declaration
| EU Declaration of Conformity |  |
| Original | ACE Schmersal Eletroeletrônica Industrial Ltda. Av. Brasil, nº 815 Jardim Esplanada CEP: 18557-646 Boituva - SP Brazil Internet: www.schmersal.com.br |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | AZ 15 AZ 16 |
| Type: | See ordering code |
| Description of the component: | Positive break position switch with separate actuator for safety functions |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 EN ISO 14119:2013 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Boituva, August 3, 2020 |
 |
| Authorised signature Marco Antonio De Dato Head of Engineering and Design |
Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
