ACC-PWR-EBLT-BM8X70-A2
ACC-PWR-EBLT-BM8X70-A2
Downloads
Ordering data
| Product type description |
ACC-PWR-EBLT-BM8X70-A2 |
| Article number (order number) |
101192471 |
| EAN (European Article Number) |
4030661363776 |
| eCl@ss number, version 12.0 |
23-11-06-02 |
| eCl@ss number, version 11.0 |
23-11-06-02 |
| eCl@ss number, version 9.0 |
23-11-06-16 |
| ETIM number, version 7.0 |
EC002367 |
| ETIM number, version 6.0 |
EC002367 |
General data
| Material |
Stainless steel NIRO |
| Gross weight |
34 g |
Mechanical data - Dimensions
| Screw length |
70 mm |
| Thread length of the screw |
35 mm |
| Screw diameter |
8 mm |
| Diameter, metric ISO thread with pitch indication |
M8 x 1.25 |
Scope of delivery
| Scope of delivery of mounting material |
Eyebolt with nut |
Note
| Note (General) |
length referring to eye centre to DIN 444 |

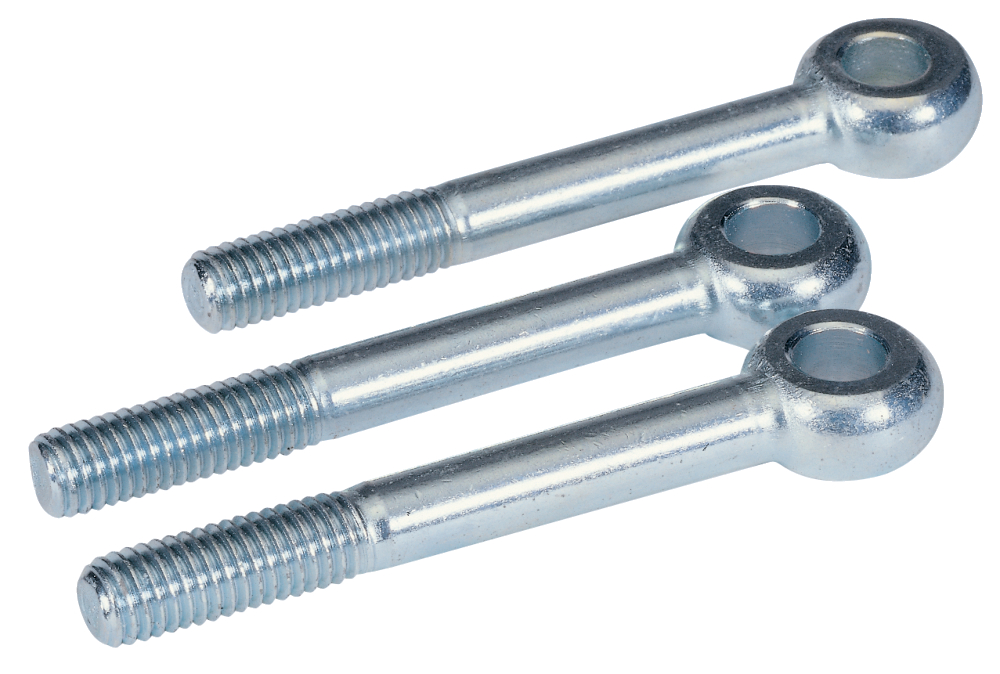

Product picture (catalogue individual photo)
ID: kzs--f04
| 402.6 kB | .jpg | 352.778 x 237.77200000000002 mm - 1000 x 674 px - 72 dpi
| 30.6 kB | .png | 74.083 x 50.094 mm - 210 x 142 px - 72 dpi
| 52.5 kB | .jpg | 123.47200000000001 x 83.256 mm - 350 x 236 px - 72 dpi
| 37.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 3.0 MB | .png | 166.55700000000002 x 112.26 mm - 2000 x 1348 px - 305 dpi
Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
