ACC-IFL-MOCL-H4
Item number:
101103610
ACC-IFL-MOCL-H4
Item number:
101103610
Downloads
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
- For a smooth fitting of the proximity switches with cylindric shape Ø 4 mm
Ordering data
| Product type description |
ACC-IFL-MOCL-H4 |
| Article number (order number) |
101103610 |
| EAN (European Article Number) |
4030661684789 |
| eCl@ss number, version 12.0 |
27-27-40-92 |
| eCl@ss number, version 11.0 |
27-27-01-92 |
| eCl@ss number, version 9.0 |
27-27-01-92 |
| ETIM number, version 7.0 |
EC000127 |
| ETIM number, version 6.0 |
EC000127 |
General data
| Material of the terminal fixing |
Thermoplastic |
| Gross weight |
4 g |
Mechanical data - Dimensions
| Width |
17 mm |
| Height |
12 mm |
| Depth |
21 mm |
| Diameter of the Mounting clamp |
4 mm |
| Diameter of the Mounting clamp |
M4 |

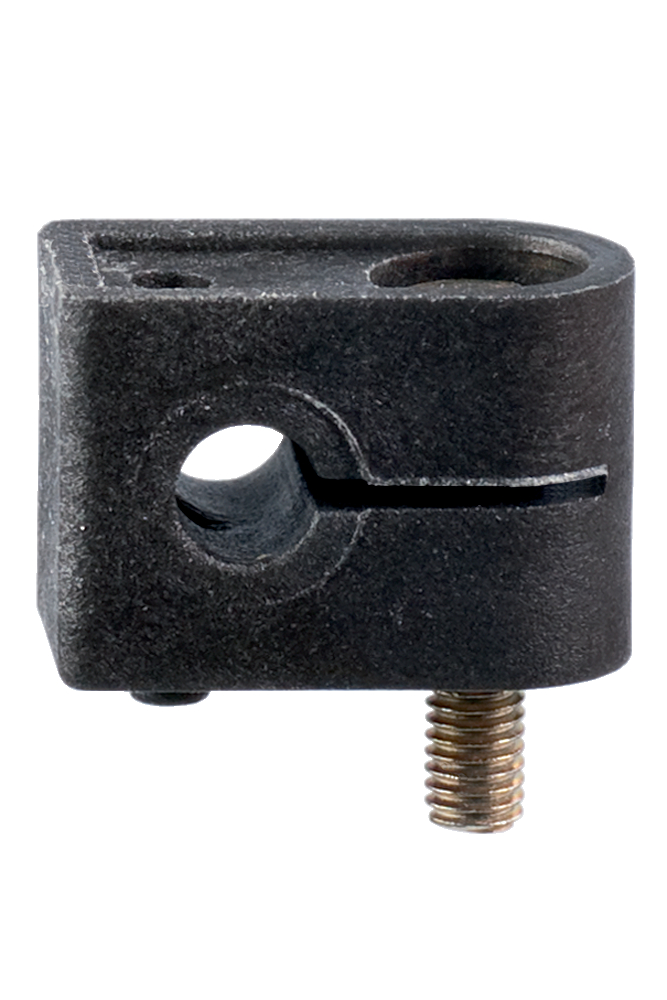

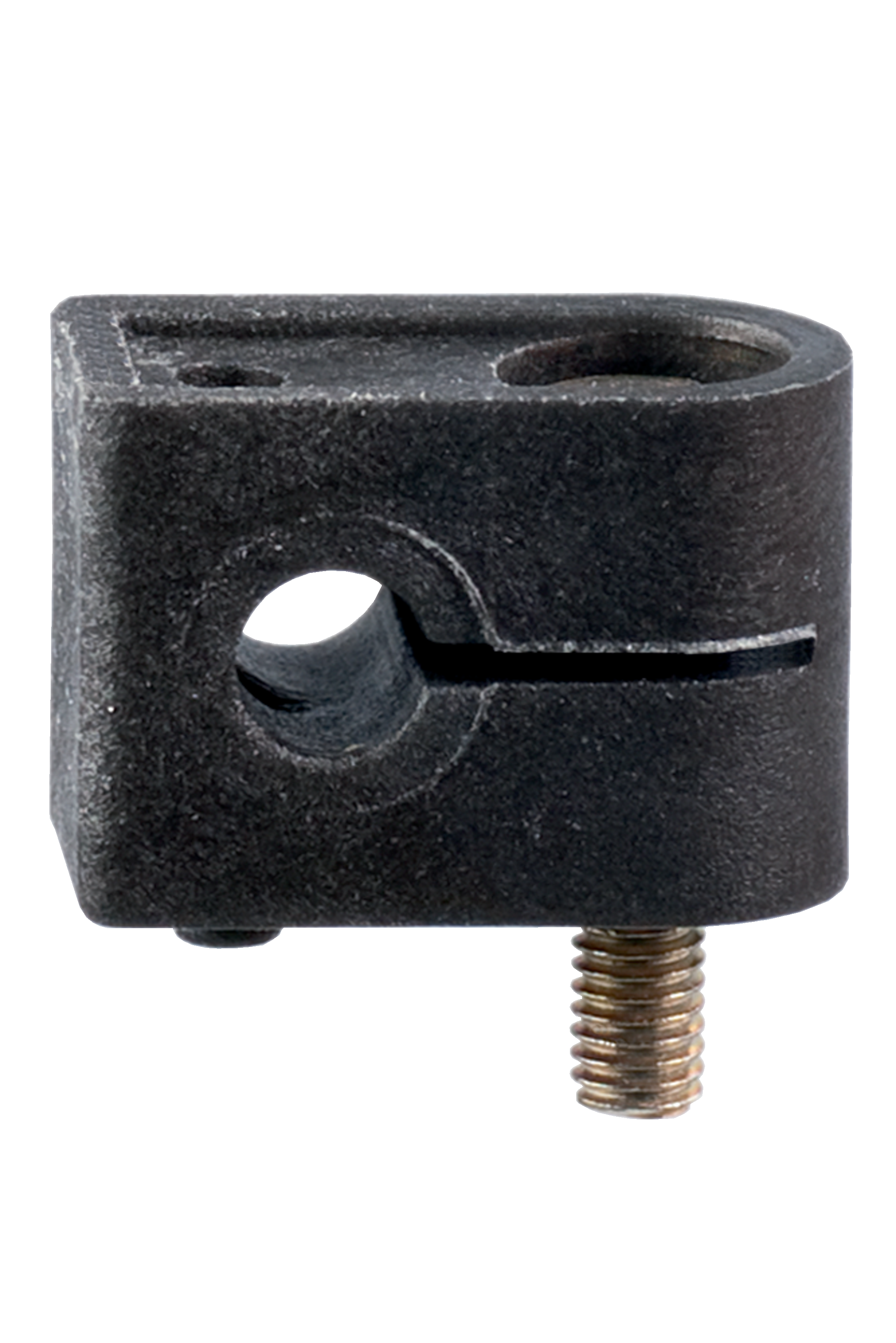

Product picture (catalogue individual photo)

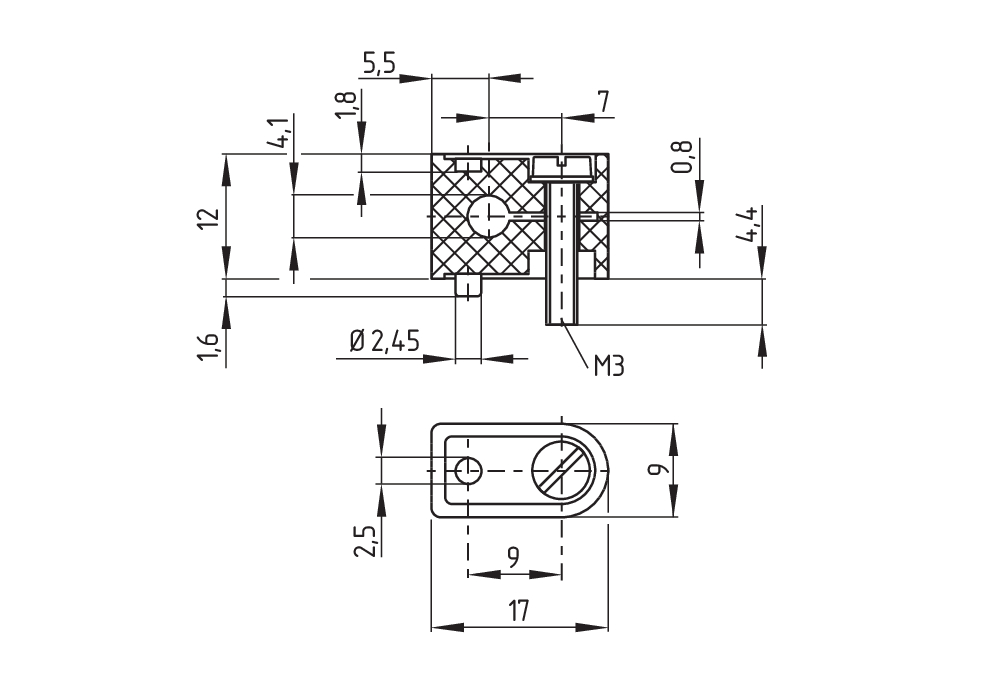

Dimensional drawing basic component

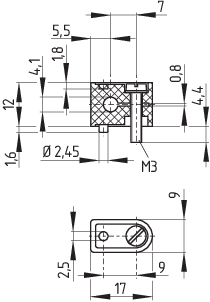

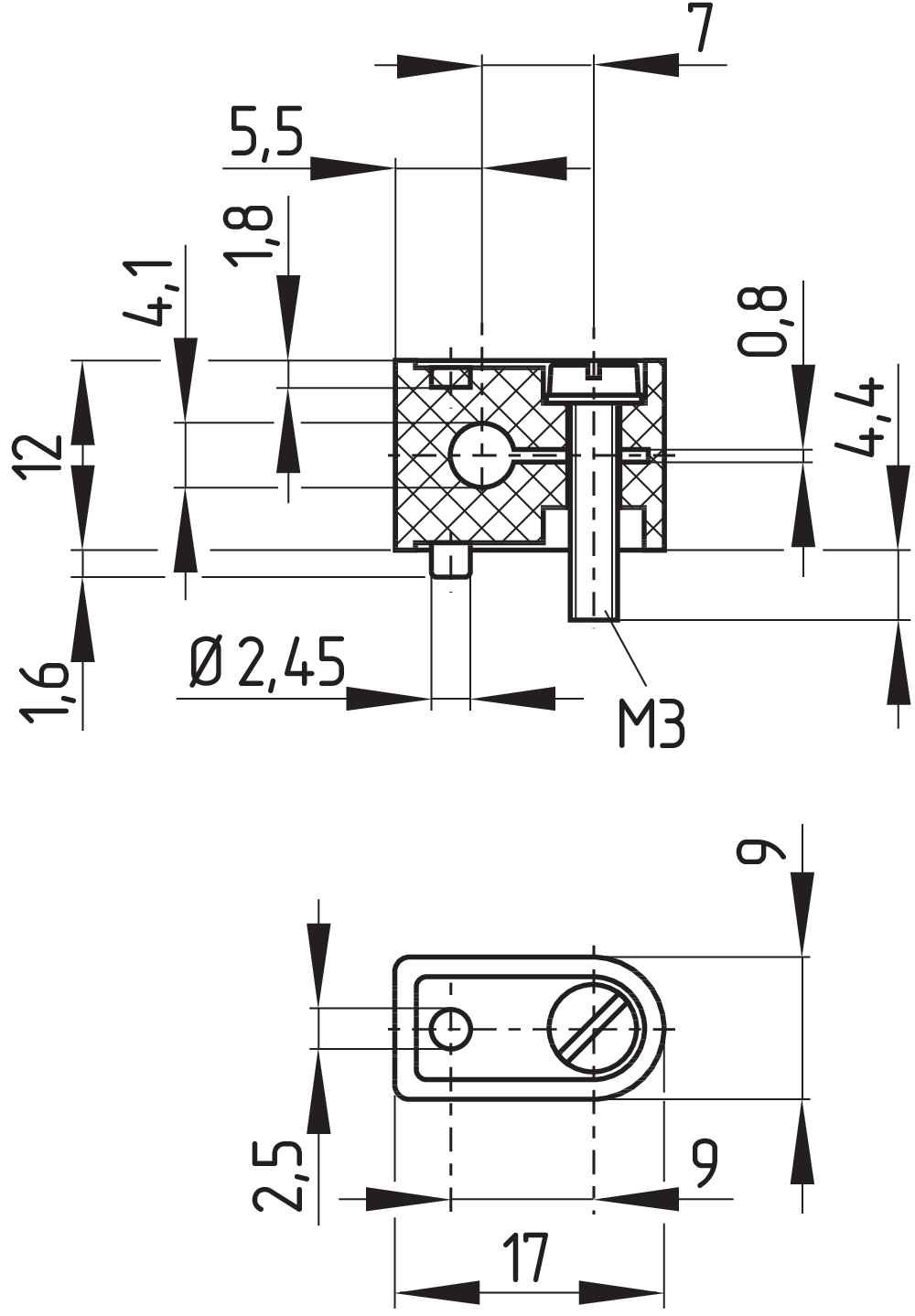

Dimensional drawing basic component
Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 2026-04-15, 3:22 a.m.
