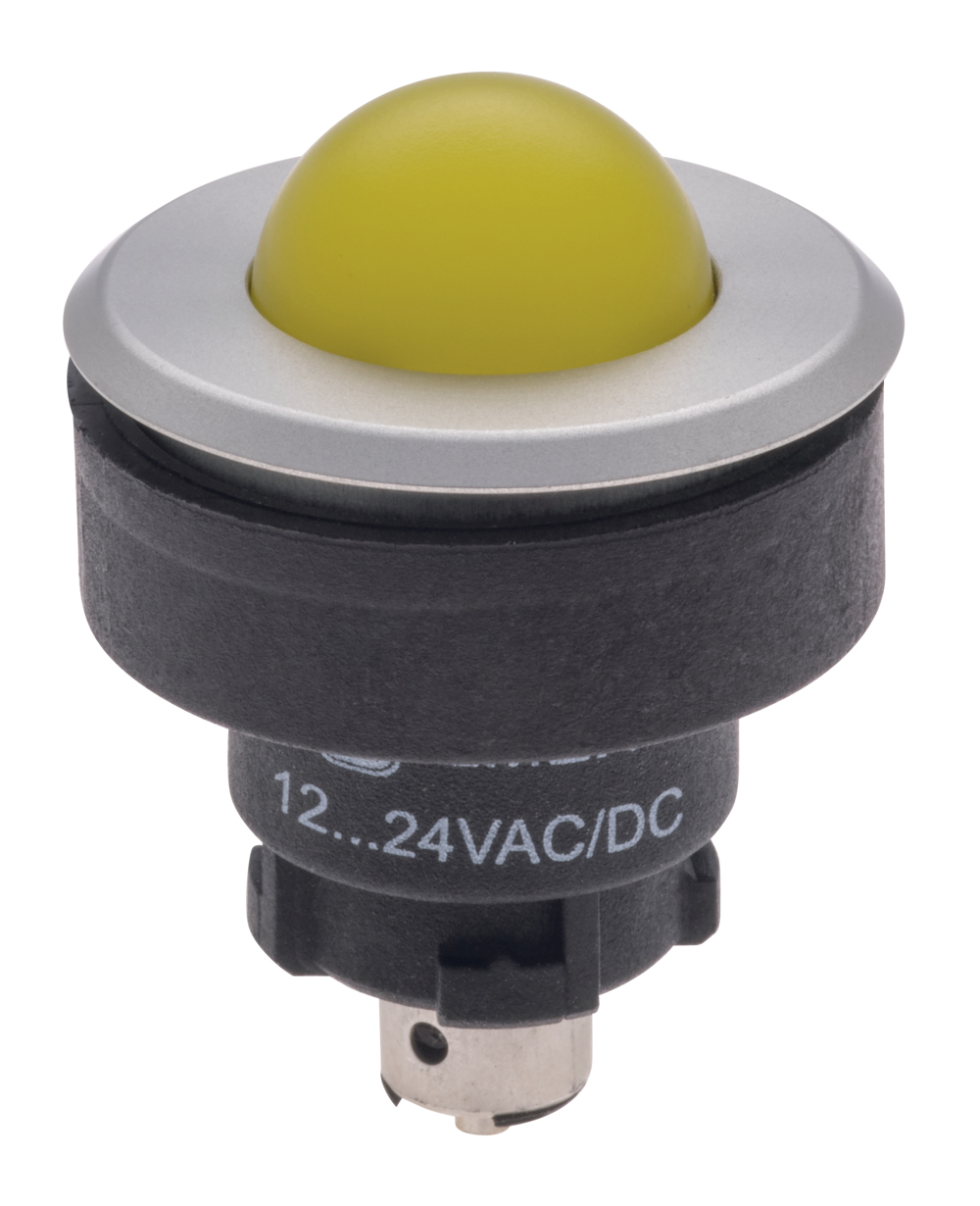

EMEGBV

Ürün numarası: 101006525
Arşiv
EMEGBV

Downloads

ePLAN Veri
CADENAS CAD Verileri
SISTEMA Veri
  • Montaj deliği Ø 30.5 mm
  • Koruma sınıfı IP65

Sipariş ayrıntıları

Ürün tip tanımı

EMEGBV
Ürün numarası (sipariş numarası)

101006525
EAN (European Article Number)

4030661614847
eCl@ass Numara, Sürümü 12.0

27-37-12-11
eCl@ass Numara, Sürümü 11.0

27-37-12-11
eCl@ass Numara, Sürümü 9.0

27-37-12-11
ETIM numarası, sürüm 7.0

EC000223
ETIM numarası, sürüm 6.0

EC000223

Onaylar

Verileri

cULus

Genel veriler

Tasarım

Indicator lights

Ön plaka montajı
Yapı şekli

Yuvarlak
Ön halka malzemesi

metal
Kubbenin ve rengi

sarı
Brüt ağırlık

40 g
Signal image, optical

Permanent light

Mekanik veriler - Boyutlar

Konektör (mekanik)

Screw terminals

Mekanik veriler - Boyutlar

Kurulum yüksekliği

12 mm
Not (montaj yüksekliği)

Height in front of the front panel.
Montaj derinliği

71 mm
Not (Montaj derinliği)

Depth behind front panel including light element
Tepe noktasının yüksekliği

9,5 mm
Kubbenin çapı

20 mm
Ön halkanın çapı

34,5 mm
Montaj deliği

30,5 mm

Elektriksel veriler

Nominal çalışma gerilimi

24 VAC
Nominal çalışma gerilimi

24 VDC
EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:E, N and R program
Type:See ordering code
Description of the component:Command and signalling devices
optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL*
Relevant Directives:Low Voltage Directive2014/35/EU
 EMC-Directive *2014/30/EU
 RoHS-Directive2011/65/EU
Applied standards:EN 60947-5-1:2017 + AC:2020
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, April 4, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
UK Declaration of Conformity LOG_COM_lo1de01s
Company:K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.
Name of the component:E, N and R program
Type:See ordering code
Description of the component:Command and signalling devices optionally as illuminated signalling devices, Push, illuminated, palm buttons and switches, Selector switches and buttons, key selector switches and key selector buttons in conjunction with contact element EF and RF or light elements and voltage senders EL* and RL*
Relevant legislation:Electrical Equipment (Safety) Regulations2016
 Electromagnetic Compatibility Regulations *2016
 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations2012
Designated standards:EN 60947-5-1:2017 + AC:2020
UK-Importer / Person authorised for the compilation of the technical documentation:Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL
Place and date of issue:Wuppertal, April 4, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
