EX-RDP40BL

Codice prodotto: 101193562
Archivio

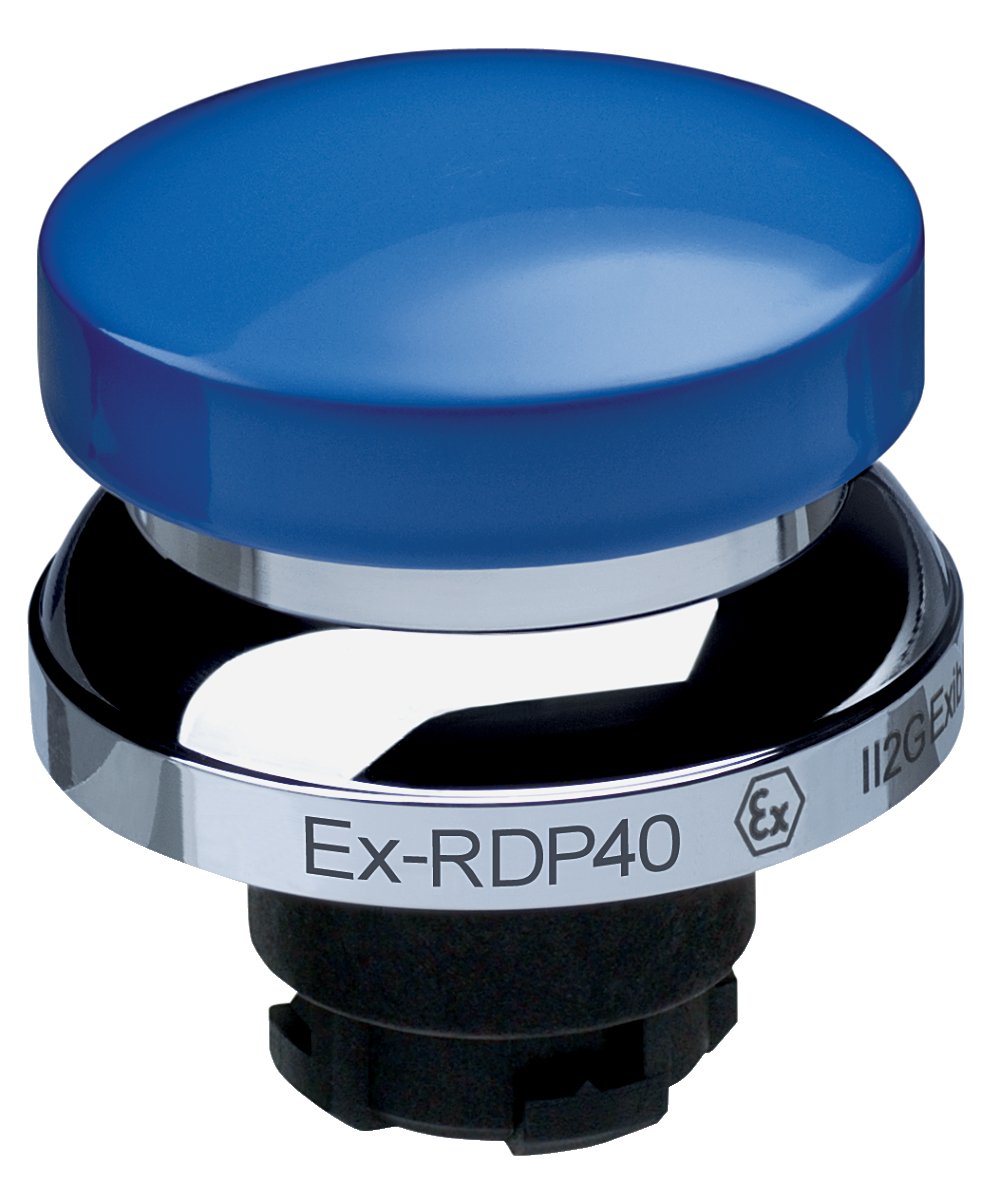

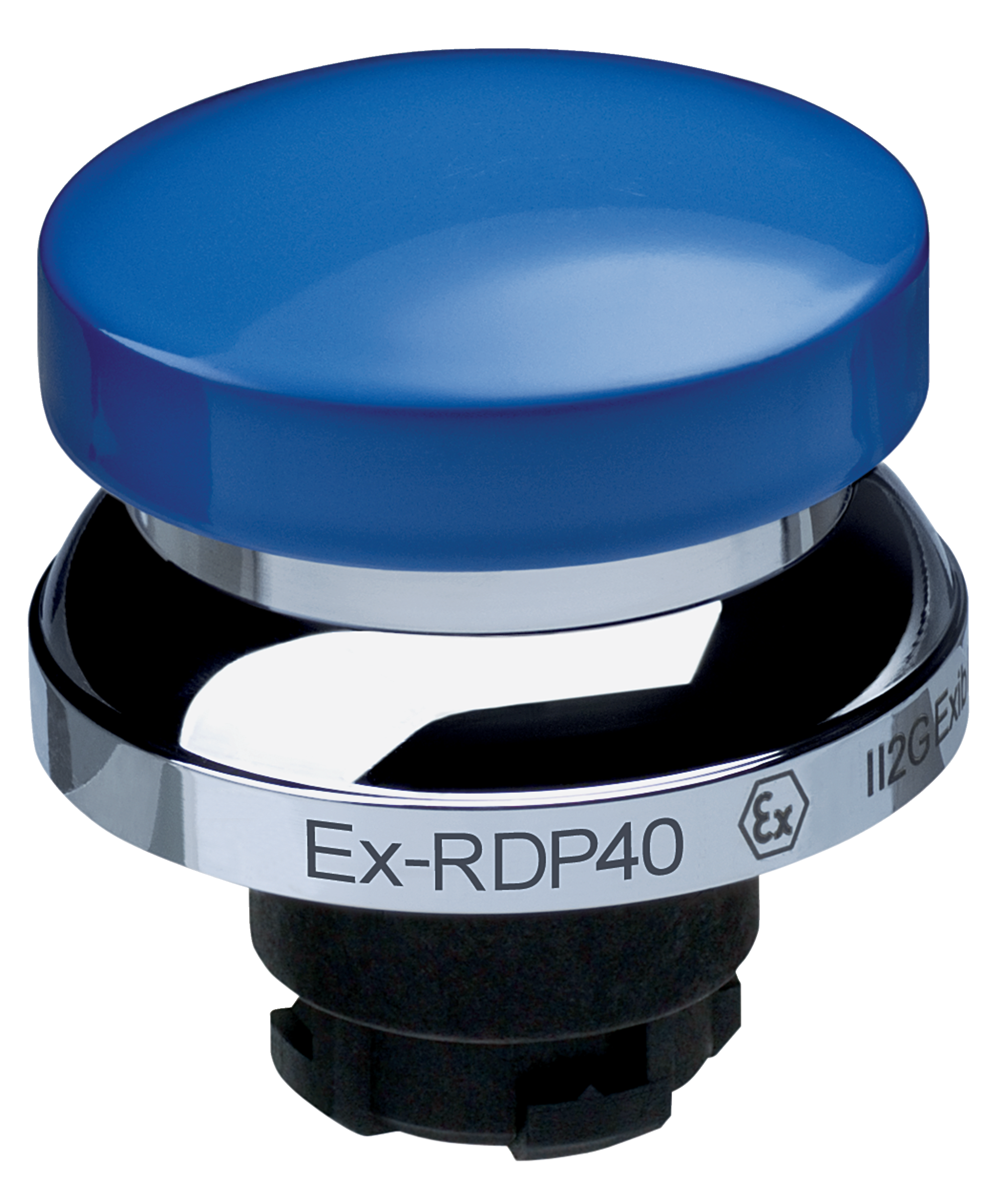

EX-RDP40BL

Downloads

ePLAN Dati
CADENAS CAD Data
SISTEMA Dati
  • pulsante di azionamento
  • Ex-Zona 1 e 21

Dati per l'ordine

Nota (possibilità di fornitura)

Non più disponibile!
Codice

EX-RDP40BL
Codice articolo (codice d'ordine)

101193562
EAN (European Article Number)

4030661552316
Numero eCl@ss, versione 12.0

27-37-12-12
Numero eCl@ss, versione 11.0

27-37-12-12
Numero eCl@ss, versione 9.0

27-37-12-12
Numero ETIM, versione 7.0

EC001038
Numero ETIM, versione 6.0

EC001038

Omologazioni - Prescrizioni

Certificazioni

ATEX

INMETRO

Protezione antiesplosione

Protezione​ antideflagrante: prescrizioni

EN IEC 60079-0

EN 60079-11

EN 60079-14

EN 60079-31
Zone protezione antideflagrante

1

21

2

22
Categoria della protezione antideflagrante

2G

2D
Contrassegno della protezione antideflagrante

D II 2G Ex ib IIC Gb

D II 2D Ex ib IIIC Db

Dati generali

Prescrizioni

EN ISO 13849-1

EN IEC 60947-5-1

EN IEC 60947-5-5
forma di costruzione

Tonda
Materiale della piastra di identificazione

acciaio temperato (V4A)
Materiale dell'anello frontale

Alluminio
Colore dell'apparecchio di comando

blu
Peso lordo

125 g

Osservazioni per la sicurezza

Durata di utilizzo

20 Anno(i)

Osservazioni per la sicurezza - Uscite di sicurezza

B10D contatti d'apertura (NC)

100.000 manovre

Dati meccanici

Corsa di comando

4 mm

Dati meccanici - Dimensioni

Osservazioni (profondità di montaggio)

Depth behind front panel including one contact element
Diametro di montaggio

22,3 mm
Spessore della piastra frontale, massima

6 mm

Condizioni ambientali

Resistenza alle vibrazioni

5 g

resistenza a urti

<50 g (EN 60068-2-27)

Fornitura

Fornitura

Compreso flangia di fissaggio (RLM) composto da: flangia di montaggio e portacontatti con alette di tenuta e due segmenti a pistone.
EU Declaration of Conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:EX-REX-R with EX-RCB
Type:See ordering code
Marking:EX-R contact-/lighting elements
D II 2G Ex ib IIC Gb		D II 2G Ex ib IIC T4 Gb
D II 2D Ex tb IIIC T110°C Db
 EX-R command and signalling devices:
D II 2G Ex eb IIC Gb
D II 2D Ex tb IIIC Db
Description of the component:Contact and light terminal blocks and command and signalling devices without/with assembly housing
Relevant Directives:Explosion Protection Directive (ATEX)2014/34/EU
 RoHS-Directive2011/65/EU
Applied standards:EN IEC 60079-0:2018
EN IEC 60079-7:2015 + A1:2018
EN 60079-11:2012
EN 60079-31:2014
Notified body, which approved the full quality assurance system, referred to Appendix IV, 2014/34/EU and for the ATEX certification:TÜV Rheinland Industrie Service GmbH
Am Grauen Stein, 51105 Köln
ID n°: 0035
EU-Type Examination Certificate:TÜV 22 ATEX 8490 U (EX-R command and signalling devices)
TÜV 22 ATEX 8851 U (EX-R contact elements)
TÜV 23 ATEX 8990 X (EX-R command and signalling devices with EX-R contact elements in EX-RCB enclosure)
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, September 16, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
UK Declaration of Conformity LOG_COM_lo1de01s
Company:K.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby, under sole responsibility, certify that the hereafter described components both in their basic design and construction conform to the relevant statutory requirements, regulations and designated standards of the United Kingdom.
Name of the component:EX-REX-R with EX-EBG
Type:See ordering code
Marking:D II 2G Ex ib IIC Gb
D II 2D Ex tb IIIC Db		D II 2G Ex ib IIC T4 Gb
D II 2D Ex tb IIIC T110°C Db
Description of the component:Command and illuminated signals with/without assembly housing
Relevant legislation:Equipment and Protective Systems intended for use in Potentially Explosive Atmospheres Regulations2016
 The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations2012
Designated standards:EN IEC 60079-0:2018
EN 60079-11:2012
EN 60079-31:2014
Approved body for certification of the quality assurance system in acc. with Appendix IV, 2014/34/EU and for Type Examination:TÜV Rheinland Industrie Service GmbH
Am Grauen Stein, 51105 Köln
Kenn-Nr.: 0035
Type examination certificate:TÜV 08 ATEX 7685 U
TÜV 08 ATEX 7630 X
UK-Importer / Person authorised for the compilation of the technical documentation:Schmersal UK Ltd.
Paul Kenney
Unit 1, Sparrowhawk Close
Enigma Business Park
Malvern, Worcestershire, WR14 1GL
Place and date of issue:Wuppertal, November 21, 2022
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director
