NDTSW/507D

Item number: 103000595

NDTSW/507D

Item number: 103000595

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Amount

Product type description:

-
(1)DT(8)(2)	Pushbutton
(1)DM(2)	Pushbutton with diaphragm for dust protection
(1)DL(8)(2)	Illuminated pushbutton
(1)DLM(2)	Illuminated pushbutton with diaphragm for dust protection
(1)ML(2)	Indicator light with flat collar
(1)MLH(2)	Indicator light with high collar
(1)DP(3)(8)(2)	Mushroom head impact button without latching
(1)DTP(3)(8)(2)	Mushroom head impact button without latching (only N-programm)
(1)DLP(3)(8)(2)	Mushroom head impact button illuminated, without latching (only N programme)
(1)DRR(3)(8)(2)	Mushroom head impact button with latching, unlock by turning and pulling (pulling only in N programme)
(1)DRZ(3)(8)(2)	Mushroom head impact button with latching, unlock by pulling
(1)WS21(4)(5)	Selector switch with 2 positions:
(1)WT21(4)(5)	Selector switch with 1 momentary position
(1)WS32(4)(5)	Selector switch with 3 maintained positions
(1)WT32(4)(5)	Wahlschalter mit 2 Taststellungen
(1)WST32(4)(5)	Selector switch: switching, latching
(1)WTS32(4)(5)	Selector switch: latching, switching
(1)SS21S(4)(5)	Key-operated selector switch with 2 maintained positions
(1)ST21S(4)(5)	Key-operated selector switch with 1 momentary position
(1)SS32S(4)(5)	Key-operated selector switch with 3 maintained positions
(1)ST32S(4)(5)	Key-operated selector switch with 2 momentary positions, left and right
(1)SST32S(4)(5)	Key-operated selector switch: switching, latching
(1)STS32S(4)(5)	Key-operated selector switch: latching, switching
B	Blanking plug

(1)
-	Command and signalling devices:
E	"E" program
N	"N" program
R	"R" program

(2)
-	Colour of button surface:
SW	Black
GB	Yellow
RT	Red
GN	Green
WS	White
BL	Blue
GR	Grey

(3)
-	Head diameter of mushroom head impact button 30 mm:
30	30 mm
35	35 mm
40	40 mm
42	42 mm
45	45 mm
50	50 mm
55	55 mm
70	70 mm

(4)
-	Toggle length in mm:
without	Short toggle
.1	Long toggle

(5)
-	Colour of toggle:
without	Grey
WS	White

(6)
-	Key-withdrawal position (3 positions):
1	Position left
2	Position middle
3	Position right

(7)
-	Key-withdrawal position (2 positions):
1	Position left
2	Position right

(8)
-	Colour of diaphragm (only N programme):
without	White
GR/	Black
BL/	Blue

Not all component variants, which are possible according to this order code are available and/or technically feasible.

hygienic design
Protection class IP69K
Mounting hole 22.3 mm

Ordering data

Product type description	NDTSW/507D
Article number (order number)	103000595
EAN (European Article Number)	4030661570808
eCl@ss number, version 12.0	27-37-12-10
eCl@ss number, version 11.0	27-37-12-10
eCl@ss number, version 9.0	27-37-12-10
ETIM number, version 7.0	EC000221
ETIM number, version 6.0	EC000221

Approvals - Standards

Certificates	cULus

General data

Standards	EN IEC 60947-5-1 EN IEC 60947-1
Versions	Pushbutton Front plate mounting
Design	Round Tactile
Installation conditions (mechanical)	arbitrarily
Sealing type	Membrane Lip gaskets
Material of the operators	ABS
Material of the front ring	ABS, chrome-plated
Colour of the operating element	Black
Colour of the front ring	Silver
Colour of the bellows	White
Gross weight	25 g

General data - Features

With symbol labeling	Yes
Mounting flange	Yes
Probing possible	Yes
Fully insulated	Yes
Number of contact elements, maximum	3

Mechanical data

Unlocking	without
Mechanical lifetime, Command devices	1,000,000 Operations
Mounting	Mounting flange EFM
Tightening torque of the screw	0.6 Nm
Symbol labeling number	507
Type of labeling	Print
Typical actuating force of the push button	1.5 N
Actuating stroke, minimum	4 mm
Actuating stroke, maximum	5 mm

Mechanical data - Dimensions

Mounting height	11 mm
Note (Mounting height)	Height in front of the front panel.
Diameter of touch surface	27 mm
Diameter of the front ring	44.5 mm
Mounting diameter	22.3 mm
Thickness, of the front panel, minimum	1 mm
Thickness of the front panel, maximum	6 mm
Spacing	50 x 50 mm

Ambient conditions

Degree of protection	IP67 IP69K
Ambient temperature	-25 ... +80 °C
Resistance to vibrations	5 g
Restistance to shock	<50 g (EN 60068-2-27)

Electrical data

Switching frequency of the command device, maximum	1,000 /h

Scope of delivery

Note (scope of delivery, number and type)	Mounting flange EFM is included in delivery

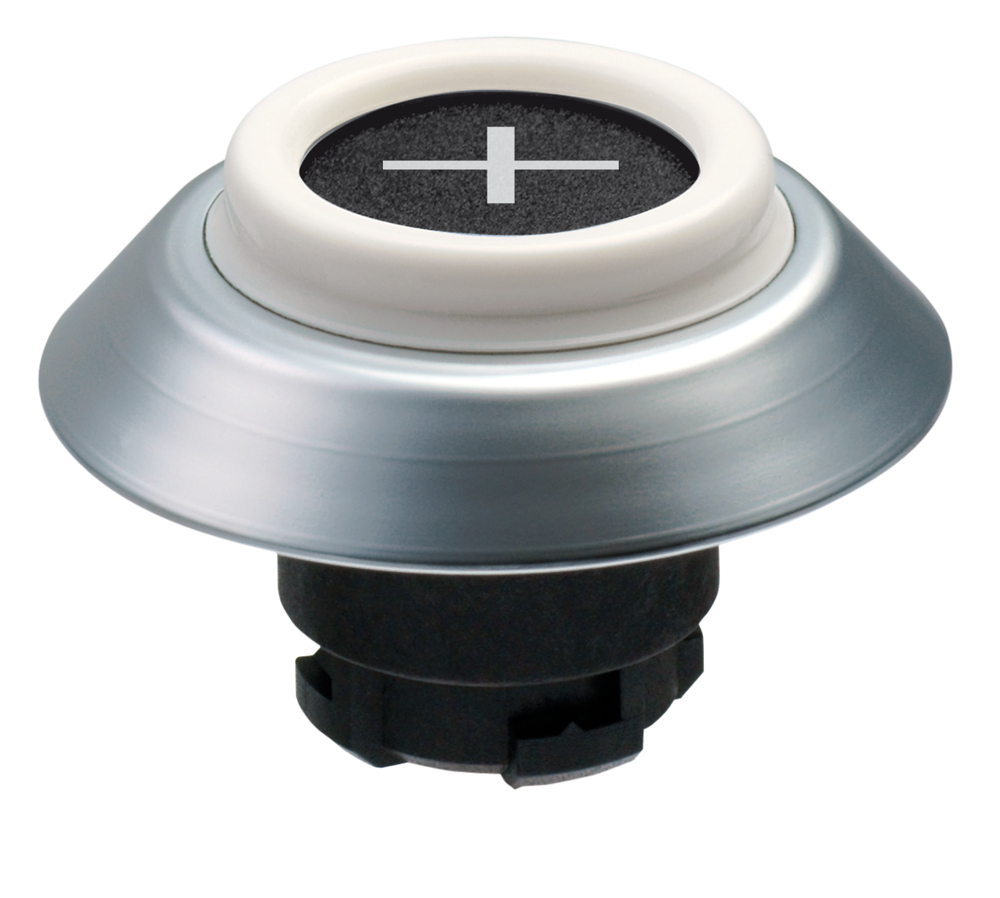

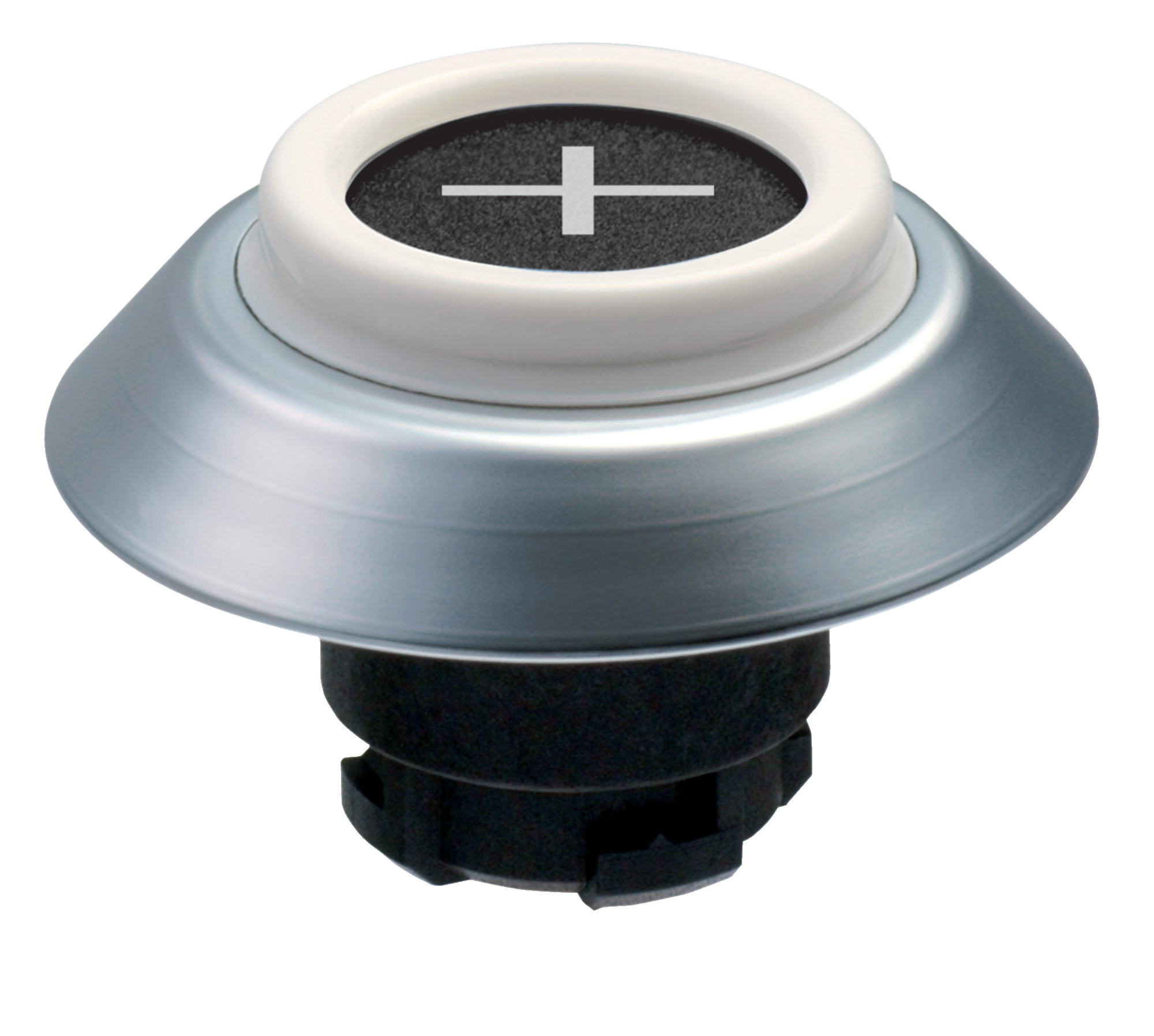

Product picture (catalogue individual photo)
