MOUNTING PLATE KPL. MP AZ 415
Item number:
101142442
MOUNTING PLATE KPL. MP AZ 415
Item number:
101142442
Downloads
ePLAN
Data
CADENAS
CAD Data
SISTEMA
Data
- For simple mounting
- Subsequent adjustment enabled
- Suitable for all conventional profile systems
Ordering data
| Product type description |
MOUNTING PLATE KPL. MP AZ 415 |
| Article number (order number) |
101142442 |
| EAN (European Article Number) |
4030661282978 |
| eCl@ss number, version 12.0 |
27-27-26-92 |
| eCl@ss number, version 11.0 |
27-27-26-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC002594 |
| ETIM number, version 6.0 |
EC002594 |
General data
| Gross weight |
495 g |
Mechanical data - Dimensions
| Width |
86 mm |
| Height |
184 mm |
| Depth |
7 mm |

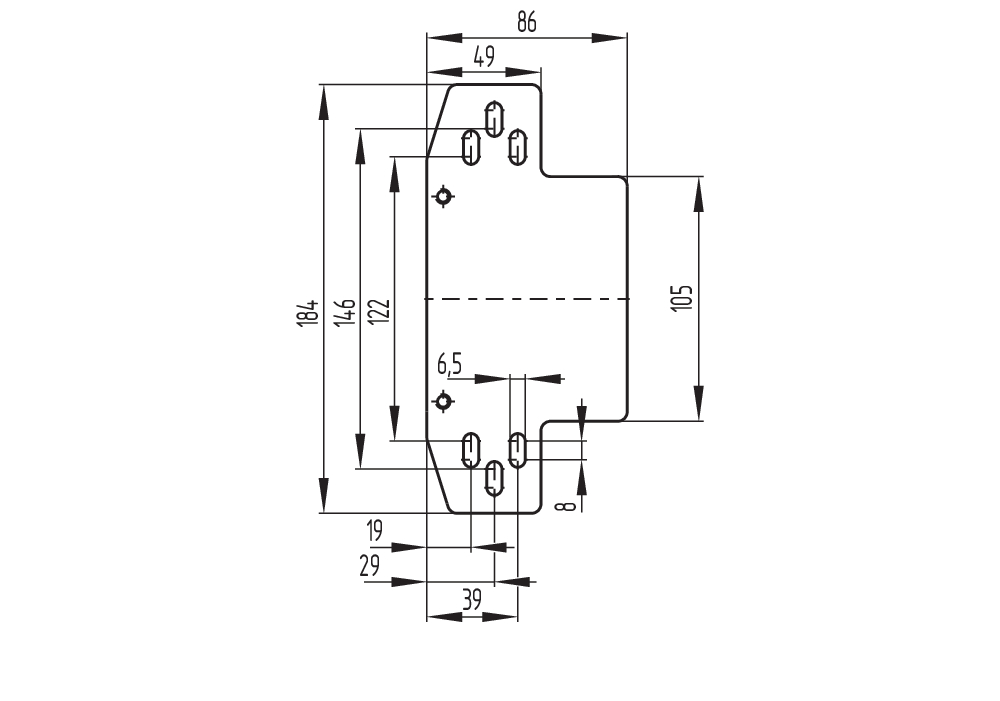

Dimensional drawing basic component
