EX-EBG311.O

Item number: 101197404
EX-EBG311.O

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
Product type description:
EX-EBG(1).O

(1)
311incl. 1 cable gland M20 for cable section 7 … 12 mm
633incl. 1 cable gland M25 for cable section 13 … 18 mm
665incl. 2 cable glands M25 for cable section 13...18 mm and 1 locking screw
Not all component variants, which are possible according to this order code are available and/or technically feasible.

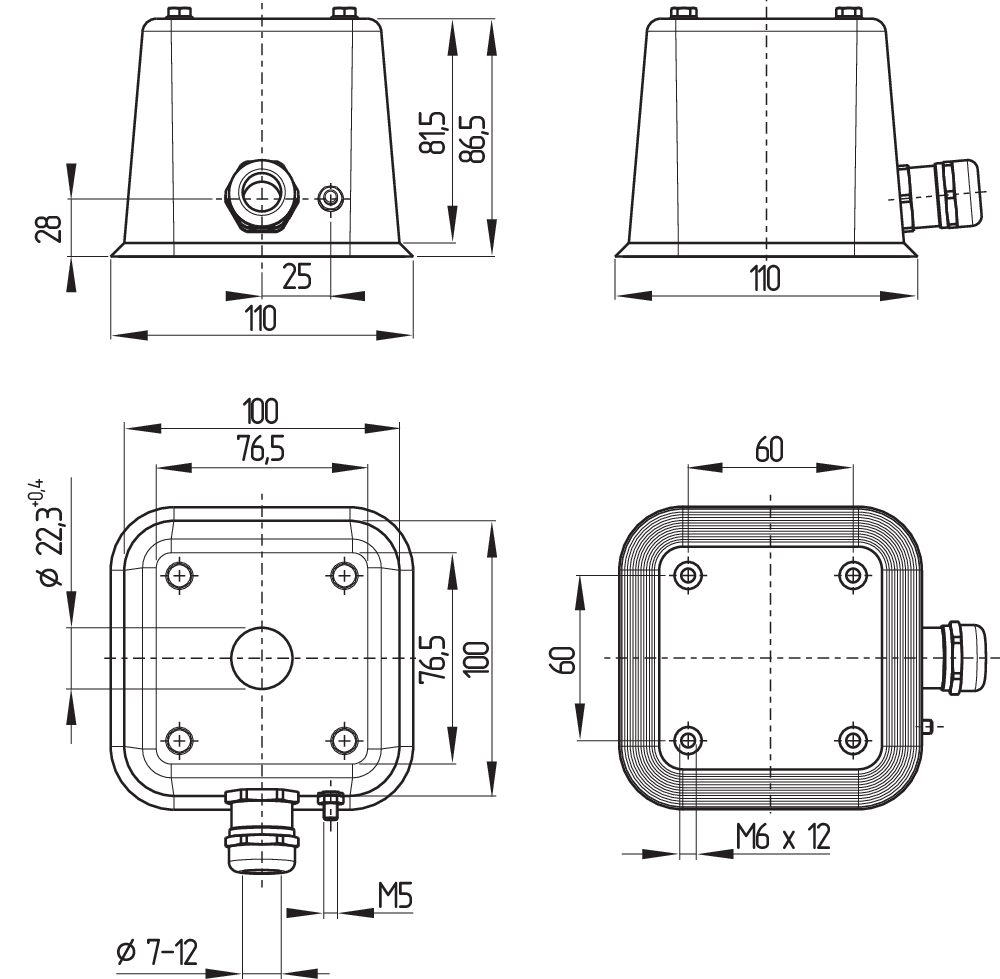

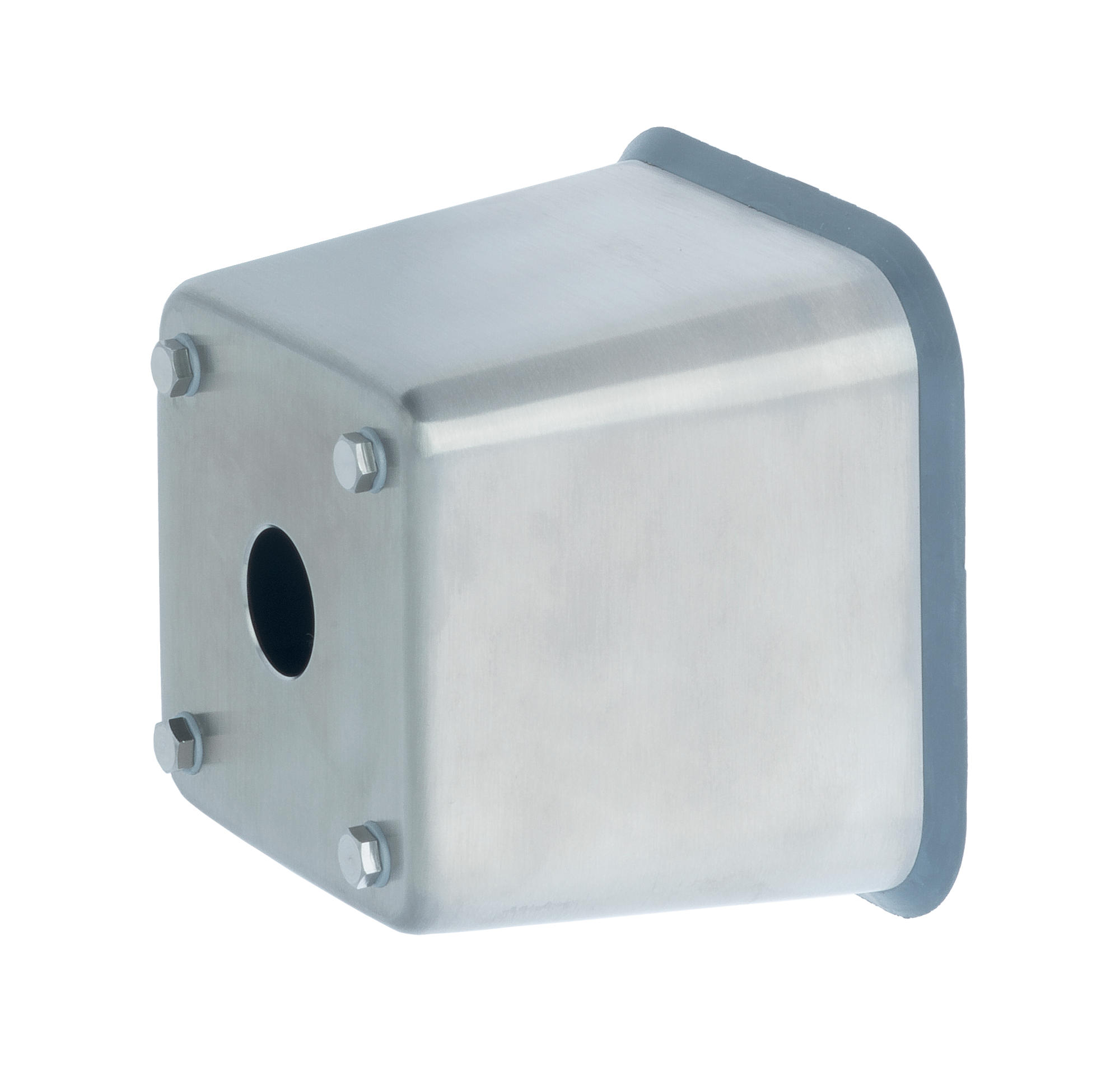

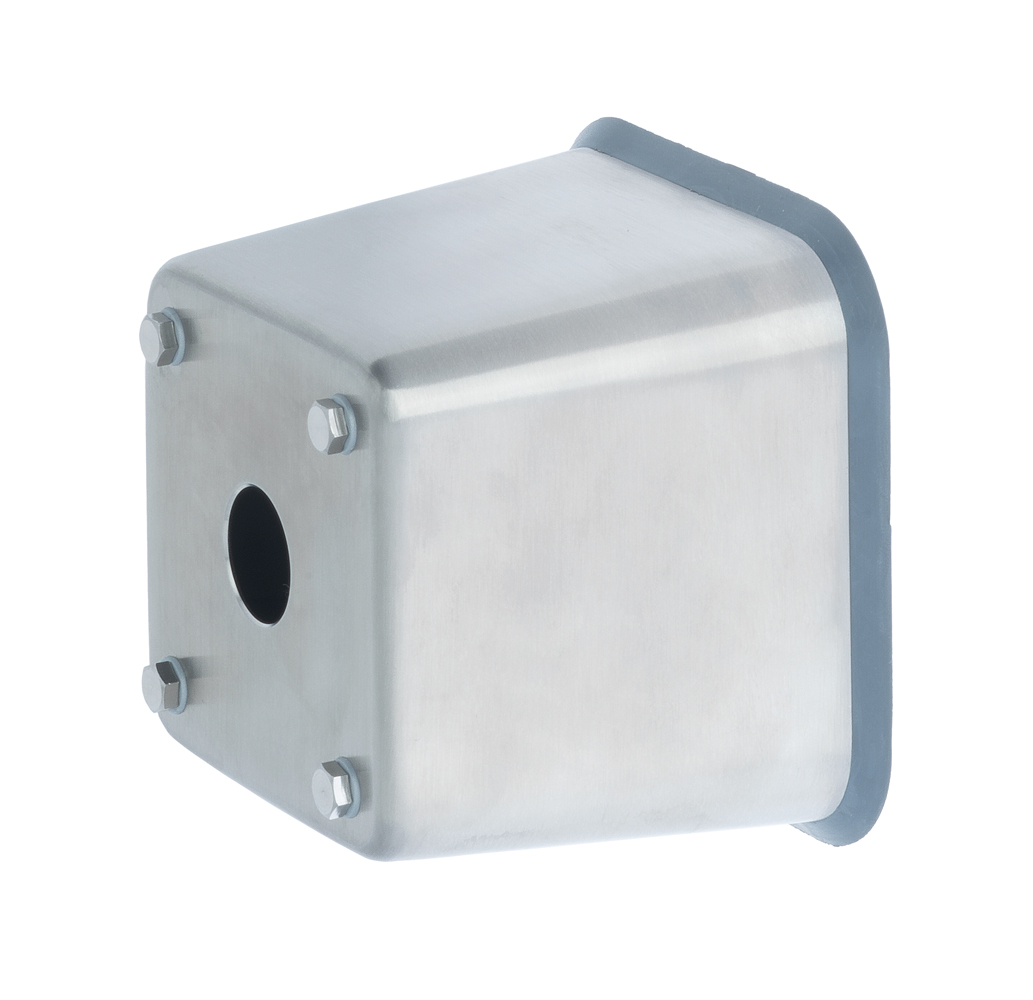

  • Empty enclosure in V4A
  • Version with 1 fitting hole for installation ø 22.3 m
  • incl. 1 cable gland M20 × 1.5

Ordering data

Product type description

EX-EBG311.O
Article number (order number)

101197404
EAN (European Article Number)

4030661498881
eCl@ss number, version 12.0

27-37-12-05
eCl@ss number, version 11.0

27-37-12-05
eCl@ss number, version 9.0

27-37-12-05
ETIM number, version 7.0

EC000200
ETIM number, version 6.0

EC000200

Approvals - Standards

Certificates

ATEX

IECEx

INMETRO

General data

Gross weight

650 g
EU Conformity Declaration
Pdf
EU Attestation of conformity LOG_COM_lo1de01s
OriginalK.A. Schmersal GmbH & Co. KG
Möddinghofe 30
42279 Wuppertal
Germany
Internet: www.schmersal.com
Declaration:We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
Name of the component:EX-EBG
Type:See ordering code
Marking:D II 2G Ex ib IIC Gb
D II 2D Ex tb IIIC Db
Description of the component:Assembly housing
Relevant Directives:Explosion Protection Directive (ATEX)2014/34/EU
Applied standards:EN IEC 60079-0:2018
EN 60079-11:2012
EN 60079-31:2014
Notified body, which approved the full quality assurance system, referred to Appendix IV, 2014/34/EU:TÜV Rheinland Industrie Service GmbH
Am Grauen Stein, 51105 Köln
ID n°: 0035
Notified body for Type Examination:DEKRA Testing and Certification GmbH
Dinnendahlstraße 9
44809 Bochum
ID n°: 0158
EU-Type Examination Certificate:TÜV 08 ATEX 7685 U
Person authorised for the compilation of the technical documentation:Oliver Wacker
Möddinghofe 30
42279 Wuppertal
Place and date of issue:Wuppertal, December 8, 2025
 GRA_SIG_ksig-y24
 Authorised signature
Philip Schmersal
Managing Director

Schmersal, Inc., 15 Skyline Drive, NY 10532 Hawthorne

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
