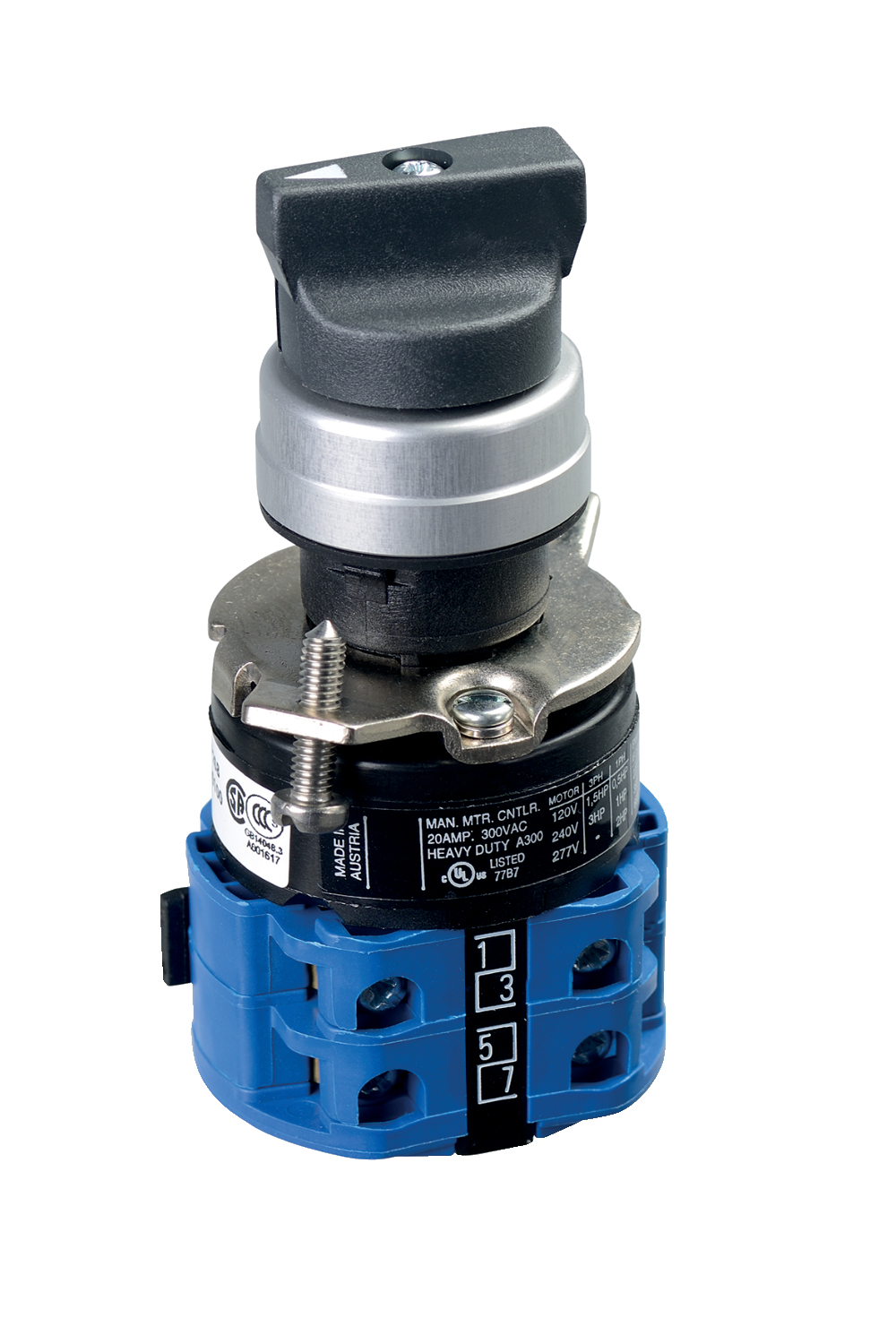

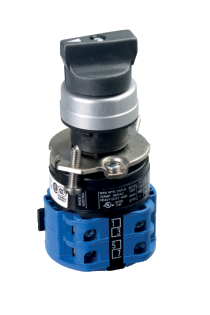

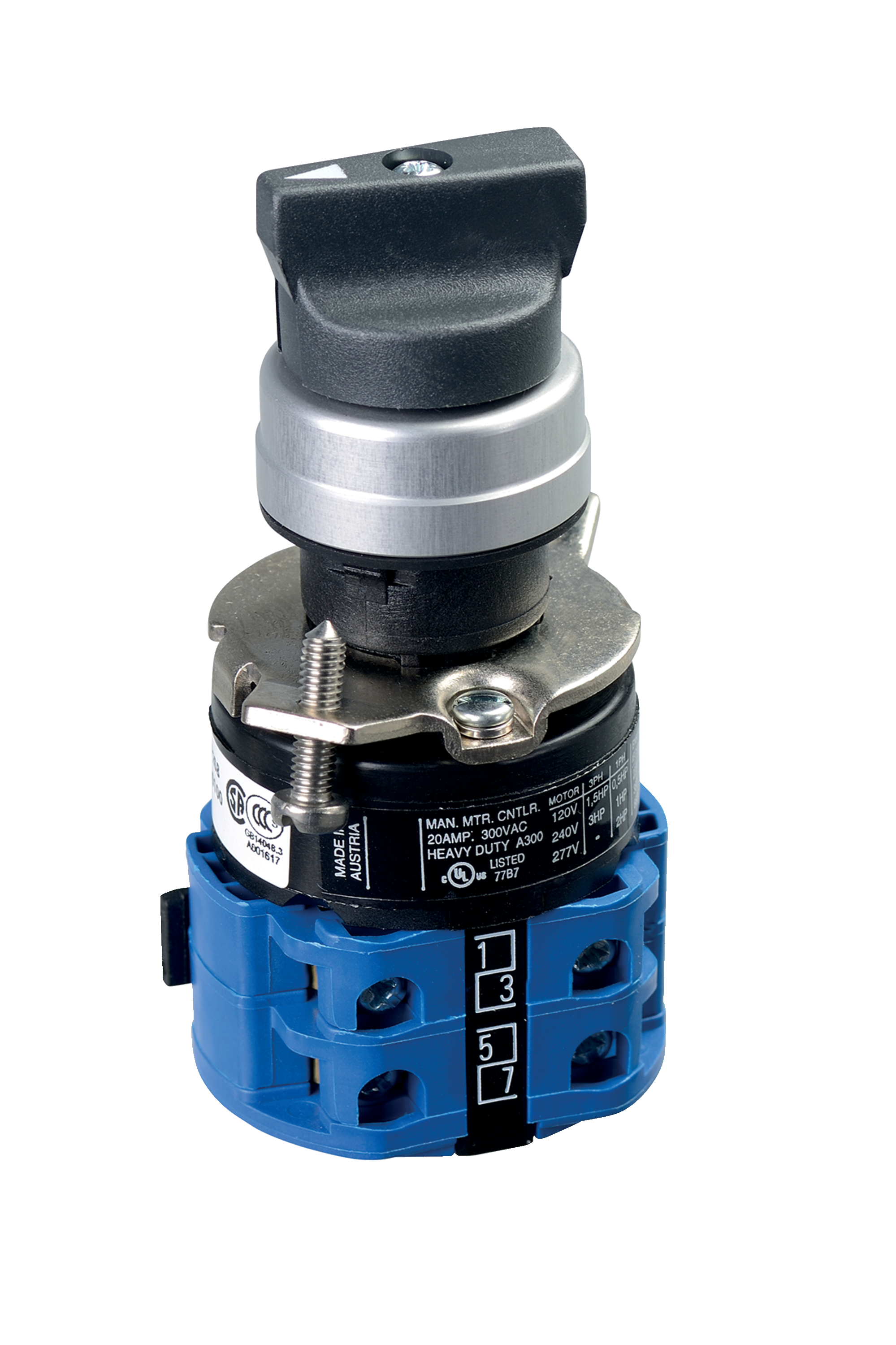

EWSE3K

Item number: 101005762
EWSE3K

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Mounting hole 22.3 mm
  • Protection class IP65
  • Aluminium enlosure
  • for rough ambient conditions

Ordering data

Product type description

EWSE3K
Article number (order number)

101005762
EAN (European Article Number)

4030661615431
eCl@ss number, version 12.0

27-37-12-13
eCl@ss number, version 11.0

27-37-12-13
eCl@ss number, version 9.0

27-37-12-13
ETIM number, version 7.0

EC000222
ETIM number, version 6.0

EC000222

General data

Standards

IEC 60947-3
Versions

Step selector switch

Front plate mounting
Design

Round
Toggle

short
Sealing type

Membrane

Lip gaskets

Form seals
Material of the front ring

Aluminium, anodised
Material of the toggle

Plastic
Colour of the front ring

Silver
Colour of the handle

Black
Gross weight

80 g

General data - Features

Latching

Yes
Number of switch positions

3

Mechanical data

Mechanical lifetime, Command devices

1,000,000 Operations
switching angle

60 °
Mounting

mounting flange
Tightening torque of the screw

0.6 Nm

Mechanical data - Connection technique

Cable section, minimum

0.5 mm², rigid

0.5 mm², flexible
Cable section, maximum

2.5 mm², rigid

1.5 mm², flexible
Note

All indications including the conductor ferrules.
Terminal (mechanical)

Screw connection M20 x 1,5

Mechanical data - Dimensions

Mounting height

28 mm
Note (Mounting height)

Height in front of the front panel.
Mounting depth

60 mm
Note (Mounting depth)

Depth behind front panel including cam switch
Diameter of the front ring

29.5 mm
Length of the handle

28 mm
Mounting diameter

22.3 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

50 x 60 mm

Ambient conditions

Degree of protection

IP65
Restistance to shock

> 25 g / 11 ms

Ambient conditions - Insulation values

Rated insulation voltage Ui

690 V

Electrical data

Thermal test current

20 A

Note

Note (General)

If a zero position is required, we recommend to use stage 1 (contact 1) to that effect and not to assign it.
