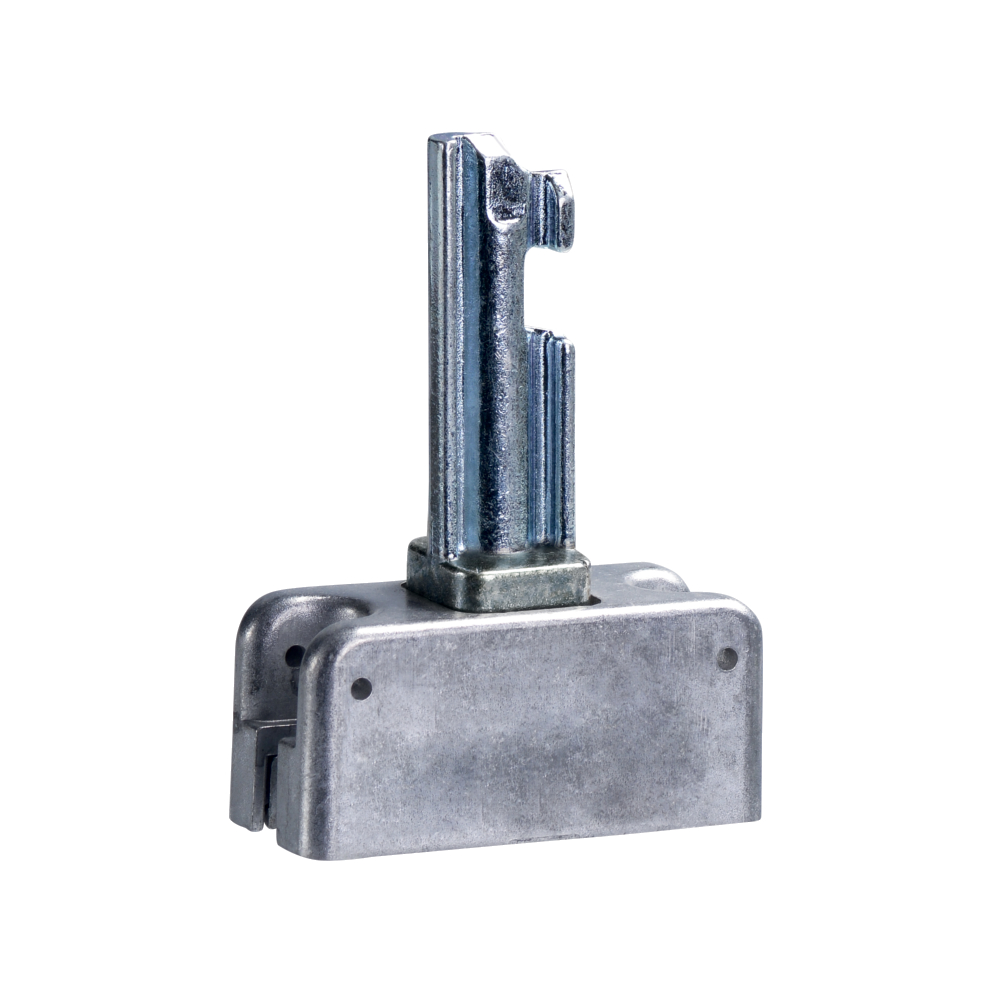

ACTUATOR AZ/AZM 415-B3

Item number: 101144797
ACTUATOR AZ/AZM 415-B3

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Particularly suitable for hinged guards
  • For very smal actuating radii at 90° to the plane of the actuator

Ordering data

Product type description

ACTUATOR AZ/AZM 415-B3
Article number (order number)

101144797
EAN (European Article Number)

4030661134314
eCl@ss number, version 12.0

27-27-26-06
eCl@ss number, version 11.0

27-27-26-06
eCl@ss number, version 9.0

27-27-26-06
ETIM number, version 7.0

EC001487
ETIM number, version 6.0

EC001487

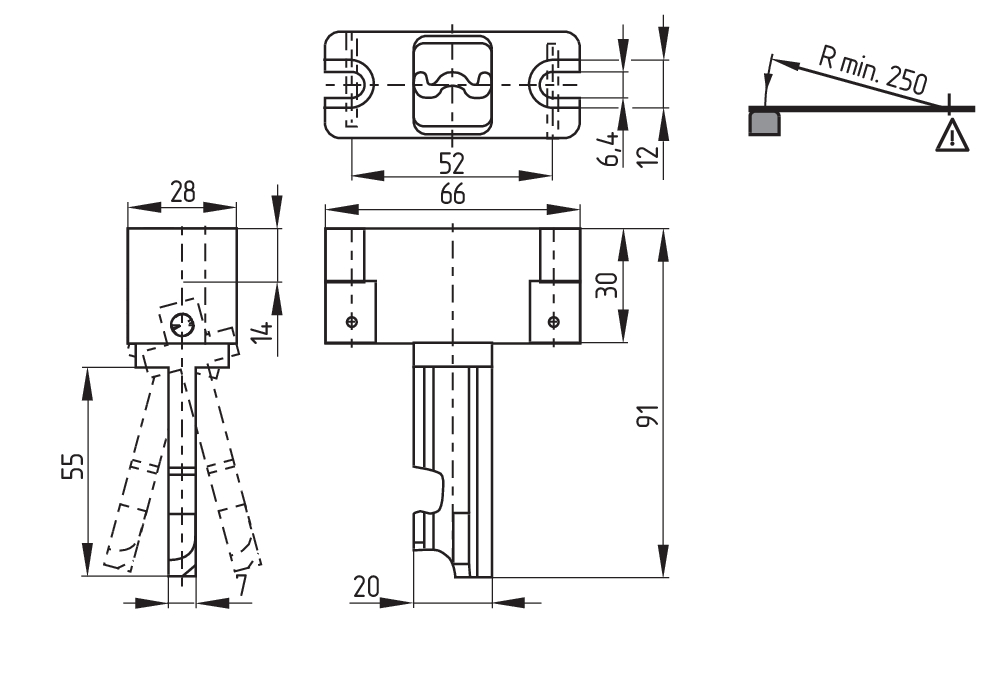

General data

Material of the actuator

Brass
Gross weight

165 g

Mechanical data

Actuating radius, minimum

250 mm
Actuator

straight

flexible
Shearing force

25,000 N

Note

Note (General)

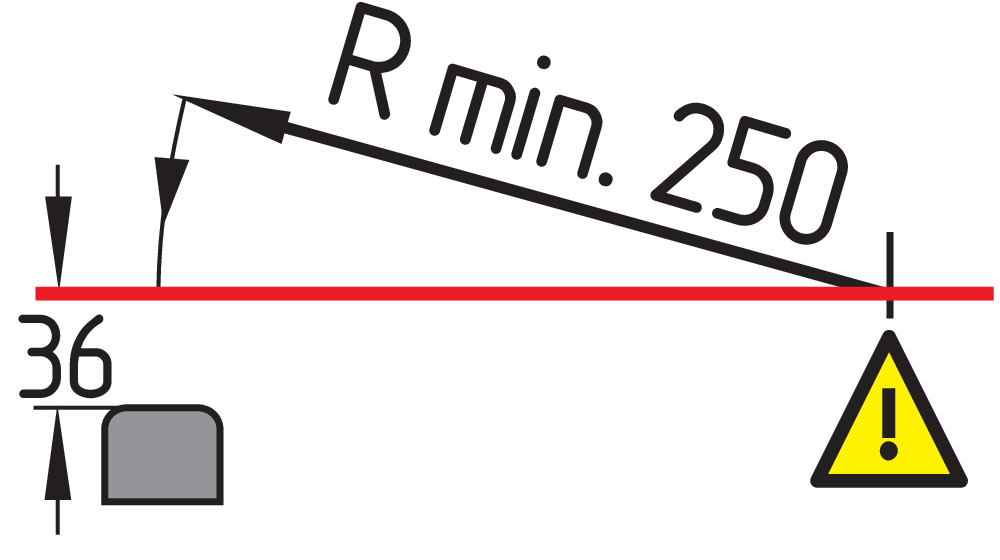

The axis of the hinge must be 36 mm above and in a parallel plane to the top surface of the safety switch.

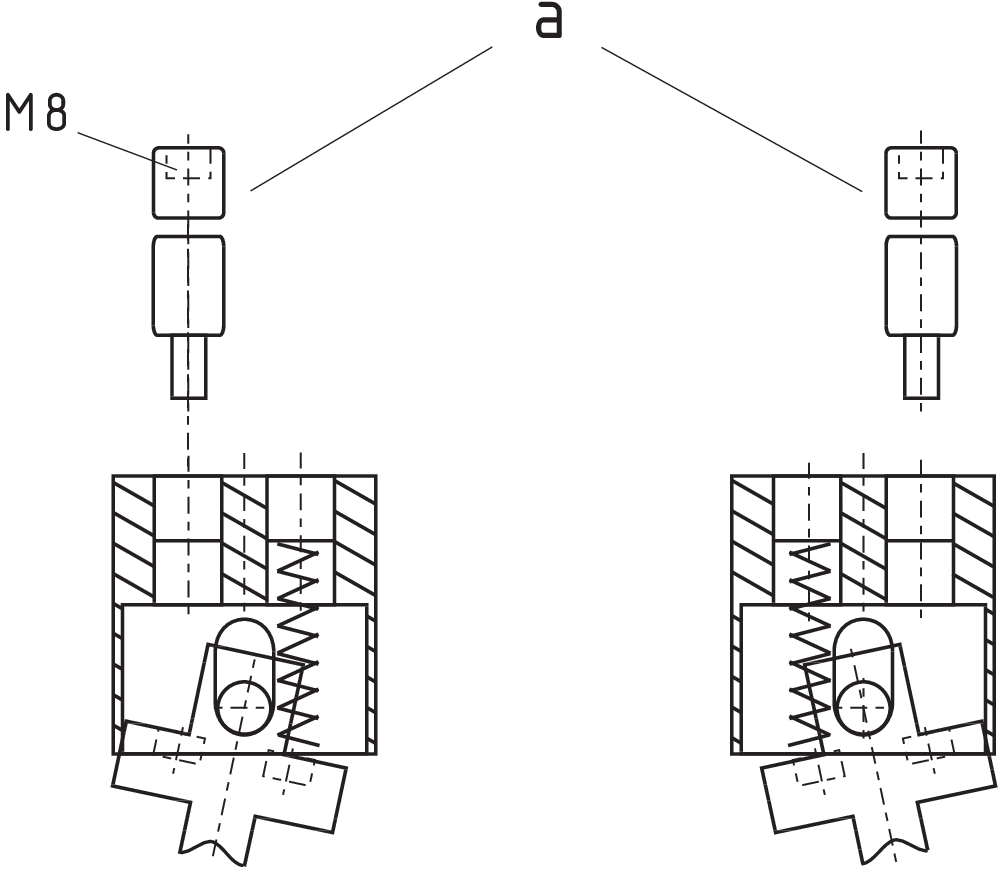

The sockets are equipped with pin holes. The use of dowel pins prevents disassembly of the actuator. By the adjustment of the hexagon socket screws "a", the actuators can be fitted any desired position. This actuator can also be used for sliding doors.

Actuating radius adjustable, minimum 250, using an hexagonal key wrench 4 A/F
