V-SS4P-M12-S-G-0,5M-BK-2-X-A-4-69
V-SS4P-M12-S-G-0,5M-BK-2-X-A-4-69
Downloads
Ordering data
| Product type description |
V-SS4P-M12-S-G-0,5M-BK-2-X-A-4-69 |
| Article number (order number) |
103025139 |
| EAN (European Article Number) |
4030661512280 |
| eCl@ss number, version 12.0 |
27-06-03-11 |
| eCl@ss number, version 11.0 |
27-06-03-11 |
| eCl@ss number, version 9.0 |
27-06-03-11 |
| ETIM number, version 7.0 |
EC001855 |
| ETIM number, version 6.0 |
EC001855 |
Approvals - Standards
| Certificates |
cULus |
General data
| Gross weight |
50 g |
General data - Features
| Number of cable wires |
4 |
Mechanical data
| Tightening torque, maximum |
1 Nm |
Mechanical data - Connection technique
| Length of cable |
0.5 m |
| Wire cross-section |
0.25 mm2 |
| Colour of the Cable mantle |
Green |
Mechanical data - connector side A
| Connector typ |
Male connector, M12 |
| Design |
straight |
| Connector coding |
A |
| Connector latching |
Screw locking |
| Material of the gland |
Metal, CuZn, nickel-plated |
| Colour of the handle |
Black |
Mechanical data - connector side B
| Connector typ |
Male connector, M12 |
| Design |
straight |
| Connector coding |
A |
| Connector latching |
Screw locking |
| Material of the gland |
Metal, CuZn, nickel-plated |
| Colour of the handle |
Black |
Electrical data
| Thermal test current |
4 A |
Language filter
Datasheet
UL Certificate
General information
Download the latest version of Adobe Reader

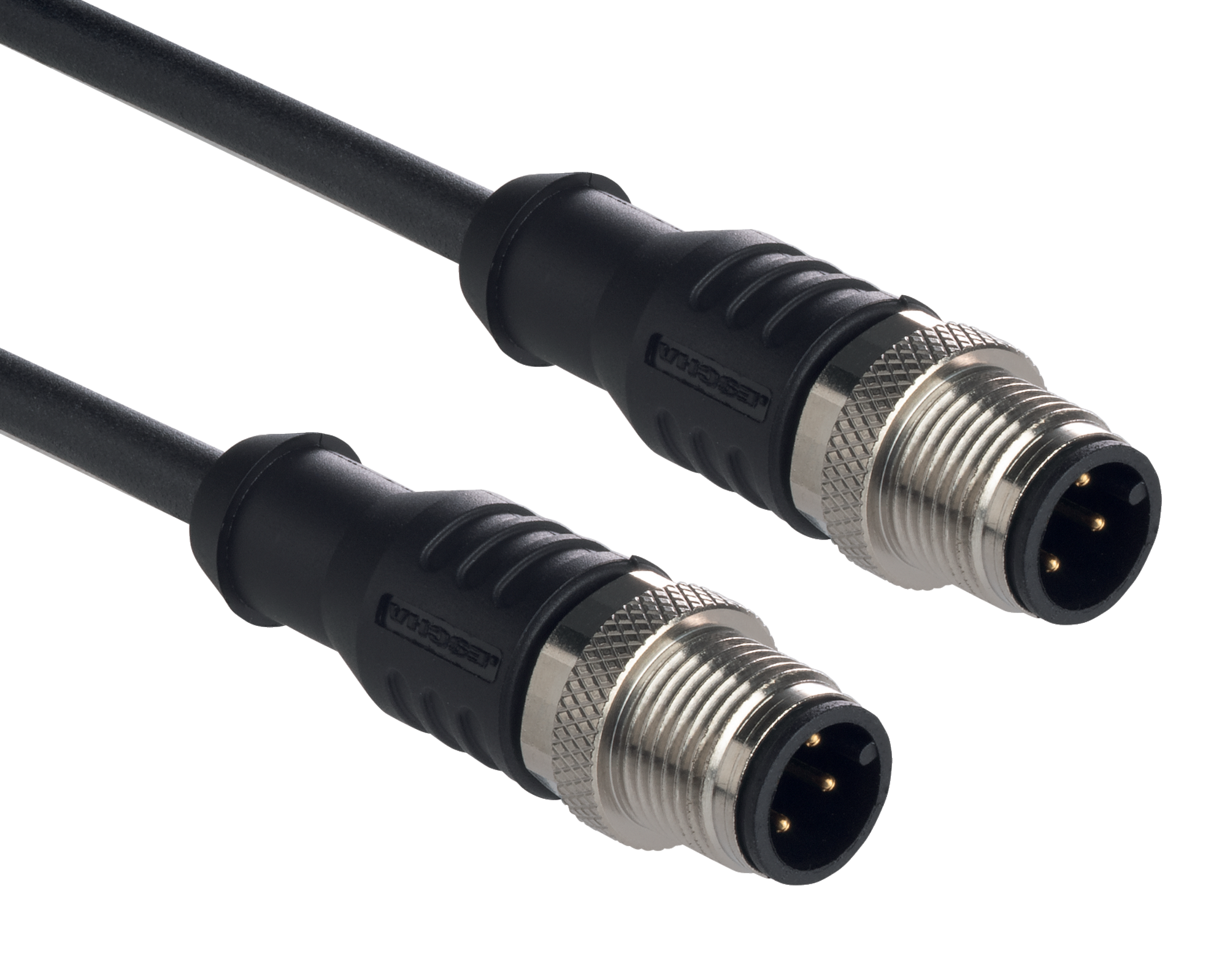

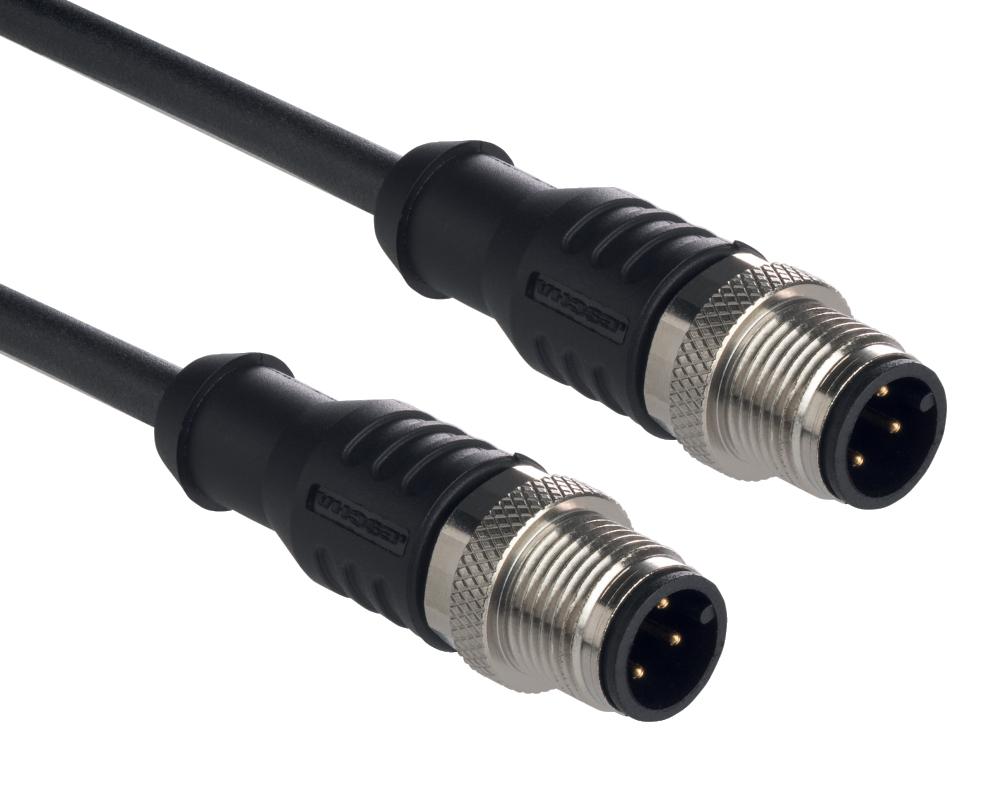

Product picture (catalogue individual photo)
