UVH 432Y-2S
UVH 432Y-2S
Downloads
| Product type description: U(1) 432Y-(2)-(3) |
| (1) | |
| S | Plunger S |
| K | Offset roller lever K |
| 8H | Roller lever 8H |
| H | Roller lever H |
| 3H | Roller lever 3H |
| 7H | Roller lever 7H |
| 4H | Spring rod lever on shaft 4H |
| 9H | Rod lever 9H |
| 10H | Rod lever 10H |
| 2H | Leaf spring lever 2H |
| 6H | Leaf spring lever 6H |
| (2) | |
| without | 2 NC contact |
| 2S | 2 NO contacts |
| 1S/1OE | 1 NO contact/1 NC contact |
| (3) | |
| 1272 | Version for low temperatures to -30 °C |
- Metal enclosure
- 2 Contacts
- 62 mm x 80 mm x 50 mm ( basic component)
- Switching points and contact function adjustable
- 3 cable entries M 20 x 1.5
- Actuator head can be repositioned in steps 4 x 90°
- Continuous adjustment of lever position 360°
- Lever can be transposed by 180°
Ordering data
| Product type description |
UVH 432Y-2S |
| Article number (order number) |
101060519 |
| EAN (European Article Number) |
4030661418162 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Castor |
| Housing material |
Light alloy die-casting |
| Housing coating material |
painted |
| Gross weight |
427 g |
General data - Features
| Number of normally closed (NC) |
0 |
| Number of normally open (NO) |
2 |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
Mechanical data
| Actuating element |
Roller lever |
| Roller material |
Plastic |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating angle, from left of switch axis |
30 ° |
| Actuating angle, from right of switch axis |
30 ° |
| Contact opening |
2 x 1.5 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
3 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of sensor |
50 mm |
| Width of sensor |
62 mm |
| Height of sensor |
138 mm |
| Width of Castor |
8.5 mm |
| Diameter of Castor |
20 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-20 ... +60 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
500 V |
Electrical data
| Thermal test current |
16 A |
| Switching element |
Normally open contact (NO) |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Note
| Note (General) |
Type of contact and switching points can be factory set to order. |
Language filter
Datasheet
Operating instructions (supplementary sheet/quick guide)
Declaration of conformity (EC)
UL Certificate
Download the latest version of Adobe Reader

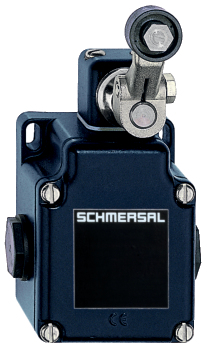

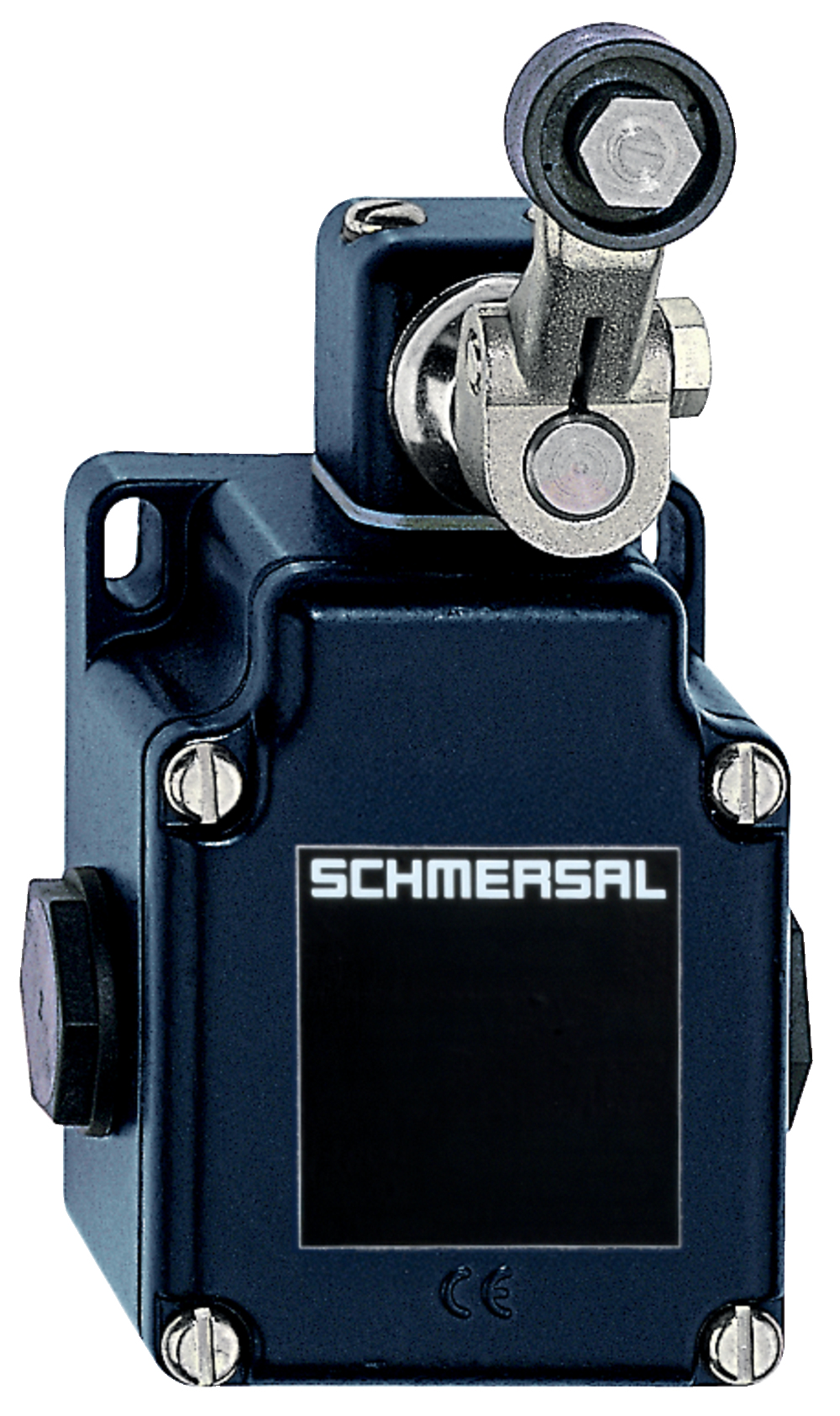

Product picture (catalogue individual photo)
ID: ku43hf01
| 828.6 kB | .jpg | 352.778 x 594.431 mm - 1000 x 1685 px - 72 dpi
| 126.5 kB | .png | 73.73100000000001 x 124.531 mm - 209 x 353 px - 72 dpi
| 45.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 9.5 MB | .png | 166.55700000000002 x 280.732 mm - 2000 x 3371 px - 305 dpi
| 59.2 kB | .jpg | 73.378 x 123.47200000000001 mm - 208 x 350 px - 72 dpi
Dimensional drawing basic component
Dimensional drawing actuator
Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angleDiagram
Monitoring the interlock to EN ISO 14119
Positive break NC contact
Actuated
Not actuated
Normally-open contact
Normally-closed contact
Operating principle
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
