T3Z 068-33YR
- 3 switches in one enclosure
- Metal enclosure
- two-side operation / wire up to 2 x 50 m long
- Robust design
- Low actuating force
Ordering data
| Product type description |
T3Z 068-33YR |
| Article number (order number) |
101087885 |
| EAN (European Article Number) |
4030661057262 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
cULus CCC |
General data
| Standards |
EN ISO 13850 EN IEC 60947-5-1 EN IEC 60947-5-5 |
| Housing material |
Grey cast iron, painted |
| Material of the housing cover |
Grey cast iron, painted |
| Length of the wire, maximum |
50 m |
| Gross weight |
4,635 g |
General data - Features
| Reset by pull ring |
Yes |
| Number of auxiliary contacts |
3 |
| Number of safety contacts |
3 |
Safety classification
| Standards |
EN ISO 13849-1 |
| Mission time |
20 Year(s) |
Safety classification - Safety outputs
| B10D Normally-closed contact (NC) |
100,000 Operations |
Mechanical data
| Actuating element |
Roller lever N300 |
| Mechanical lifetime, minimum |
50,000 Operations |
| Positive break angle |
32 ° |
| Actuating force, maximum |
50 N |
| Note (Actuating force) |
30 N in wire direction |
| Actuation direction |
Each time 75° right-hand side and left-hand side rotation |
| Positive break force, minimum |
50 N |
| Positive break torque |
0.2 Nm |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
0.75 mm² |
| Cable section, maximum |
1.5 mm² |
| Note |
All indications including the conductor ferrules. |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-30 ... +90 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
250 VAC |
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
10 A |
| Utilisation category AC-15 |
230 VAC |
| Utilisation category AC-15 |
2.5 A |
| Utilisation category DC-13 |
24 VDC |
| Utilisation category DC-13 |
6 A |
| Switching element |
NO contact, NC contact |
| Switching principle |
Slow action |
| Material of the contacts, electrical |
Silver |
Note
| Note (General) |
At 3 m distance intermediate wire supports are required, see accessories |
Language filter
Datasheet
Operating instructions and Declaration of conformity
UL Certificate
CCC certification
SISTEMA-VDMA library
Download the latest version of Adobe Reader
Product picture (catalogue individual photo)
ID: kt3z0f02
| 631.7 kB | .jpg | 352.778 x 480.13100000000003 mm - 1000 x 1361 px - 72 dpi
| 78.1 kB | .png | 73.73100000000001 x 100.542 mm - 209 x 285 px - 72 dpi
| 42.8 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 5.6 MB | .png | 200 x 272.2 mm - 2000 x 2722 px - 254 dpi
| 50.0 kB | .jpg | 90.664 x 123.47200000000001 mm - 257 x 350 px - 72 dpi
Dimensional drawing basic component
Dimensional drawing miscellaneous

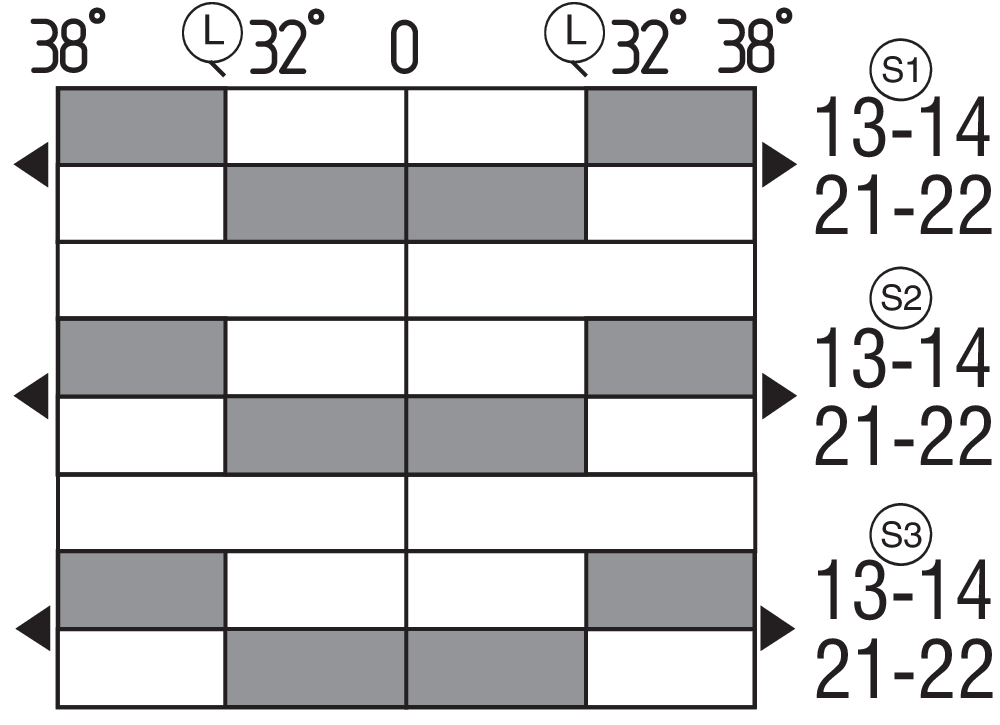

Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
101203569 ACC-PWR-RC-DUPLEX-4MM-NIRO
- for Wire rope Ø 3 mm
101190917 DUPLEX WIRE CLAMP 3 MM (STAINLESS STEEL)
- for Wire rope Ø 3 mm
101196043 WIRE CLAMP SZ. 3 EGG-SHAPED OFFS.
- for Wire rope Ø 3 mm
101077072 ACC-PWR-RC-4MM-ZN
- for Wire rope Ø 4 mm
101203472 ACC-PWR-WT-3MM-NIRO
- for Wire rope Ø 3 mm
101203475 ACC-PWR-WT-4MM-NIRO
- for Wire rope Ø 4 mm
101203476 ACC-PWR-WT-5MM-NIRO
- for Wire rope Ø 5 mm
101192433 ACC-PWR-PLY-S
- To guide the wire rope where the path is not a straight line
- for Wire rope Ø 5 mm
101087930 ACC-PWR-TB-M6-2
- For exact adjustment of the tension of the wire rope
- to DIN 1480
101087931 ACC-PWR-ZG-D20,0X2,0-L186-RZ-136E
- To maintain the reaction force
101186490 ACC-PWR-SKL-A0,16-VA
- Shackle for fixing the wire rope to the eyebolt
103003628 PWR-5M-SET
- With red PVC sheath
- Ready-to-fit
103003629 PWR-10M-SET
- With red PVC sheath
- Ready-to-fit
103003865 PWR-15M-SET
- With red PVC sheath
- Ready-to-fit
103003866 PWR-20M-SET
- With red PVC sheath
- Ready-to-fit
103003630 PWR-30M-SET
- With red PVC sheath
- Ready-to-fit
103003867 PWR-40M-SET
- With red PVC sheath
- Ready-to-fit
103003631 PWR-50M-SET
- With red PVC sheath
- Ready-to-fit
101186704 S 900
- Smooth adjustment
- Only one tool
- Antiskid
- Time-saving
- Ergonomic
- No risk of injury
103033772 ACC-RS900-TS
- To maintain the reaction force
103036963 ACC-RK-RS65X-QR
- mounting kit for central fixation
103036965 ACC-RK-RS65X
- mounting kit for central fixation
131087885 T3Z 068-33YR
- 3 switches in one enclosure
- Metal enclosure
- two-side operation / wire up to 2 x 50 m long
- Robust design
- Low actuating force
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | T3Z 068 |
| Type: | See ordering code |
| Description of the component: | Pull-wire emergency stop switch for safety applications. |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | DIN EN 60947-5-1:2018 DIN EN 60947-5-5:2017 DIN EN ISO 13850:2016 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, April 15, 2020 |
 |
| Authorised signature Philip Schmersal Managing Director |
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 15/04/2026, 07:26
