T2L 035-02Z
| Product type description: (1)2L 035-(2)Z(3)-(4) |
| (1) | |
| T | Slow action (not for AF/S) |
| M | Snap action |
| (2) | |
| 11 | 1 NO contact/1 NC contact |
| 02 | 2 NC contact |
| 20 | 2 NO contacts |
| (3) | |
| UE | Slow action with overlapping contacts |
| H | Slow action with staggered contacts |
| (4) | |
| C | Magnetic blow-out |
- Metal enclosure
- 58 mm x 142 mm x 61,5 mm (basic component)
- operating shaft with ball bearings
- 3 Cable entry M 20 x 1.5
- Protection class IP67
- Actuator head can be repositioned in steps 4 x 90°
Ordering data
| Product type description |
T2L 035-02Z |
| Article number (order number) |
101056296 |
| EAN (European Article Number) |
4030661016245 |
| eCl@ss number, version 12.0 |
27-27-06-01 |
| eCl@ss number, version 11.0 |
27-27-06-01 |
| eCl@ss number, version 9.0 |
27-27-06-01 |
| ETIM number, version 7.0 |
EC000030 |
| ETIM number, version 6.0 |
EC000030 |
Approvals - Standards
| Certificates |
CCC |
General data
| Standards |
EN IEC 60947-5-1 |
| Working principle |
mechanical |
| Slide form |
Castor |
| Housing material |
Grey cast iron, galvanised |
| Housing coating material |
painted |
| Gross weight |
1,880 g |
General data - Features
| Safety functions |
Yes |
| Number of normally closed (NC) |
2 |
Safety classification
| B10D Normally-closed contact (NC) |
2,000,000 Operations |
Mechanical data
| Actuating element |
Roller lever |
| Roller material |
Metal film |
| Mechanical lifetime, minimum |
10,000,000 Operations |
| Actuating angle, from left of switch axis |
30 ° |
| Actuating angle, from right of switch axis |
30 ° |
| Contact opening |
2 x 2.5 mm |
| Actuating speed, minimum |
1 mm/min |
| Actuating speed, maximum |
1 m/s |
| Note (Actuating speed) |
Actuating speed with vertical actuating angle to switch axis |
Mechanical data - Connection technique
| Termination |
Screw terminals M20 x 1.5 |
| Cable section, minimum |
1.5 mm² |
| Cable section, maximum |
2.5 mm² |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
13 AWG |
Mechanical data - Dimensions
| Length of the actuator |
21 mm |
| Width of the actuator |
36 mm |
| Height of the actuator |
73 mm |
| Width of Castor |
8 mm |
| Diameter of Castor |
36 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-30 ... +90 °C |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
400 V |
| Rated impulse withstand voltage Uimp |
6 kV |
Electrical data
| Thermal test current |
10 A |
| Utilisation category AC-15 |
400 VAC |
| Utilisation category AC-15 |
4 A |
| Switching element |
Opener (NC) |
| Note (Switching element) |
with double break |
| Switching principle |
Slow action |
| Maximale Schalthäufigkeit |
3,000 /h |
| Material of the contacts, electrical |
Silver |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Declaration of conformity (EC)
CCC certification
SISTEMA-VDMA library
Download the latest version of Adobe Reader

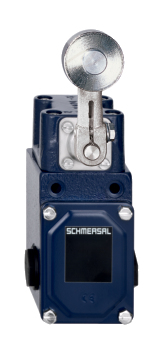

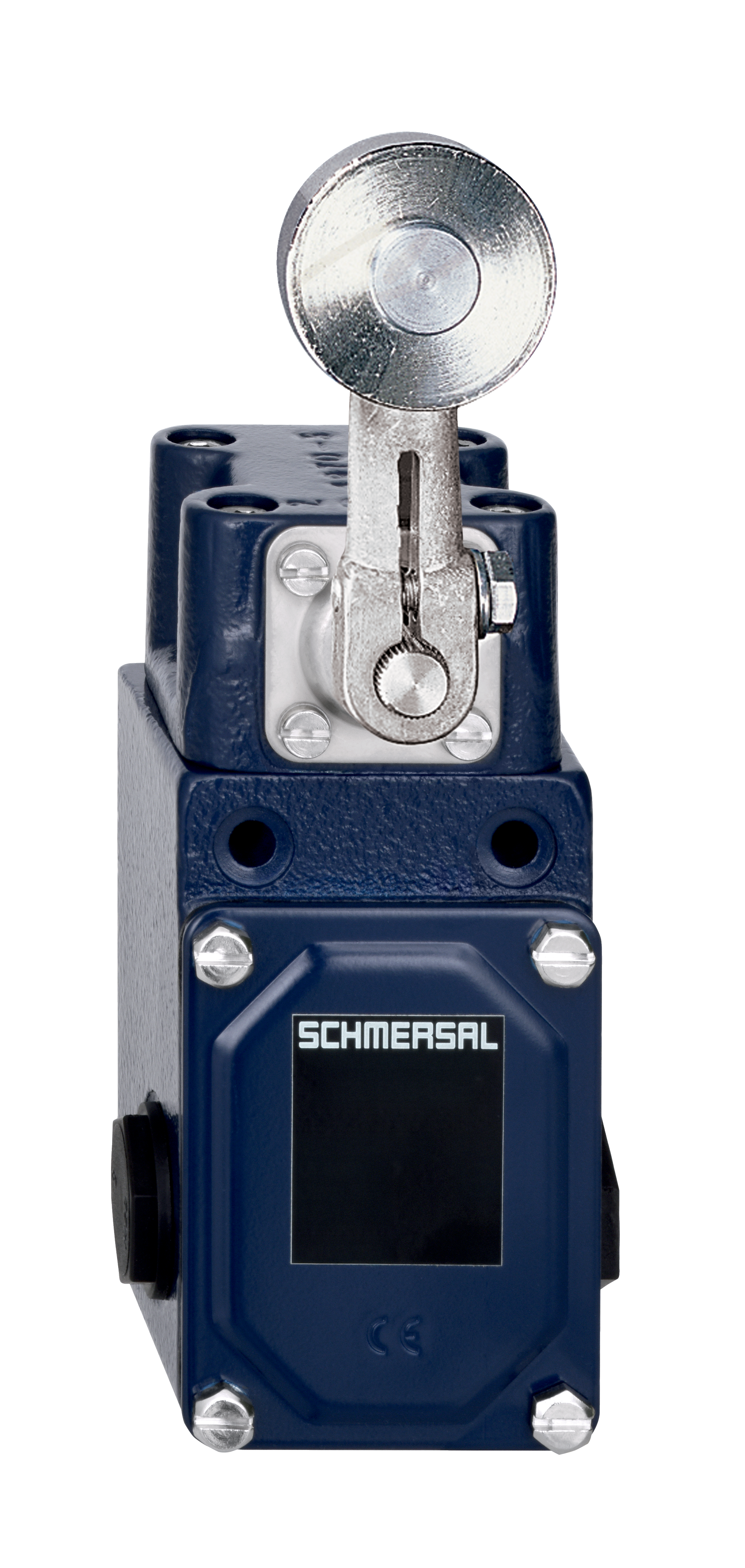

Product picture (catalogue individual photo)
ID: k-035f01
| 936.8 kB | .jpg | 352.778 x 742.95 mm - 1000 x 2106 px - 72 dpi
| 115.8 kB | .png | 74.083 x 155.928 mm - 210 x 442 px - 72 dpi
| 28.9 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 10.3 MB | .png | 169.333 x 356.61600000000004 mm - 2000 x 4212 px - 300 dpi
| 30.9 kB | .jpg | 58.561 x 123.47200000000001 mm - 166 x 350 px - 72 dpi

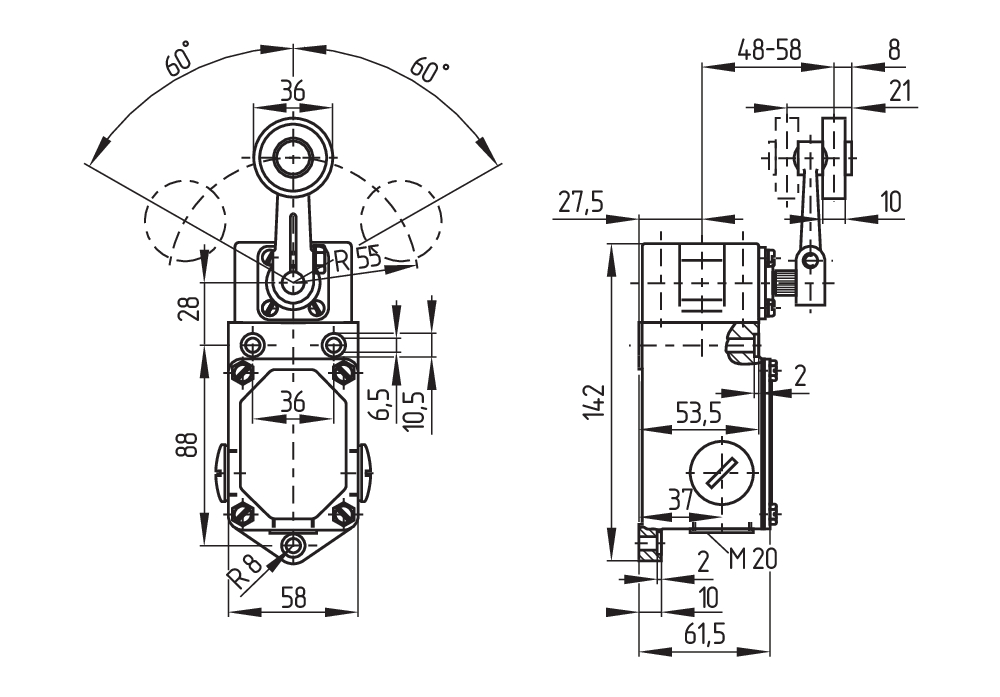

Dimensional drawing basic component

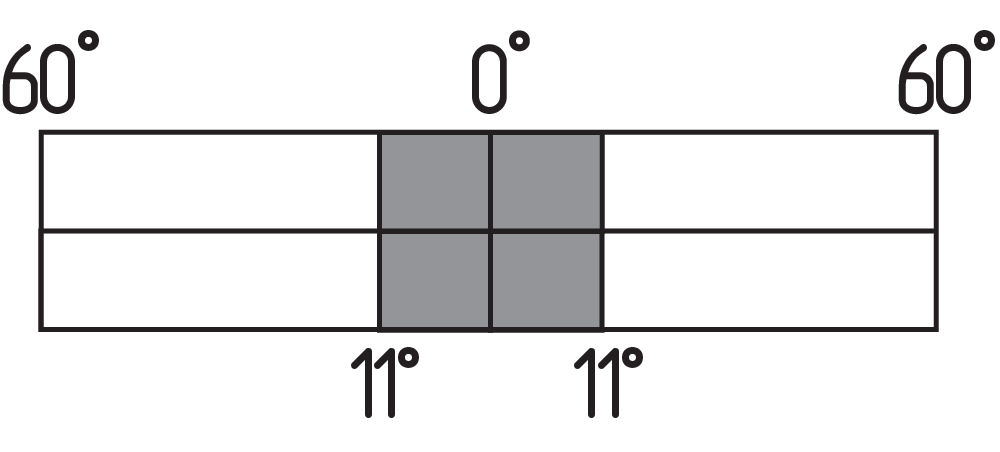

Switch travel diagram
Contact closed
Contact open
Setting range
Latching point
Positive opening path/angle
