SE-AL12-2500 PACKED ALU. RAIL

Item number: 101172180

SE-AL12-2500 PACKED ALU. RAIL

Item number: 101172180

Downloads

ePLAN Data

CADENAS CAD Data

SISTEMA Data

Aluminium profile with aluminium leg
for Rubber profile SE-P40

Ordering data

Product type description	SE-AL12-2500 PACKED ALU. RAIL
Article number (order number)	101172180
EAN (European Article Number)	4030661300337
eCl@ss number, version 12.0	35-07-02-92
eCl@ss number, version 11.0	35-07-02-92
eCl@ss number, version 9.0	35-02-01-90
ETIM number, version 7.0	EC000386
ETIM number, version 6.0	EC000386

General data

Material of the profile strip	Al-MG Si OF22
Gross weight	700 g

General data - Features

Aluminium leg	Yes

Mechanical data - Dimensions

Length	2,500 mm
Width	25 mm
Height	9 mm

Note

Note (General)	Greater lengths possible by laying several aluminium profiles in line

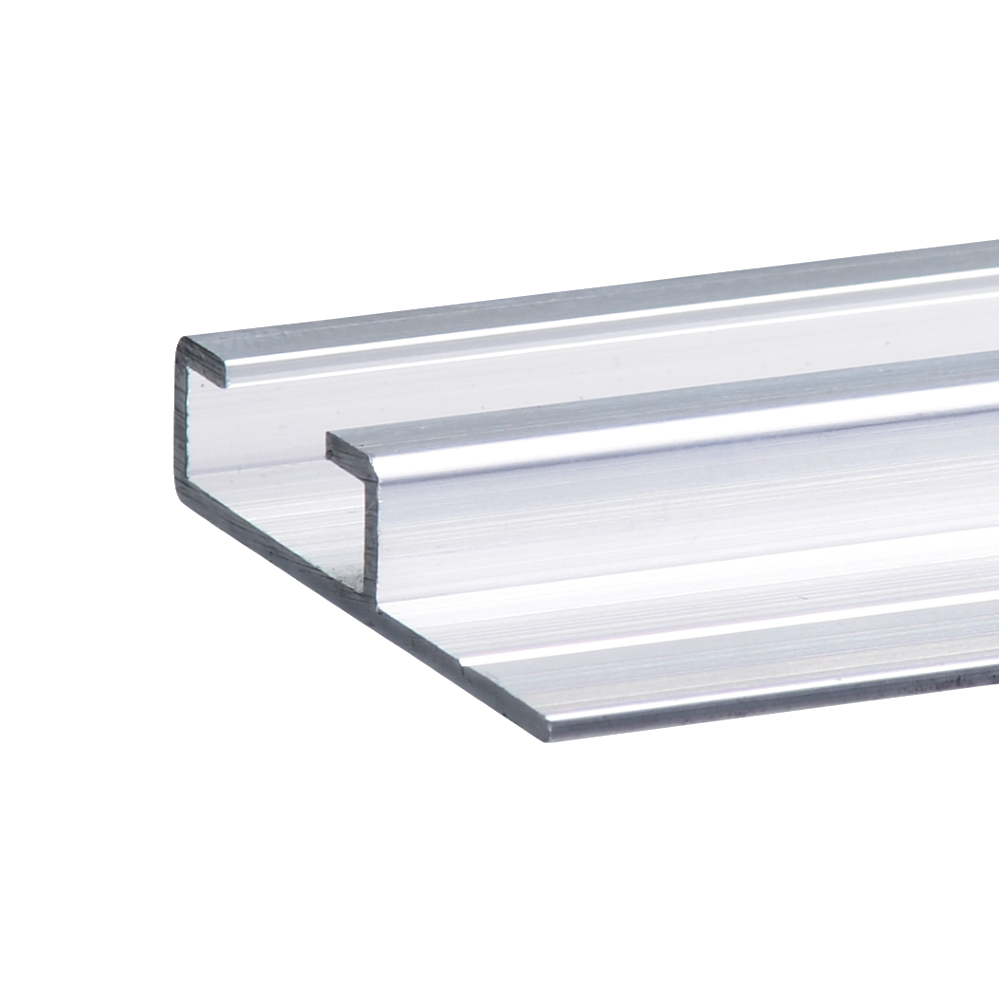

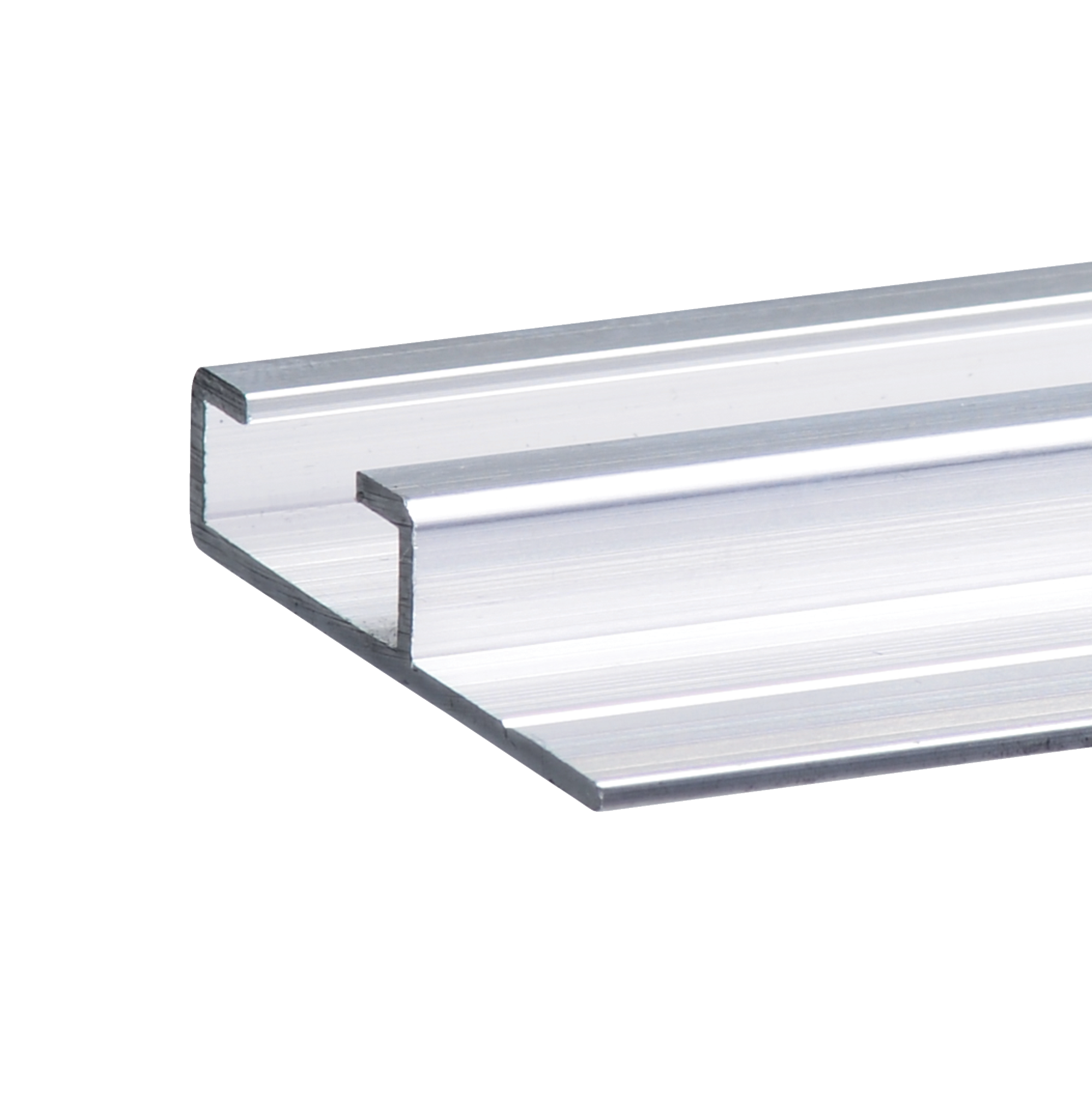

Product picture (catalogue individual photo)

ID: kse40f08

| 21.5 kB | .png | 74.083 x 74.436 mm - 210 x 211 px - 72 dpi

| 257.0 kB | .jpg | 352.425 x 354.54200000000003 mm - 999 x 1005 px - 72 dpi

| 33.6 kB | .jpg | 122.76700000000001 x 123.47200000000001 mm - 348 x 350 px - 72 dpi

| 28.0 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi

| 1.7 MB | .png | 169.333 x 170.26500000000001 mm - 2000 x 2011 px - 300 dpi

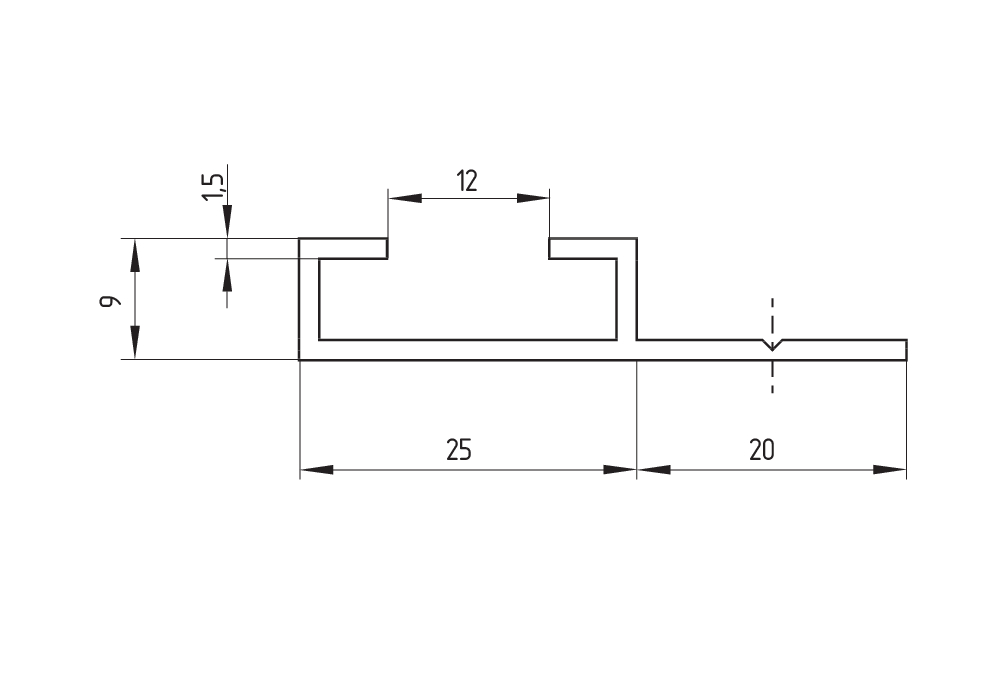

Dimensional drawing basic component

ID: 1se40g06

| 31.9 kB | .cdr |

| 1.6 kB | .png | 74.083 x 51.506 mm - 210 x 146 px - 72 dpi

| 31.3 kB | .jpg | 352.778 x 245.88600000000002 mm - 1000 x 697 px - 72 dpi

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.

Generated at: 23/04/2026, 09:33
