NMEBL
NMEBL
Downloads
| Product type description: |
| - | |
| (1)DT(8)(2) | Pushbutton |
| (1)DM(2) | Pushbutton with diaphragm for dust protection |
| (1)DL(8)(2) | Illuminated pushbutton |
| (1)DLM(2) | Illuminated pushbutton with diaphragm for dust protection |
| (1)ML(2) | Indicator light with flat collar |
| (1)MLH(2) | Indicator light with high collar |
| (1)DP(3)(8)(2) | Mushroom head impact button without latching |
| (1)DTP(3)(8)(2) | Mushroom head impact button without latching (only N-programm) |
| (1)DLP(3)(8)(2) | Mushroom head impact button illuminated, without latching (only N programme) |
| (1)DRR(3)(8)(2) | Mushroom head impact button with latching, unlock by turning and pulling (pulling only in N programme) |
| (1)DRZ(3)(8)(2) | Mushroom head impact button with latching, unlock by pulling |
| (1)WS21(4)(5) | Selector switch with 2 positions: |
| (1)WT21(4)(5) | Selector switch with 1 momentary position |
| (1)WS32(4)(5) | Selector switch with 3 maintained positions |
| (1)WT32(4)(5) | Wahlschalter mit 2 Taststellungen |
| (1)WST32(4)(5) | Selector switch: switching, latching |
| (1)WTS32(4)(5) | Selector switch: latching, switching |
| (1)SS21S(4)(5) | Key-operated selector switch with 2 maintained positions |
| (1)ST21S(4)(5) | Key-operated selector switch with 1 momentary position |
| (1)SS32S(4)(5) | Key-operated selector switch with 3 maintained positions |
| (1)ST32S(4)(5) | Key-operated selector switch with 2 momentary positions, left and right |
| (1)SST32S(4)(5) | Key-operated selector switch: switching, latching |
| (1)STS32S(4)(5) | Key-operated selector switch: latching, switching |
| B | Blanking plug |
| (1) | |
| - | Command and signalling devices: |
| E | "E" program |
| N | "N" program |
| R | "R" program |
| (2) | |
| - | Colour of button surface: |
| SW | Black |
| GB | Yellow |
| RT | Red |
| GN | Green |
| WS | White |
| BL | Blue |
| GR | Grey |
| (3) | |
| - | Head diameter of mushroom head impact button 30 mm: |
| 30 | 30 mm |
| 35 | 35 mm |
| 40 | 40 mm |
| 42 | 42 mm |
| 45 | 45 mm |
| 50 | 50 mm |
| 55 | 55 mm |
| 70 | 70 mm |
| (4) | |
| - | Toggle length in mm: |
| without | Short toggle |
| .1 | Long toggle |
| (5) | |
| - | Colour of toggle: |
| without | Grey |
| WS | White |
| (6) | |
| - | Key-withdrawal position (3 positions): |
| 1 | Position left |
| 2 | Position middle |
| 3 | Position right |
| (7) | |
| - | Key-withdrawal position (2 positions): |
| 1 | Position left |
| 2 | Position right |
| (8) | |
| - | Colour of diaphragm (only N programme): |
| without | White |
| GR/ | Black |
| BL/ | Blue |
- high calotte
- with integrated LED
- hygienic design
- Protection class IP69K
- Mounting hole 22.3 mm
Ordering data
| Product type description |
NMEBL |
| Article number (order number) |
101163599 |
| EAN (European Article Number) |
4250116200559 |
| eCl@ss number, version 12.0 |
27-37-12-11 |
| eCl@ss number, version 11.0 |
27-37-12-11 |
| eCl@ss number, version 9.0 |
27-37-12-11 |
| ETIM number, version 7.0 |
EC000223 |
| ETIM number, version 6.0 |
EC000223 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN IEC 60947-5-1 EN IEC 60947-1 |
| Versions |
Indicator lights Front plate mounting |
| Design |
Round High calotte |
| Installation conditions (mechanical) |
arbitrarily |
| Sealing type |
Membrane Lip gaskets Form seals |
| Material of the dome |
PA (12) |
| Material of the front ring |
ABS, chrome-plated |
| Colour of the dome |
Blue |
| Colour of the front ring |
Silver |
| Colour of the bellows |
Blue |
| Gross weight |
50 g |
General data - Features
| Illuminable |
Yes |
| Mounting flange |
Yes |
| Fully insulated |
Yes |
| Integral system diagnostics, general |
Yes |
Mechanical data
| Mounting |
Mounting flange ELM |
| Tightening torque of the screw |
0.6 Nm |
Mechanical data - Dimensions
| Mounting height |
17.4 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Height of the dome |
10.4 mm |
| Diameter of the dome |
26 mm |
| Diameter of the front ring |
44.5 mm |
| Mounting diameter |
22.3 mm |
| Thickness, of the front panel, minimum |
1 mm |
| Thickness of the front panel, maximum |
6 mm |
| Spacing |
40 x 50 mm |
Ambient conditions
| Degree of protection |
IP67 IP69K |
| Ambient temperature |
-25 ... +80 °C |
| Restistance to shock |
30 g / 18 ms |
Status indication
| Note (Integral System Diagnostics, status ) |
for 24 VAC/DC |
Scope of delivery
| Note (scope of delivery, number and type) |
Mounting flange ELM is included in delivery |
Note
| Note (General) |
for other input voltages, a special light element must be used |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Declaration of conformity (EC)
UKCA Declaration of Conformity
UL Certificate
Download the latest version of Adobe Reader

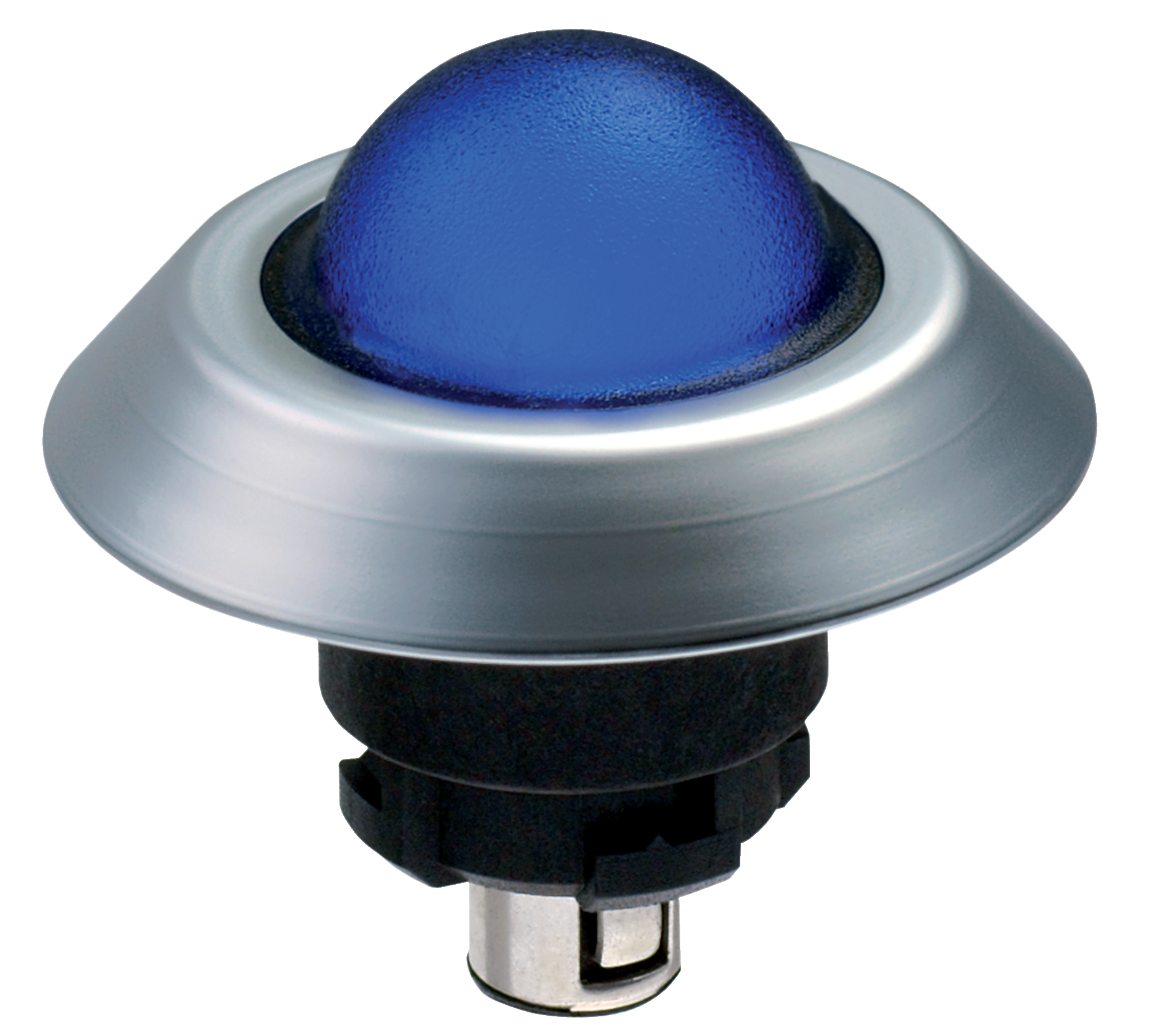

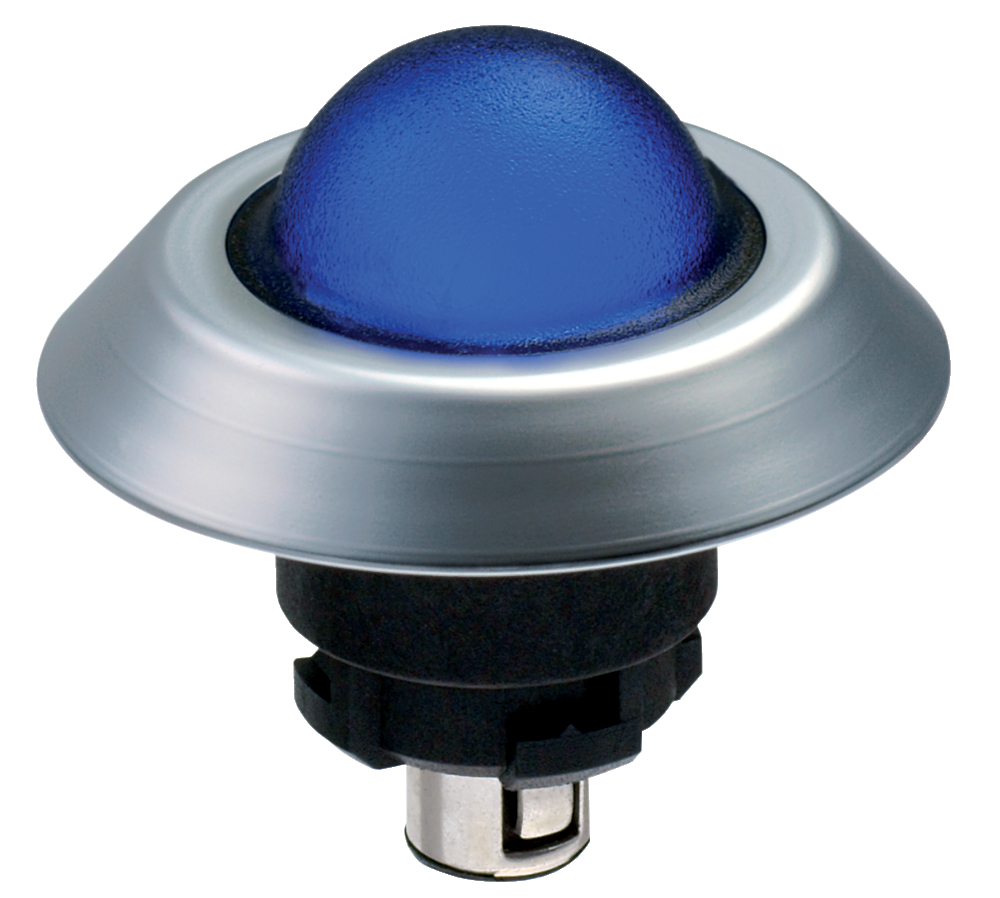

Product picture (catalogue individual photo)
ID: knme-f02
| 443.0 kB | .jpg | 352.778 x 316.79400000000004 mm - 1000 x 898 px - 72 dpi
| 38.3 kB | .png | 74.083 x 66.322 mm - 210 x 188 px - 72 dpi
| 60.2 kB | .jpg | 123.47200000000001 x 110.772 mm - 350 x 314 px - 72 dpi
| 55.9 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 3.6 MB | .png | 145.143 x 130.26600000000002 mm - 2000 x 1795 px - 350 dpi

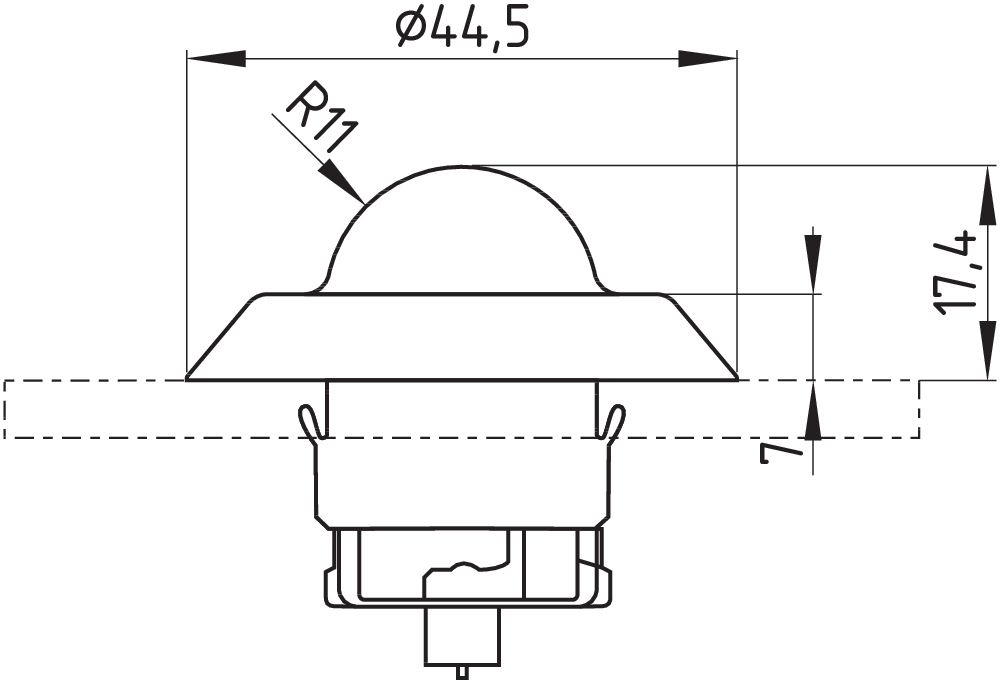

Dimensional drawing basic component
Video ID: Mr-Safety-N-Programm
(Vimeo)
101006534 ELE230
- not suitable for operation with filament lamp or glow lamp
101006529 ELE
- Print with LED symbol
101167368 ELEK
- Print with LED symbol
