NAS 311 ST1-AS
- Thermoplastic actuators
- Emergency stop station
- AS-Interface M12 connector
- 85 mm x 85 mm x 97,8 mm
- Integrated AS-Interface
- Pull to reset
- Resistant to chemicals
Ordering data
| Product type description |
NAS 311 ST1-AS |
| Article number (order number) |
101173041 |
| EAN (European Article Number) |
4030661448831 |
| eCl@ss number, version 12.0 |
27-37-12-44 |
| eCl@ss number, version 11.0 |
27-37-12-44 |
| eCl@ss number, version 9.0 |
27-37-12-44 |
| ETIM number, version 7.0 |
EC002034 |
| ETIM number, version 6.0 |
EC002034 |
Approvals - Standards
| Certificates |
TÜV ASi-SaW |
General data
| Standards |
EN IEC 62026-2 EN ISO 13849-1 EN ISO 13850 EN IEC 60947-5-1 EN IEC 61508 |
| Housing material |
Plastic |
| Gross weight |
330 g |
Safety classification
| Standards |
EN IEC 61508 |
| Performance Level, up to |
e |
| Category |
4 |
| PFH value |
1.40 x 10⁻⁸ /h |
| Note (PFH-value) |
up to max. 5,000 switching cycles/year |
| Safety Integrity Level (SIL), suitable for applications in |
3 |
| Mission time |
20 Year(s) |
Mechanical data - Connection technique
| Connector position |
Bottom |
| Termination |
Connector plug M12, 4-pole, (A-coding) |
Mechanical data - Dimensions
| Length of sensor |
97.8 mm |
| Width of sensor |
85 mm |
| Height of sensor |
85 mm |
Ambient conditions
| Degree of protection |
IP65 |
| Ambient temperature |
-25 ... +60 °C |
| Storage and transport temperature |
-25 ... +85 °C |
| Relative humidity, minimum |
30 % |
| Relative humidity, maximum |
95 % |
| Note (Relative humidity) |
non-condensing non-icing |
Electrical data
| Current consumption |
50 mA |
Electrical data - AS Interface
| Rated operating voltage |
26.5 ... 31.6 VDC (Protection against polarity reversal) |
Electrical data - AS-Interface specification
| AS-i Version |
V 2.1 |
| AS-i Profile |
S-7.B.0.E |
| AS-i, IO-Code |
0x7 |
| AS-i, ID-Code |
0xB |
| AS-i, ID-Code1 |
0xF |
| AS-i, ID-Code2 |
0xE |
| AS-i Input, Channel 1 |
Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Input, Channel 2 |
Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 0 … DO 3 |
No Function |
| AS-i Parameter bits, P0 ... P3 |
No function |
| AS-i Input module address |
0 |
| Note (AS-i Input module address) |
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |
Pin assignment
| PIN 1 |
AS-i + |
| PIN 2 |
n.c. |
| PIN 3 |
AS-Interface - |
| PIN 4 |
n.c. |
Language filter
Datasheet
Operating instructions and Declaration of conformity
AS interface safety at work certificate
TÜV certification
SISTEMA-VDMA library
Download the latest version of Adobe Reader

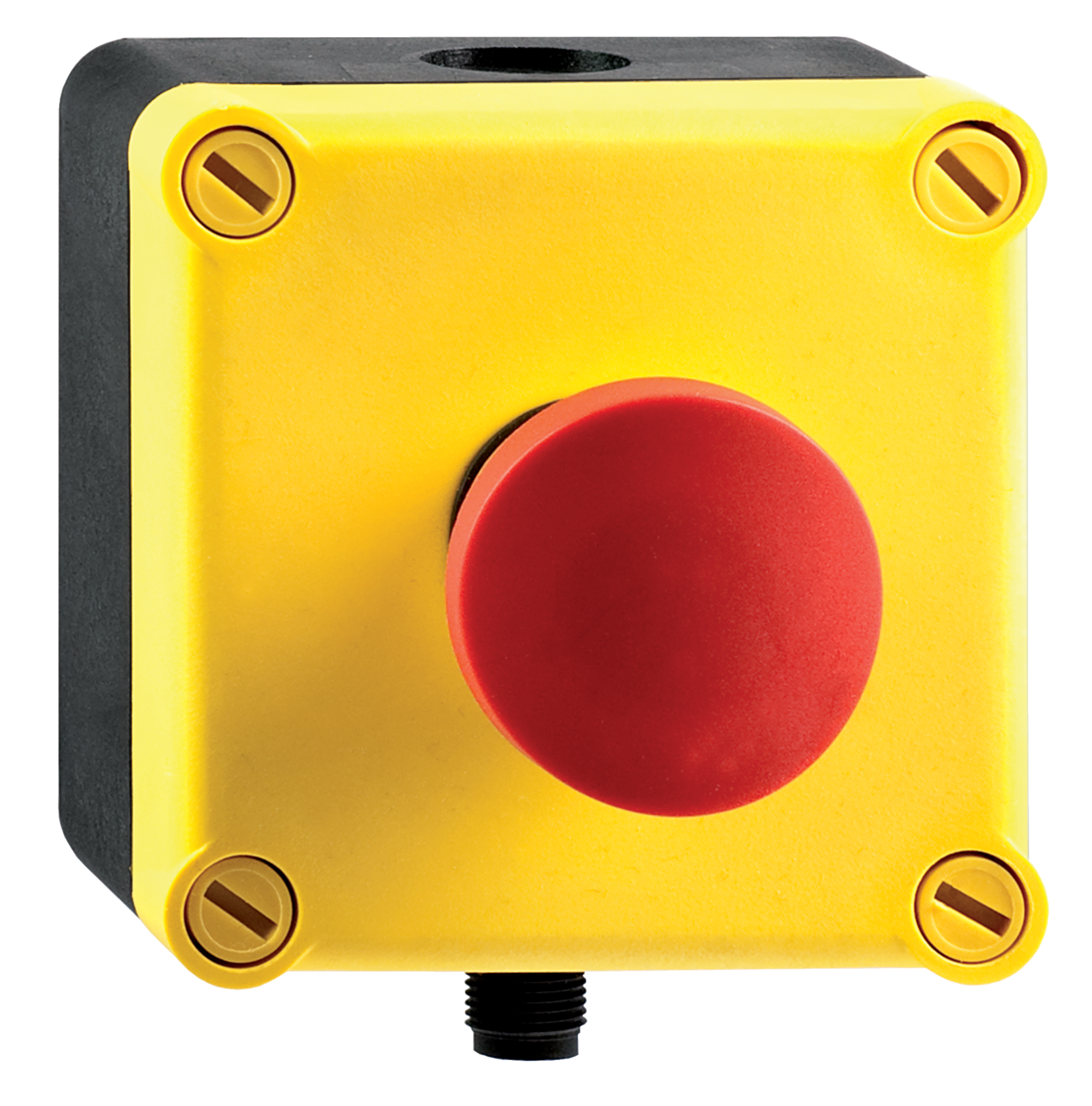

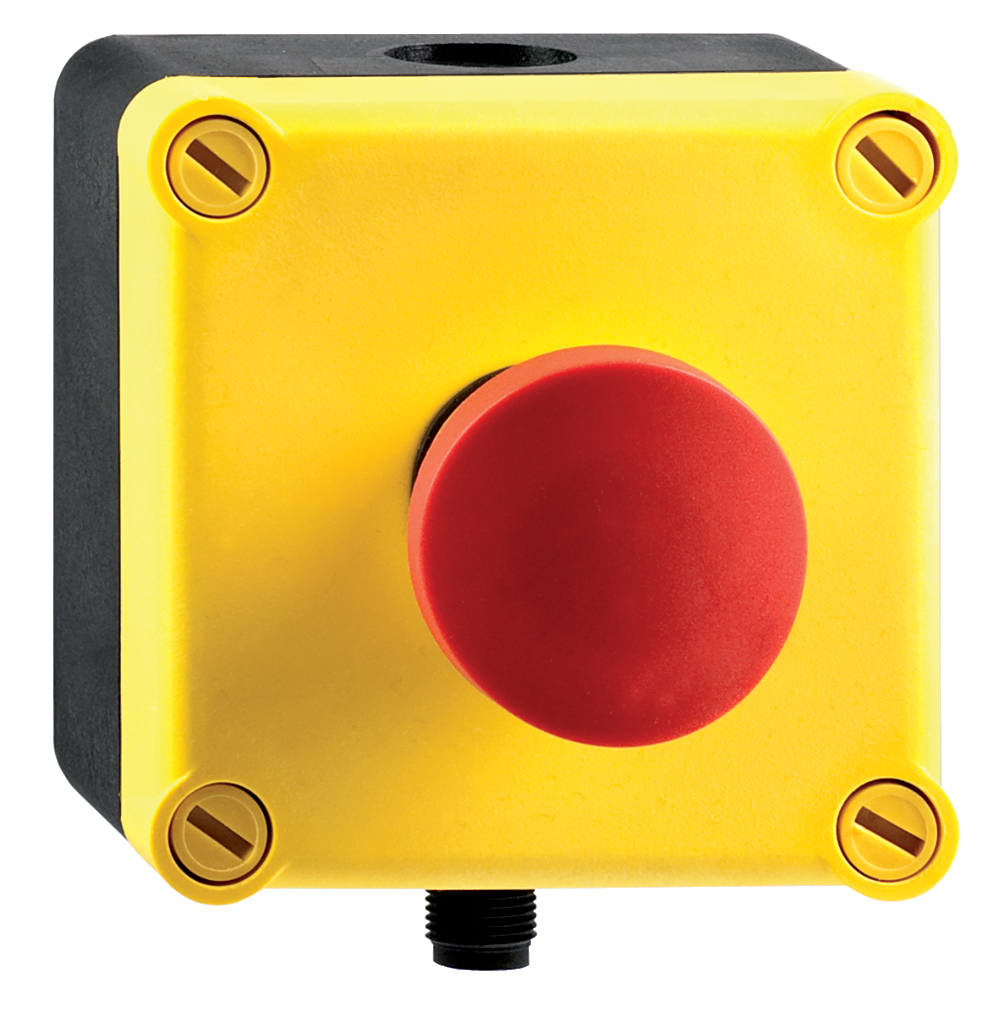

Product picture (catalogue individual photo)
ID: knas3f01
| 802.8 kB | .jpg | 352.425 x 357.011 mm - 999 x 1012 px - 72 dpi
| 49.7 kB | .png | 73.73100000000001 x 74.789 mm - 209 x 212 px - 72 dpi
| 96.9 kB | .jpg | 122.061 x 123.47200000000001 mm - 346 x 350 px - 72 dpi
| 73.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 5.5 MB | .png | 169.333 x 171.45000000000002 mm - 2000 x 2025 px - 300 dpi

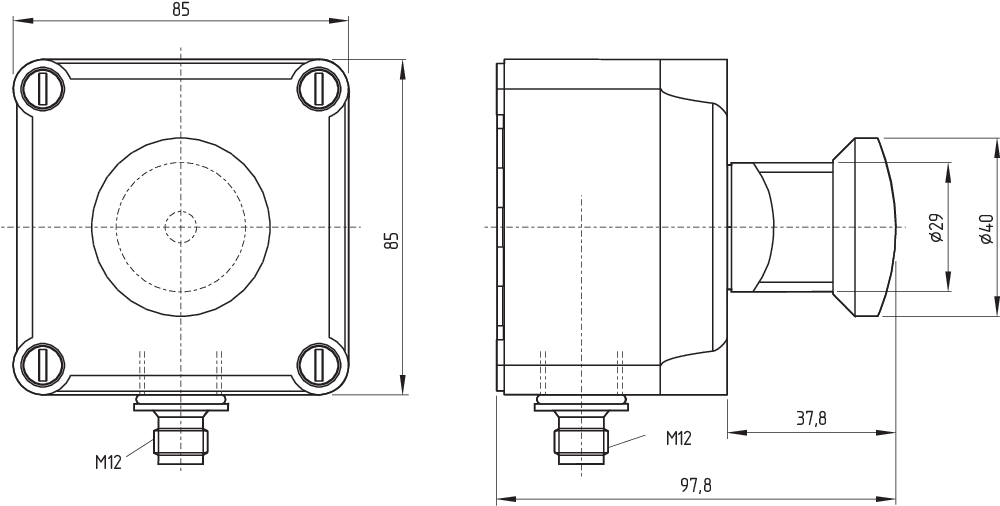

Dimensional drawing basic component
Contact arrangement
