MS-AZM40-BDF40-R
MS-AZM40-BDF40-R
Downloads
- Connection cover for AZM40 and BDF40 or BDF20
- AZM40 hinged on the right
Ordering data
| Product type description |
MS-AZM40-BDF40-R |
| Article number (order number) |
133057002 |
| EAN (European Article Number) |
8905236108372 |
| eCl@ss number, version 12.0 |
27-37-12-92 |
| eCl@ss number, version 11.0 |
27-37-12-92 |
| eCl@ss number, version 9.0 |
27-27-26-92 |
| ETIM number, version 7.0 |
EC000225 |
General data
| Design |
Tamper protection cover |
| Installation conditions (mechanical) |
Screw mounting |
| Housing material |
Plastic |
| Colour of the housing |
Black |
| Gross weight |
63 g |
Mechanical data
| Mounting |
Screws |
Mechanical data - Dimensions
| Width |
40 mm |
Ambient conditions
| Ambient temperature |
-25 ... +65 °C |
Scope of delivery
| Note (scope of delivery, number and type) |
Befestigungsschrauben nicht im Lieferumfang enthalten |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Download the latest version of Adobe Reader

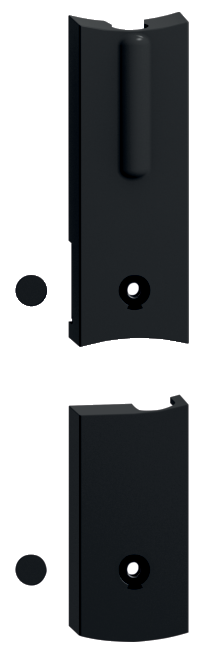

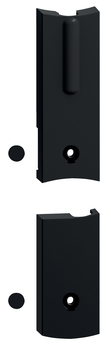

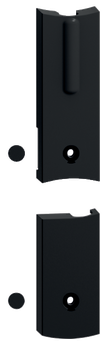

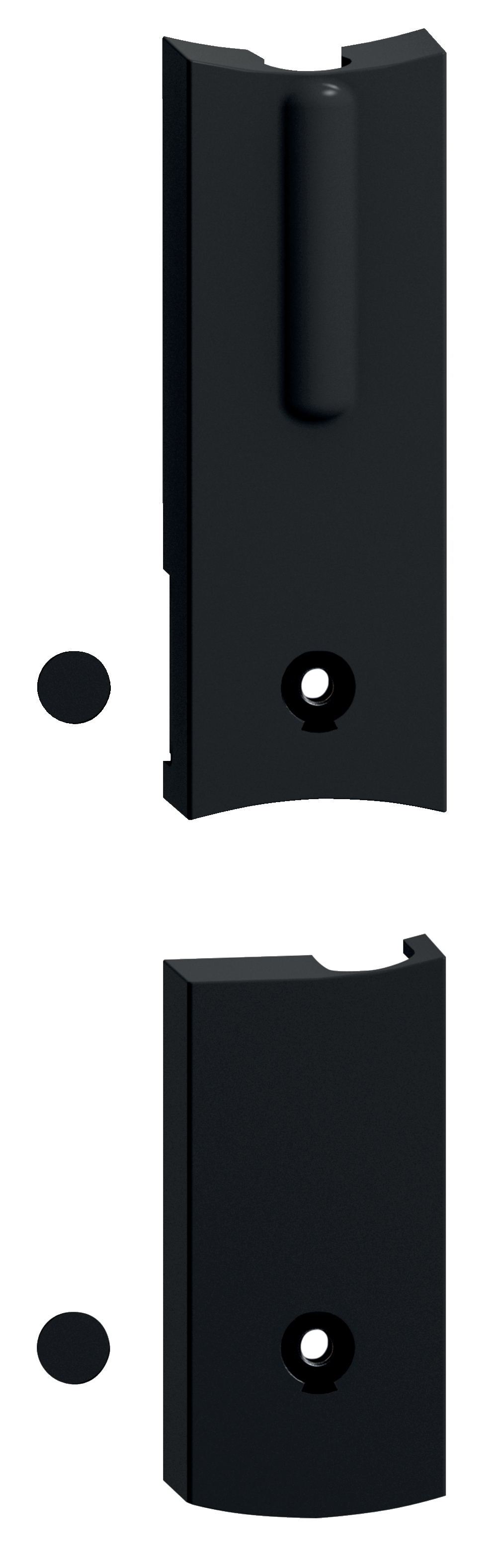

Product picture (catalogue individual photo)
ID: kaz40f75
| 664.9 kB | .jpg | 352.778 x 1113.719 mm - 1000 x 3157 px - 72 dpi
| 59.6 kB | .png | 74.083 x 233.89200000000002 mm - 210 x 663 px - 72 dpi
| 27.5 kB | .png | 39.158 x 123.472 mm - 111 x 350 px - 72 dpi
| 14.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 3.9 MB | .png | 169.333 x 534.67 mm - 2000 x 6315 px - 300 dpi
| 12.0 kB | .jpg | 39.158 x 123.47200000000001 mm - 111 x 350 px - 72 dpi
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
