MS-1051
MS-1051
Downloads
- The central fixation is an alternative fixation possibility to the side of the profile.
- mounting kit for central fixation
- for SLC / SLG 420 - 425
Ordering data
| Product type description |
MS-1051 |
| Article number (order number) |
101207758 |
| eCl@ss number, version 12.0 |
27-27-27-92 |
| eCl@ss number, version 11.0 |
27-27-27-92 |
| eCl@ss number, version 9.0 |
27-27-27-92 |
| ETIM number, version 7.0 |
EC002549 |
| ETIM number, version 6.0 |
EC002549 |
General data
| Material of the mounting angle |
Steel |
| Gross weight |
500 g |
Mechanical data - Dimensions
| Width |
40 mm |
| Height |
42 mm |
| Depth |
38 mm |
Scope of delivery
| Scope of delivery of mounting material |
2x Mounting angle 4x Screws 4x T-slot nuts |
Accessory
| Recommendation (product combination) |
SLC SLG 420 - 425 |
Note
| Note (General) |
In case of higher mechanical loads (e.g. vibrations) combining the central mounting brackets is recommended. |

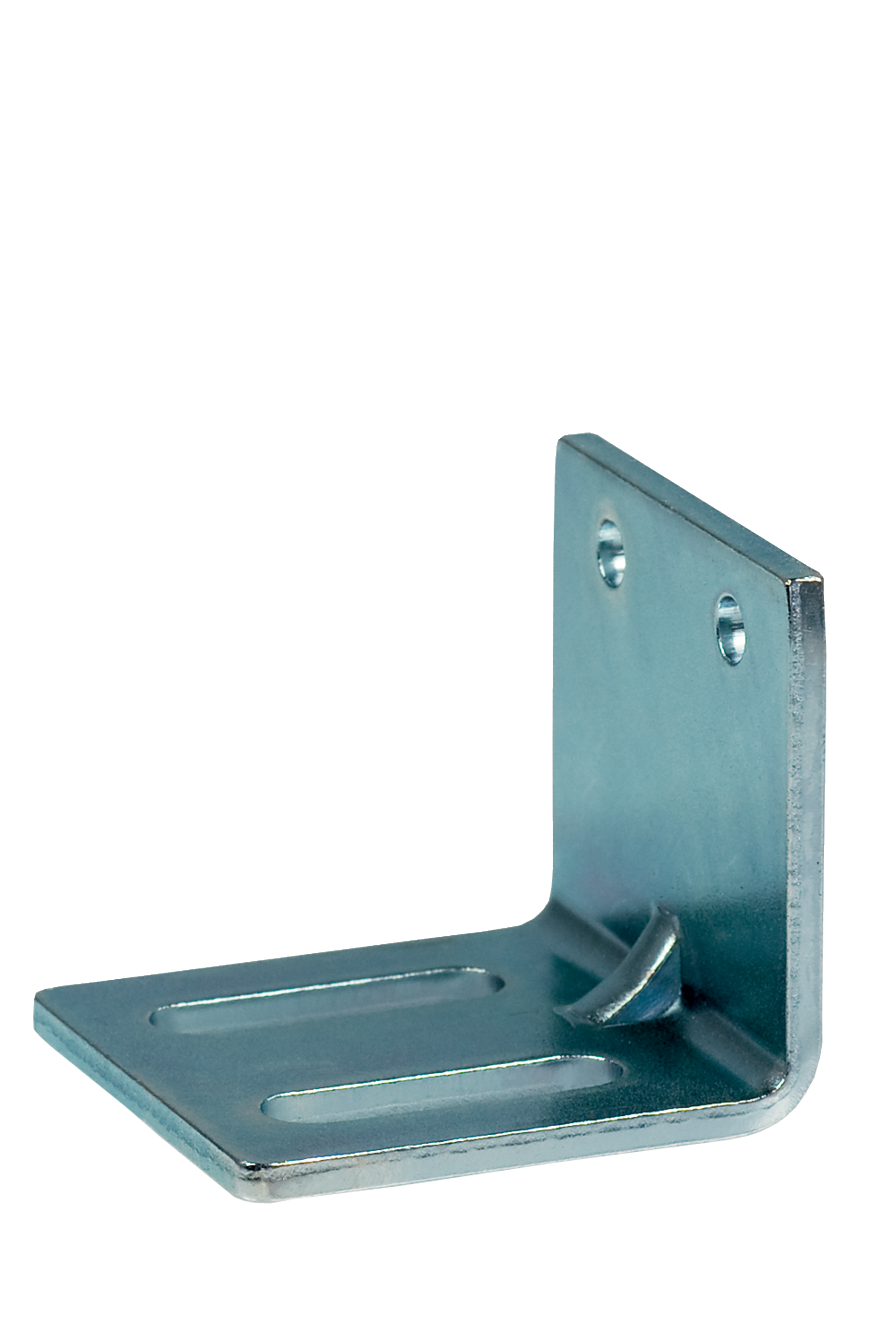

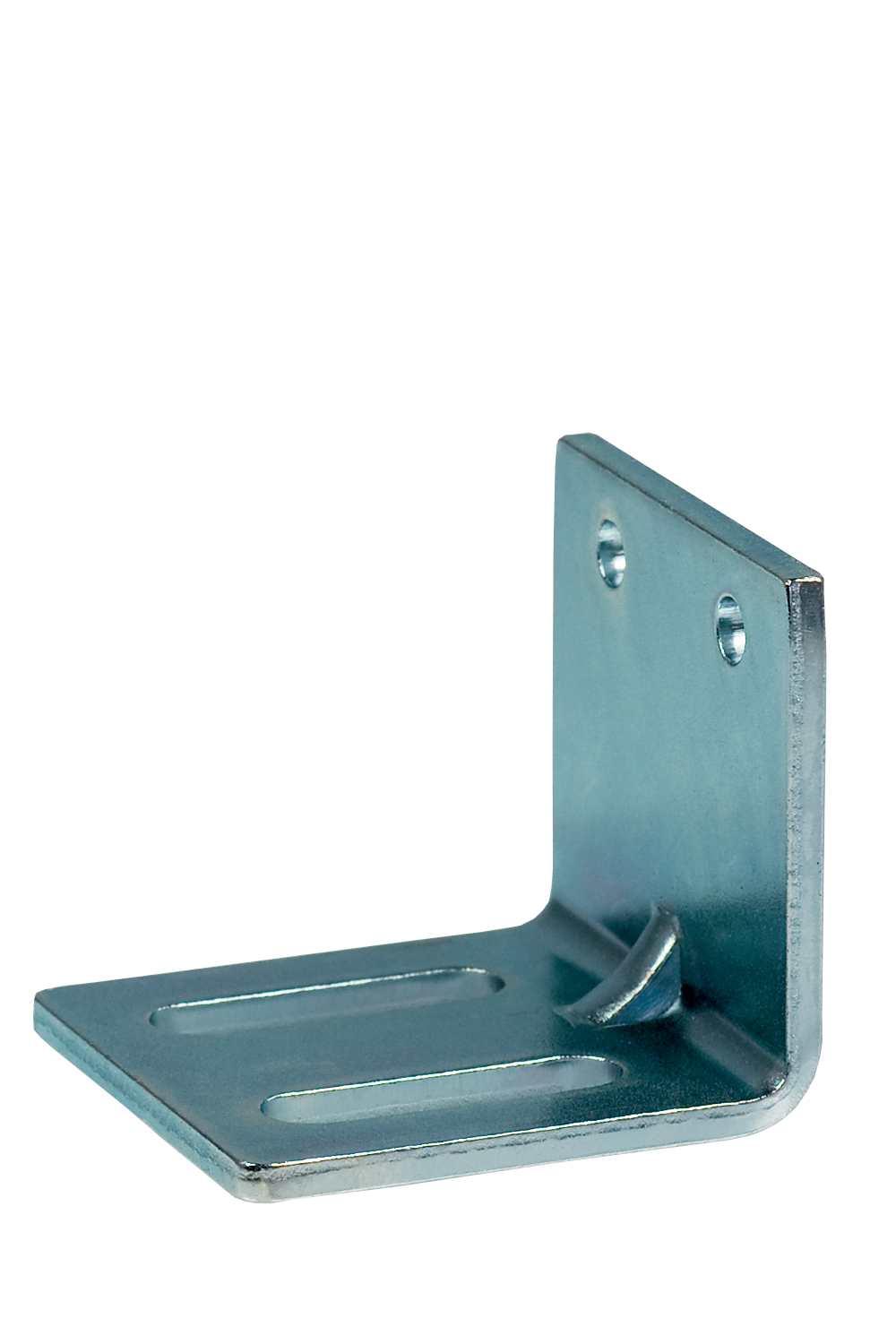

Product picture (catalogue individual photo)
ID: kms-1f05
| 443.7 kB | .jpg | 352.778 x 529.167 mm - 1000 x 1500 px - 72 dpi
| 30.2 kB | .png | 73.73100000000001 x 110.772 mm - 209 x 314 px - 72 dpi
| 25.6 kB | .jpg | 82.197 x 123.47200000000001 mm - 233 x 350 px - 72 dpi
| 21.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 2.9 MB | .png | 199.9 x 299.90000000000003 mm - 1999 x 2999 px - 254 dpi
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
