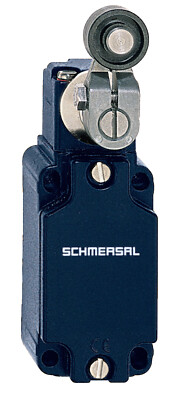

M 330 roller lever 8H
- Metal enclosure
- Long life
- 40 mm x 76 mm x 40 mm ( basic component)
- Suitable for low actuating speeds
- 1 Cable entry M 20 x 1.5
- free of silicon
- proved in power station applications
- Actuator head can be repositioned in steps 4 x 90°
| Product type description: M(1) 330-11Y-(2)-(3) |
| (1) | |
| S | Plunger S |
| 2S | Telescopic plunger 2S |
| R | Roller plunger R |
| K | Offset roller lever K |
| 3K | Angle roller lever 3K |
| 3S | Side plunger 3S |
| 3R | Side roller plunger 3R |
| AF | Spring rod lever AF |
| 4D | Fork roller level 4D |
| 8H | Roller lever 8H |
| 7H | Roller lever 7H |
| 10H | Rod lever 10H |
| H | Roller lever H |
| 4H | Spring rod lever on shaft 4H |
| 2H | Leaf spring lever 2H |
| 3H | Roller lever 3H |
| 9H | Rod lever 9H |
| 6H | Leaf spring lever 6H |
| (2) | |
| without | without LED switching conditions display |
| G24 | with LED switching conditions display |
| (3) | |
| AuNi | Gold-nickel alloy contacts |
| 1164 | Splined shaft and lever available with 10° toothing |
| 1366 | For temperatures up to +160°C |
Not all component variants, which are possible according to this order code are available and/or technically feasible.
