HHS16-BL-SW-2-POL
- hygienic design
- lockable with a lock
Ordering data
| Product type description |
HHS16-BL-SW-2-POL |
| Article number (order number) |
103044285 |
| EAN (European Article Number) |
4030661617848 |
| eCl@ss number, version 12.0 |
27-37-14-03 |
| eCl@ss number, version 11.0 |
27-37-14-03 |
| eCl@ss number, version 9.0 |
27-37-14-03 |
| ETIM number, version 7.0 |
EC000216 |
| ETIM number, version 6.0 |
EC000216 |
Approvals - Standards
| Certificates |
hygiene tested |
General data
| Standards |
EN IEC 60947-5-1 EN IEC 60204-1 DIN EN 1672-2 ANSI/UL 60947-1 ANSI/UL 60947-4-1A |
| Climatic stress |
DIN IEC 60068-2-78 DIN IEC 60068-2-30 |
| Versions |
Front plate mounting Main switch 16 A |
| Design |
Round Small marking plate |
| Installation conditions (mechanical) |
all surfaces min 3° to the horizontal |
| Toggle |
long |
| Sealing type |
Membrane Lip gaskets |
| Material of the marking plate |
Stainless steel (V4A) |
| Material of the bracket |
Stainless steel (V4A) |
| Material of the front ring |
Stainless steel (V4A) |
| Material of the toggle |
ABS |
| Colour of the marking plate |
Silver |
| Colour of the bracket |
Silver |
| Colour of the Contact element |
Black |
| Colour of the front ring |
Silver |
| Colour of the handle |
Black |
| Colour of the bellows |
Blue |
| Colour of the sealing |
Blue |
| Gross weight |
220 g |
General data - Features
| Lockable neutral position |
Yes |
| Latching |
Yes |
| Number of switch positions |
1 |
| Number of main contacts |
2 |
| Anti-torsion protection |
Yes |
Safety classification
| Mission time |
20 Year(s) |
Mechanical data
| Unlocking |
Rotating unlatcher |
| Latching position |
right |
| Mechanical lifetime, minimum |
100,000 Operations |
| Switching angle, right |
90 ° |
| Mounting |
central nut |
| Tightening torque of nuts, maximum |
4 Nm |
| Mounting position main contacts |
0° |
Mechanical data - Connection technique
| Cable section, minimum |
1 mm², rigid 1 mm², flexible |
| Cable section, maximum |
2.5 mm², rigid 2.5 mm², flexible |
| Note |
All indications including the conductor ferrules. |
| Wire cross-section |
12 AWG |
| Tightening torque of Clips |
2.5 Nm |
| Terminal (mechanical) |
Screw terminals |
Mechanical data - Dimensions
| Length |
80 mm |
| Width |
70 mm |
| Height |
95 mm |
| Mounting height |
32 mm |
| Note (Mounting height) |
Height in front of the front panel. |
| Mounting depth |
58 mm |
| Note (Mounting depth) |
Depth behind front panel including cam switch |
| Diameter of the front ring |
45 mm |
| Length of the handle |
52.5 mm |
| Mounting diameter |
22.3 mm |
| Thickness, of the front panel, minimum |
1.5 mm |
| Thickness of the front panel, maximum |
6 mm |
| Note |
Size backing plate 70 mm x 80 mm |
Ambient conditions
| Degree of protection |
IP67 IP69K |
| Ambient temperature |
+0 ... +80 °C |
| Relative humidity, maximum |
93 % |
| Note (Relative humidity) |
non-condensing non-icing |
| Resistance to vibrations |
5 g |
| Restistance to shock |
<50 g (EN 60068-2-27) |
| Permissible installation altitude above sea level, maximum |
2,000 m |
| Ambient temperature, switch element, maximum |
open +50 °C encapsulated +40 °C |
| Ambient temperature, switch element, minimum |
open -25 °C encapsulated -25 °C |
Ambient conditions - Insulation values
| Rated impulse withstand voltage Uimp |
4 kV |
Electrical data
| Thermal test current |
20 A |
| Rated operating voltage |
690 VAC |
| Required rated short-circuit current |
10,000 A |
| Switching capacity, AC-3 |
5,500 W |
| Switching capacity, AC-23 |
7,500 W |
| Switching principle |
Slow action |
Other data
| Note (applications) |
Main switch with black toggle Rotary Cam Switch, Product line M200, Type series M220, Front mounting switch |
Scope of delivery
| Note (scope of delivery, number and type) |
Scope of delivery with contact carrier SMF-SG without strengthening plate, with marking plate |
Language filter
Datasheet
Operating instructions and Declaration of conformity
Manufacturer's declaration KAS
DGUV-Certificate
Download the latest version of Adobe Reader

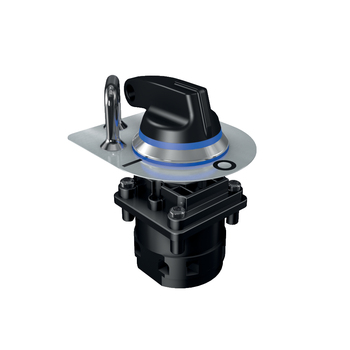

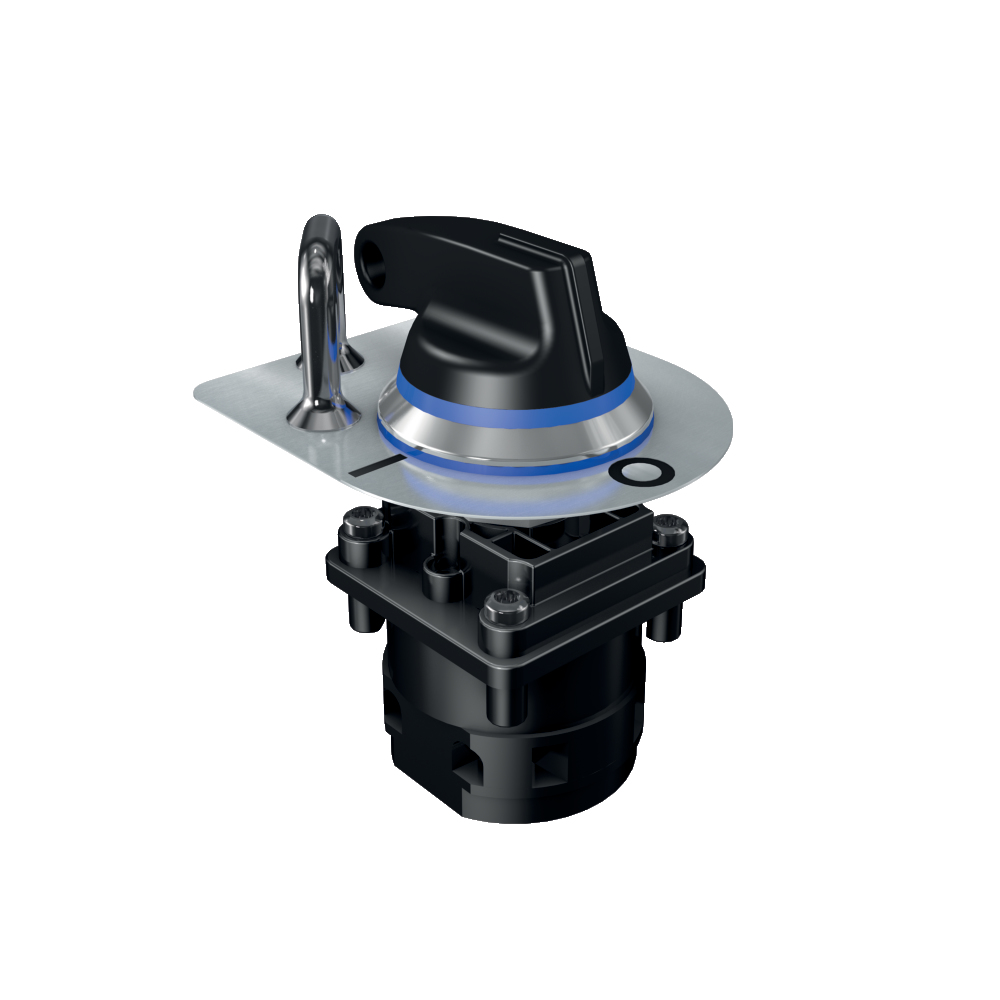

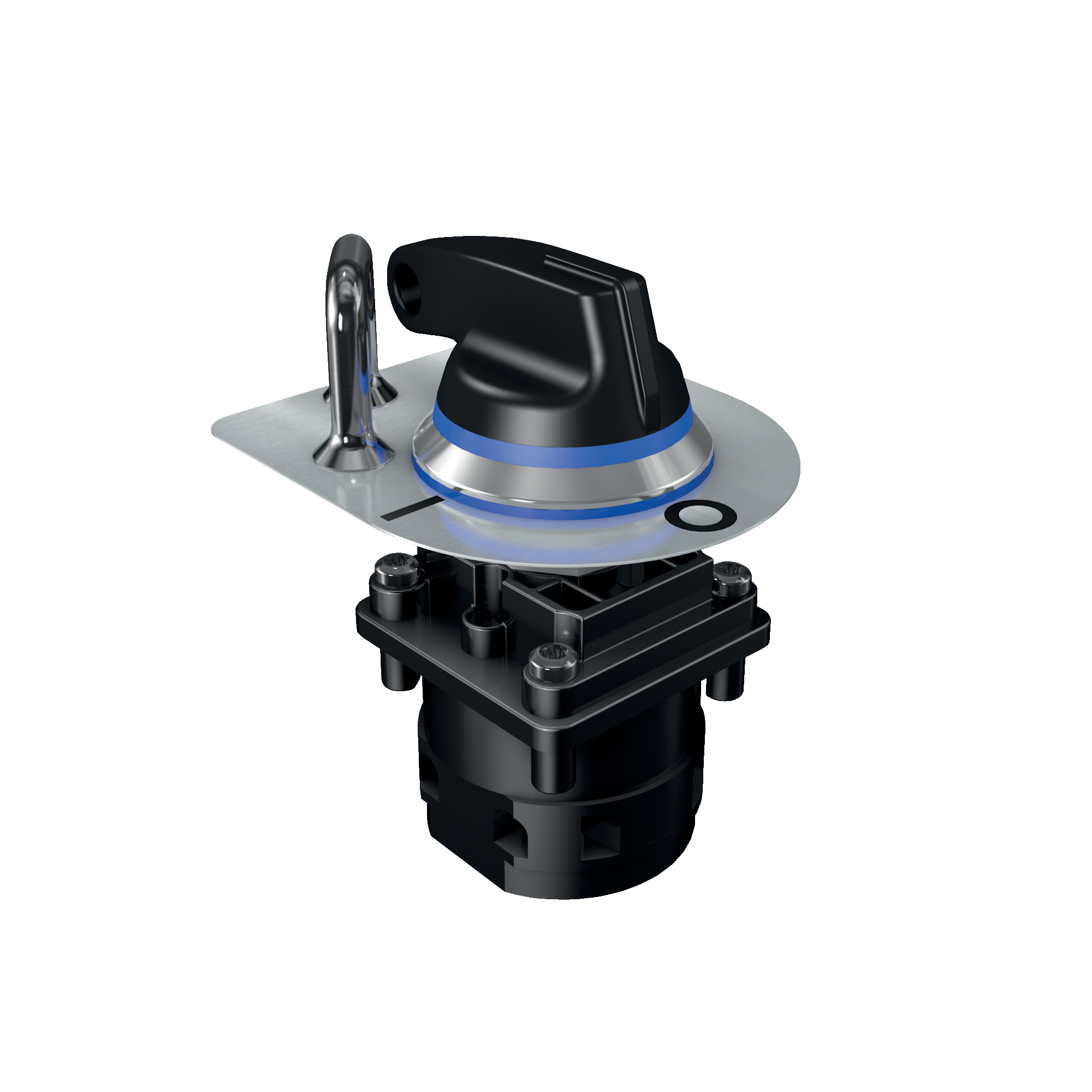

Product picture (catalogue individual photo)
ID: khhs-f01
| 138.8 kB | .jpg | 352.778 x 352.778 mm - 1000 x 1000 px - 72 dpi
| 21.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 28.8 kB | .jpg | 123.47200000000001 x 123.47200000000001 mm - 350 x 350 px - 72 dpi
| 23.1 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 1.2 MB | .png | 169.333 x 169.333 mm - 2000 x 2000 px - 300 dpi
Dimensional drawing basic component
103048590 SMF-SG
- mounting flange
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | H program |
| Type: | See ordering code |
| Description of the component: | Command and signalling devices optionally as indicator lights, push buttons, illuminated push buttons, mushroom head impact buttons and switches, selector switches and selector buttons in conjunction with contact element and light elements CLP as well as potentiometer drives, step selector switches and main switches. |
| Relevant Directives: | Low Voltage Directive | 2014/35/EU |
| EMC-Directive | 2014/30/EU | |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 60947-5-1:2017 + AC:2020 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, June 18, 2024 |
 |
| Authorised signature Philip Schmersal Managing Director |
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
