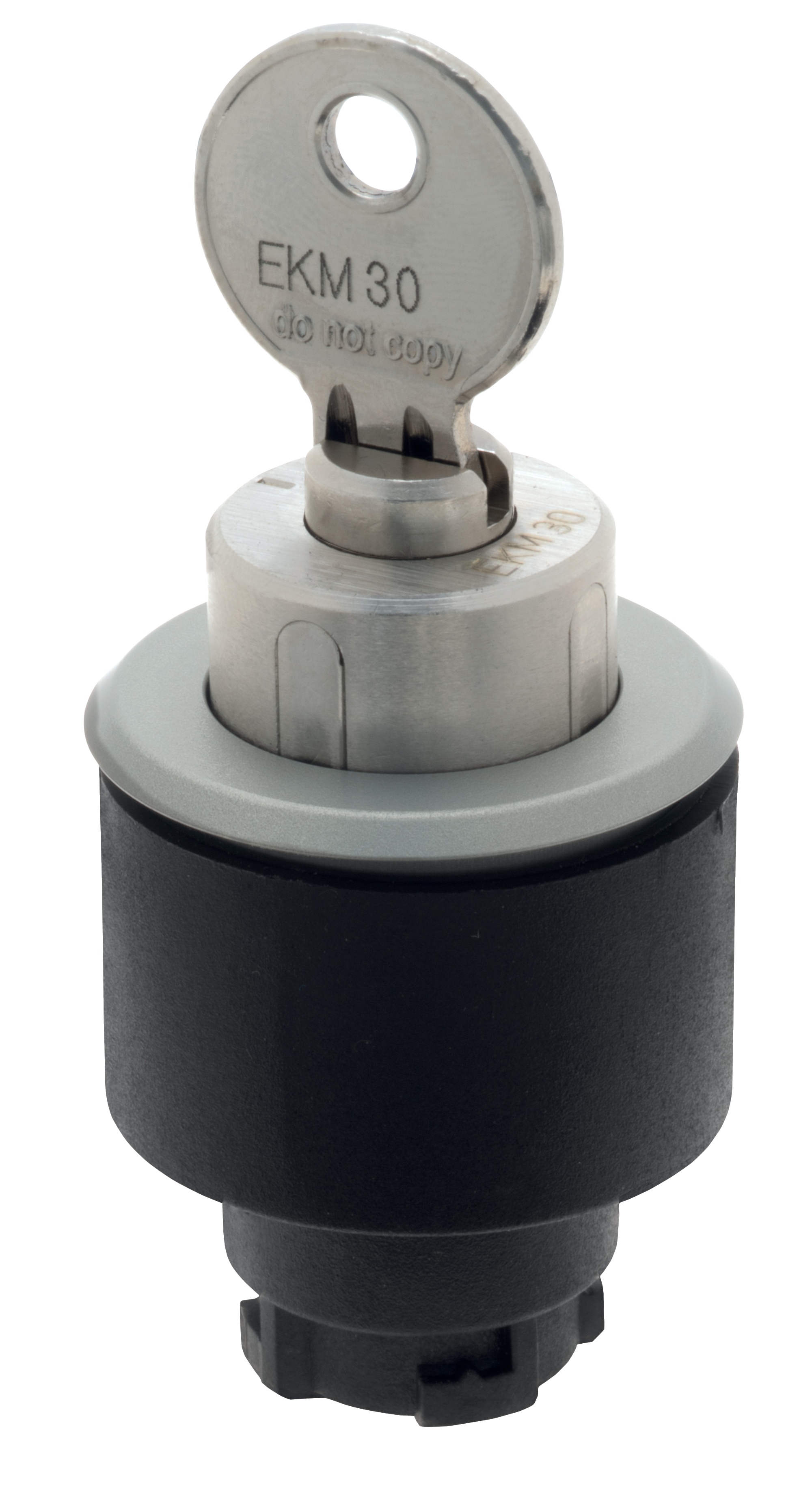

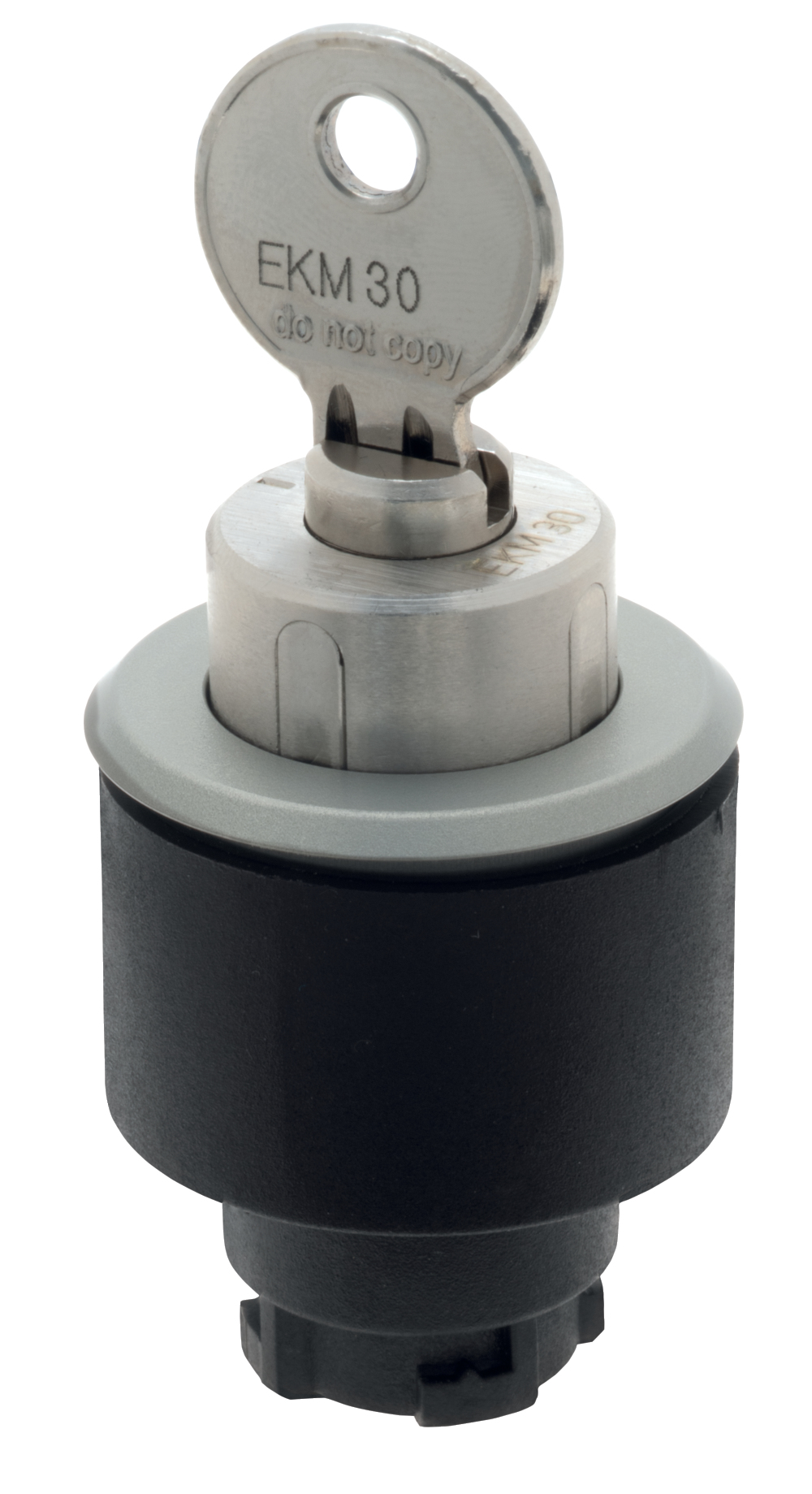

ESS21S12.V

Item number: 101006163
ESS21S12.V

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Mounting hole 30.5 mm
  • Protection class IP65
  • Key unlatching
  • Flush mounting (Anti-vandal)

Ordering data

Product type description

ESS21S12.V
Article number (order number)

101006163
EAN (European Article Number)

4030661548548
eCl@ss number, version 12.0

27-37-12-13
eCl@ss number, version 11.0

27-37-12-13
eCl@ss number, version 9.0

27-37-12-13
ETIM number, version 7.0

EC000222
ETIM number, version 6.0

EC000222

General data

Standards

EN IEC 60947-5-1

EN IEC 60947-5-5

EN IEC 60947-1
Versions

Front plate mounting

Key - Selector switch
Design

Round
Installation conditions (mechanical)

arbitrarily
Sealing type

Membrane

Lip gaskets

Form seals
Material of the cylinder lock

Steel
Material of the front ring

Aluminium
Colour of the cylinder lock

Silver
Colour of the front ring

Silver
Gross weight

139 g

General data - Features

Latching

Yes
Fully insulated

Yes
Number of plunger

1
Number of switch positions

2
Number of contact elements, maximum

3

Mechanical data

Unlocking

Key unlatching
Key withdrawal position

Position 0 and I
Latching position

right
Mechanical lifetime, Command devices

100,000 Operations
Switching angle, right

90 °
Mounting

Mounting flange EFM
Tightening torque of the screw

0.6 Nm
Key number

EKM30

Mechanical data - Dimensions

Mounting height

16 mm
Note (Mounting height)

Height in front of the front panel.
Diameter of the front ring

34.5 mm
diameters for the cylinder lock

22 mm
Mounting diameter

30.5 mm
Height with key inserted

39 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

40 x 50 mm

Ambient conditions

Degree of protection

IP65
Ambient temperature

+0 ... +75 °C
Resistance to vibrations

5 g

Restistance to shock

<50 g (EN 60068-2-27)

Other data

Note (applications)

Monitoring of zero position with additional contact element at position 3 of the mounting flange.

Scope of delivery

Scope of delivery

1x Key
Note (scope of delivery, number and type)

Mounting flange EFM is included in delivery

Note

Note (General)

Special closure on request
