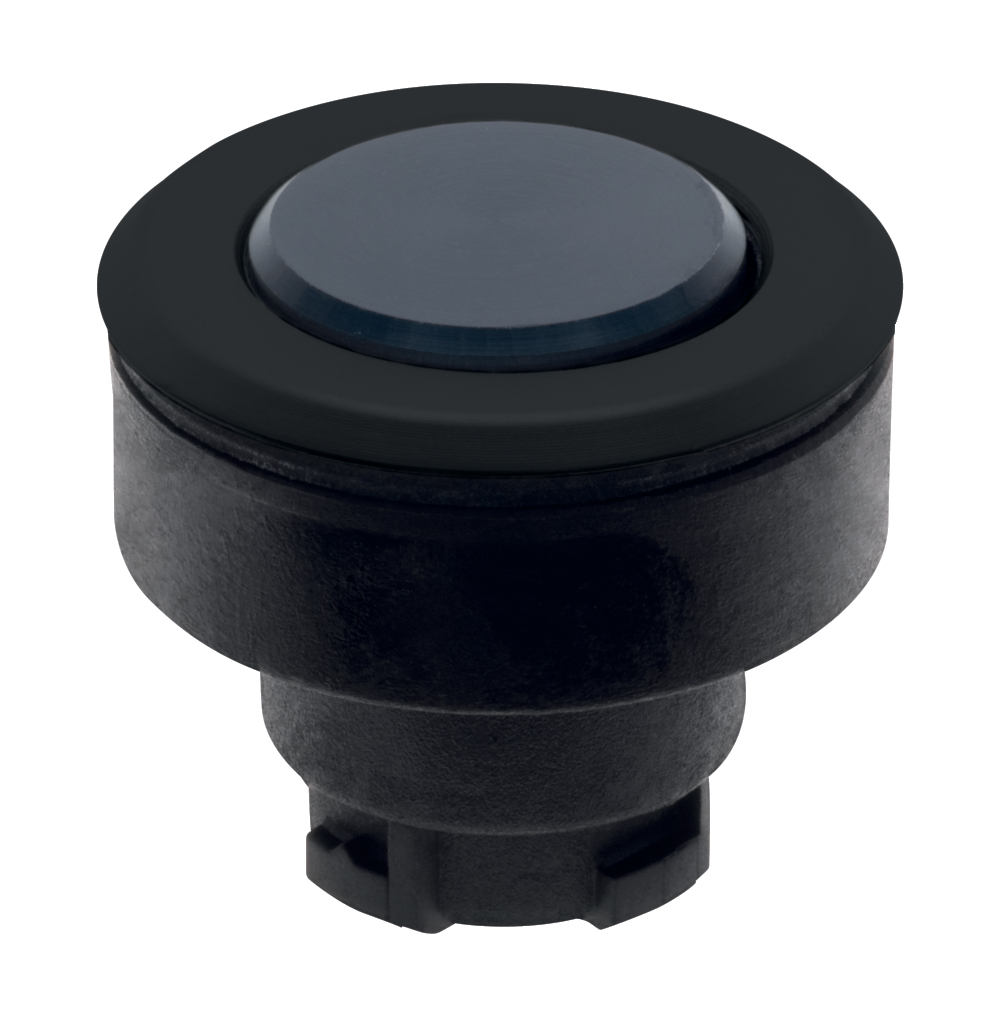

EDT.VSW/SWELOX.

Item number: 101194687
EDT.VSW/SWELOX.

Downloads

ePLAN Data
CADENAS CAD Data
SISTEMA Data
  • Mounting hole 30.5 mm
  • Protection class IP65
  • Flush mounting (Anti-vandal)

Ordering data

Product type description

EDT.VSW/SWELOX.
Article number (order number)

101194687
EAN (European Article Number)

4030661601779
eCl@ss number, version 12.0

27-37-12-10

General data

Standards

EN IEC 60947-5-1

EN IEC 60947-1
Versions

Pushbutton
Design

Round

Tactile
Installation conditions (mechanical)

arbitrarily
Sealing type

Form seals
Material of the operators

Aluminium, anodised
Material of the front ring

Aluminium, anodised
Colour of the operating element

Black
Colour of the front ring

Black
Gross weight

35 g

General data - Features

Mounting flange

Yes
Probing possible

Yes
Fully insulated

Yes
Number of contact elements, maximum

3

Mechanical data

Unlocking

without
Mechanical lifetime, Command devices

1,000,000 Operations
Mounting

Mounting flange EFM
Tightening torque of the screw

0.6 Nm
Typical actuating force of the push button

1.5 N
Actuating stroke, minimum

4 mm
Actuating stroke, maximum

5 mm

Mechanical data - Dimensions

Mounting height

2.5 mm
Note (Mounting height)

Height in front of the front panel.
Height of touch surface

0.5 mm
Diameter of touch surface

20 mm
Diameter of the front ring

29.5 mm
Mounting diameter

30.5 mm
Thickness, of the front panel, minimum

1 mm
Thickness of the front panel, maximum

6 mm
Spacing

40 x 50 mm

Ambient conditions

Degree of protection

IP65
Ambient temperature

-25 ... +75 °C
Resistance to vibrations

5 g

Restistance to shock

<50 g (EN 60068-2-27)

Electrical data

Switching frequency of the command device, maximum

1,000 /h

Scope of delivery

Note (scope of delivery, number and type)

Mounting flange EFM is included in delivery

K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal

The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
