BPS 260-1
- Actuator and sensor on a mounting level
Ordering data
| Product type description |
BPS 260-1 |
| Article number (order number) |
101184395 |
| EAN (European Article Number) |
4030661321936 |
| eCl@ss number, version 12.0 |
27-27-26-06 |
| eCl@ss number, version 11.0 |
27-27-24-04 |
| eCl@ss number, version 9.0 |
27-27-24-04 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Housing material |
Plastic |
| Gross weight |
16 g |
| Note |
Actuator and sensor on a mounting level |
Mechanical data
| Actuation direction |
0° |
Mechanical data - Dimensions
| Length of the actuator |
36 mm |
| Width of the actuator |
26 mm |
| Height of the actuator |
13 mm |

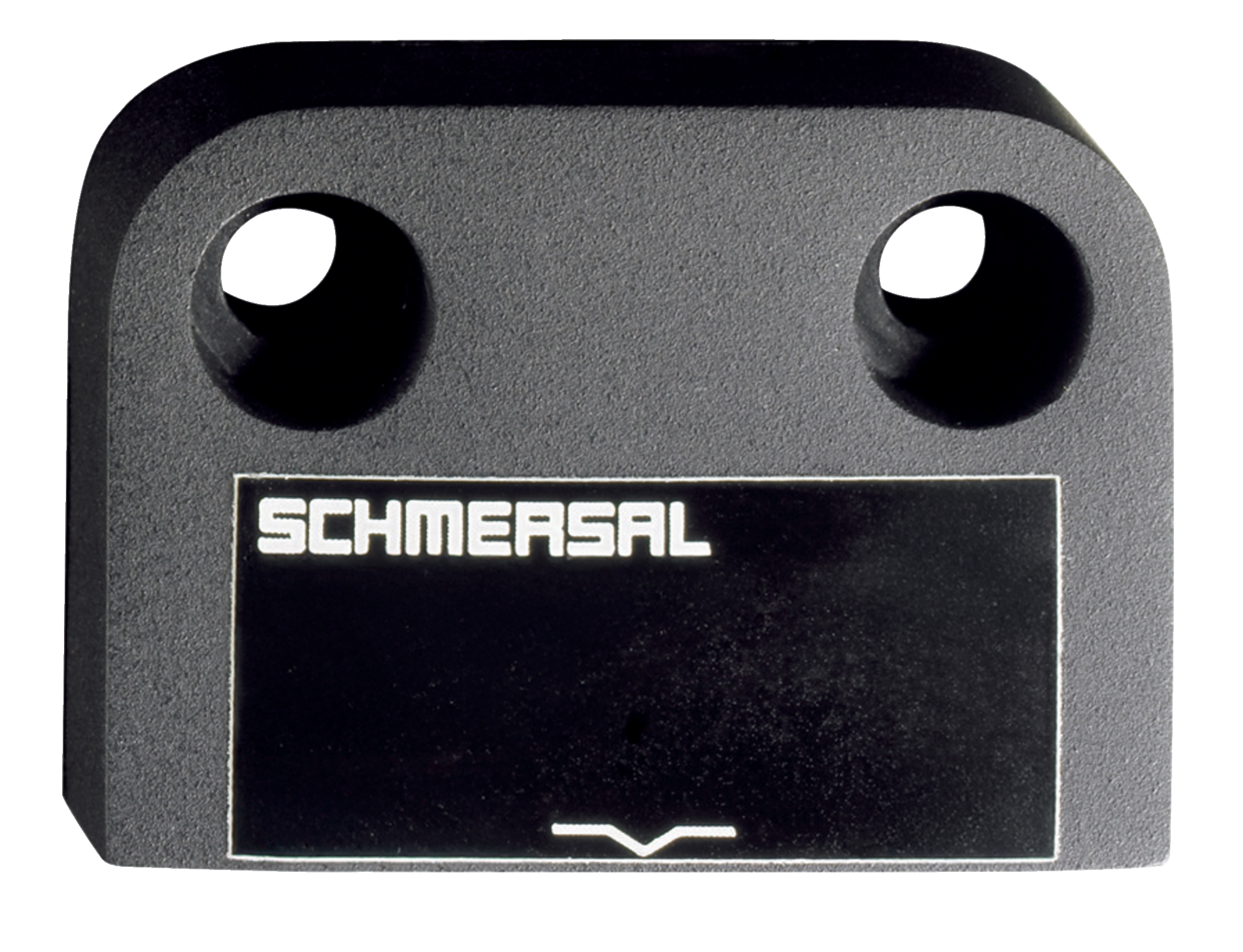

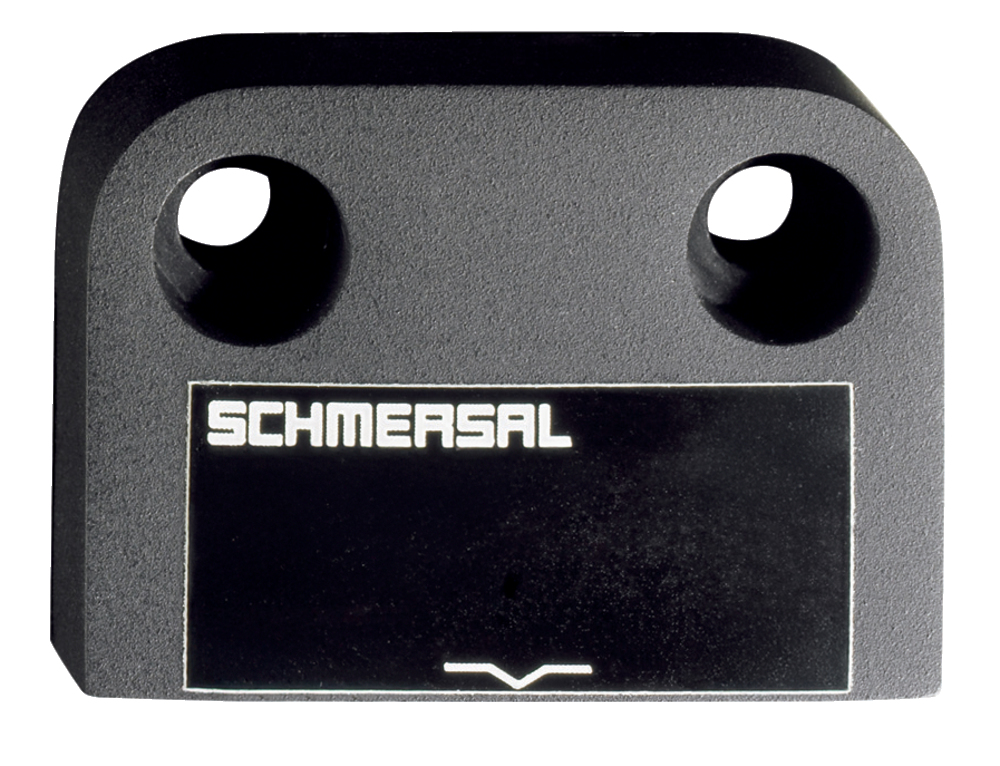

Product picture (catalogue individual photo)
ID: kbns2f20
| 441.9 kB | .jpg | 352.778 x 270.228 mm - 1000 x 766 px - 72 dpi
| 59.2 kB | .png | 74.083 x 56.797000000000004 mm - 210 x 161 px - 72 dpi
| 57.2 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.7 MB | .png | 169.333 x 129.709 mm - 2000 x 1532 px - 300 dpi
| 60.5 kB | .jpg | 123.47200000000001 x 94.54400000000001 mm - 350 x 268 px - 72 dpi
Dimensional drawing actuator
Characteristic curve
