BP 11 S
BP 11 S
Downloads
- -metal housing
- S-pole marked red
- Suitable for mounting on ferrous material
Ordering data
| Product type description |
BP 11 S |
| Article number (order number) |
101057533 |
| EAN (European Article Number) |
4030661027210 |
| eCl@ss number, version 12.0 |
27-27-40-02 |
| eCl@ss number, version 11.0 |
27-27-01-03 |
| eCl@ss number, version 9.0 |
27-27-01-03 |
| ETIM number, version 7.0 |
EC001487 |
| ETIM number, version 6.0 |
EC001487 |
General data
| Gross weight |
41 g |
Mechanical data - Dimensions
| Length of the actuator |
15 mm |
| Width of the actuator |
25 mm |
| Height of the actuator |
40 mm |

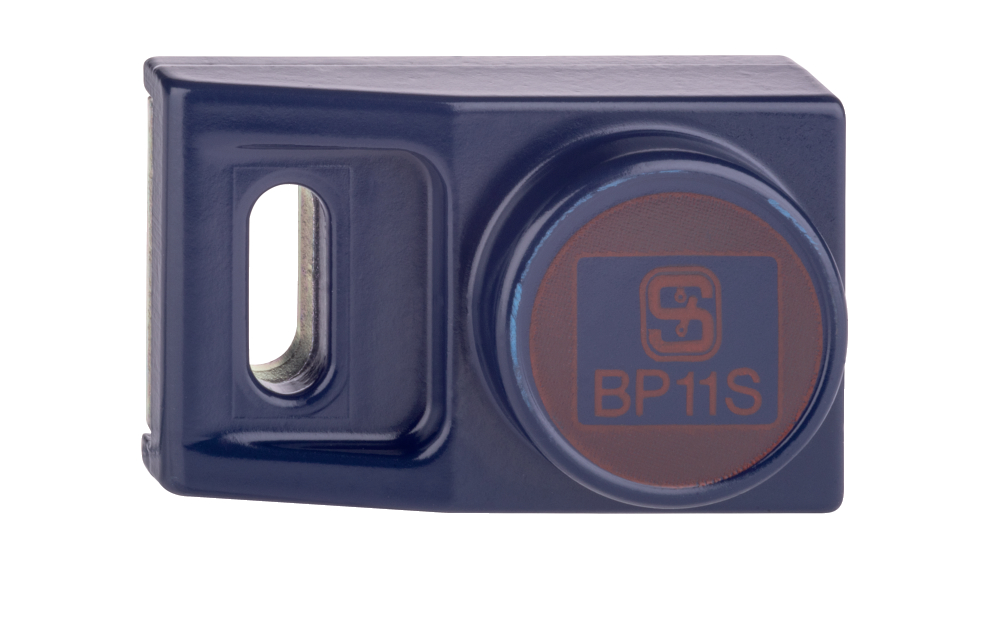

Product picture (catalogue individual photo)
ID: kbp11f02
| 280.7 kB | .jpg | 352.778 x 218.722 mm - 1000 x 620 px - 72 dpi
| 22.7 kB | .png | 74.083 x 45.861000000000004 mm - 210 x 130 px - 72 dpi
| 36.7 kB | .jpg | 123.47200000000001 x 76.553 mm - 350 x 217 px - 72 dpi
| 33.5 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 2.9 MB | .png | 169.333 x 104.98700000000001 mm - 2000 x 1240 px - 300 dpi
Dimensional drawing actuator
