ASIM-C-M12-8P-2M
- LED output 50 mA from AS-Interface
- Compact Safety-Input module
- Integrated in the passive junction
- for 2 potential-free NC contacts
- Protection class IP67
Ordering data
| Product type description |
ASIM-C-M12-8P-2M |
| Article number (order number) |
103004693 |
| EAN (European Article Number) |
4030661441078 |
| eCl@ss number, version 12.0 |
27-24-26-04 |
| eCl@ss number, version 11.0 |
27-24-26-04 |
| eCl@ss number, version 9.0 |
27-24-26-04 |
| ETIM number, version 7.0 |
EC001599 |
| ETIM number, version 6.0 |
EC001599 |
Approvals - Standards
| Certificates |
cULus |
General data
| Standards |
EN 50295 EN IEC 62061 EN ISO 13849-1 EN IEC 60947-5-1 EN IEC 60947-5-3 EN IEC 60947-5-5 EN IEC 60204-1 EN IEC 60947-1 |
| Housing material |
Glass-fibre, thermoplastic |
| Reaction time, maximum |
1 ms |
| Duration of risk, maximum |
5 ms |
| Gross weight |
145 g |
General data - Features
| Safety functions |
Yes |
| Integral system diagnostics, status |
Yes |
Safety classification
| Standards |
EN IEC 62061 |
| Performance Level, up to |
e |
| Category |
4 |
| Safety Integrity Level (SIL), suitable for applications in |
3 |
| Mission time |
20 Year(s) |
Mechanical data - Connection technique
| Length of cable |
2 m |
| Termination |
Connector, M12, 8-pole, A-coded |
| Material of the cable |
Polyurethane PUR |
Mechanical data - Dimensions
| Width |
27.7 mm |
| Height |
40.5 mm |
| Depth |
22 mm |
Ambient conditions
| Degree of protection |
IP67 |
| Ambient temperature |
-20 ... +60 °C |
| Storage and transport temperature |
-25 ... +80 °C |
| Relative humidity, minimum |
30 % |
| Relative humidity, maximum |
95 % |
| Note (Relative humidity) |
non-condensing non-icing |
| Resistance to vibrations |
10 … 57 Hz, amplitude 0.75 mm |
| Restistance to shock |
30 g / 11 ms |
| Protection class |
III |
Ambient conditions - Insulation values
| Rated insulation voltage Ui |
32 VDC |
| Rated impulse withstand voltage Uimp |
0.8 kV |
| Overvoltage category |
III |
| Degree of pollution |
3 |
Electrical data - AS Interface
| Rated operating voltage |
26.5 ... 31.6 VDC (Protection against polarity reversal) |
| AS-i Current consumption, maximum |
90 mA |
Electrical data - AS-Interface specification
| AS-i Version |
V 3.0 |
| AS-i Profile |
S-7.B.F.0 |
| AS-i Input, Channel 1 |
Data bits DI 0 / DI 1 = dynamic code transmission |
| AS-i Input, Channel 2 |
Data bits DI 2 / DI 3 = dynamic code transmission |
| AS-i Outputs, DO 0 |
LED-Output |
| AS-i Outputs, DO 1 … DO 3 |
No Function |
| AS-i Parameter bits, P0 |
Communication monitoring AS-i |
| AS-i Parameter bits, P1 ... P3 |
No function |
| Note (AS-i Parameter bits) |
Set the parameter outputs to "1111" (0xF) |
| AS-i Input module address |
0 |
| Note (AS-i Input module address) |
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device |

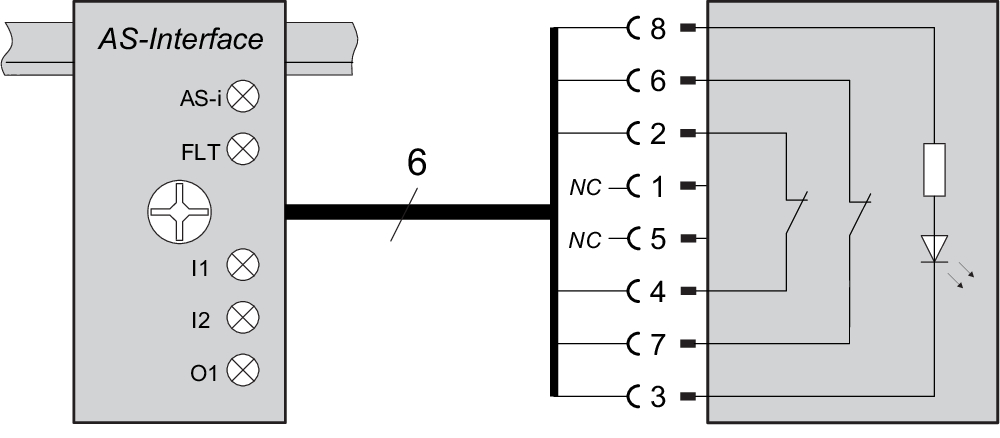

Status indication
| Note (LED switching conditions display) |
(1) green LED (AS-i LED): AS-i supply voltage / Slave address = 0 (2) red LED: AS-i communication error / Slave address = 0 (3) yellow LED: I1 = Status safety input 1 (4) yellow LED: I2 = Status safety input 2 (5) LED yellow: o1 = Status LED output |
Language filter
Datasheet
Operating instructions and Declaration of conformity
UL Certificate
SISTEMA-VDMA library
Download the latest version of Adobe Reader

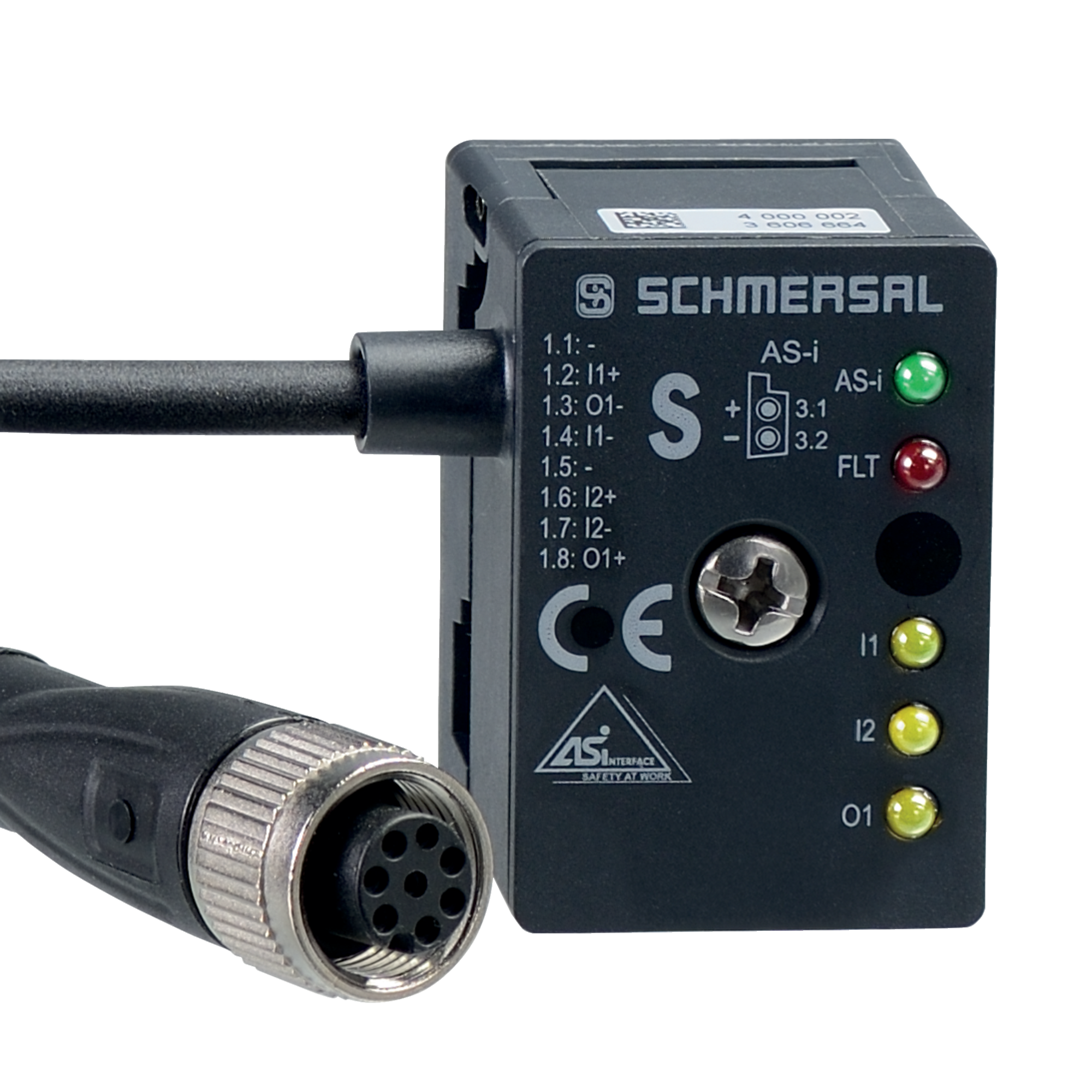

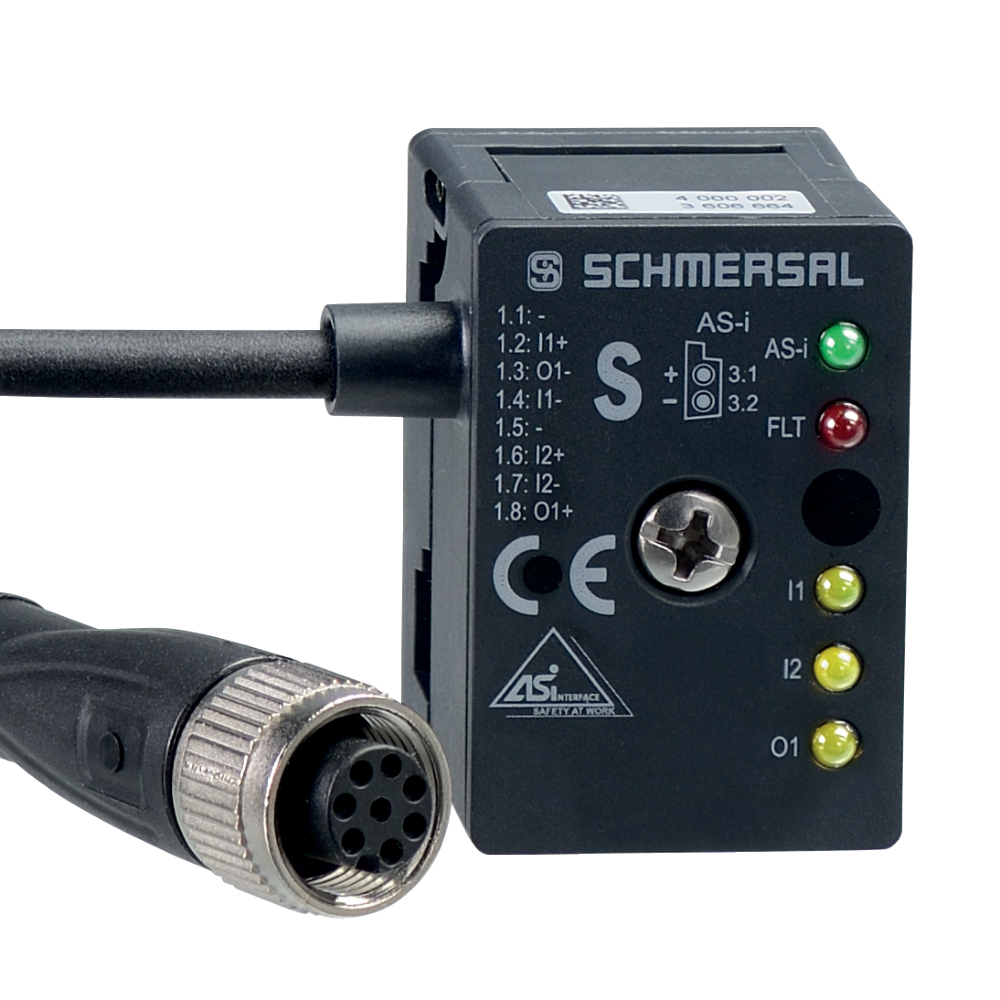

Product picture (catalogue individual photo)
ID: kasimf06
| 394.2 kB | .jpg | 352.778 x 352.778 mm - 1000 x 1000 px - 72 dpi
| 58.7 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 56.4 kB | .png | 74.083 x 74.083 mm - 210 x 210 px - 72 dpi
| 4.1 MB | .png | 169.333 x 169.333 mm - 2000 x 2000 px - 300 dpi
| 63.1 kB | .jpg | 123.47200000000001 x 123.47200000000001 mm - 350 x 350 px - 72 dpi
| EU Declaration of Conformity |  |
| Original | K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com |
| Declaration: | We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives. |
| Name of the component: | ASIM-C-M12 |
| Type: | See ordering code |
| Description of the component: | Safe AS-i input module for safety switchgear with contact outputs |
| Relevant Directives: | Machinery Directive | 2006/42/EC |
| EMC-Directive | 2014/30/EU | |
| RoHS-Directive | 2011/65/EU |
| Applied standards: | EN 62026-2:2013 EN ISO 13849-1:2015 IEC 61508 parts 1-7:2010 EN 62061:2005 + AC:2010 + A1:2013 + A2:2015 |
| Person authorised for the compilation of the technical documentation: | Oliver Wacker Möddinghofe 30 42279 Wuppertal |
| Place and date of issue: | Wuppertal, August 14, 2018 |
 |
| Authorised signature Philip Schmersal Managing Director |
K.A. Schmersal GmbH & Co. KG, Möddinghofe 30, 42279 Wuppertal
The details and data referred to have been carefully checked. Images may diverge from original. Further technical data can be found in the manual. Technical amendments and errors possible.
Generated at: 18/04/2026, 16:37
